Product Description

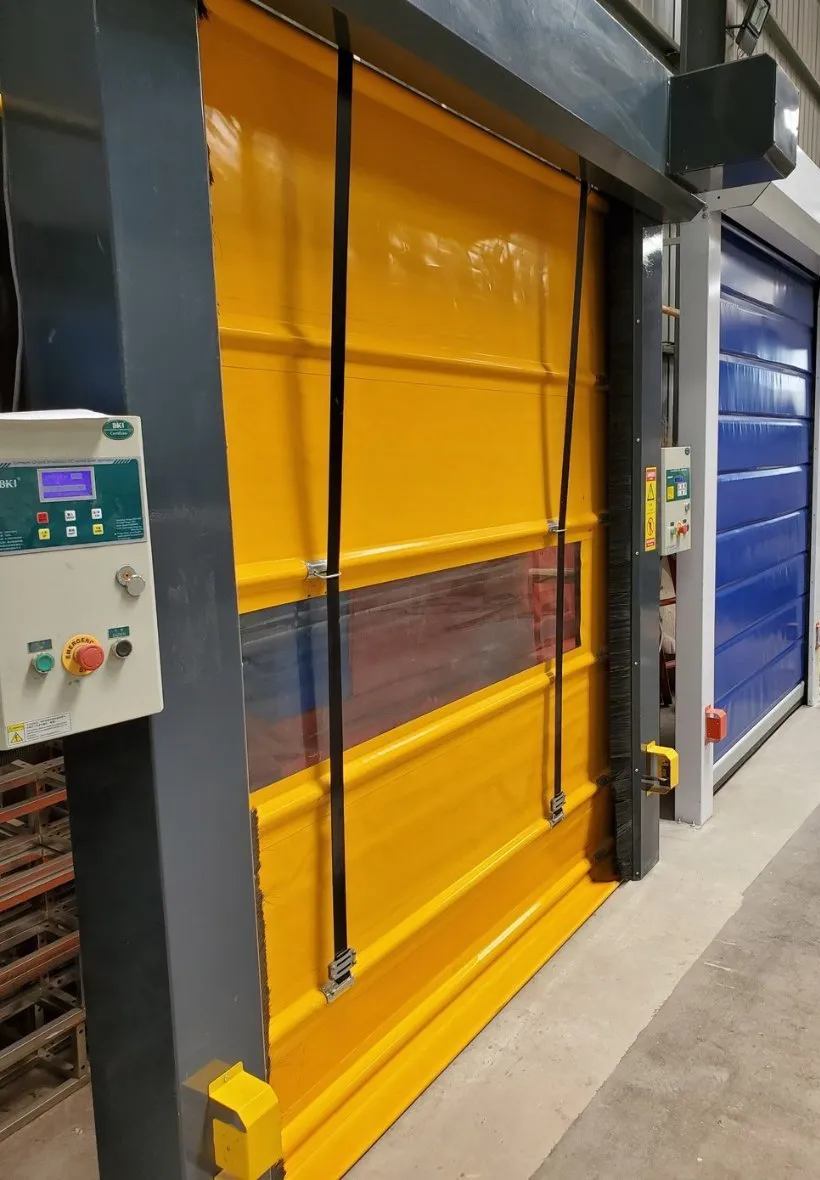

Photoelectric sensors (photocell sensor) are widely used in gate and door industry. Door sensors are mainly realized by means of microwave, infrared or laser detection. Infrared photoelectric sensors and infrared light curtain are most widely used in industrial doors such as high speed door, roller shutter door and sectional hard high speed door. When the people or object are detected by the infrared device (photocell or light curtain), no matter whether people move or not, as long as they are within the detecting range of sensors and light curtains, they will react and give the control output to protect people or objects from being pinched. Microwave radar is also a widely-used product in automatic door industry. It responds to the movement of people or objects, thus realizing the automatic door switch control.

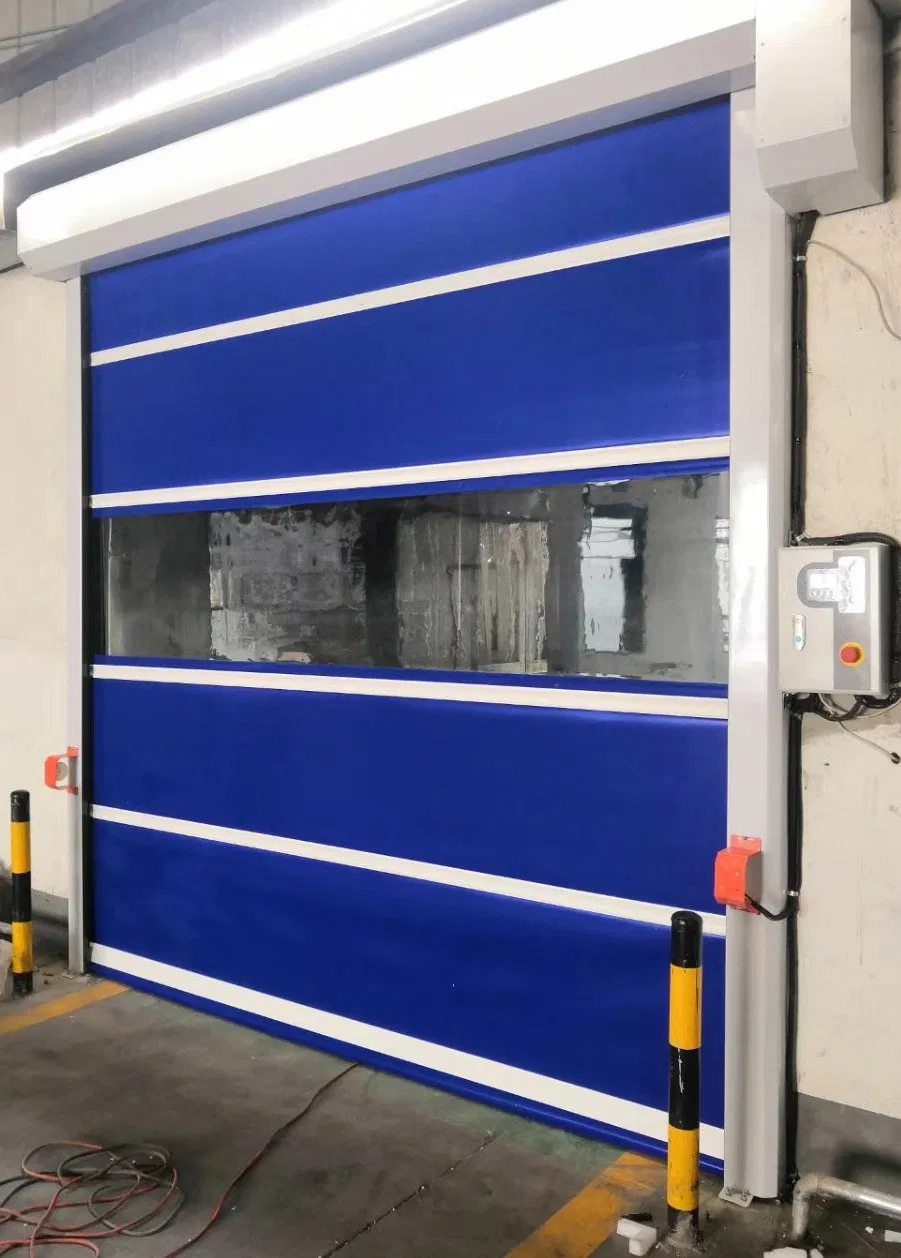

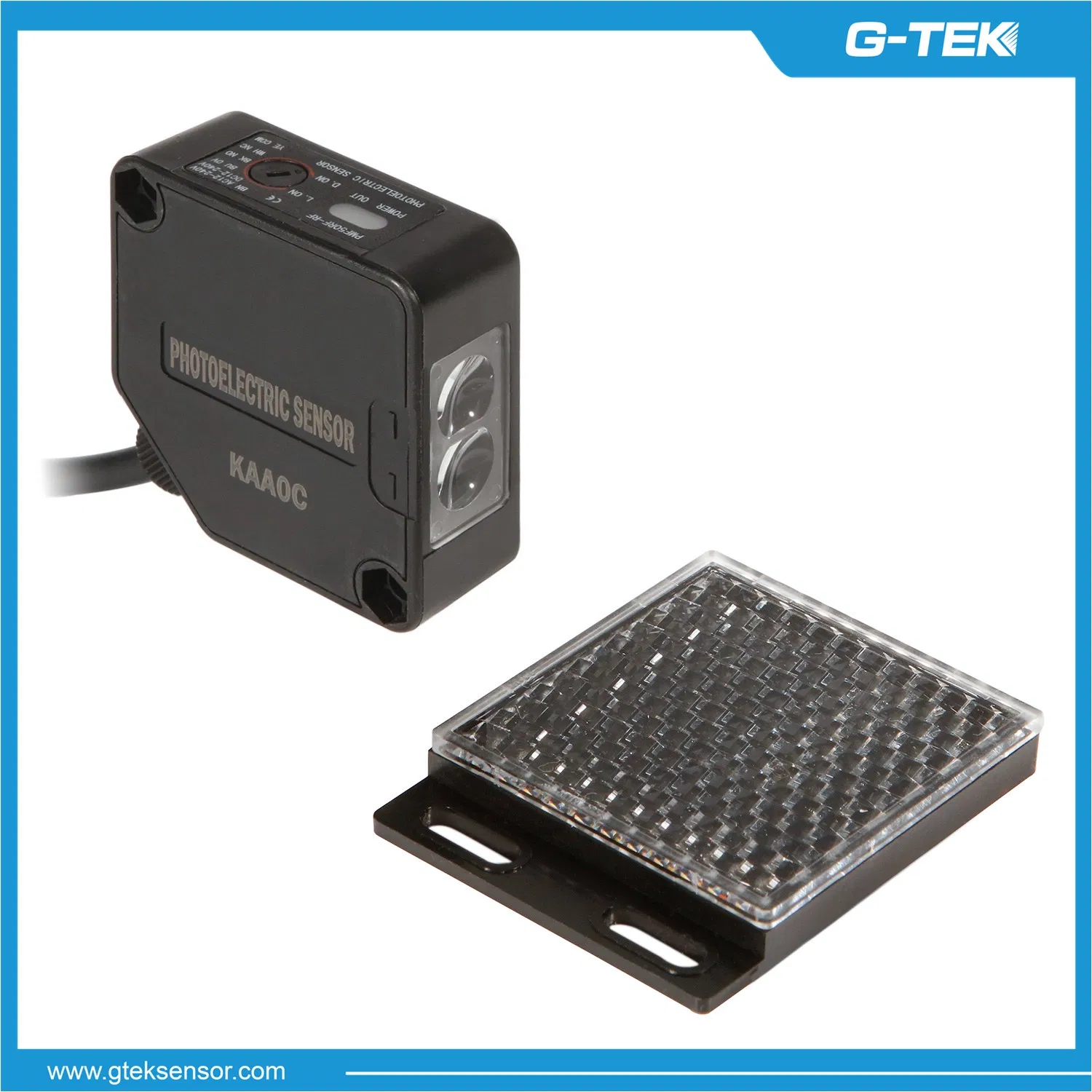

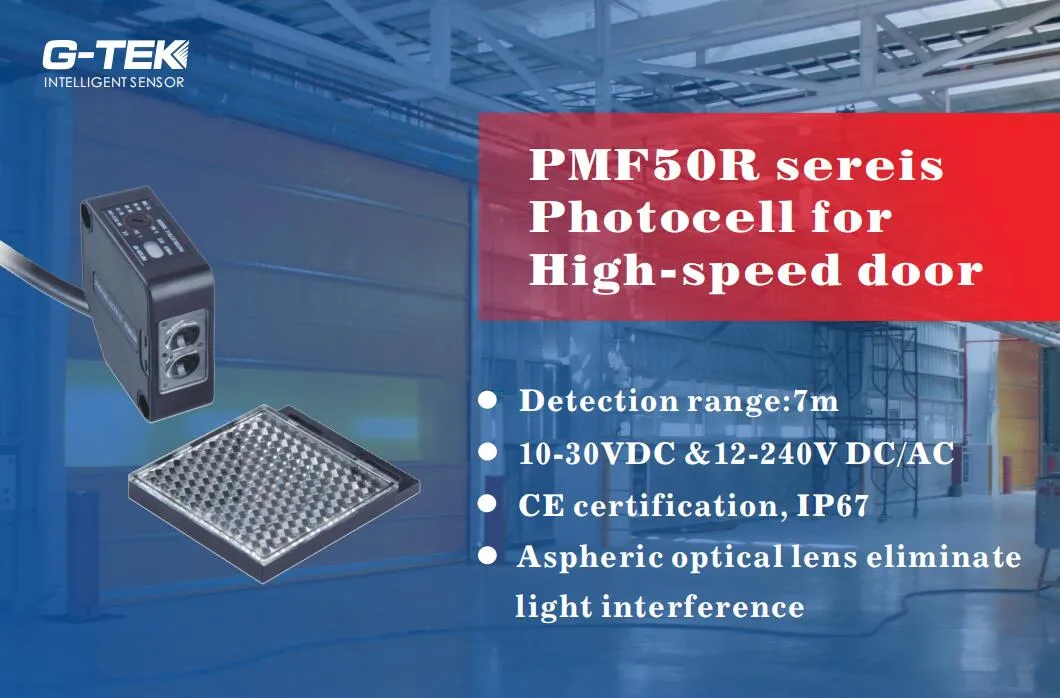

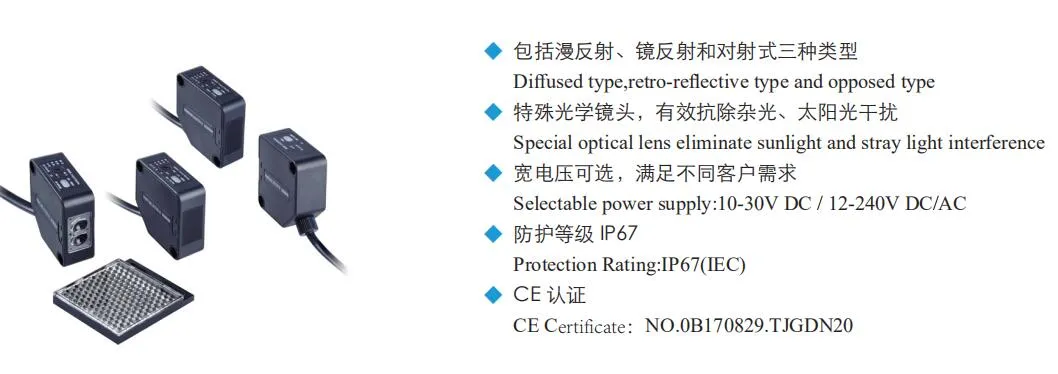

PMF50R/PF50R retro-reflective photoelectric sensor are our popular models used at industry door such as high speed door, roller shutter door, garage door and so on. There are different detection range can be selected as 7m, 12m and Supply voltage 10-30V DC & 12-240V DC/AC for selecting which can meet different demands of customers.

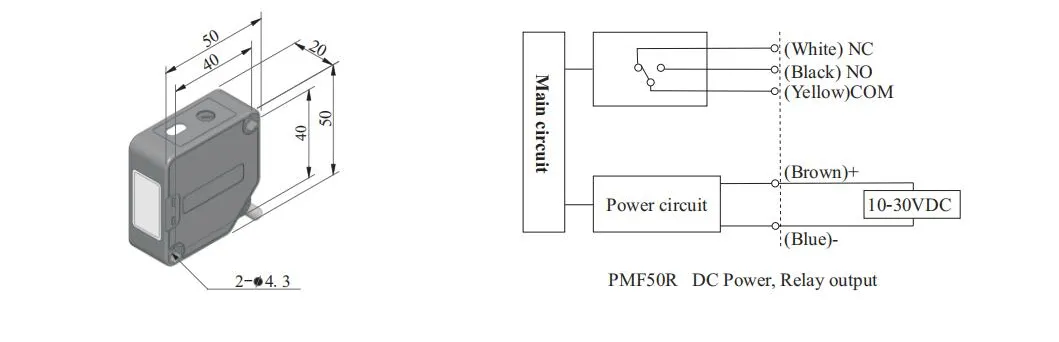

| Photoelectric sensor | PMF50R-RF-2 |
| Detection Type | Retro-reflective |
| Detection Range | RP02/RP05: 7m; RP01:12m |
| Light Source | 630mm red LED |
| Supply Voltage | 10~30V DC |
| No-load Current | Max.60mA |
| Response Time | Max.20ms |
| Control Output | Relay output,(contact rating: 30VDC 1A resistance load,120VAC,1A resistance load,contact component: 1C) |
| Action | Light on/Dark on for selecting by potentiometer |
| Indicator | Power indicator: Green, Action indicator: Red |
| Protection circuit | Reverse polarity protection |
| Ambient lightness | Sunlight: Max.30000Lux fluorescent: Max.3000Lux |
| Ambient Temperature | -20~+65ºC(Non-freezing) |
| Ambient Humidity | 0~90%RH |
| Material | Housing:ABS,Lens:PMMA |
| Protection Rate | IP67 |
| Cable | Φ5, 5×0.2mm² 2m |

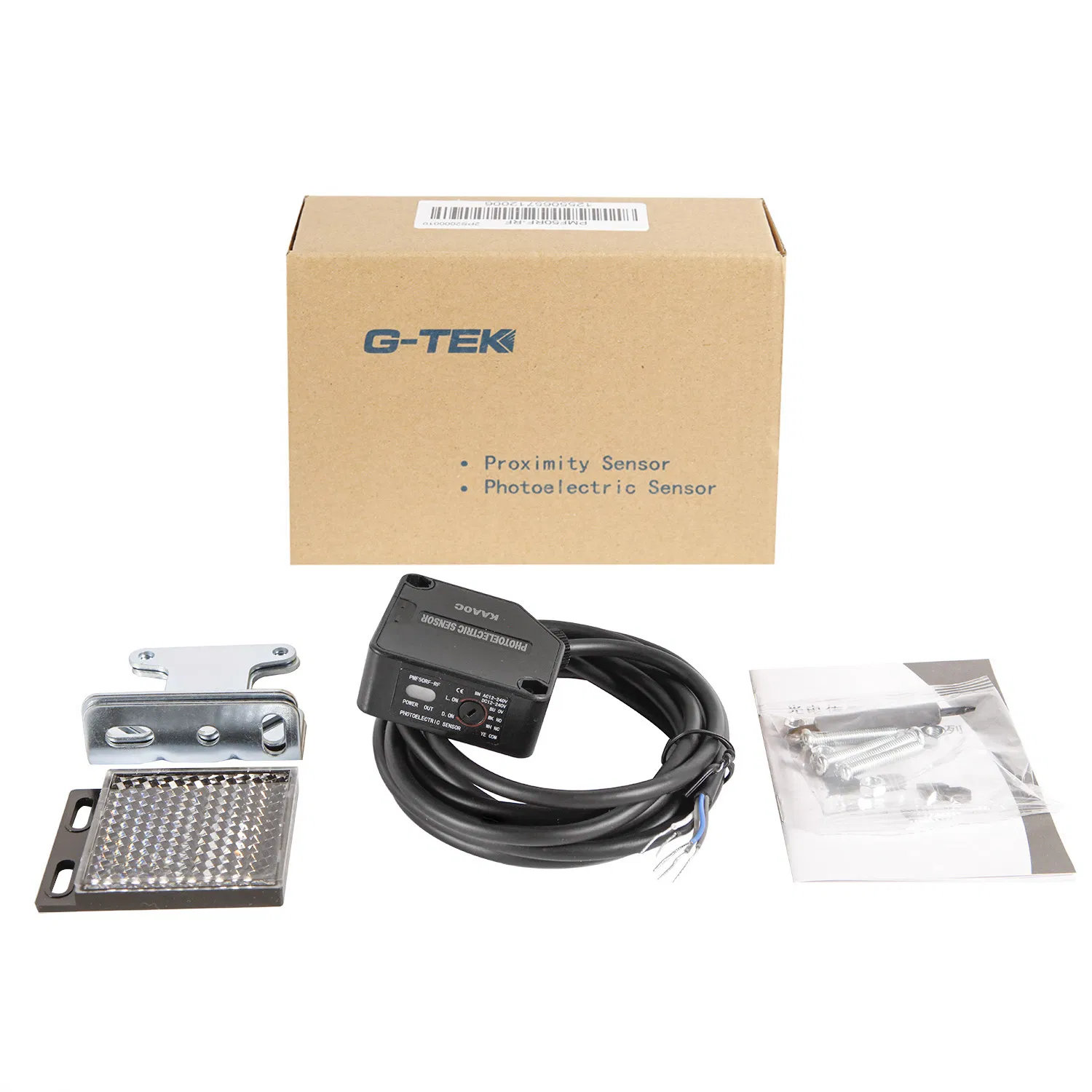

| Accessory | Bracket: IB02, Screw: M4×25 |

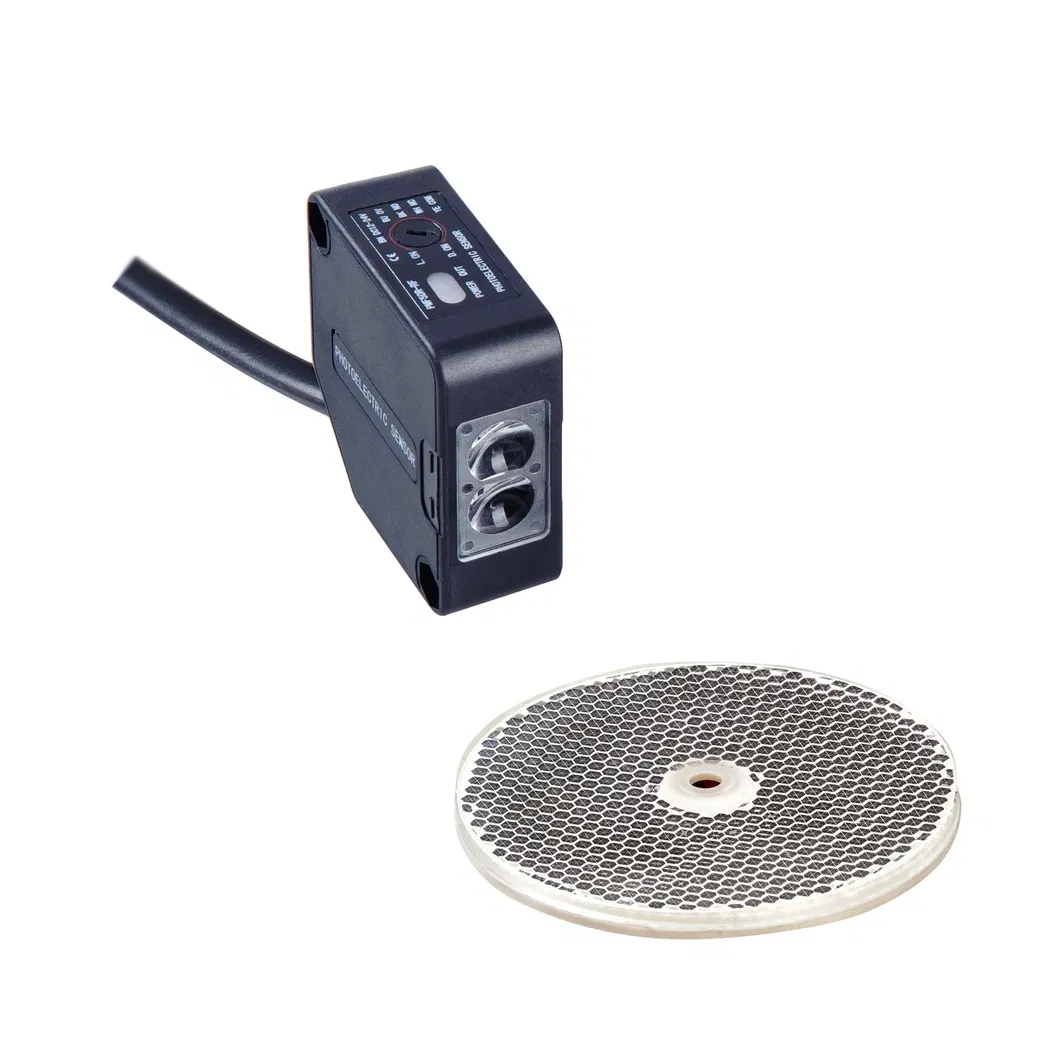

| Photoelectric sensor | PF50R-ARF-W |
| Detection Type | Retro-reflective |
| Detection Range | 0.5-8m (RP02) |
| Spot size | 8-9cm (at 8m distance) |
| Light Source | 650nm red laser |
| Supply Voltage | 10~30V DC |
| No-load Current | 60 mA max. @ 24Vcc |
| Power ripple | Vp-p =10%Ub |
| Response Time | Max.20ms |
| Control Output | Relay output |
| Action | Light on/Dark on for selecting by wire connecting |
| Indicator | Output indicator: Red; Power indicator: Yellow |
| Protection circuit | Reverse polarity protection |
| Ambient lightness | Sunlight:100000LuX;Lamp:3000LuX |
| Ambient Temperature | Working temperature:-30-50ºC; Storage temperature: -25-70ºC |
| Ambient Humidity | Less than 85% |
| Withstand voltage | 500VAC,1 minute, between electric parts and shell |
| Insulation resistance | >20MΩ,500VDC, between electric parts and shell |
| Vibration resistance | 0.5 mm amplitude, 10...55 Hz frequence, lasting for 1 hour at different directions |
| Shock resistance | 11 ms (30 G) 6 times shock at different directions |
| Material | Housing:ABS,Lens:PMMA |
| Protection Rate | IP67 |
| Cable | Φ5, 5×0.2mm² 2m |
| Accessory | Bracket: IB02, Screw: M4×25 |

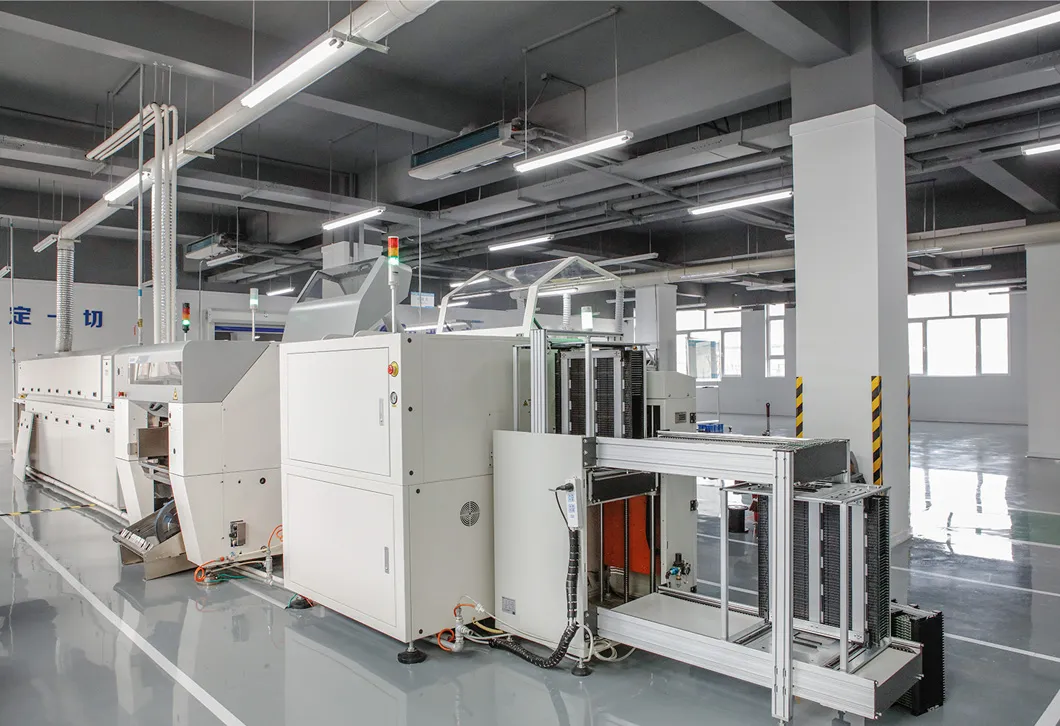

Tianjin G-TEK Sensor Technology Co., Ltd. is located in Gaotai Science and Technology Park, Xiqing District, Tianjin and it is a technology-based enterprise specialized in R&D, production and customization of intelligent sensor system solutions. The company manufactures laser radar, TOF3D camera, laser ranging sensor, measurement and safety light curtain, photoelectric sensor, proximity switch and other products with core technology, serving intelligent transportation, logistics automation, factory automation, robot, intelligent security and other fields.
