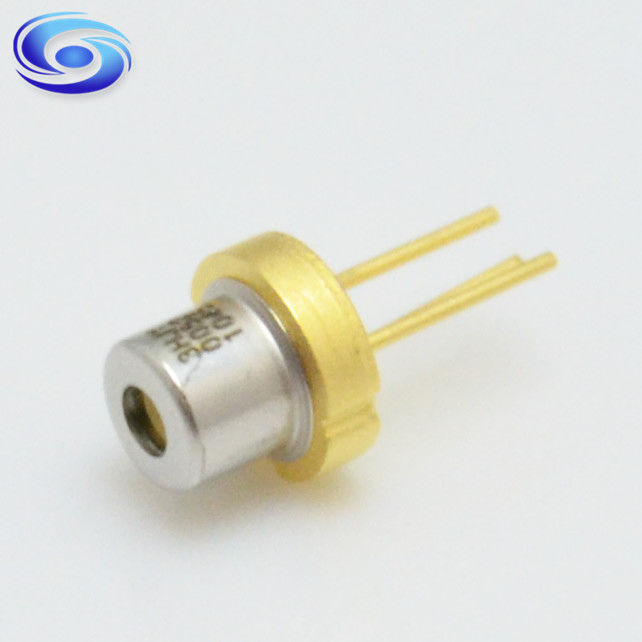

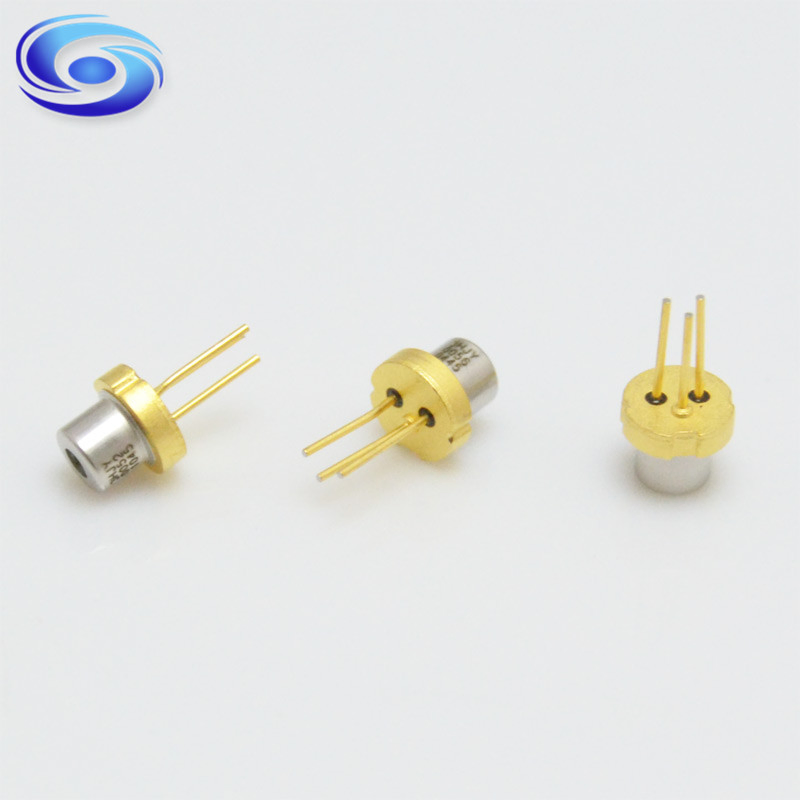

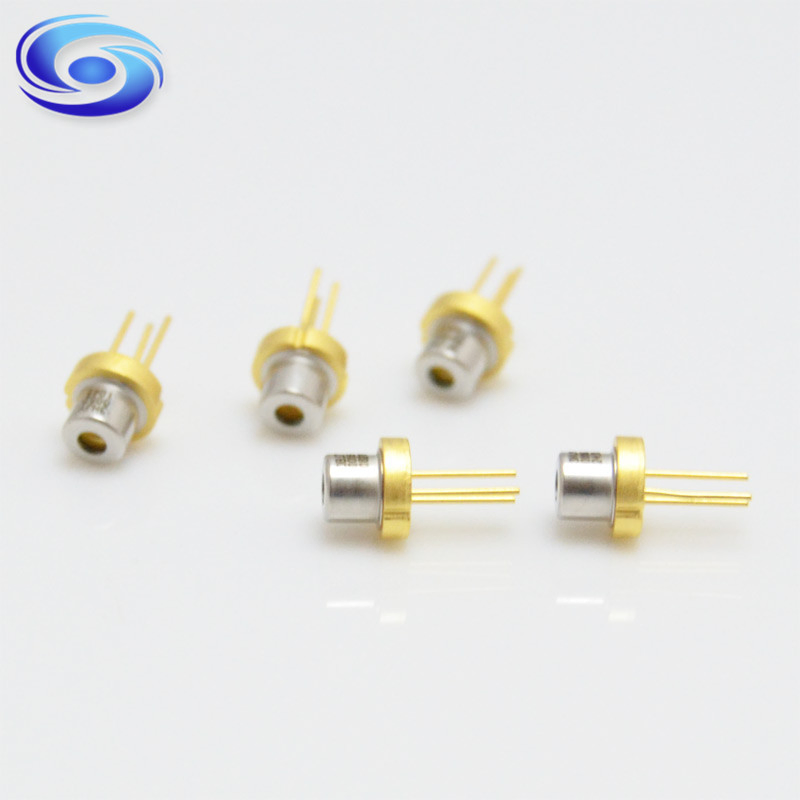

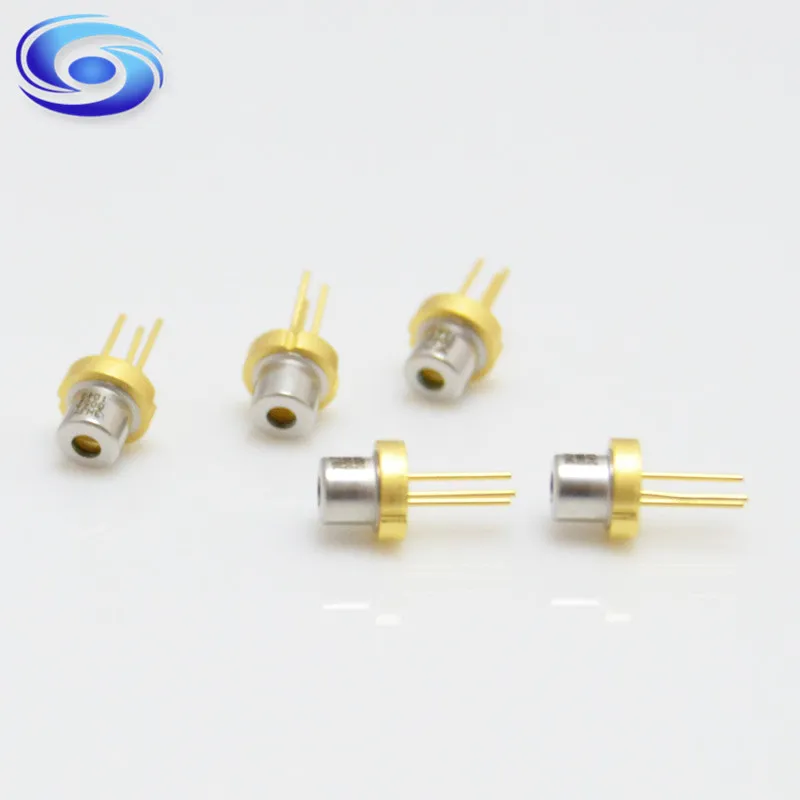

Salable Blue Violet 500MW 405nm To18-5.6mm Laser Diode
Features:1.Wavelength:405nm(Tye.)2.Optical output power:500mw3.Package type:φ5.6mm Salable Blue Violet 500MW 405nm To18-5.6mm Laser Diode Absolute Maximum Ratings (Tc=25°C)ParameterSymbol RatingsUnitOptical Output PowerPo500mwReverse VoltageVr (LD)2VOperating Temperature Topr0 to 30......
Send Inquiry
Product Description
1.Wavelength:405nm(Tye.)
2.Optical output power:500mw
3.Package type:φ5.6mm
Salable Blue Violet 500MW 405nm To18-5.6mm Laser Diode
Absolute Maximum Ratings (Tc=25°C)
| Parameter | Symbol | Ratings | Unit |
| Optical Output Power | Po | 500 | mw |
| Reverse Voltage | Vr (LD) | 2 | V |
| Operating Temperature | Topr | 0 to 30 | °C |
| Storage Temperature | Tstg | -40 to 85 | °C |
Electrical and Optical Characteristics (Tc=25ºC)
| Parameter | Conditions | Symbol | Min. | Typ. | Max | Unit | |
| Dominant Wavelength | Po= 400mw | λd | 398 | - | 410 | nm | |
| Threshold Current | - | Ith | - | - | 160 | mA | |
| Operating Current | Po= 400mw | Iop | - | 390 | 420 | mA | |
| Operating Voltage | Po= 400mw | Vop | - | - | 5.5 | V | |
| Beam divergence Parallel to the junction | Po= 400mw,Full angle 1/e2 | Θ// | 5 | - | 25 | ° | |
| Beam divergence Perpendicular to the junction | Po= 400mw,Full angle 1/e2 | θ⊥ | 30 | - | 60 | ° | |
Description:

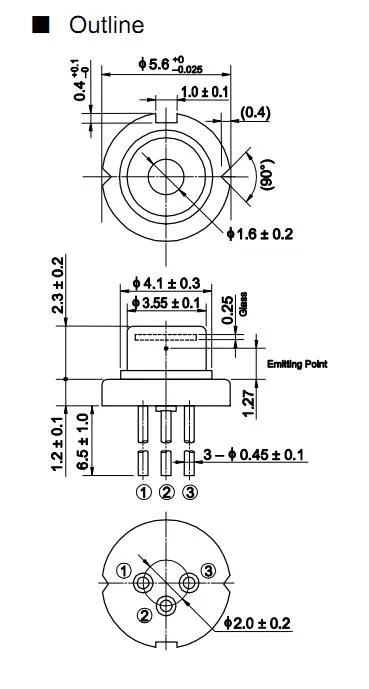

1. Can Type: φ 5.6 mm Floating Mounted with Protection device.
2. High quality Opnext 405nm 500mw blue violet laser diode.

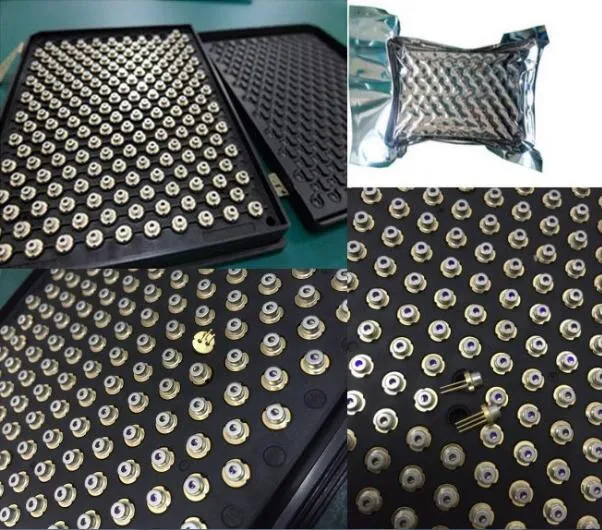

3. Package details : Plastic box package, it depends on different kinds of laser diodes with different sizes.Normally 50pcs in one tray, 10 trays in one bag ,then 10 bags in one carton box.
Packaging&Shipping:
1.Plastic box, ESD bag, standard and normal package.
2.1-3 days after receiving the payment by T/T, PAYPAL.
3. It will be shipped by DHL/FedEx/UPS/TNT or other special ways, please contact us to choose the best one.
Company Information&Services:
A. Main products: Semiconductor laser diode, laser module, bicycle laser light.
B. Since the establishment, DongguanBlueuniverse Laser Co., Ltd has its own brand "LANJI, VIAN", access to China's outstanding semiconductor laser supplier reputation, with a number of domestic and foreign technology patent certification, product quality inspection certification and TUV, BV, SGS, ISO9001: 2015 quality management system certification.
C. Custom Service:
We offer professional ODM and OEM service for laser module. We are a manufacturer of laser modules, also a provider of Laser light source solution that from design to production.
Laser Diode :
We have laser diodes with power from 5mw to 5W with the following wavelength: 405nm 410nm 445nm 450nm 455nm 488nm 505nm 510nm 515nm 520nm 532nm 635nm 638nm 642nm 650nm 658nm 780nm 785nm 808nm 820nm 830nm 850nm 905nm 940nm 980nm RGB and so on.
FAQ:
Q: How to contact us?
A: You can send messages to us on trade messenger directly, or send us an email.
Warranty:
All products have been tested before the shipment and it was packaged in good condition. Please tested the products at first before you assemble it, if any problem here, please inform us within 3 days of receipt. We can arrange the replacement for you if the situation is confirmed.
