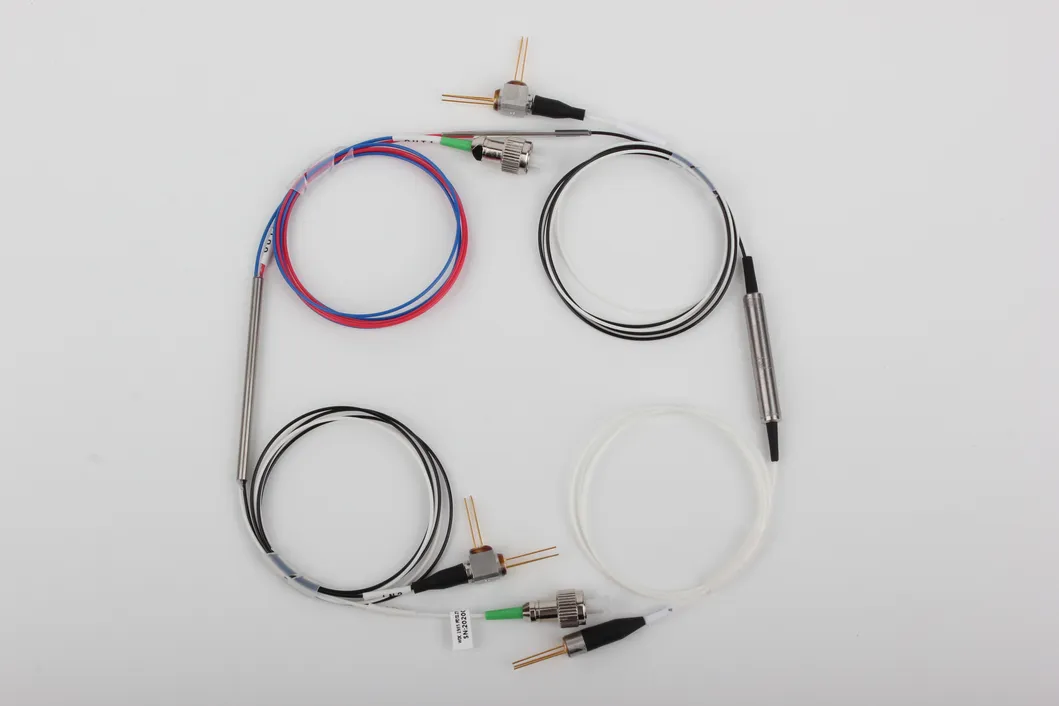

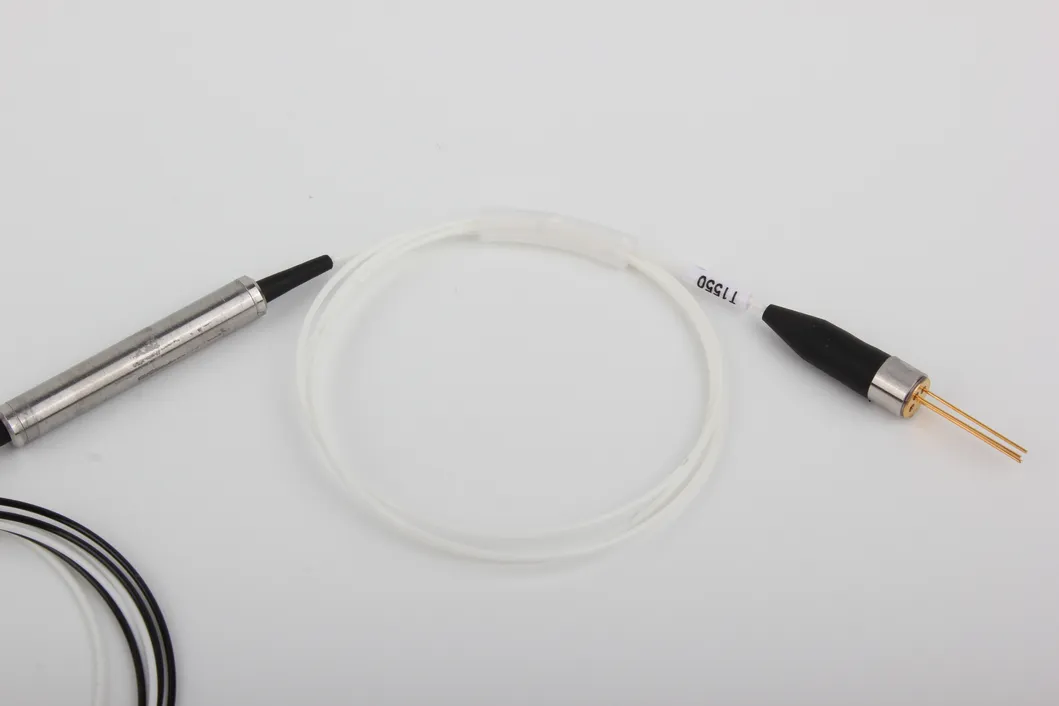

Factory Price Xg-Pon Module Combo Pdmodule Fiber Optical for Power Detector With1270/1310/1490/1550/1577nm RoHS and ISO 9001
Product DescriptionXG-PON Combo PD Module1270/1310/1490/1550/1577nmFeaturesHigh response,flat structure of InGaAs PIN detectorLow capacitance and low dark currentOperating wavelength of 1100~1650nmSingle-mode fiber coaxial packageApplicationsPower detectorAbsolute Maximum Ratings Parameter......
Send Inquiry
Product Description

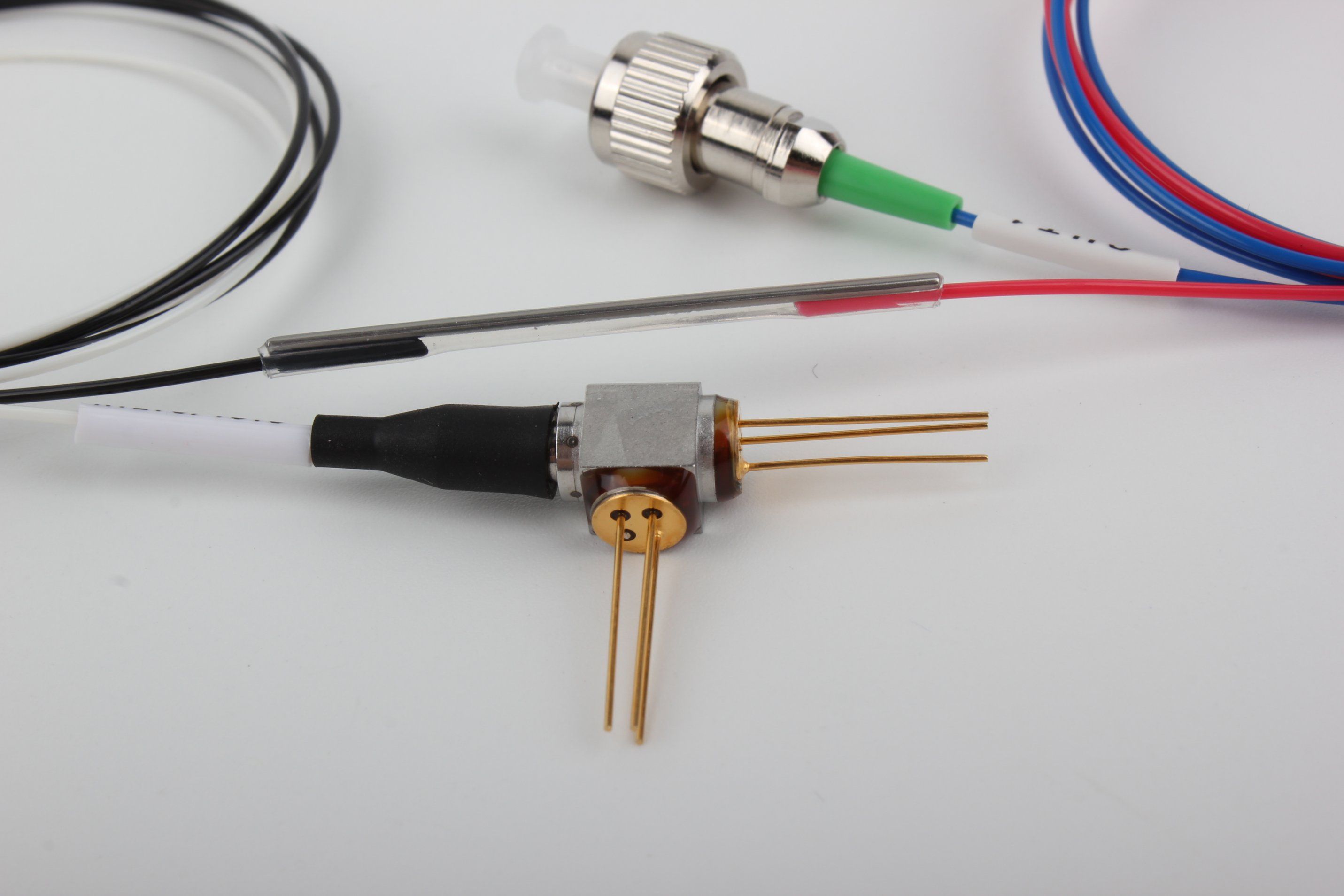

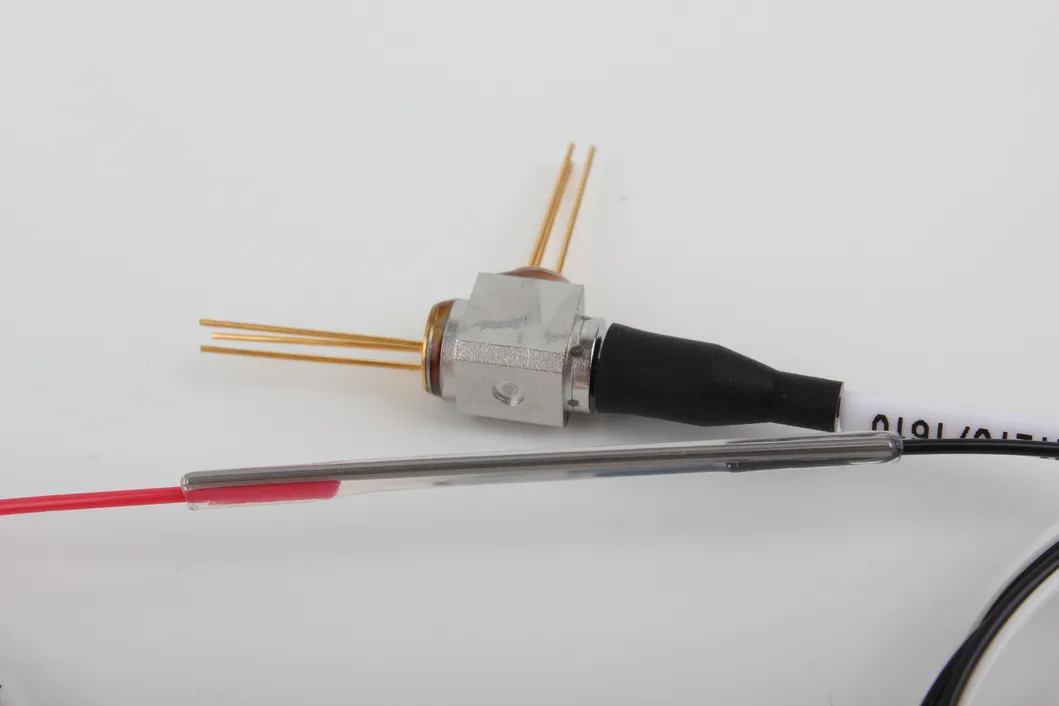

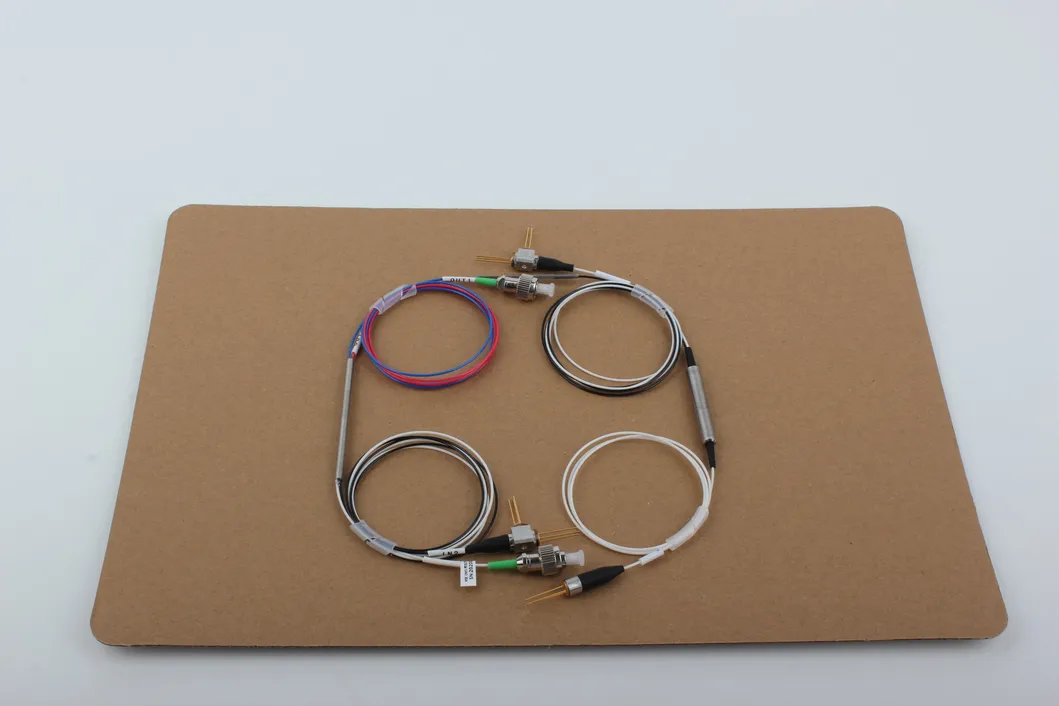

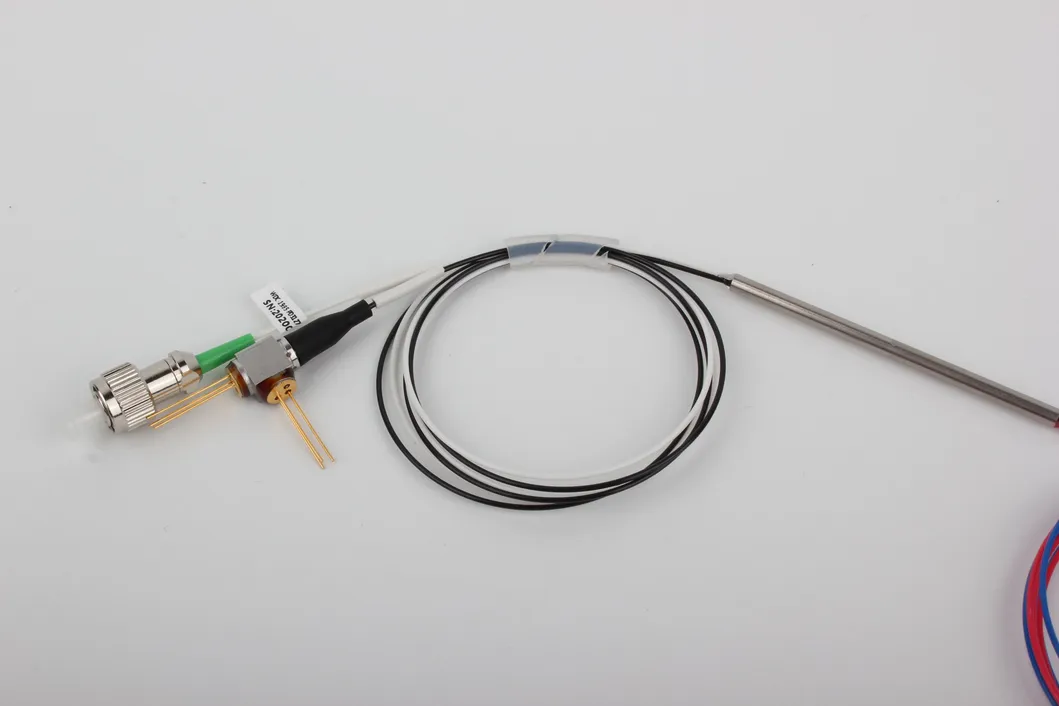

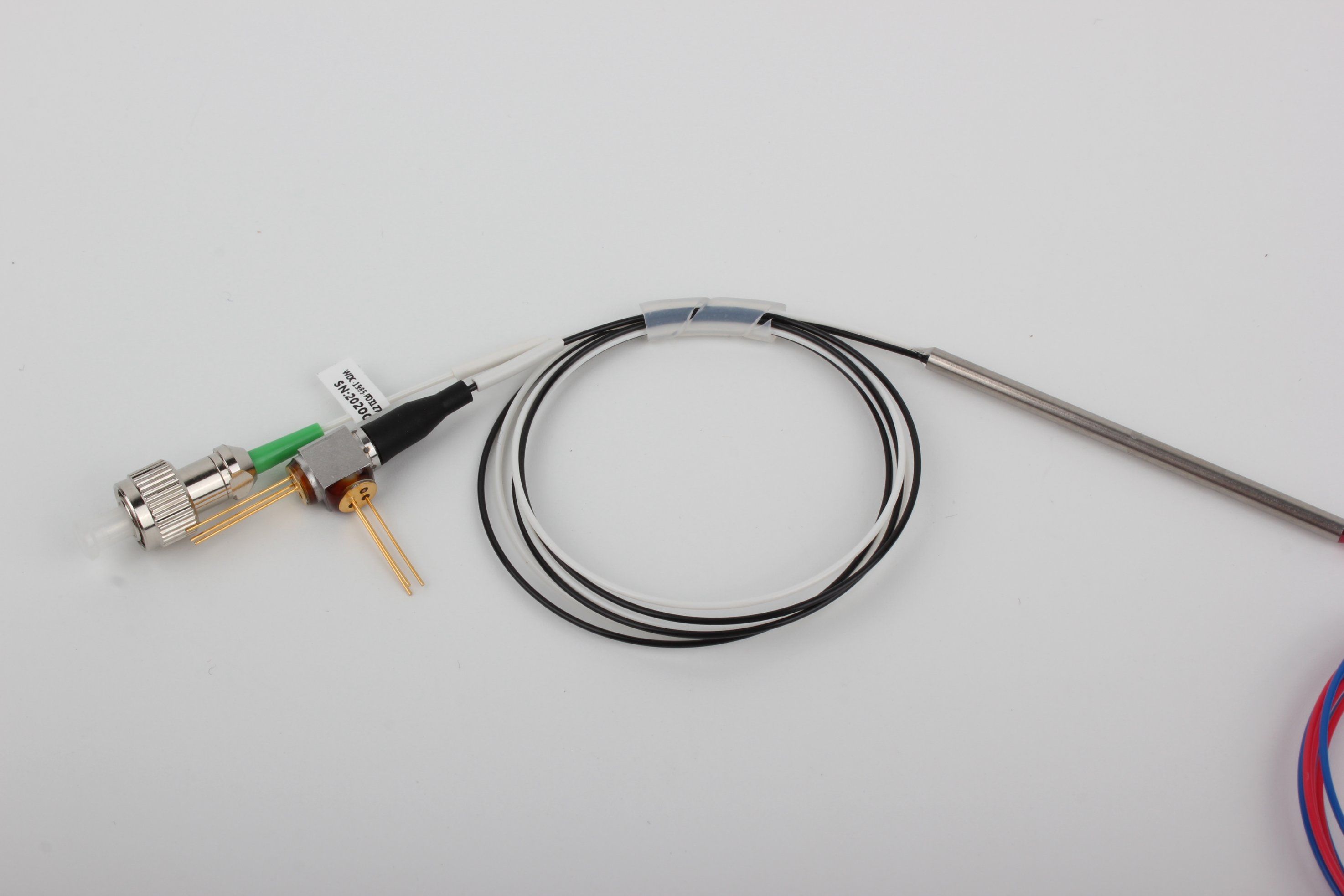

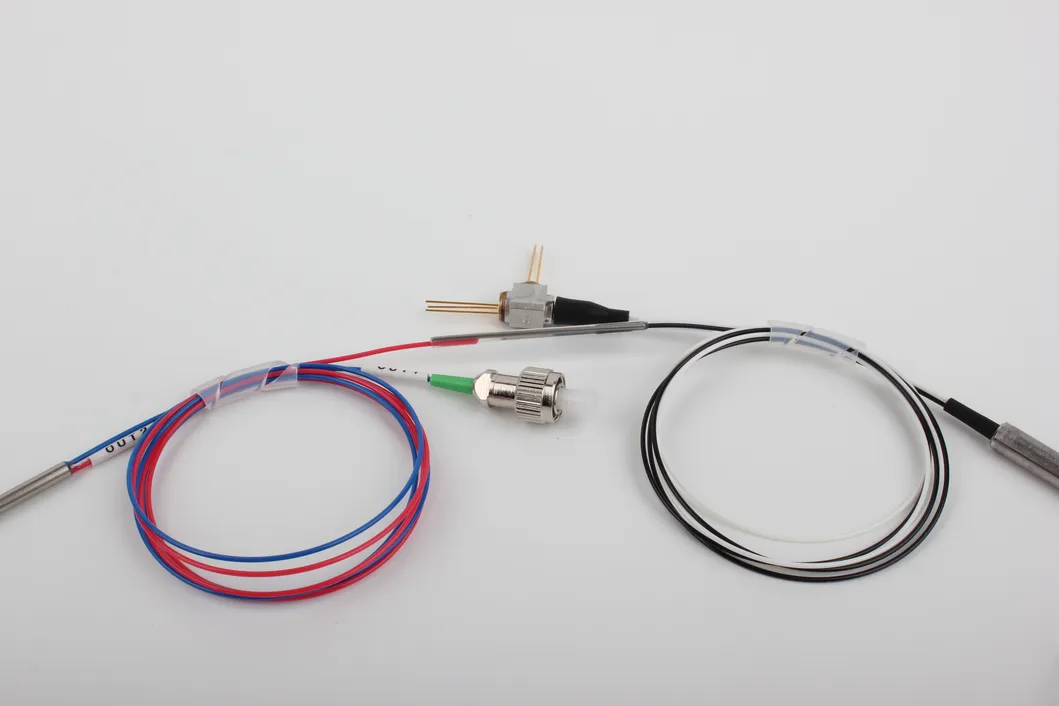

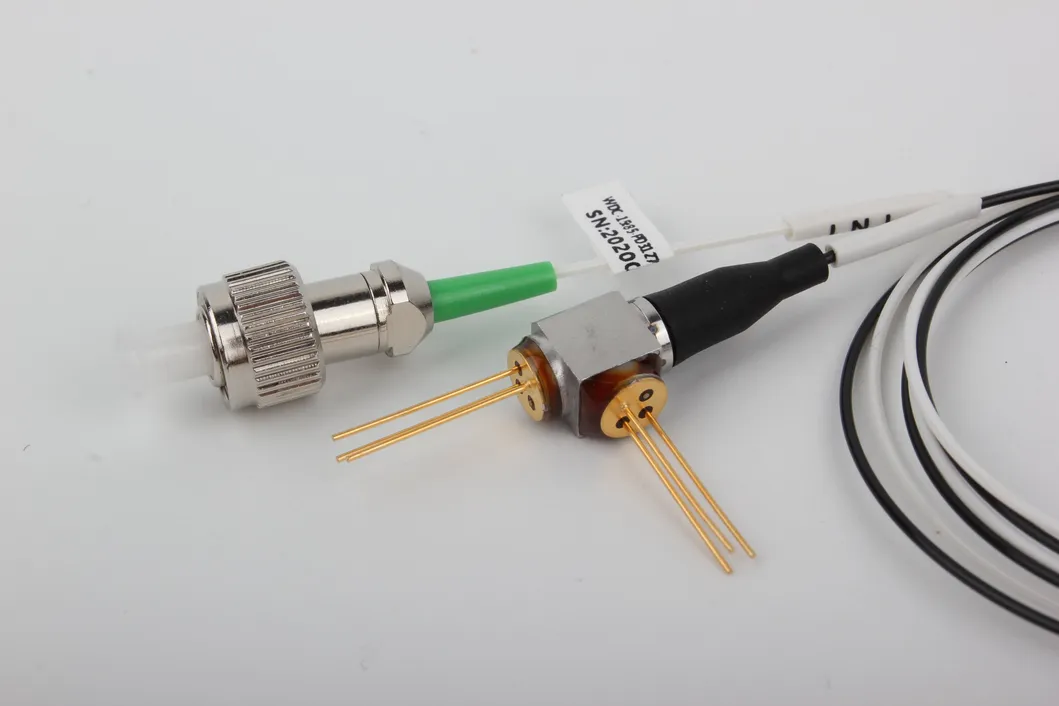

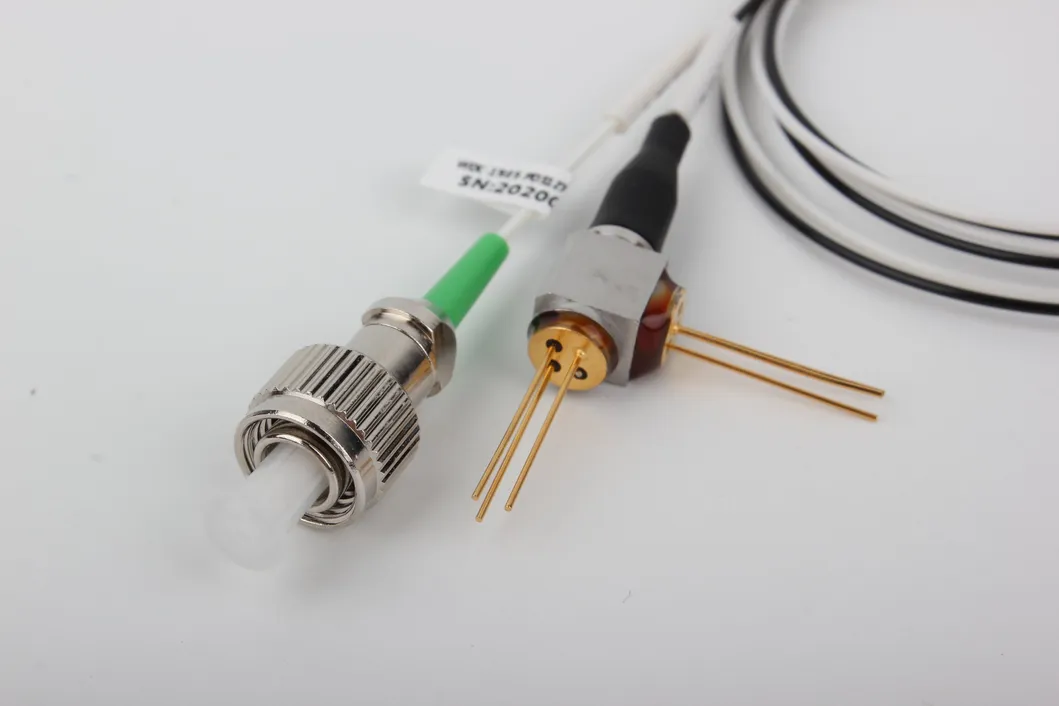

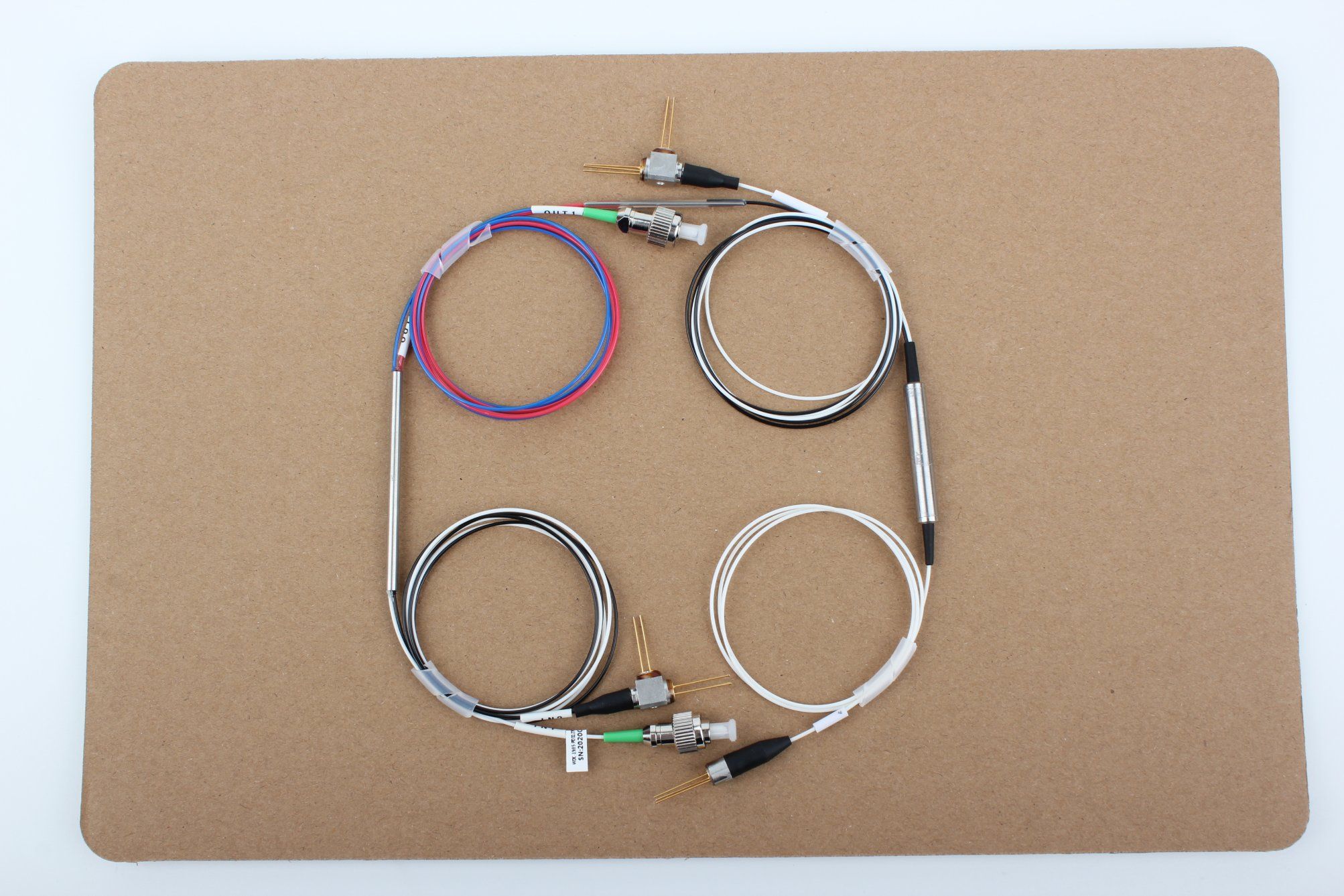

XG-PON Combo PD Module
1270/1310/1490/1550/1577nm
Features1270/1310/1490/1550/1577nm
- High response,flat structure of InGaAs PIN detector
- Low capacitance and low dark current
- Operating wavelength of 1100~1650nm
- Single-mode fiber coaxial package
Applications
- Power detector
Absolute Maximum Ratings
| Parameter | Symbol | Ratings | Unit |
| Storage Temperature | Tstg | -40~+100 | ºC |
| Operating Temperature | Top | -40~+85 | ºC |
| Max Input Power | Pmax | +6 | dBm |
| Operating Voltage | Vop | 5 | V |
| PD Reverse Voltage | VR(PD) | 15 | V |
| Soldering Temp | - | 260 | ºC |
| Soldering Time | - | 10 | S |
Optical & Electrical Characteristics
| Parameter | Symbol | Min | Typical | Max | Unit | Notes |
| 1310nm Receiver | ||||||
| Detected WL range | 1300 | 1310 | 1320 | nm | ||
| Power Range | P | -50 | - | +13 | dBm | Vr=5V,R1=50Ω |
| Dark Current | Id | - | 0.1 | 1 | nA | Vr=5V |
| Responsivity | R | 0.09 | - | 0.14 | A/W | Vr=5V |
| Accuracy | - | - | +/-0.25 | dB | 25ºC | |
| Capacitance | Ct | - | - | 5 | pF | Vr=5V,f=1MHz |
| Response Time | Tr | - | - | 1 | ns | Vr=5V,R1=50Ω |
| InGaAs area | S | - | 300 | - | um | |
| Isolation | Iso | 40 | dB | |||
| 1270nm Receiver | ||||||
| Detected WL range | 1260 | 1270 | 1280 | nm | ||
| Power Range | P | -50 | - | +13 | dBm | Vr=5V,R1=50Ω |
| Dark Current | Id | - | 0.1 | 1 | nA | Vr=5V |
| Responsivity | R | 0.09 | - | 0.14 | A/W | Vr=5V |
| Accuracy | - | - | +/-0.25 | dB | 25ºC | |
| Capacitance | Ct | - | - | 5 | pF | Vr=5V,f=1MHz |
| Response Time | Tr | - | - | 1 | ns | Vr=5V,R1=50Ω |
| InGaAs area | S | - | 300 | - | um | |
| Isolation | Iso | 40 | dB | |||
| 1490nm Receiver | ||||||
| Detected WL range | 1480 | 1490 | 1500 | nm | ||
| Power Range | P | -50 | - | +13 | dBm | Vr=5V,R1=50Ω |
| Dark Current | Id | - | 0.1 | 1 | nA | Vr=5V |
| Responsivity | R | 0.09 | - | 0.14 | A/W | Vr=5V |
| Accuracy | - | - | +/-0.25 | dB | 25ºC | |
| Capacitance | Ct | - | - | 5 | pF | Vr=5V,f=1MHz |
| Response Time | Tr | - | - | 1 | ns | Vr=5V,10~90% |
| InGaAs area | S | - | 300 | - | um | |
| Isolation | Iso | 40 | dB | |||
| 1577nm Receiver | ||||||
| Detected WL range | 1572 | 1577 | 1582 | nm | ||
| Power Range | P | -50 | - | +13 | dBm | Vr=5V,R1=50Ω |
| Dark Current | Id | - | 0.1 | 1 | nA | Vr=5V |
| Responsivity | R | 0.09 | - | 0.14 | A/W | Vr=5V |
| Accuracy | - | - | +/-0.25 | dB | 25ºC | |
| Capacitance | Ct | - | - | 5 | pF | Vr=5V,f=1MHz |
| Response Time | Tr | - | - | 1 | ns | Vr=5V,10~90% |
| InGaAs area | S | - | 300 | - | um | |
| Isolation | Iso | 40 | dB | |||
| Parameter | Symbol | Min | Typical | Max | Unit | Notes | |
| 1550nm Receiver | |||||||
| Detected WL range | 1540 | 1550 | 1560 | nm | |||
| Power Range | P | -40 | - | +20 | dBm | Vr=5V,R1=50Ω | |
| Dark Current | Id | - | 0.1 | 1 | nA | Vr=5V | |
| Responsivity | R | 0.025 | - | 0.035 | A/W | Vr=5V | |
| Accuracy | - | - | +/-0.25 | dB | 25ºC | ||
| Capacitance | Ct | - | - | 5 | pF | Vr=5V,f=1MHz | |
| Response Time | Tr | - | - | 1 | ns | Vr=5V,10~90% | |
| InGaAs area | S | - | 300 | - | um | ||
| Isolation | Iso | 40 | dB | ||||
| 1550 FWDM | |||||||
| Pass Band Wavelength Range | Pw | 1540 | 1560 | nm | |||
| Ref Band Wavelength Range | Rw | 1260 | 1620 | nm | |||
| Pass Channel Insertion loss | PIL | 0.4 | dB | ||||
| ref Channel Insertion loss | RIL | 0.6 | dB | ||||
| Pass Channel Isoation | PISO | 15 | 18 | dB | |||
| ref Channel Isoation | RISO | 30 | 40 | dB | |||
| Optical Return Loss | RL | 55 | dB | ||||
WDC-R15PD5-XS905
| WDC | -R15 | PD5 | -X | -X | X |
| Product Type | WDC Ratio | Wavelength | Connector | Fiber type | Fiber length |
| R15:15/85 R20:20/80 | PD3:1310/1490/1550 PD4:1270/1310/1490/1577 PD5:1270/1310/1490/1550/1577 | 1:FC/APC 2:FC/PC 3:SC/APC 4:SC/PC 5:LC/PC 6:LC/APC W:Without | S9:9/125/900um S2:9/125/250um | 05:0.5m 10: 1m |
