Product Description

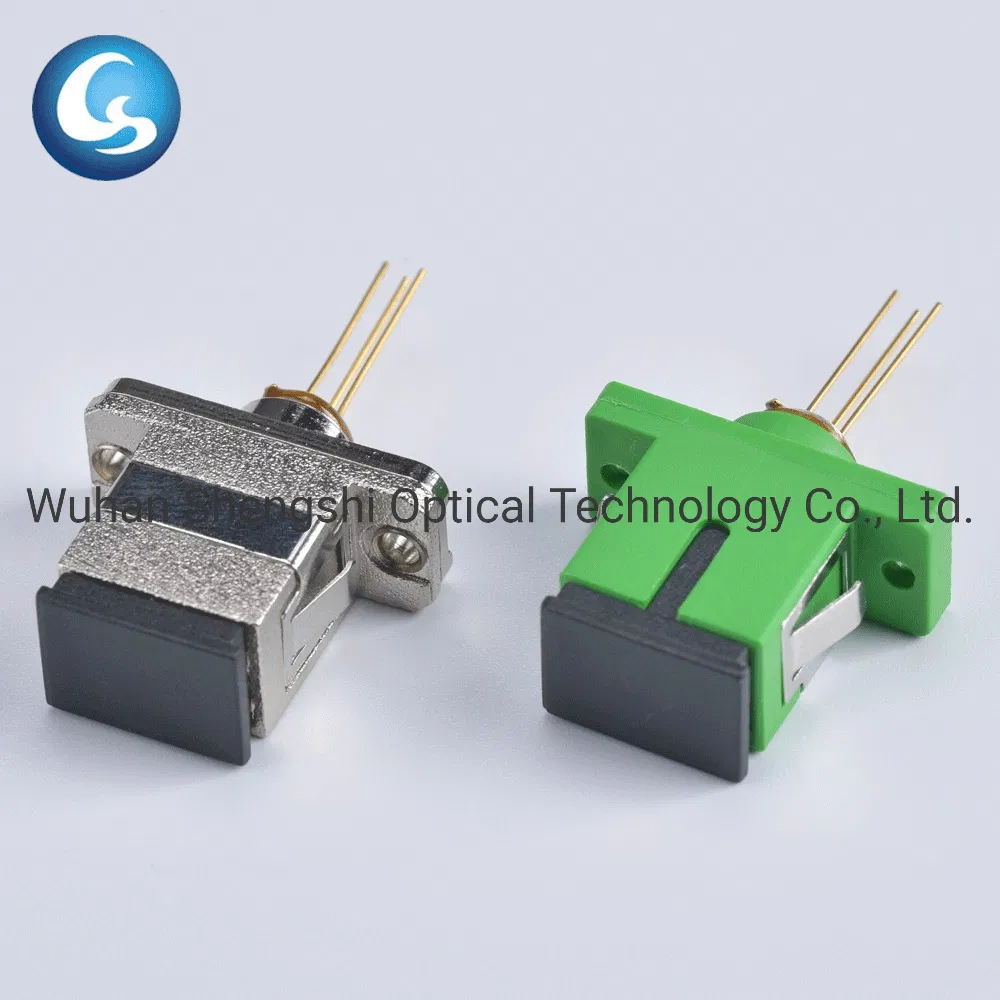

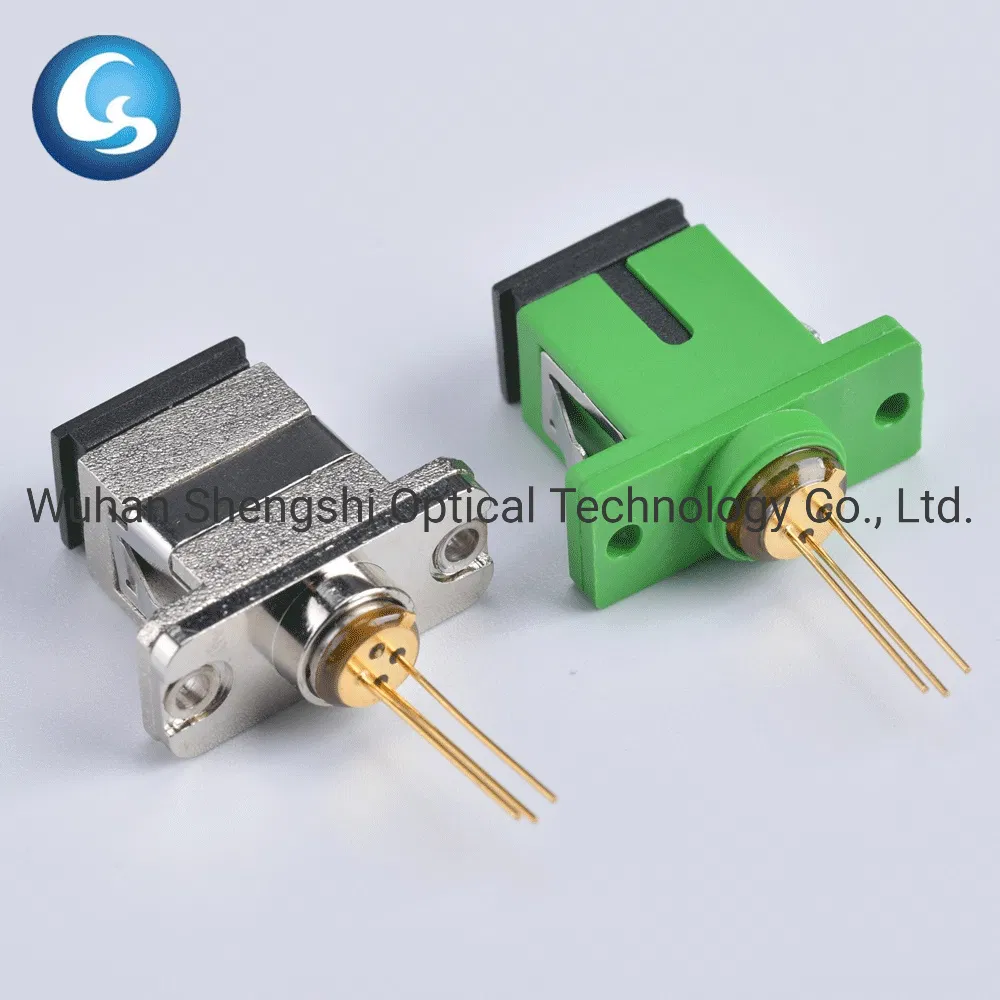

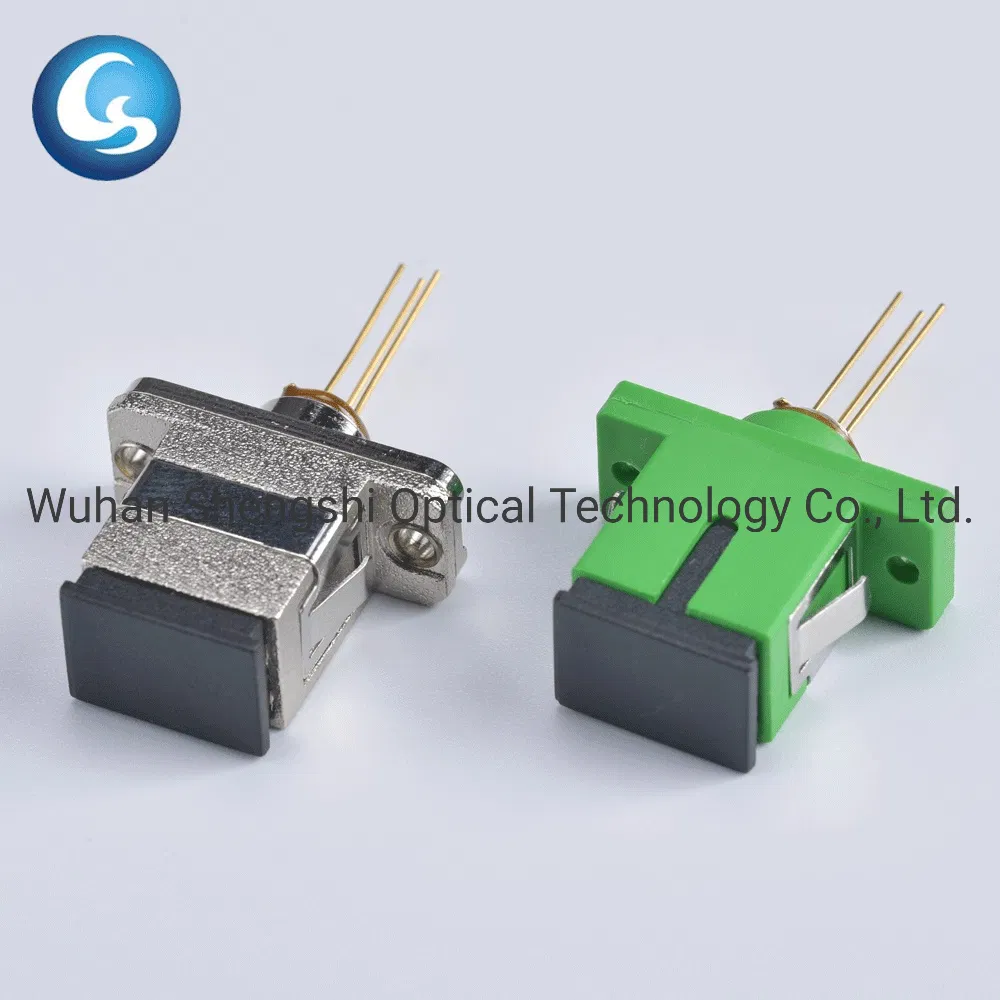

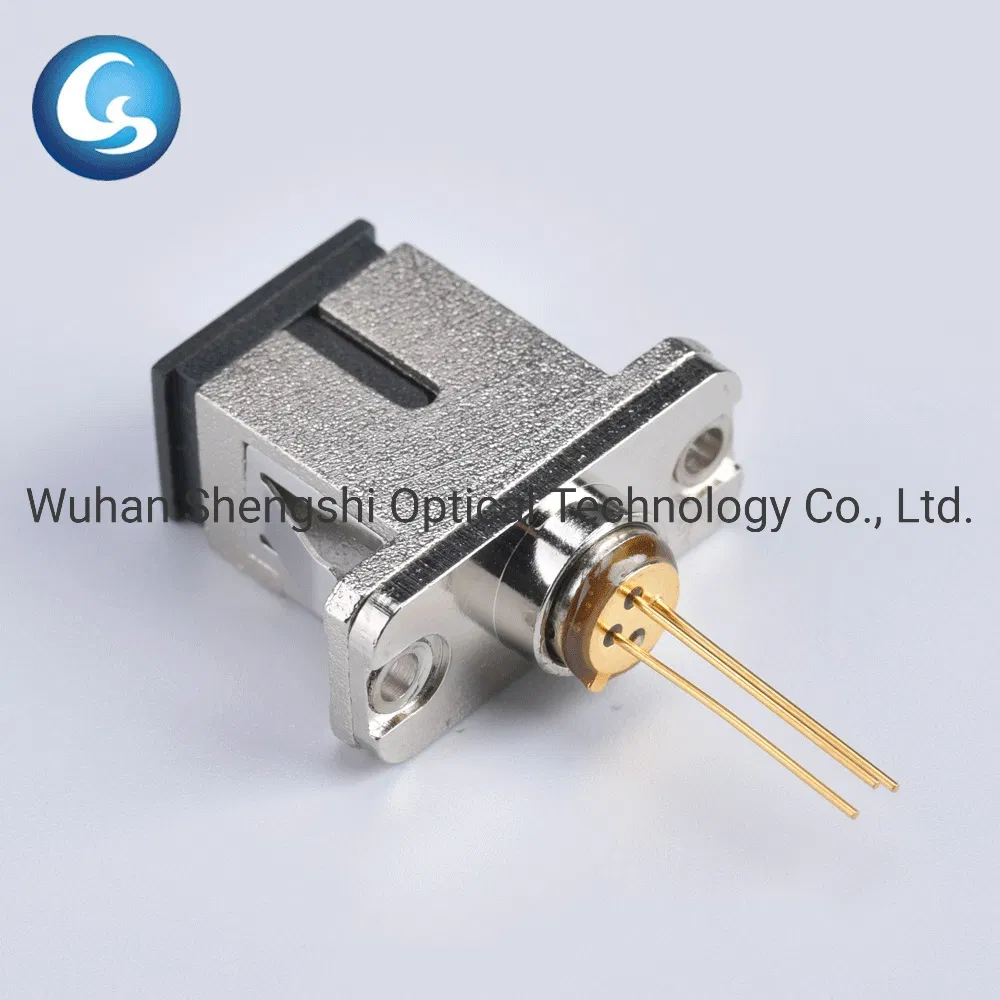

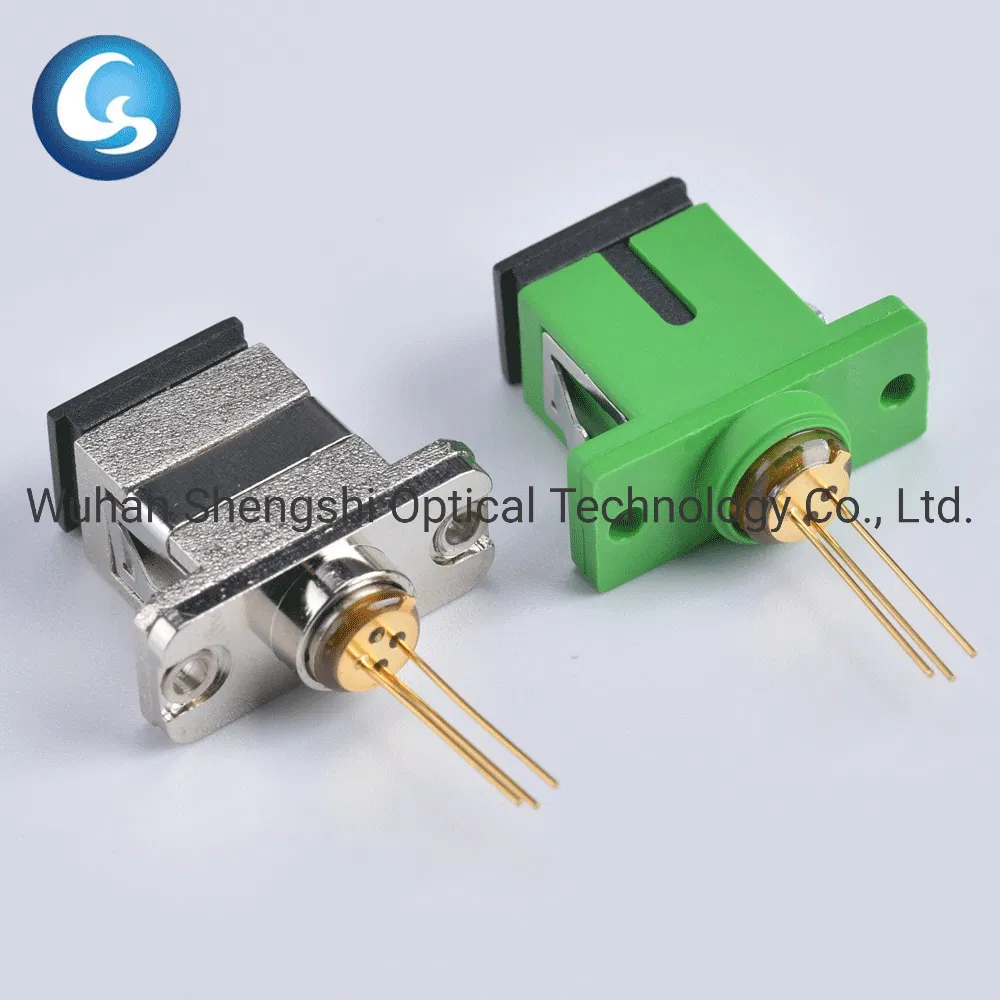

Plastic InGaAs Photodiode with low Price
Features
1.InGaAs Photodiode
2.Difference output
3.Operating Voltage3.3V
4.SC package
5.Operating wavelength of 1100~1650nm
Applications
Anolog transmission
Optical & Electrical Characteristics
Parameter | Symbol | Min. | Typ. | Max. | Unit | Test Condition |
Sensitivity | Sens | - | - | -27 | dBm | BER=10-10, PRBS7@1.25G |
Saturation Power | P | -3 | - | - | dBm | λ =1310nm |
Wavelength Range | λ | 1100 | - | 1650 | nm | - |
Frequency Bandwidth | Bw | 730 | - | - | MHz | - |
Responsivity | R | 0.7 | - | - | A/W | λ =1310nm |
Operating Voltage | Vop | 3.0 | 3.3 | 3.6 | V | - |
Output Resistance | Rout | - | 50 | - | ohm | - |
Operating Current | I | 23 | 28 | 35 | mA | - |
