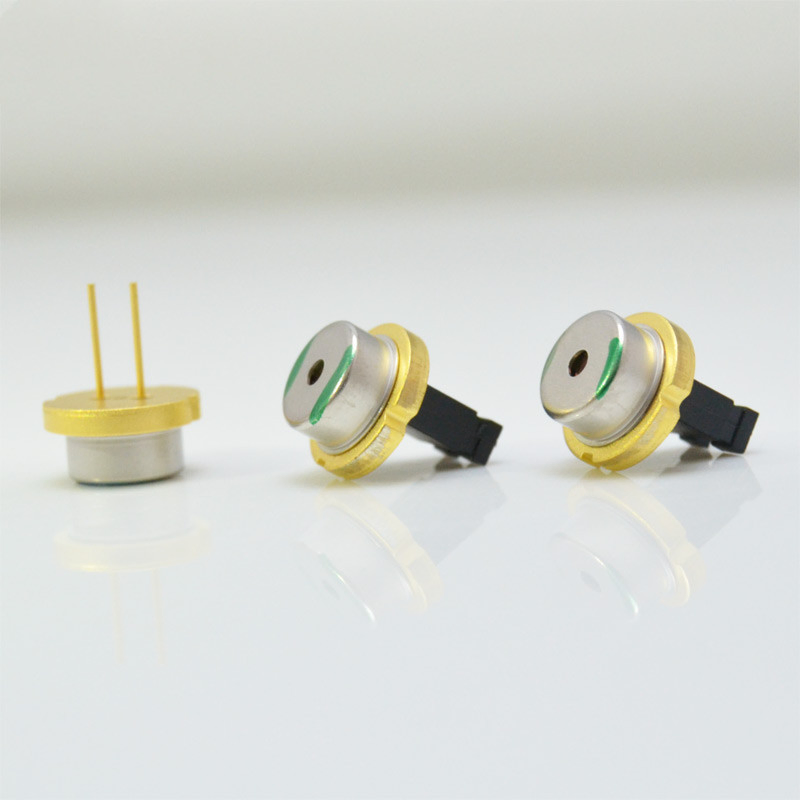

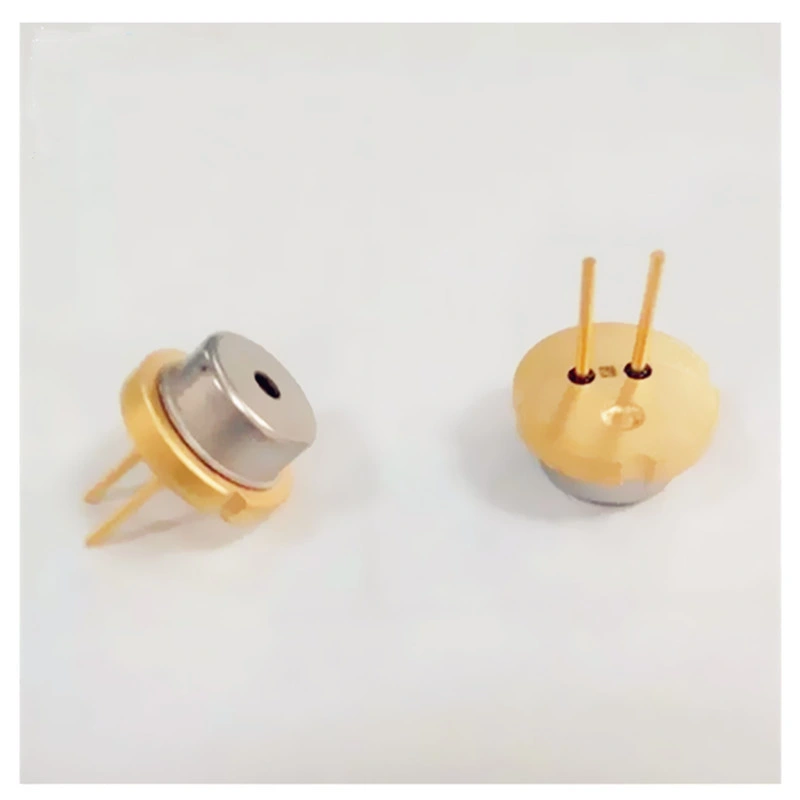

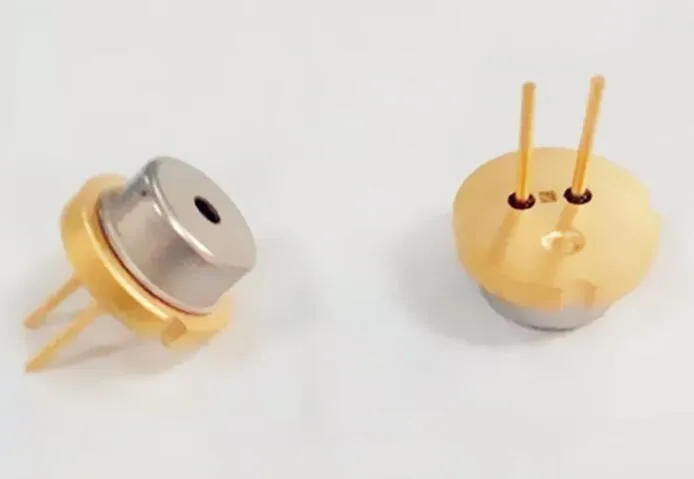

Nichia 9mm 520nm 1W Green Laser Diode Ndg7575
Features:1.green laser diode 520nm 1000mw2. Nichia laser diode 3. TO5-9mm package type Nichia 9mm 520nm 1W Green Laser Diode NDG7575Absolute Maximum Ratings (Tc = 25ºC)ItemSymbolRatingsUnitOptical output powerPo1000mWLD Reverse VoltageVR(LD)2VOperating TemperatureTopr 0 ~ +50°CSto......
Send Inquiry
Product Description
Features:
1.green laser diode 520nm 1000mw
2. Nichia laser diode
3. TO5-9mm package type
Absolute Maximum Ratings (Tc = 25ºC)
1. Can Type: φ 9 mm Floating Mounted with Protection device.
Welcome Your Inquiry
TO: Song Song
Mob: +86 13713250894
Dongguan BU Laser Co., Ltd
III. Company Information&Services:
A. Main products: Semiconductor laser diode, laser module, bicycle laser light.
B. Since the establishment, DongguanBlueuniverse Laser Co., Ltd has its own brand "LANJI, VIAN", access to China's outstanding semiconductor laser supplier reputation, with a number of domestic and foreign technology patent certification, product quality inspection certification and TUV, BV, SGS, ISO9001: 2015 quality management system certification.
C. Custom Service:
We offer professional ODM and OEM service for laser module. We are a manufacturer of laser modules, also a provider of Laser light source solution that from design to production.
Laser Diode :
We have laser diodes with power from 5mw to 5W with the following wavelength: 405nm 410nm 445nm 450nm 455nm 488nm 505nm 510nm 515nm 520nm 532nm 635nm 638nm 642nm 650nm 658nm 780nm 785nm 808nm 820nm 830nm 850nm 905nm 940nm 980nm RGB and so on.
1.green laser diode 520nm 1000mw
2. Nichia laser diode
3. TO5-9mm package type
Nichia 9mm 520nm 1W Green Laser Diode NDG7575
Absolute Maximum Ratings (Tc = 25ºC)
| Item | Symbol | Ratings | Unit |
| Optical output power | Po | 1000 | mW |
| LD Reverse Voltage | VR(LD) | 2 | V |
| Operating Temperature | Topr | 0 ~ +50 | °C |
| Storage Temperature | Tstg | -40 ~ +85 | °C |
Optical and Electrical Characteristics (Tc=25°C)
| Parameter | Symbol | Test Condition | Min | Typ | Max | Unit |
| Optical Output Power | Po | CW | - | 1000 | - | mW |
| Peak Wavelength | λp | Po=1000mW | 510 | 520 | 525 | nm |
| Threshold current | Ith | CW | - | 0.3 | - | mA |
| Operating current | Iop | Po=1000mW | - | 1.8 | - | mA |
| Operating voltage | Vop | Po=1000mW | - | 4.6 | - | V |
| Slope Efficiency | CW | η | - | 0.83 | - | W/A |

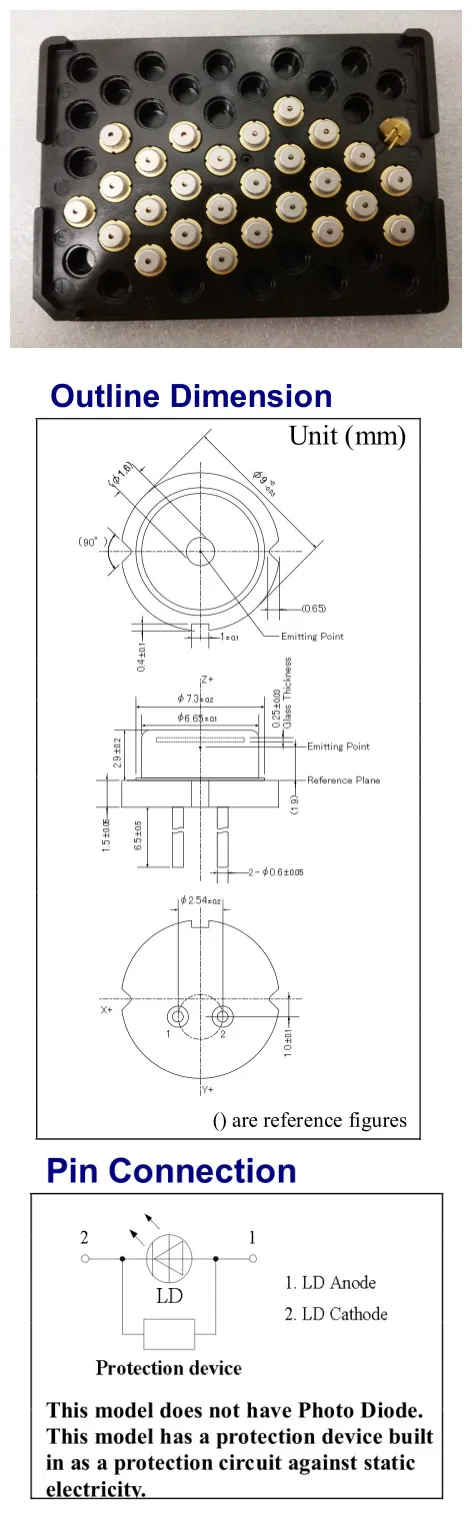

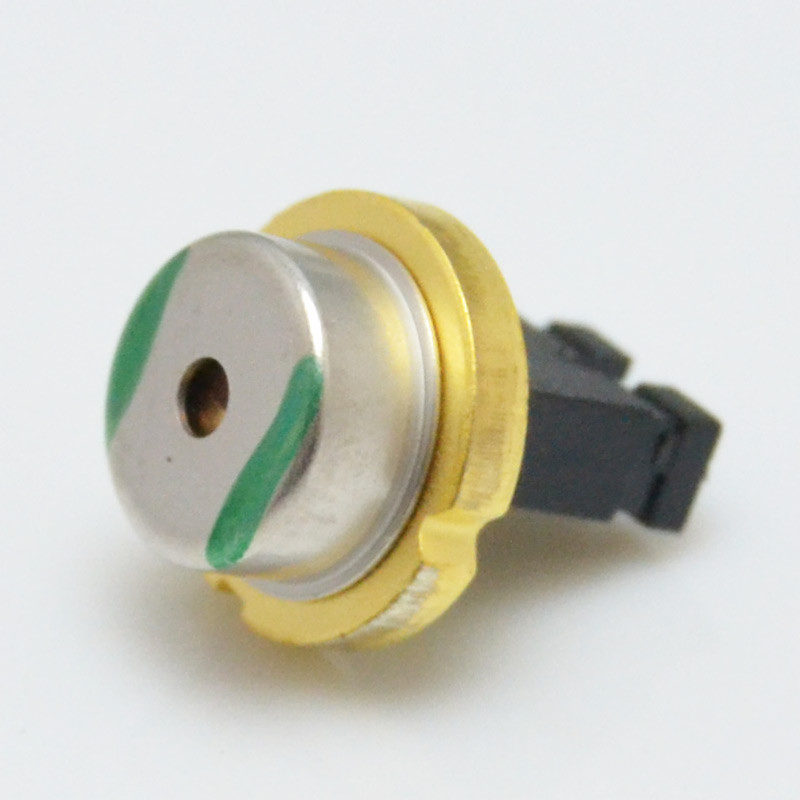

1. Can Type: φ 9 mm Floating Mounted with Protection device.
2. Salable Nichia high quality 520nm 1000mw laser diode.
3. Package details: Plastic box package, it depends on different kinds of laser diodes of different sizes. Normally 50pcs in one tray, 10 trays in one bag, then 10 bags in one carton box.
Welcome Your Inquiry
TO: Song Song
Mob: +86 13713250894
Dongguan BU Laser Co., Ltd

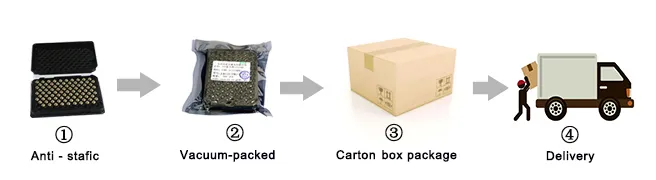

II. Packaging&Shipping:
1. Plastic box, ESD bag, standard and normal package.
2.3-5 days after receiving the payment by T/T, PAYPAL, and other ways.
3. It will be shipped by DHL/FedEx/UPS/TNT or other special ways, please contact us to choose the best one.
1. Plastic box, ESD bag, standard and normal package.
2.3-5 days after receiving the payment by T/T, PAYPAL, and other ways.
3. It will be shipped by DHL/FedEx/UPS/TNT or other special ways, please contact us to choose the best one.
III. Company Information&Services:
A. Main products: Semiconductor laser diode, laser module, bicycle laser light.
B. Since the establishment, DongguanBlueuniverse Laser Co., Ltd has its own brand "LANJI, VIAN", access to China's outstanding semiconductor laser supplier reputation, with a number of domestic and foreign technology patent certification, product quality inspection certification and TUV, BV, SGS, ISO9001: 2015 quality management system certification.
C. Custom Service:
We offer professional ODM and OEM service for laser module. We are a manufacturer of laser modules, also a provider of Laser light source solution that from design to production.
Laser Diode :
We have laser diodes with power from 5mw to 5W with the following wavelength: 405nm 410nm 445nm 450nm 455nm 488nm 505nm 510nm 515nm 520nm 532nm 635nm 638nm 642nm 650nm 658nm 780nm 785nm 808nm 820nm 830nm 850nm 905nm 940nm 980nm RGB and so on.
IV. Laser Application Range :

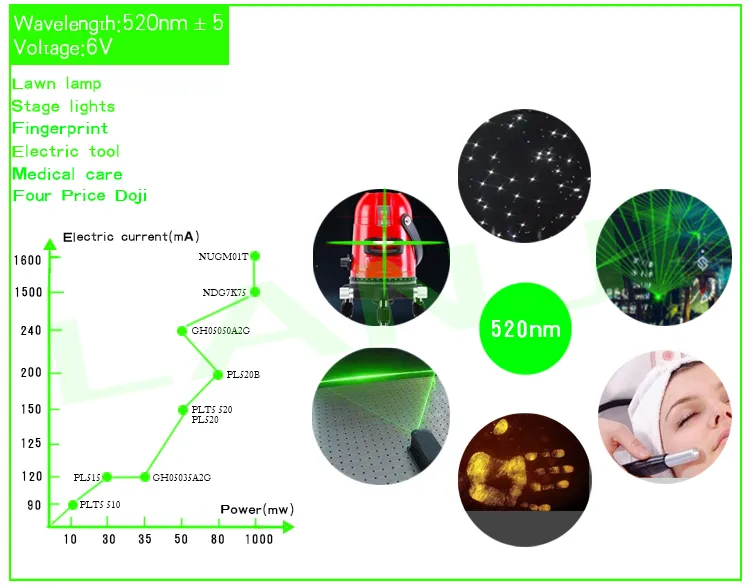

Our lasers have been successfully applied to: laser security, non-contact testing, laser radar, dust detection, scanning detection, face recognition, 3D printing, laser engraving, human-robot interactive, AR, medical beauty, laser network, stage lighting, barcode scanning, camera focusing, night vision, geological exploration, indication positioning, Optical display, optical storage and other industries.
V. Warranty:
All products have been tested before the shipment and it was packaged in good condition. Please tested the products at first before you assemble it, if any problem here, please inform us within 3 days of receipt. We can arrange the replacement for you if the situation is confirmed.
Our lasers have been successfully applied to: laser security, non-contact testing, laser radar, dust detection, scanning detection, face recognition, 3D printing, laser engraving, human-robot interactive, AR, medical beauty, laser network, stage lighting, barcode scanning, camera focusing, night vision, geological exploration, indication positioning, Optical display, optical storage and other industries.
V. Warranty:
All products have been tested before the shipment and it was packaged in good condition. Please tested the products at first before you assemble it, if any problem here, please inform us within 3 days of receipt. We can arrange the replacement for you if the situation is confirmed.
