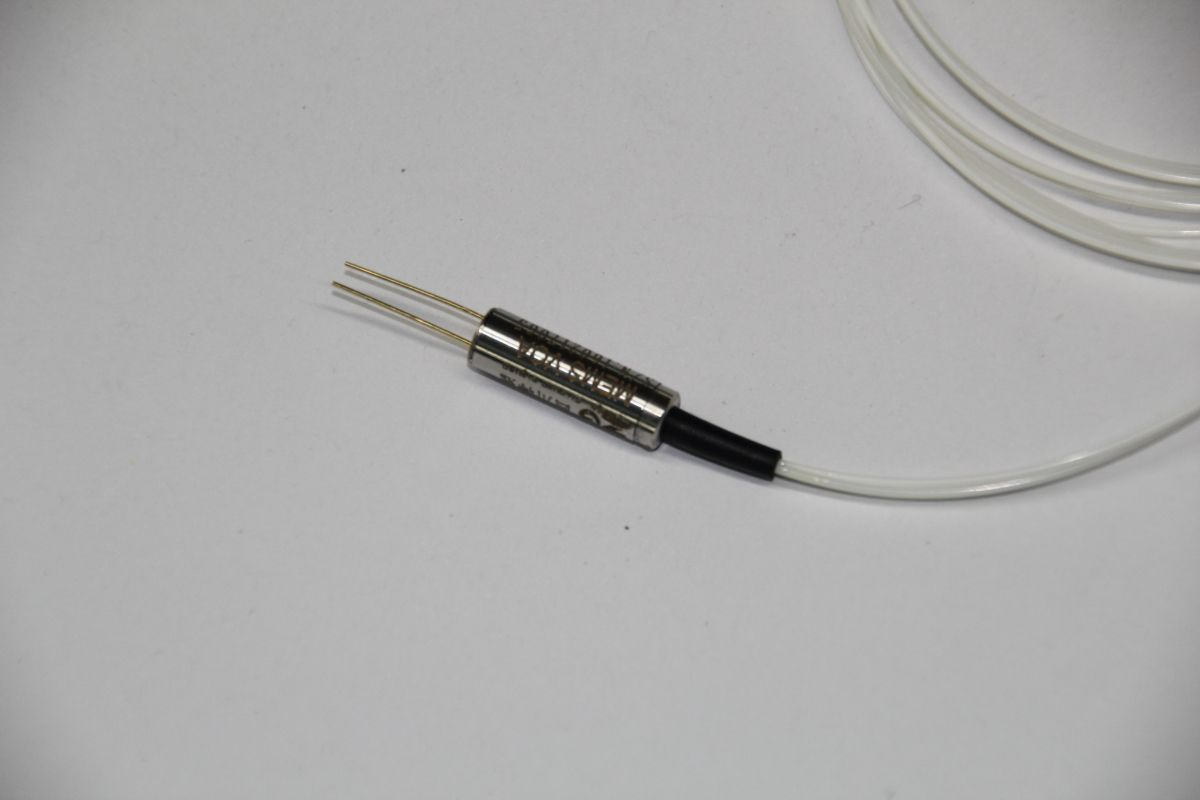

Mems VOA
PRODUCT SPECIFICATIONDESCRIPTION Product FunctionMirror MEMS attenuators are based on a micro-electro-mechanical system (MEMS) technology. The MEMS attenuators design achieves highly repeatable optical attenuation over C and/or L band through an electrically movable mirror on silicon.The products ar......
Send Inquiry
Product Description
PRODUCT SPECIFICATION
1.3 Product Features
- DESCRIPTION
- Product Function
- Mirror MEMS attenuators are based on a micro-electro-mechanical system (MEMS) technology. The MEMS attenuators design achieves highly repeatable optical attenuation over C and/or L band through an electrically movable mirror on silicon.The products are Telcordia GR-1221-CORE qualified, and RoHS compliant.
1.2 Product Application
- Channel equalization
- Gain and Slope Control in EDFA
- For ROADM power balance
- Receiver Protection/switch during transmitter turn-ons
1.3 Product Features
- Low insertion loss
- Low polarization dependent
- Compact size
- Available in both normally open and normally closed states
- Excellent reliability
2 OPTIC SPECIFICATION
| Parameters | Unit | AZ-MVOA |
| Operation Wavelength 1 | nm | 1528~1565 |
| Attenuation Type | Dark or Bright | |
| Attenuation Range | dB | 40 |
| Insertion Loss 2 | dB | <0.8 |
| Attenuation Resolution | Continue | |
| WDL | dB | <1.0@15dB |
| PDL | dB | <0.2@15dB |
| Return Loss | dB | ≥50 |
| Response Time 3 | ms | 1 |
| Driving Voltage 4 | V | <6 |
| Power Consumption | mW | <10 |
| Operating Temperature | ºC | -5~70 |
| Storage Temperature | ºC | -40~85 |
| Max Optical Power | mW | 500 |
| Package Size(Dia× L) | mm | 5.5×19(Without boot) |
| Durability | Cycle | ≥109 |
| Note:1 Wavelength C, L, Full band is optional 2 Typical value 0.6dB, without connector 3 Full range 4 Maximum voltage for full range | ||
3 Operating and Storage Conditions
| PARAMETER | SPECIFICATION | UNITS | NOTE |
| Operation Temperature | -5~70 | °C | |
| Operation Humidity | 5~85 | %RH | |
| Storage Temperature | -40~85 | °C | |
| Storage Humidity | 5~85 | %RH | |
| Input Optical Power | ≤500 | mW |
5 PIGTAIL AND CONNECTOR
| PARAMETER | SPECIFICATION | UNIT | NOTE |
| Pigtail Type(All ports) | Corning SMF-28 ultra | ||
| Pigtail Length(All ports) | 1.0±0.1,or Customer defined | m | |
| Connector Type(All ports) | Port1:FC,SC,LC,MU/PC,APC Port2: FC,SC,LC,MU/PC,APC Or Customer defined | ||
| Pigtail Color | Port1(INPUT):Red Port2(OUTPUT):Clear Or Customer defined |
