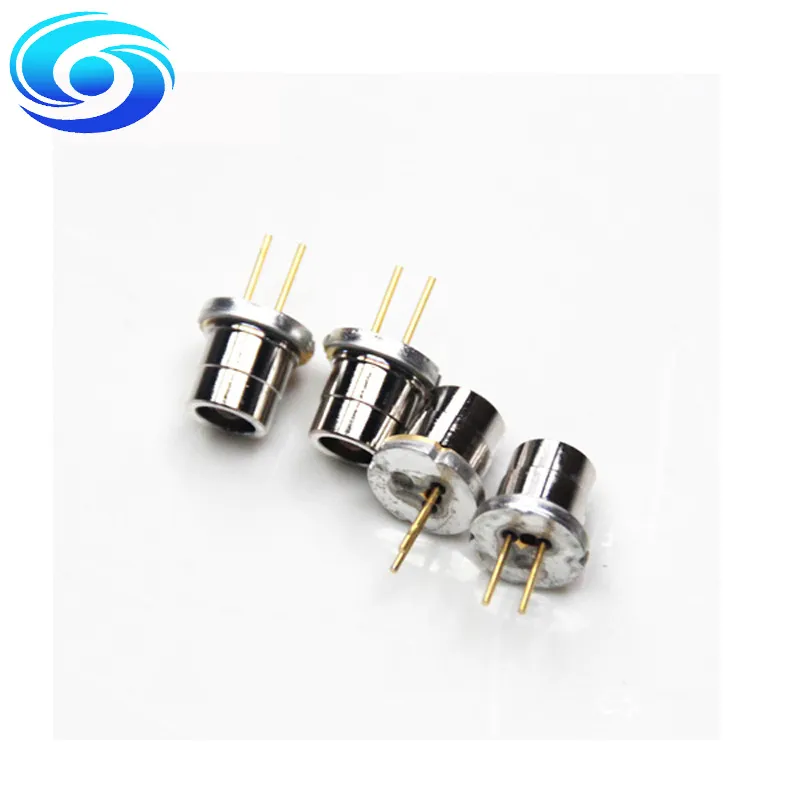

Best Price Green Nichia 520nm Wavelength 8W Laser Diode
Features:1. Visible light output: 520nm Typ2. Optical output power: 8W CW3. contains 8pcs 520nm 1w laser diodesBest Price Green Nichia 520nm Wavelength 8W Laser DiodeAbsolute Maximum Ratings (Tc=25ºC) ItemSymbolAbsolute Maximum RatingsUnitForward Current If2.0 (individual LD)AAllowable ......
Send Inquiry
Product Description
Features:
1. Visible light output: 520nm Typ
2. Optical output power: 8W CW
3. contains 8pcs 520nm 1w laser diodes
Absolute Maximum Ratings (Tc=25ºC)
Initial Electrical /Optical Characteristics of LD Bank (Tc=25ºC)
Initial Electrical /Optical Characteristics of Mounted LD (Tc=25ºC)
Description:

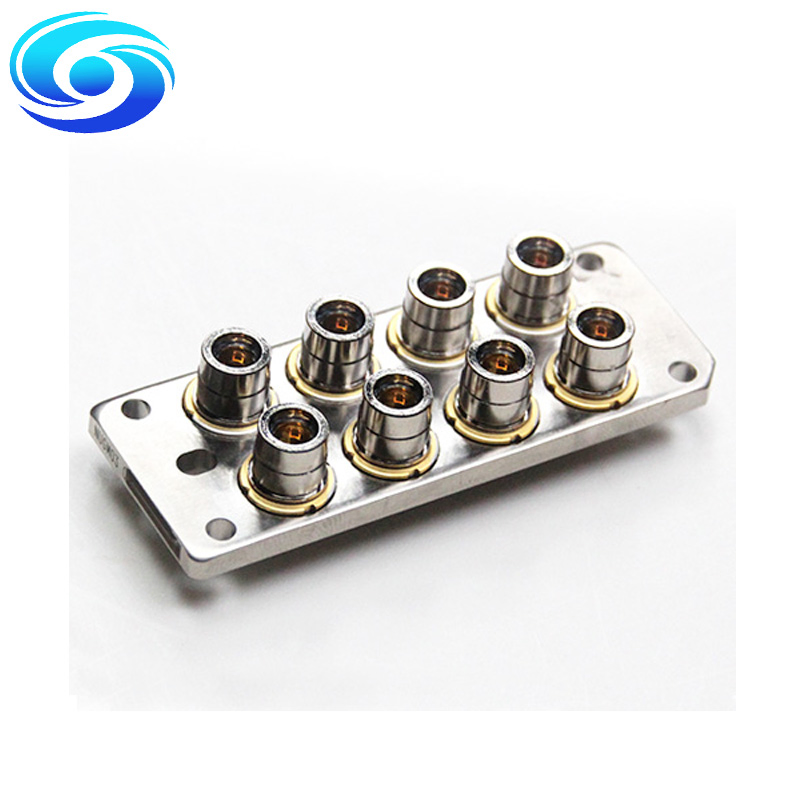

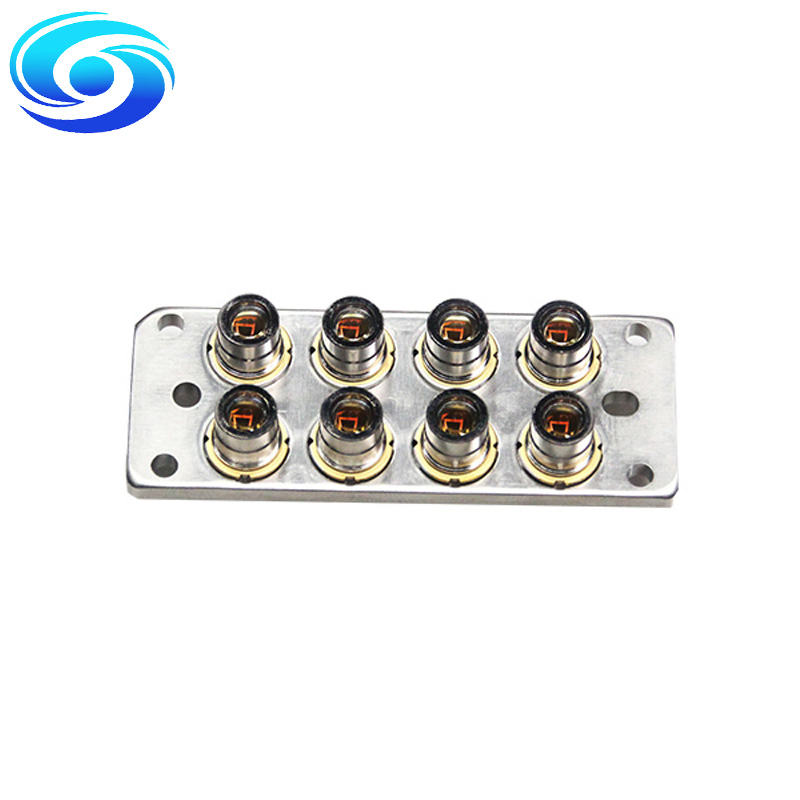

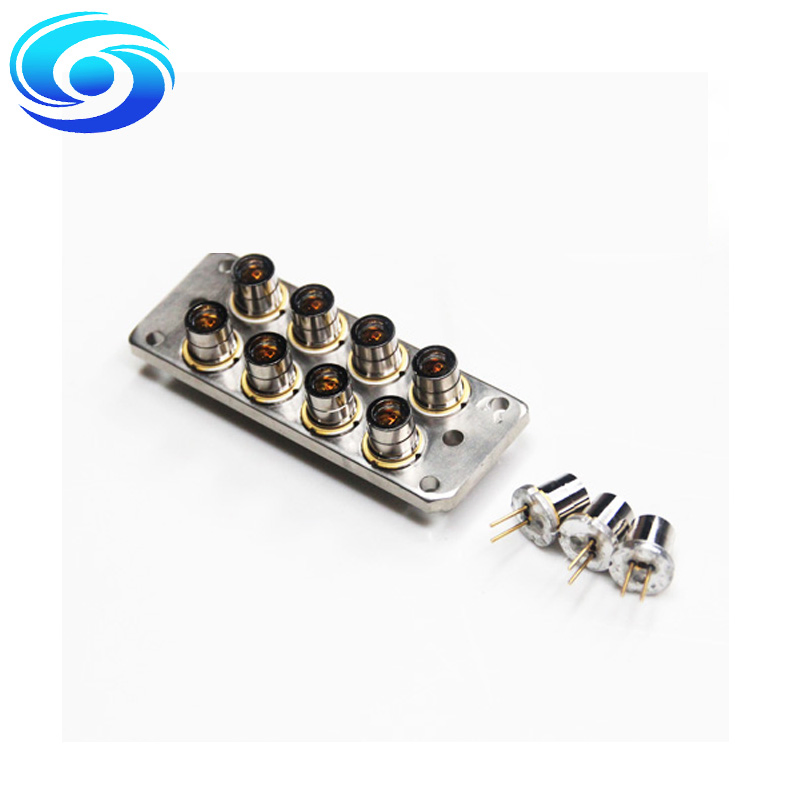

1. Nichia high power multiple laser diode (LD) bank NUGM01T.
2. 8 Collimator beams
3. No outgas
4. High heat dissipation
5. High safety stucture for prevention of removing LDs
Welcome Your Inquiry:
Name: Ms. amy
Tel: +86 17688022193
Dongguan Blueuniverse Laser Co.,Ltd
FAQ:
How to contact us ?
You can send messages to us on trademessenger directly, or send us a email.
Shipping Policy:
1. Item will be sent out within 1-3 working days after the payment is cleared.
2. it will be shipped by DHL/FedEx/UPS/TNT or other special way, please contact with us to choose the best one.
3. Most package will arrive within 3- 5 working days after it is sent out.
Warranty:
All products have been tested before the shipment and it was packaged in good condition. Please tested the products at first before you assemble it, if any problem here , please inform us within 3 days of receipt. We can arrange replacement for you if the situation is confirmed.
1. Visible light output: 520nm Typ
2. Optical output power: 8W CW
3. contains 8pcs 520nm 1w laser diodes
Best Price Green Nichia 520nm Wavelength 8W Laser Diode
Absolute Maximum Ratings (Tc=25ºC)
| Item | Symbol | Absolute Maximum Ratings | Unit |
| Forward Current | If | 2.0 (individual LD) | A |
| Allowable Reverse Current | Ir(LD) | 85 (individual LD) | mA |
| Storage Temperature | Tstg | -40~85 | ºC |
| Operating Case Temperature | Tc | 0~65 | ºC |
Initial Electrical /Optical Characteristics of LD Bank (Tc=25ºC)
| Item | Condition | Symbol | Min | Typ. | Max | Unit |
| Optical Output Power | If=1.6A | Po | T.B.D. | (8.0) | - | W |
| Dominant Wavelength | If=1.6A | λd | 515 | (520) | 525 | nm |
| Beam Pointing Tilt Angle | If=1.6A | Δθ | - | - | 0.7 | deg |
| Operating voltage(8LDs series connection) | If=1.6A | Vop | 32 | (37) | 43 | V |
Initial Electrical /Optical Characteristics of Mounted LD (Tc=25ºC)
| Item | Condition | Symbol | Min | Typ. | Max | Unit | |
| Optical Output Power | If=1.6A | Po | - | (1.0) | - | W | |
| Dominant Wavelength | If=1.6A | λd | 510 | (520) | T.B.D. | nm | |
| Threshold Current | CW | Ith | 150 | - | T.B.D. | mA | |
| Slope Efficiency | CW | η | - | (0.7) | - | W/A | |
| Operating Voltage | If=1.6A | Vop | 4.0 | - | T.B.D. | V | |
| Beam Divergence | Parallel | If=1.6A | Θ// | - | (0.15) | 0.4 | ° |
| Perpendicular | θ⊥ | -0.8 | (0) | 0.8 | ° | ||
Description:
1. Nichia high power multiple laser diode (LD) bank NUGM01T.
2. 8 Collimator beams
3. No outgas
4. High heat dissipation
5. High safety stucture for prevention of removing LDs
