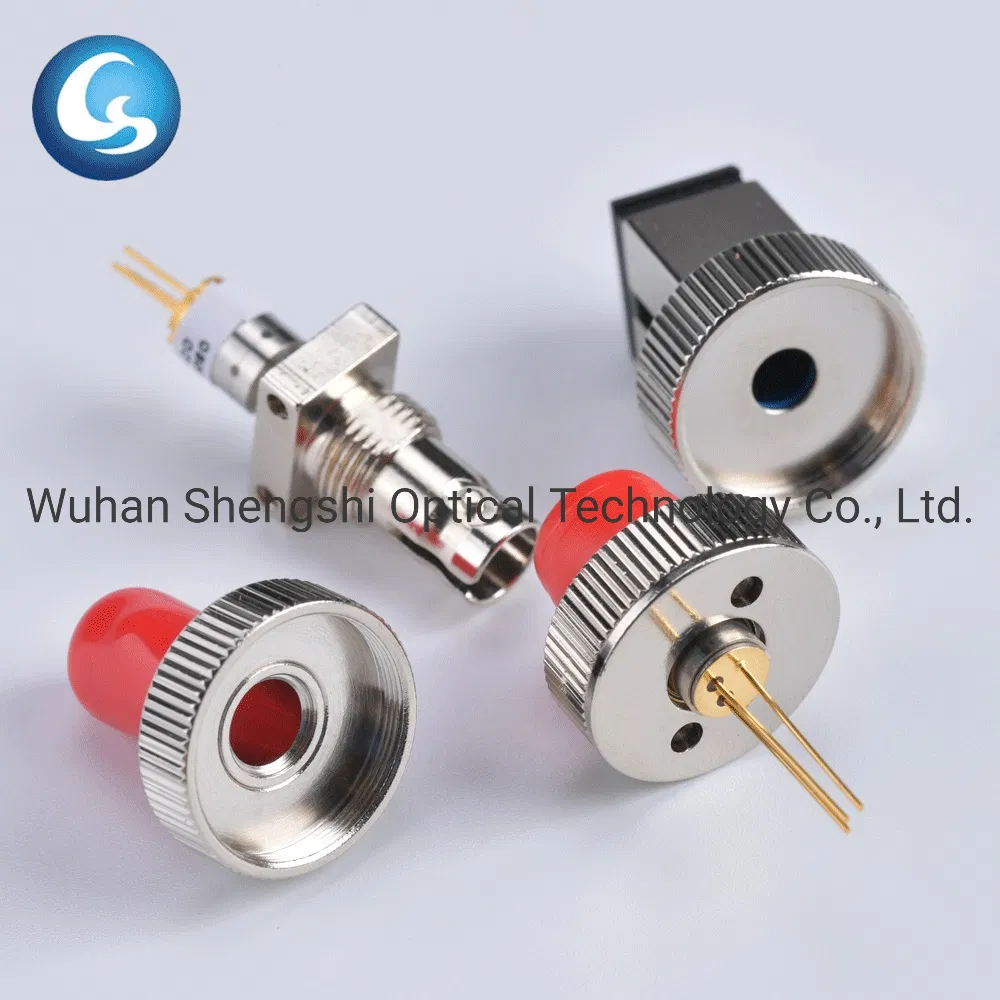

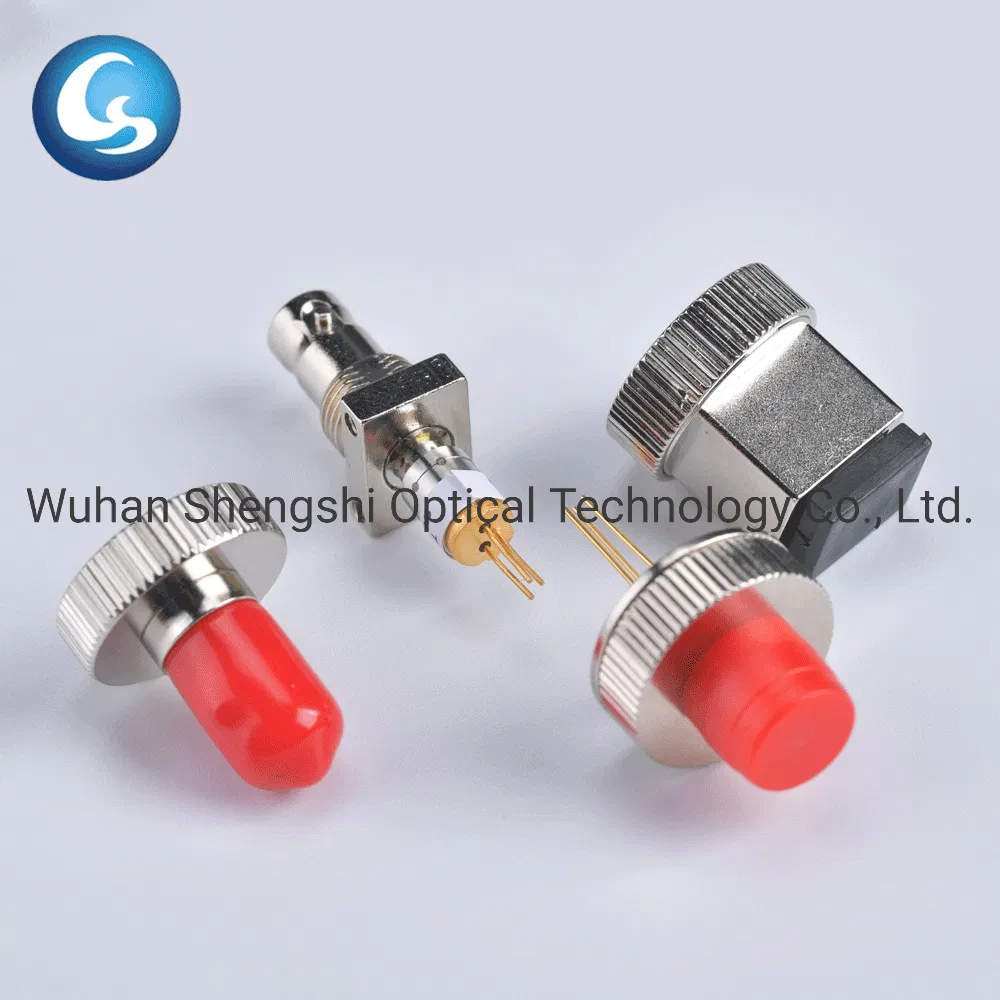

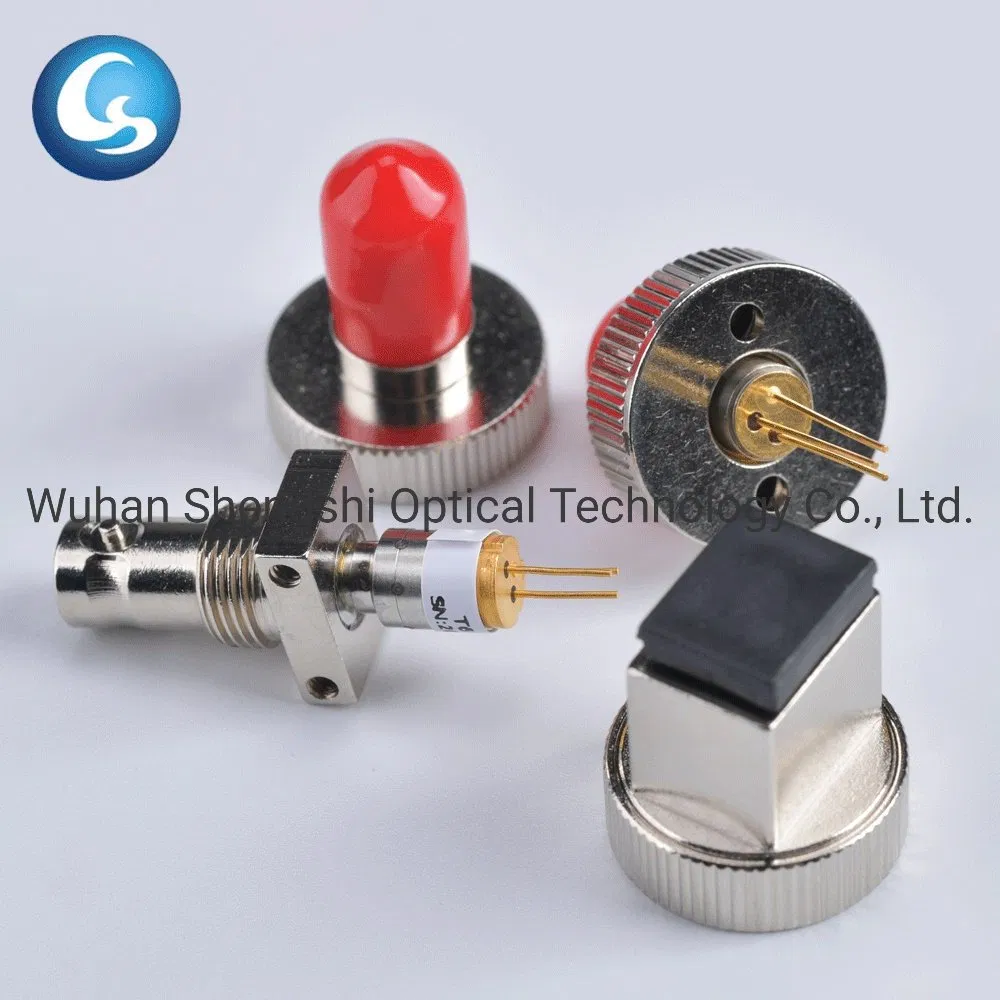

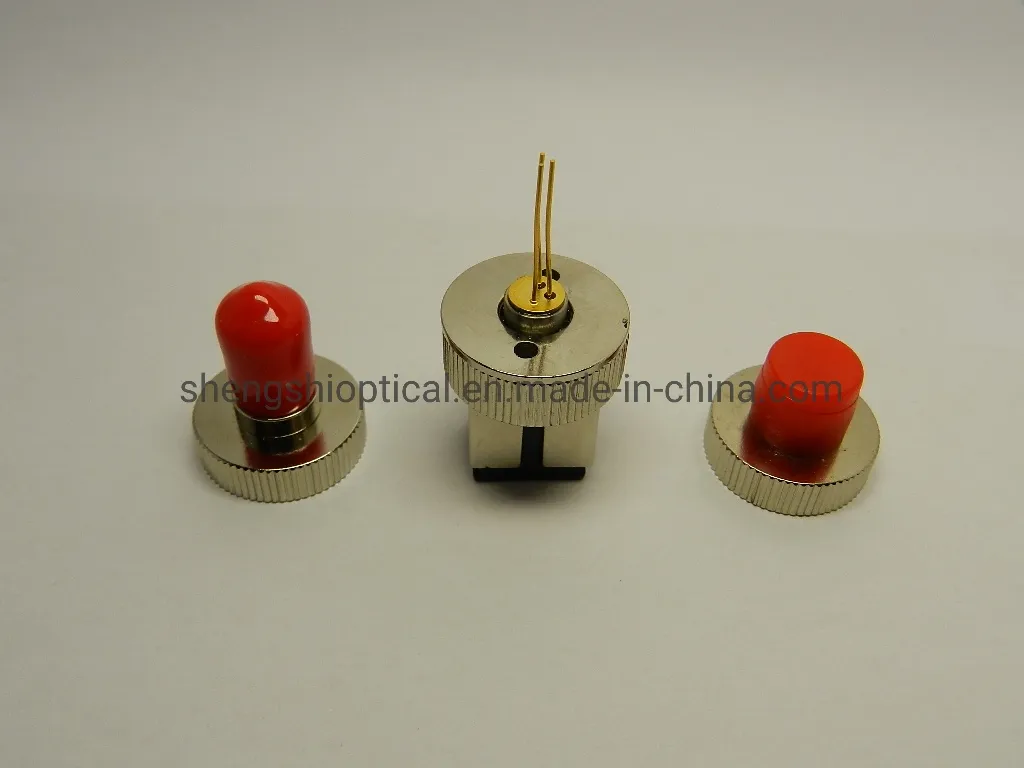

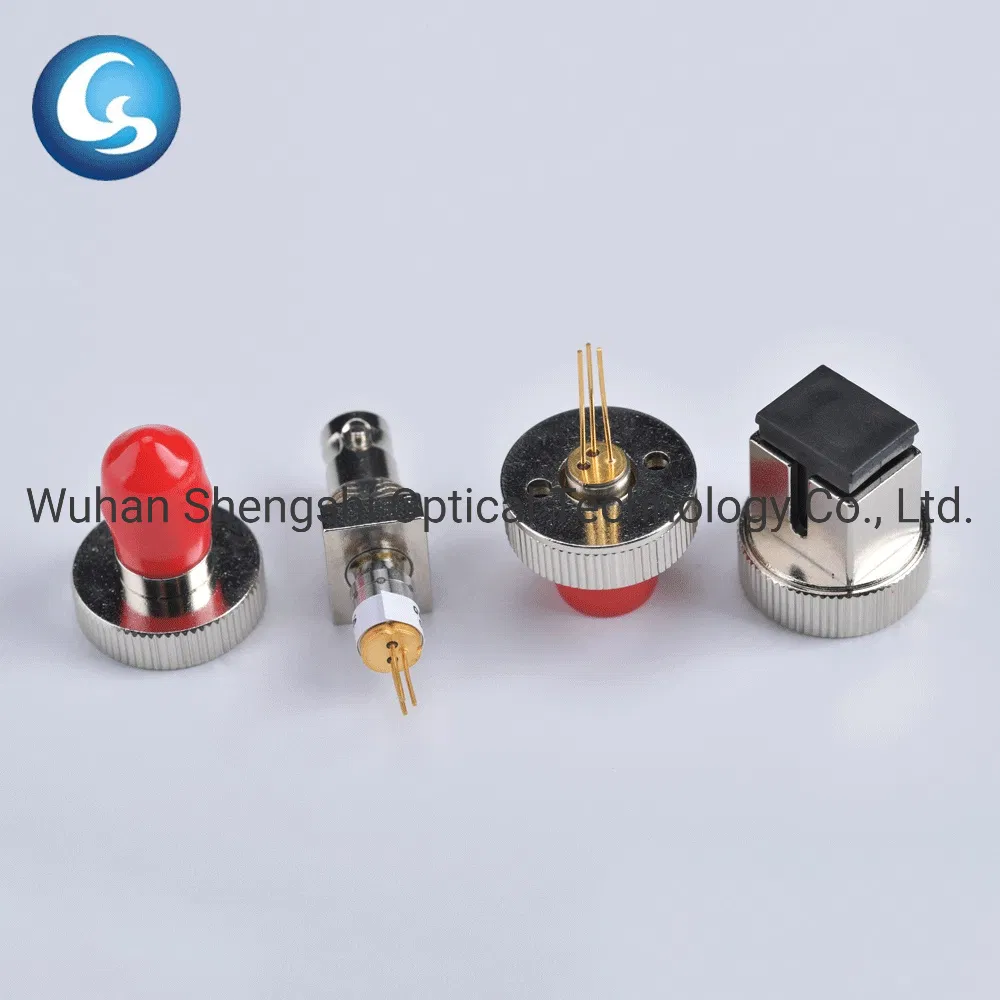

1000um Ingaas Pin Photodiode for Power Meter
InGaAs Photodiode For Instrumentation or Power MeterFeatureMeasure RangeR00:-70 ~ +6 dBmR04:-66 ~ +10 dBmR10:-60 ~ +16 dBmR14:-56 ~ +20 dBmR20:-50 ~ +26 dBmR24:-46 ~ +30 dBm............Photosensitive Surface A03:300μmA05:500μmA10:1000μmA20:2000μm .........Applications Pow......
Send Inquiry
Product Description
InGaAs Photodiode For Instrumentation or Power Meter
Feature
Measure Range
R00:-70 ~ +6 dBm
R04:-66 ~ +10 dBm
R10:-60 ~ +16 dBm
R14:-56 ~ +20 dBm
R20:-50 ~ +26 dBm
R24:-46 ~ +30 dBm
............
Photosensitive Surface
A03:300μm
A05:500μm
A10:1000μm
A20:2000μm
.........
Applications
Power Meter
Electrical and optical characteristics (PO=10mW, TC=+25°C )
Parameter | Symbol | Min. | Typ. | Max. | Unit | Test Condition |
Wavelength Range | λ | 850 | - | 1700 | nm | - |
Power Range | P | -70 | - | 6 | dBm | Vop=5V |
-60 |
| 16 | ||||
-50 |
| 26 | ||||
-40 |
| 36 | ||||
Dark Current | Id | - | - | 2 | nA | 300μm |
5 | 1000μm | |||||
10 | 2000μm | |||||
Responsivity | R | -70 | 0.85 | - | A/W | λ=1310 nm |
-60 | 0.083 | - | ||||
-50 | 0.012 | - | ||||
-40 | 0.001 | - | ||||
Accuracy | - | - | - | ±0.1 | dB | - |
Capacitance | Ct | - | - | 25 | Pf | - |
Response Time | Tr | - | - | 10 | ns | - |
