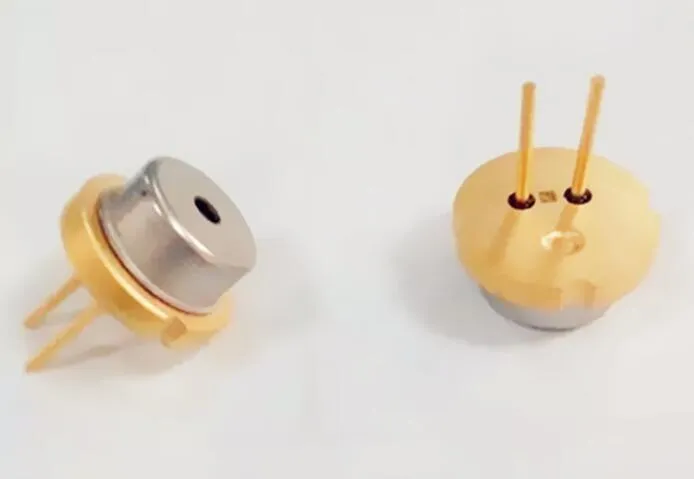

1000MW High Power 9mm Nichia Green Laser Diode 520nm 1W
Features:1. high quality green laser diode 520nm 1000mw2. Nichia laser diode 3. TO5-9mm package type 1000MW High Power 9mm Nichia Green Laser Diode 520nm 1W Absolute Maximum Ratings (Tc = 25ºC)ItemSymbolRatingsUnitOptical output powerPo1000mWLD Reverse VoltageVR(LD)2VOperating TemperatureTo......
Send Inquiry
Product Description
Features:
1. high quality green laser diode 520nm 1000mw
2. Nichia laser diode
3. TO5-9mm package type
Absolute Maximum Ratings (Tc = 25ºC)
1. Can Type: φ 9 mm Floating Mounted with Protection device.
Welcome Your Inquiry
TO: Song Song
Dongguan BU Laser Co., Ltd
FAQ:
1.Q: How to contact us?
A: You can send messages to us on trade messenger directly, or send us an email.
2.Q: Can I order samples first to test the quality?
A: Yes, Samples are in stock for you.
3. Q: How does your factory do regarding quality control?
A: Quality is the priority. So can always attach great importance to
quality controlling from the very beginning to the very end.
Our factory has gained production license, ROHS, CE, and ISO9001: 2015.
Warranty:
All products have been tested before the shipment and it was packaged in good condition. Please tested the products at first before you assemble it, if any problem here, please inform us within 3 days of receipt. We can arrange the replacement for you if the situation is confirmed.
1. high quality green laser diode 520nm 1000mw
2. Nichia laser diode
3. TO5-9mm package type
1000MW High Power 9mm Nichia Green Laser Diode 520nm 1W
Absolute Maximum Ratings (Tc = 25ºC)
| Item | Symbol | Ratings | Unit |
| Optical output power | Po | 1000 | mW |
| LD Reverse Voltage | VR(LD) | 2 | V |
| Operating Temperature | Topr | 0 ~ +50 | °C |
| Storage Temperature | Tstg | -40 ~ +85 | °C |
Optical and Electrical Characteristics (Tc=25°C)
| Parameter | Symbol | Test Condition | Min | Typ | Max | Unit |
| Optical Output Power | Po | CW | - | 1000 | - | mW |
| Peak Wavelength | λp | Po=1000mW | 510 | 520 | 525 | nm |
| Threshold current | Ith | CW | - | 0.3 | - | mA |
| Operating current | Iop | Po=1000mW | - | 1.8 | - | mA |
| Operating voltage | Vop | Po=1000mW | - | 4.6 | - | V |
| Slope Efficiency | CW | η | - | 0.83 | - | W/A |

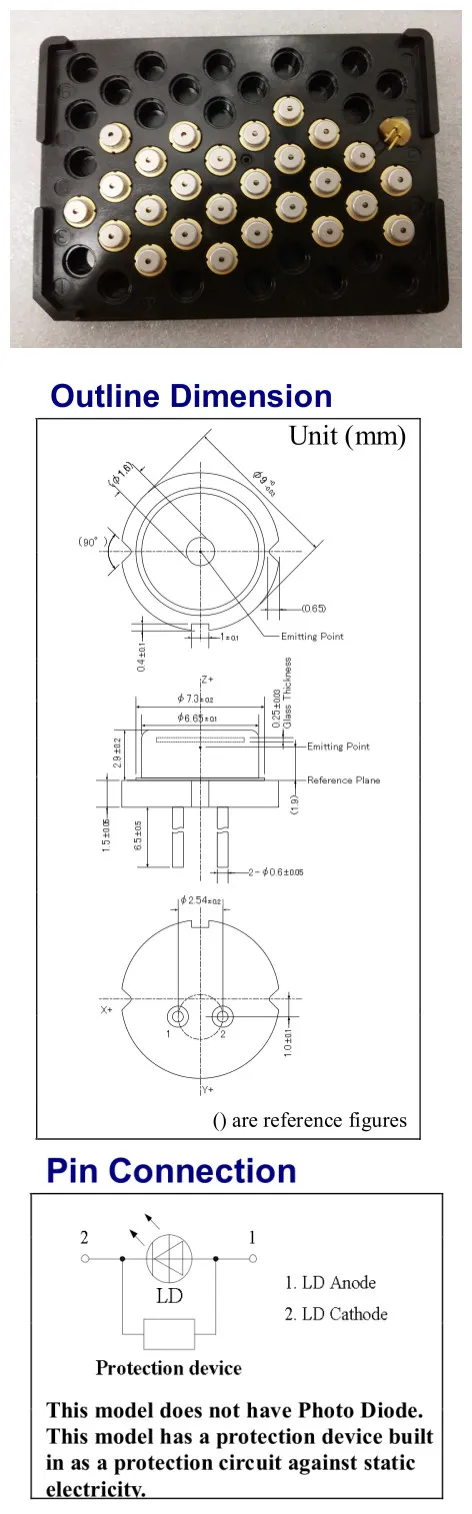

1. Can Type: φ 9 mm Floating Mounted with Protection device.
2. Salable Nichia high quality 520nm 1000mw laser diode.
3. Package details: Plastic box package, it depends on different kinds of laser diodes with different sizes. Normally 50pcs in one tray, 10 trays in one bag, then 10 bags in one carton box.
Welcome Your Inquiry
TO: Song Song
Dongguan BU Laser Co., Ltd
Packaging&Shipping:
1. Plastic box, ESD bag, standard and normal package.
2.1-3 days after receiving the payment by T/T, Western Union, PAYPAL, Secure Payment, Trade Assurance.
3. It will be shipped by DHL/FedEx/UPS/TNT or other special ways, please contact us to choose the best one.
4. Delivery time will be usually 3~5 working days.
1. Plastic box, ESD bag, standard and normal package.
2.1-3 days after receiving the payment by T/T, Western Union, PAYPAL, Secure Payment, Trade Assurance.
3. It will be shipped by DHL/FedEx/UPS/TNT or other special ways, please contact us to choose the best one.
4. Delivery time will be usually 3~5 working days.
Company Information&Services:
A. Every customer's admiration is our goal and future willing, we are concentrated in doing the best quality products, supplying the best goods and service.
B.Main products: Semiconductor laser diode, laser module, bicycle laser lights.
C.The laser wavelength includig:405nm 410nm 445nm 450nm 455nm 510nm 515nm
520nm 532nm 635nm 638nm 642nm 650nm 658nm 780nm 785nm 808nm 820nm
830nm 850nm 980nm RGB and so on.
A. Every customer's admiration is our goal and future willing, we are concentrated in doing the best quality products, supplying the best goods and service.
B.Main products: Semiconductor laser diode, laser module, bicycle laser lights.
C.The laser wavelength includig:405nm 410nm 445nm 450nm 455nm 510nm 515nm
520nm 532nm 635nm 638nm 642nm 650nm 658nm 780nm 785nm 808nm 820nm
830nm 850nm 980nm RGB and so on.
