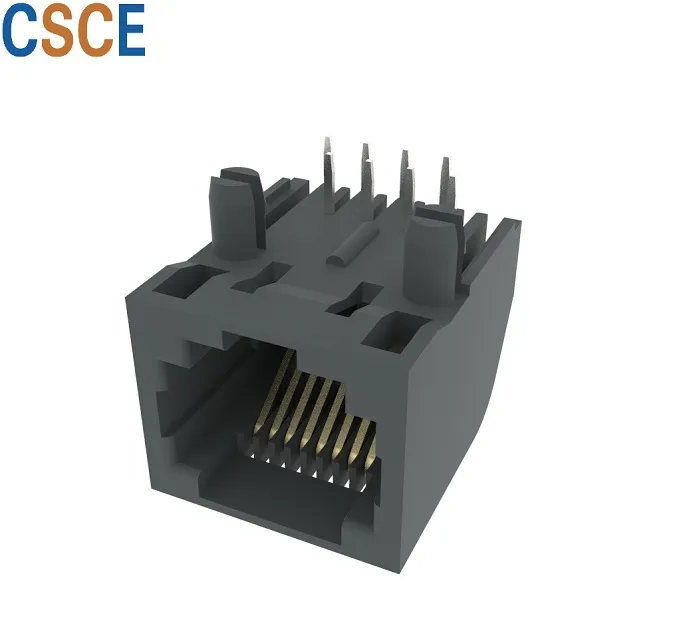

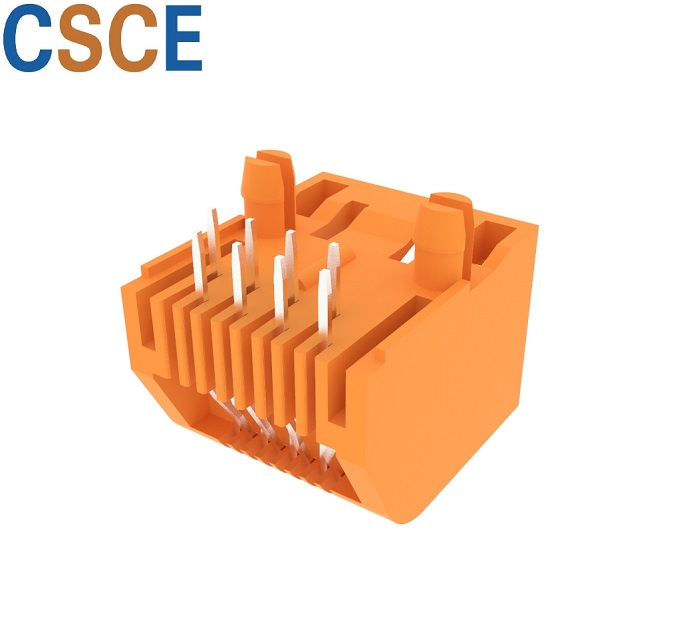

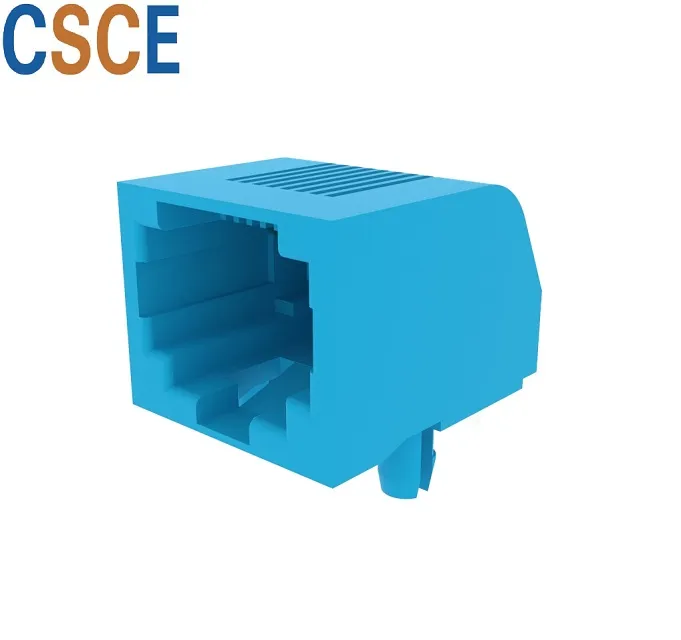

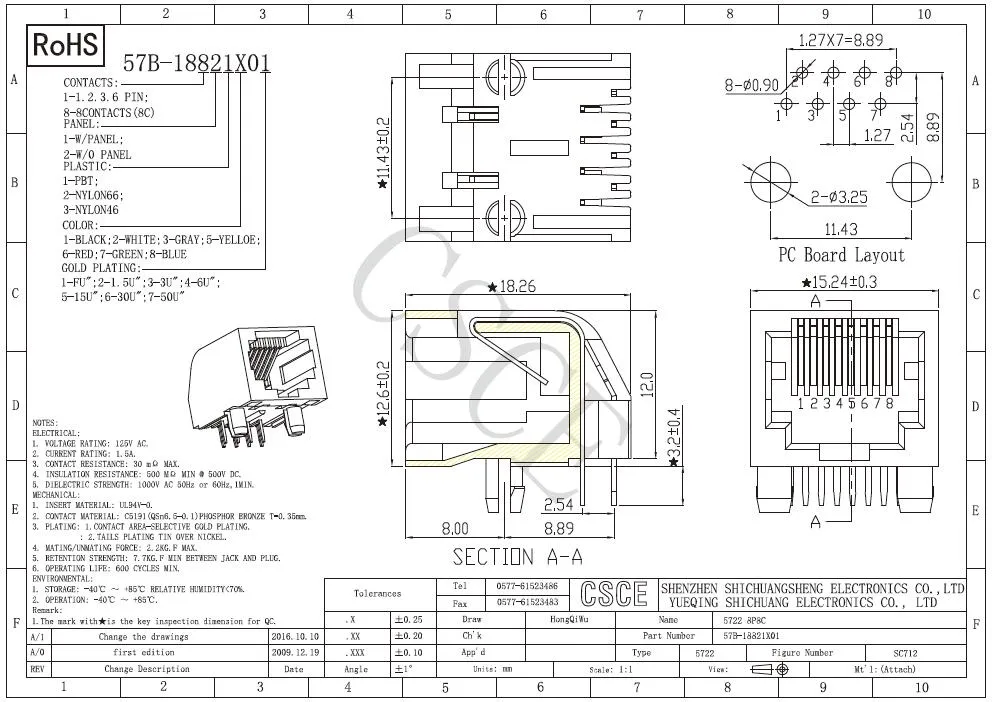

Side Entry Tab Down 8p RJ45 PCB Connector Socket with Stamp Pin, Unshield 8p RJ45 Modular PCB Jack with Right Angle

Item No.:SC712-5722-8P8C
Description:Side entry tab down single port 8p rj45 pcb connector network jack with stamp pin,  unshield 90 degree 1X1 port 8p rj45 modular pcb jack lan socket with flat pin
Angle:90 Degree
Color: Black, also can requested by customers
Specification
Electrical
1. Current Rating: 1.5 amps
2. Voltage Rating: 125vac
3. Insulation Resistance: 500Ωmin
4. Contact Resistance: 30Ωma
5. Withstanding Voltage: AC 1000V RMS 50Hz or 60Hz 1 min
Mechanical
1. Insertion Force: 2.2KG. F max
2. Retention Strength: 7.7KG. F min between jack and plug
3. Durability: 600 mating cycles min
Material
1. Housing: ABS RESIN(UL94V-0)
PBT(UL94V-0)
PA66(UL94V-0)
PA46(UL94V-0)
2. Contact Wire: Diameter 0.45mm phosphor bronze gold plating over
3. Gold Plating: Gold Flash,1u",1.5u", 3u inch, 6u inch, 15u inch, 30u inch, 50u inc
