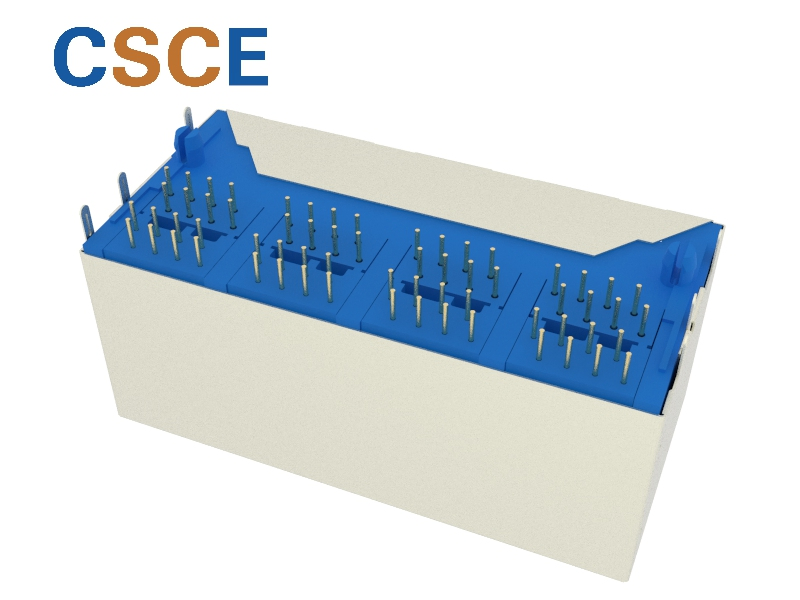

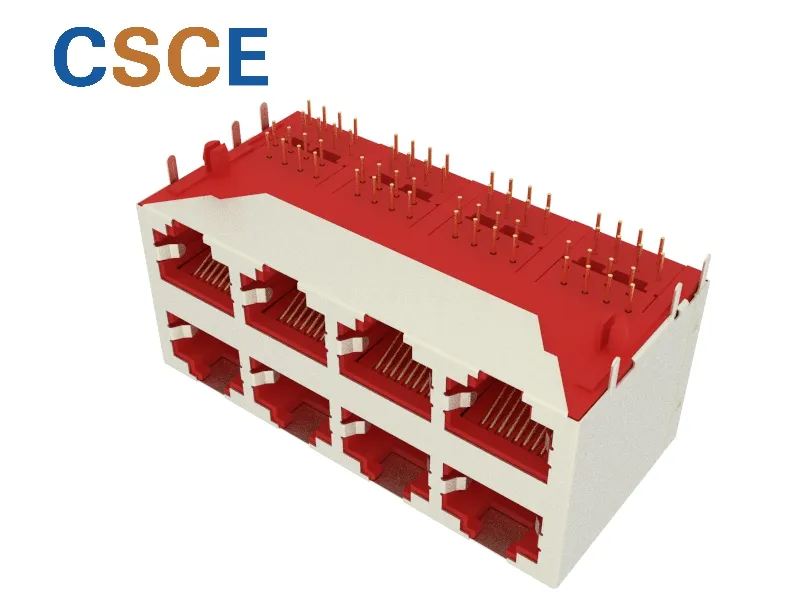

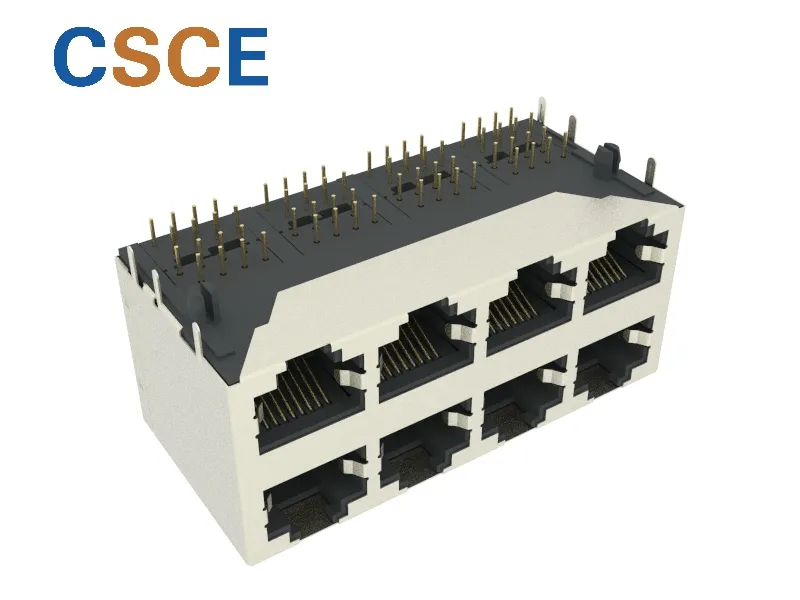

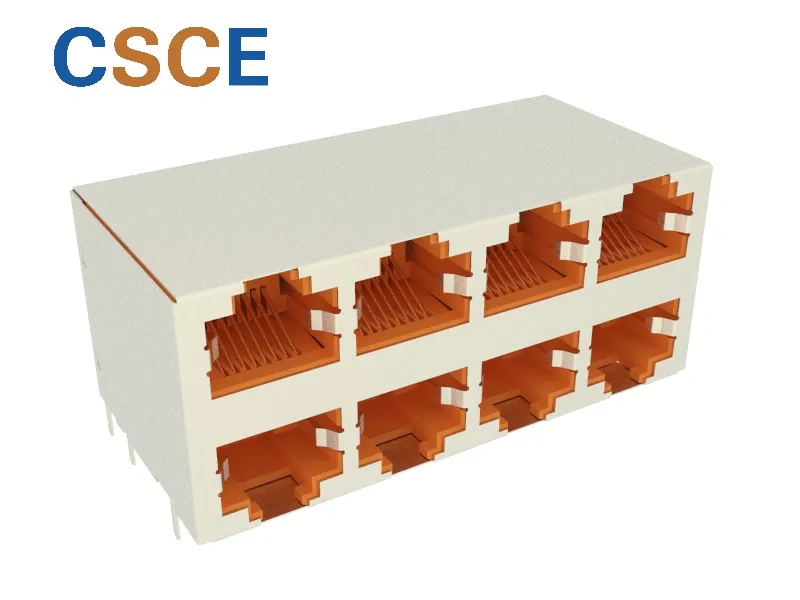

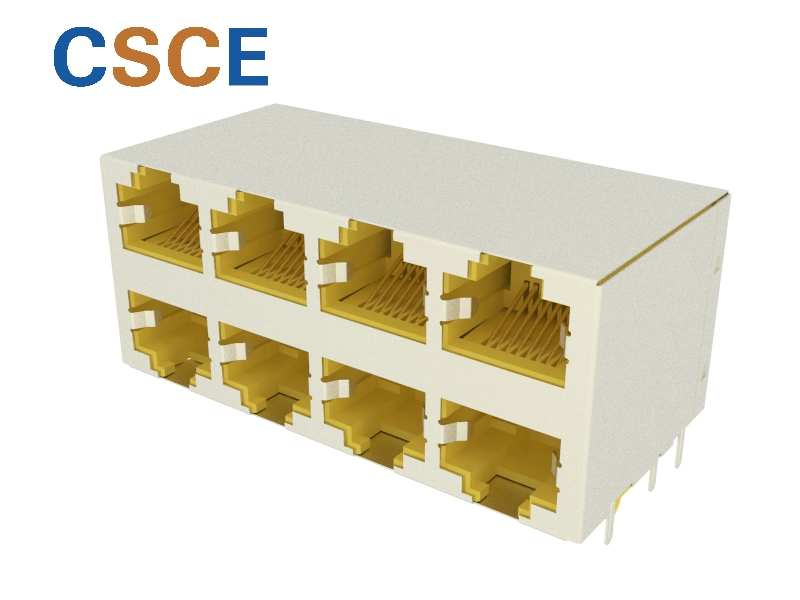

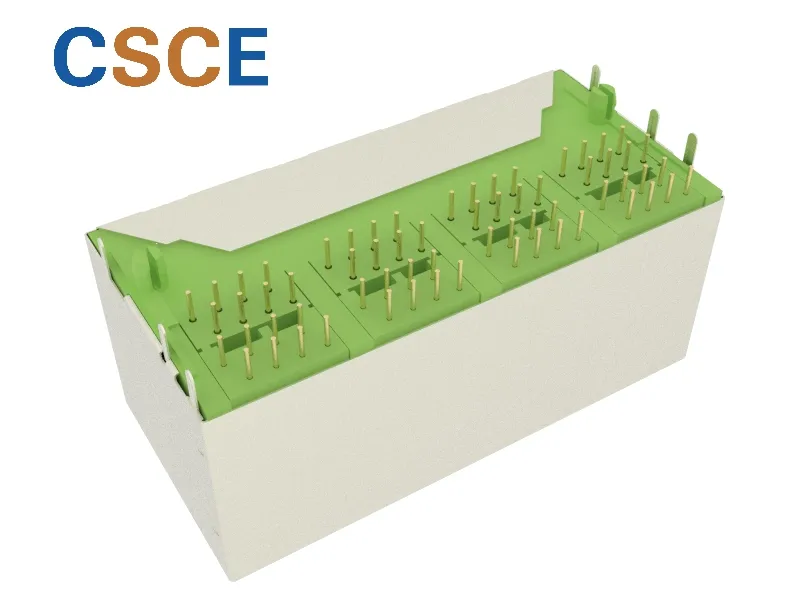

Multi-Layer 2X4 Ports 8p Stacked RJ45 Modular PCB Socket Connector with Shield

Item No.:SC918-5921S-8P8C-2X4
Description:Multi-layer 2X4 port 8p rj45 pcb connector lan socket  with round pin, Through Hole type 2X4 ports  8p stacked rj45 modular pcb jack network connector with Shiel
Angle:90 Degree
Color: Black, also can requested by customers
Specification
Electrical
1. Current Rating: 1.5 amps
2. Voltage Rating: 125vac
3. Insulation Resistance: 500Ωmin
4. Contact Resistance: 30Ωma
5. Withstanding Voltage: AC 1000V RMS 50Hz or 60Hz 1 min
Mechanical
1. Insertion Force: 2.2KG. F max
2. Retention Strength: 7.7KG. F min between jack and plug
3. Durability: 600 mating cycles min
Material
1. Housing: ABS RESIN(UL94V-0)
PBT(UL94V-0)
PA66(UL94V-0)
PA46(UL94V-0)
2. Contact Wire: Diameter 0.45mm phosphor bronze gold plating over
3. Gold Plating: Gold Flash,1u",1.5u", 3u inch, 6u inch, 15u inch, 30u inch, 50u inc
