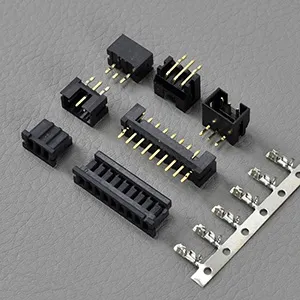

Hirose Df3 2mm Pitch Lvds Connector for Business Equipment Connection UL Complaint
Hirose DF3 2mm Pitch LVDS Connector for Business equipment Connection UL complaintQuick Detail: NameHRS DF3 PCB-Board-to-Wire connectorApplicationSignal,Power Wire-to-BoardConnectorSocket, contact, pin headerCircuits/poles/pins2~15Terminal Pitch2.0mmCertificateROHS, UL,HF Descriptions:Correspond t......
Send Inquiry
Product Description
Hirose DF3 2mm Pitch LVDS Connector for Business equipment Connection UL complaint
Quick Detail:| Name | HRS DF3 PCB-Board-to-Wire connector | Application | Signal,Power Wire-to-Board |
| Connector | Socket, contact, pin header | Circuits/poles/pins | 2~15 |
| Terminal Pitch | 2.0mm | Certificate | ROHS, UL,HF |
Descriptions:
Correspond to Board Design in Wide Variation
ID Socket (1) Low profile design with the mounting height of 6.8mm
(2) Achieves the multi-harness by the full automatic ID machine in combination with the DF11 series ID type.
Crimp Socket (1) Low profile design with mounting height 7.5mm.
(2) Provide the contact crimping area with the sufficient space, and secures the stable crimping operation.
Receptacle (1) The board can be connected horizontally or vertically in combination with the straight header with the right angle header.
(2) For horizontal connection, the board to board size is the low profile of 6.6mm.
(3) Compatibility with the in-line plug allows the receptacle to set the board side to the receptacle and the cable side to the plug in the board to cable connection.
Pin Header (1) The board pre-fixed kink is treated with the post pin.
(2) The style employs a scoop-proof and sturborn box type.
(3) The type corresponding to SMT is avilable, using the heat-proof resin.
This SMT header is equipped with the metal tab to prevent peeling in the solder joint area.
In-line Plug (1) The crimping in-line plug consits of two types, one type, which has pursued after space merits, and
the other employs the panel lock type, which can be fixed to the panel.
(2) The in-line adapter is available to insert and in-line the ID socket from both sides.
They can be replacing Hirose, HRS, Molex, Digi-Key, TE AMP, TYCO JST, JAE, Yeonho, Civilux, Samtech ect famous parts.
Specifications:
| Crimping Socket | DF3-(2~15)S-2C,543-0003-8 BLACK |
| Crimp contact for socket | DF3-22SCF,543-0235-3 Tin-lead plated or DF3-2428SCFC,543-0046-0 gold plated, |
| Pin Header/wafer | Straight TH:DF3A-(2~15)P-SDSA,543-0165-0 Right angle TH:DF3A-(2~15)P-2SD,543-0190-4 Straight SMT:DF3A-(2~15)P-2V,543-0121-4 Right angle SMT:DF3-(2~15)P-2H,543-0107-3 |
| Pitch Centerline | 1.25mm |
| Circuits/poles/pins | 2~15 |
| Number of Rows | Single/double |
| Current rating | 1A AC,DC |
| Voltage rating | 100V,AC,DC |
| Wire range | AWG28~32 |
Free Sample!
This serial connector can be equal HRS Hirose, TE,AMP, Molex, JST, Digikey,Civilux ect famous parts sell at short lead time 1~2 weeks.
Customized wire harness, cable assembly are welcomed!
Application:
Business equipment: copy machine and printer
Consumer: Video camera, LCD, Note PC, TV panel, PDP, Point of sales terminals, set top boxes
Mobile terminal, Note PC, miniature type business equipment, various consumer equipment, video camera
Commercial Vehicle: Sound systems
Customized wire harenss cable assembly sample or order are welcomed!
