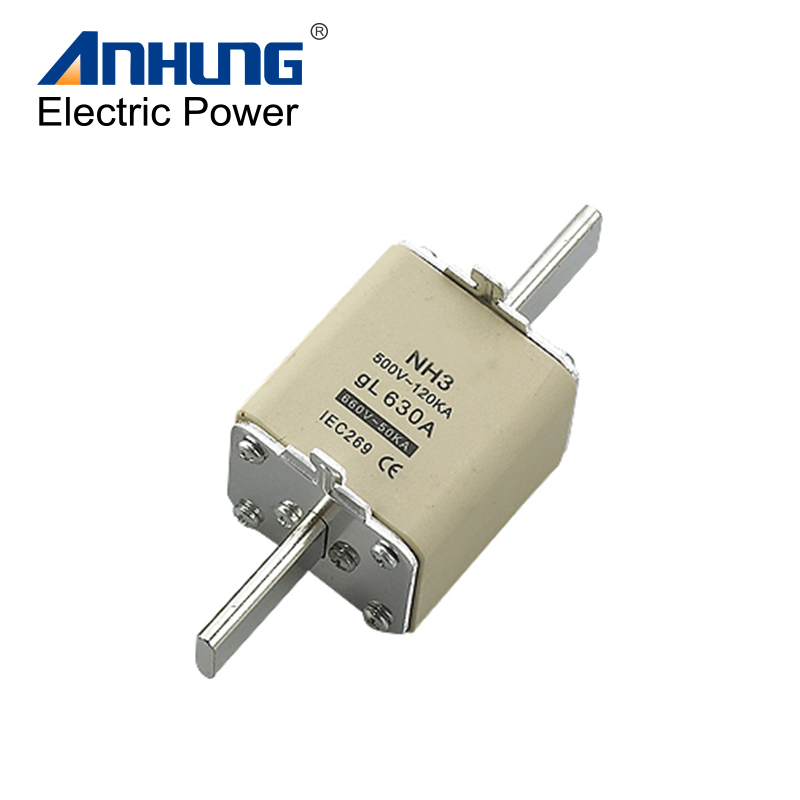

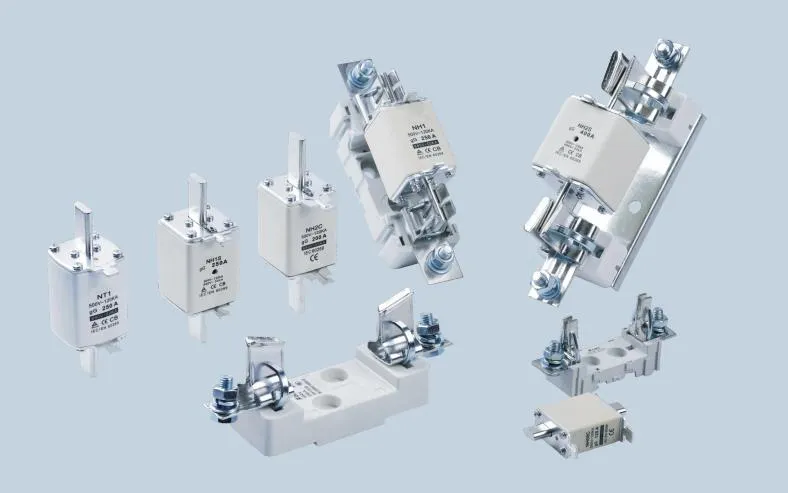

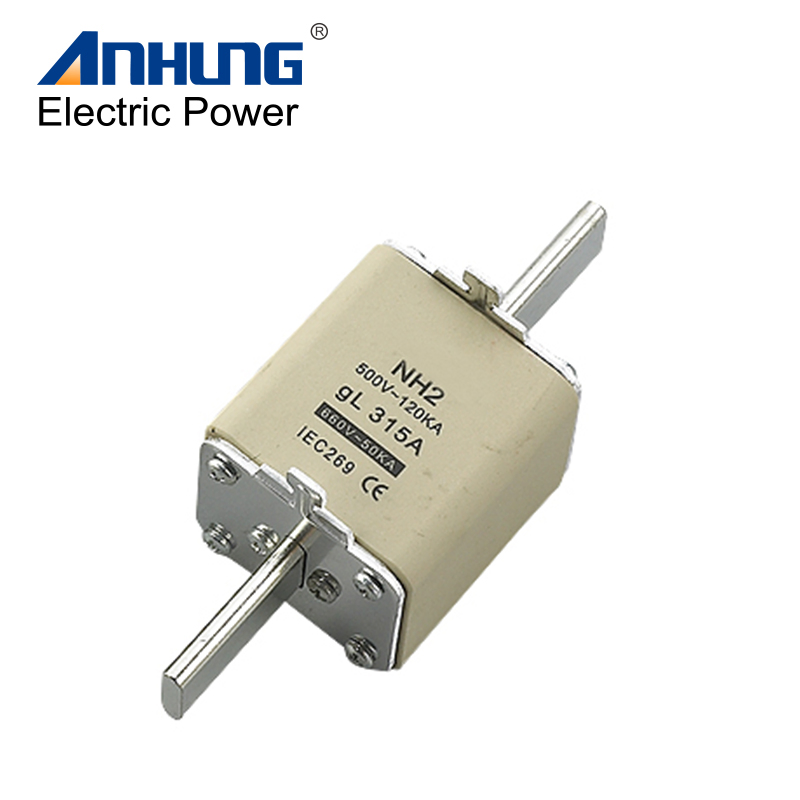

Nh Series Low Voltage HRC Fuse Link
NH2 Low Voltage HRC Fuse Links, this series of fuse links is mainly used in AC 50Hz, rated voltage up to 1140V, rated current up to 1250A and for pro- tecting electric equipment from overload and short-circuit. It can reliably break the min, fusion current to any current wit- hin120KA.It is also ava......
Send Inquiry
Product Description
NH2 Low Voltage HRC Fuse Links, this series of fuse links is mainly used in AC 50Hz, rated voltage up to 1140V, rated current up to 1250A and for pro- tecting electric equipment from overload and short-circuit. It can reliably break the min, fusion current to any current wit- hin120KA.
It is also available for the protection of semiconductor parts and equipments against short-circuit(type aR)and protection of motors(type aM).
This series of fuse links conforms to GB13539 and IEC60269.
It adopts the material with high quality. The arc-extinguishi ng medium is quartz sand and fuse tube is high strength ceramic. The advanced manufacturing craft work ensures the performance of small power waste, stable characteristic for the product. The outline structure and installation dime- nsion joints the advanced similar products from domestic and abroad.

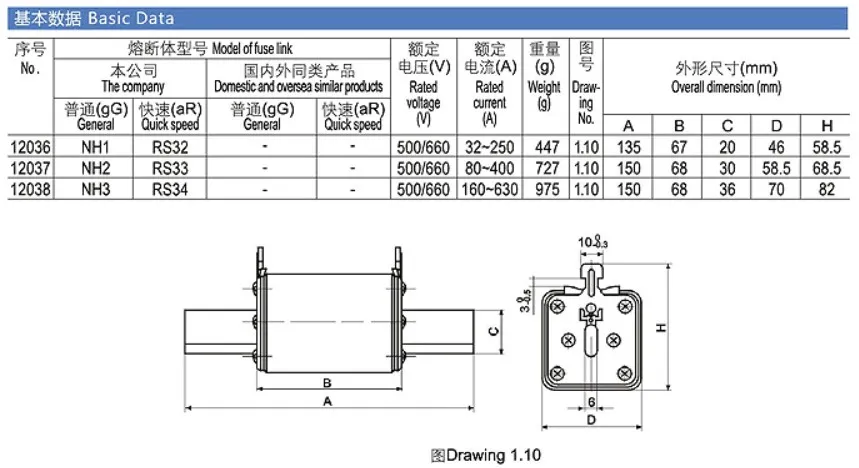

The model, outline dimension, rated voltage and rated curr- ent please see Figures 1.1~1.15.
It is also available for the protection of semiconductor parts and equipments against short-circuit(type aR)and protection of motors(type aM).
This series of fuse links conforms to GB13539 and IEC60269.
It adopts the material with high quality. The arc-extinguishi ng medium is quartz sand and fuse tube is high strength ceramic. The advanced manufacturing craft work ensures the performance of small power waste, stable characteristic for the product. The outline structure and installation dime- nsion joints the advanced similar products from domestic and abroad.
The model, outline dimension, rated voltage and rated curr- ent please see Figures 1.1~1.15.
