1p Sun Energy 6A 1000V DC Fuse
Fuse holder ceramic 1000vdc wall mounted Automatic 20a PV system DC Fuse dc fuse Application:A range of 10x38mm fuse links specifically designed for protectin photovoltaic strings. These fuse links are capable of interrupting low overcurrents associated with faulted photovoltaic string arrays (rever......
Send Inquiry
Product Description

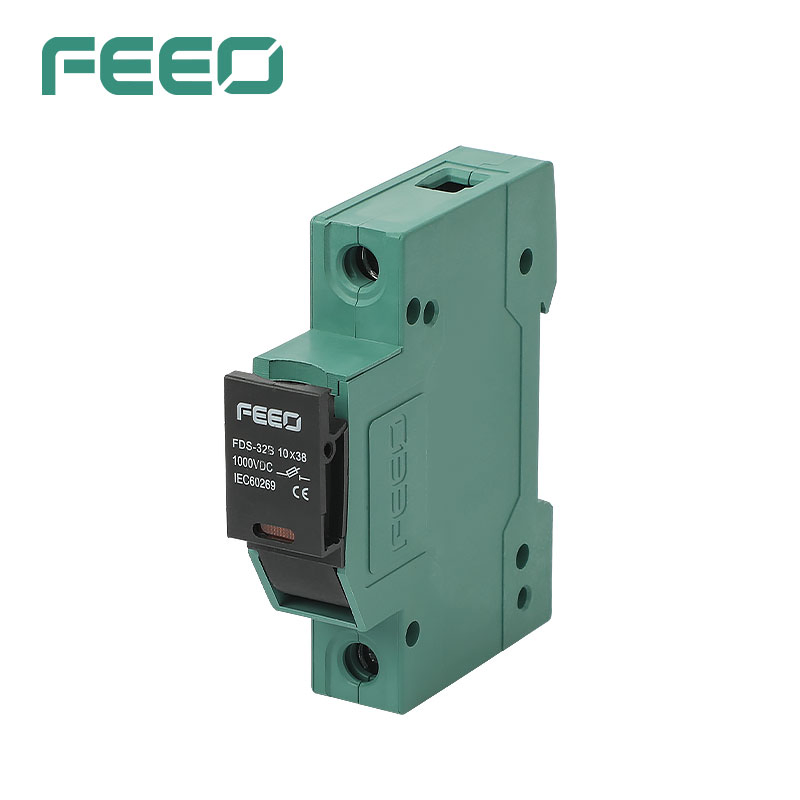

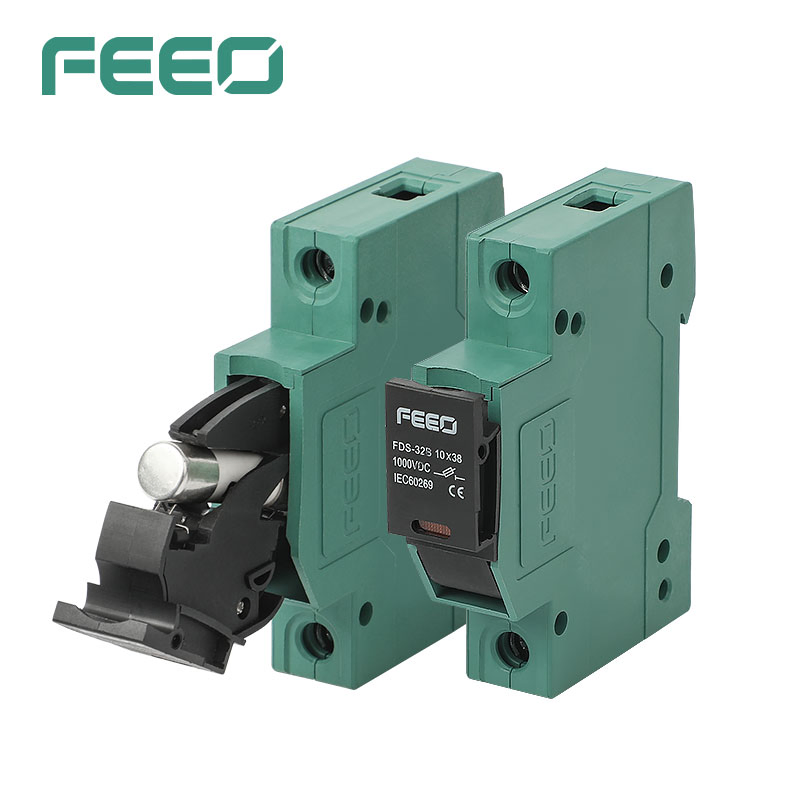

Fuse holder ceramic 1000vdc wall mounted Automatic 20a PV system DC Fuse
dc fuse Application:
A range of 10x38mm fuse links specifically designed for protectin photovoltaic strings. These fuse links are capable of interrupting low overcurrents associated with faulted photovoltaic string arrays (reverse current, multi-array fault).
dc fuse Parameters:
| Item | dc fuse | |
| Code | FDS-32 | |
| Name | FUSE | FUSE HOLDER |
| Pole | 1P | 1P |
| Voltage | ≤1000VDC | |
| Current | 1A,2A,3A,4A,5A,6A,8A,10A,12A,15A,20A,25A,32A | |
| Biggest block ability(KA) | 33KA | |
| Standard | IEC/EN60269 | |
| Commection(mm) | 2.5-10 | |
| Power consumption(W) | 3.5 | |
| Working Temperature | "-5°"to +40° | |
| Protection Degree | IP20 | |
| Dimension(W)X(H)X(D) | 10X38 | 18X60X78 |

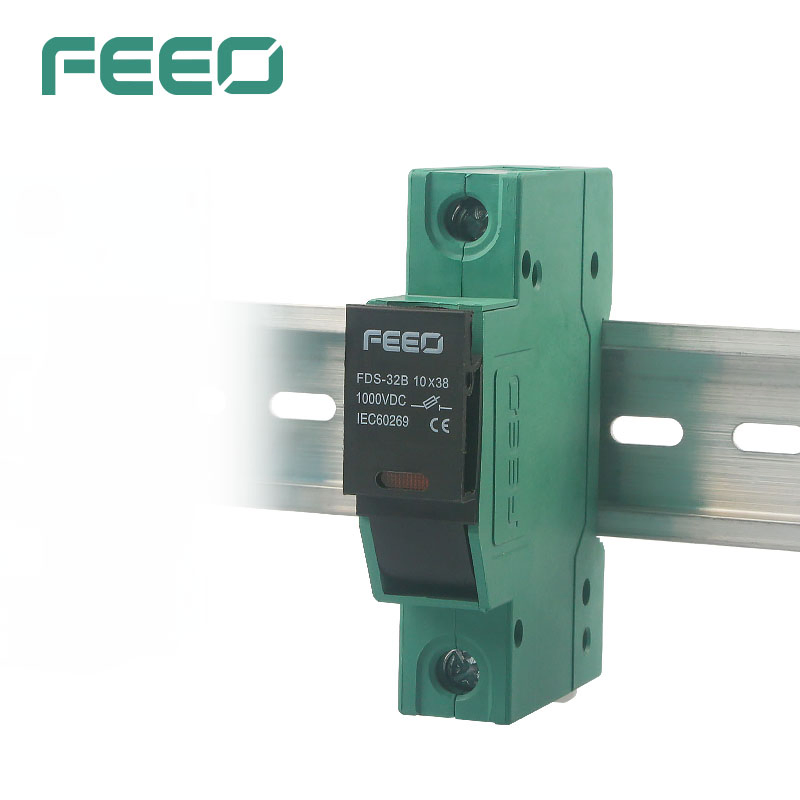

| Installation | 35MM DIN RAIL | |
dc fuse Delivery Time:
3-15 days after confirming order,detail delivery date should be decided according to production season and order quantity.
dc fuse Shipping:
1. Shipment port:SHANGHAI/NINGBO
2. By Air or by Sea for batch goods,Airport/ Port receiving;
3. Customers specifying freight forwarders or negotiable shipping methods!
