China Silicone Supension Long Rod Insulator 15kv 70kn Polymeric

Product Description

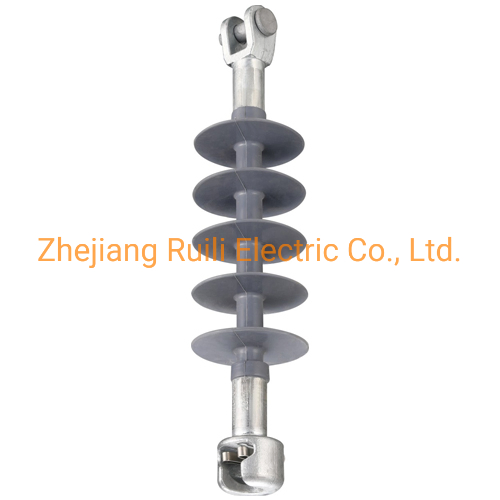

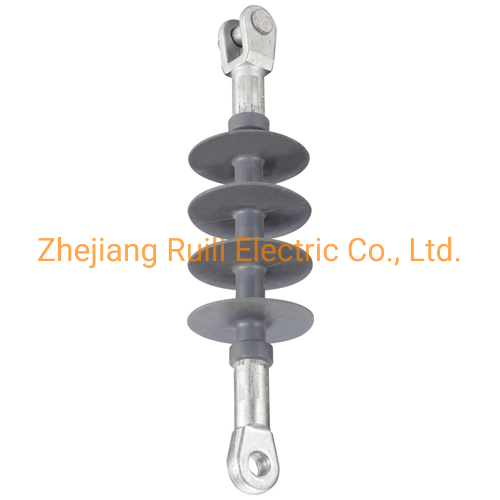

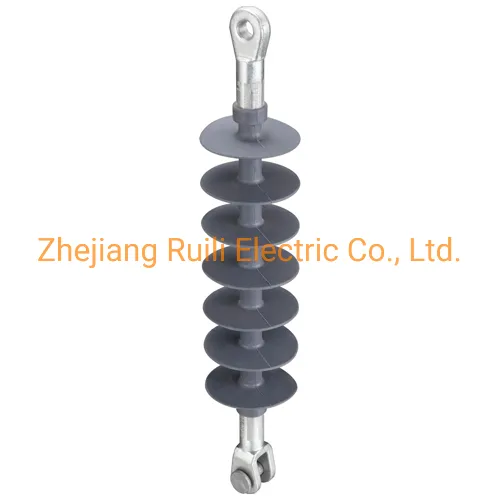

The composite suspension insulator :

This product is especially suitable to the badly polluted areas, high mechanical tensile load span and compact power line.

It has features of light weight ,small volume , unbreakable , anti-bend. High strength for anti twist and strong explosion protection.

The rated voltage is 33-36 KV with rated mechanical load 70-120KN. Under below is the Main Technical Parameters Table of other type for you to refer to.

Silicone Supension Long Rod Insulator 15kv 70kn Polymeric

FX - represent any end fitting type tension / suspension insulator .

Model Type	Rated Voltage	Rated Mechanical Load(KN)	Structure Height H.(mm)	Insulating Distance Li.(mm)	Min Creepage Distance(mm)	Lightning Impulse Withstand Voltage(peak)/KV	P.F Wet Withstand Voltage(virtual value)(KV)
FX-11/20	11	20	330	240	850	80	50
FX-12/40	12	40	285	155	360	75	35
FX-13.8/45	13.8	45	330	165	445	80	65
FX -15/70	15	70	360	200	480	75	42
FX-23/45	23	45	445	270	667	185	110
FX-25/70	25	70	445	285	667	185	115
FX-33/80	33	80	615	442	1180	230	95
FX-36/70	36	70	550	384	900	290	155
FX-44/120	44	120	680	486	1547	250	95
FX-66/70	66	70	1047	891	2500	350	200
FX-69/100	69	100	780	590	1950	350	578
FX-72/120	72	120	938.7	729	2014	410	185
FX-110/70	110	70	1240	1030	3200	550	230
FX-132/120	132	120	1480	1304	3158	600	245
FX-138/110	138	110	1740	1540	4550	650	230
FX-220/160	220	160	1922	1642	6100	1000	395
FX-230/210	230	210	2870	2528	9200	1250	620
FX-330/210	330	210	2950	2600	9075	1425	570
FX-400/160	400	160	4225	3950	16000	1550	600
FX-500/210	500	210	4080	3730	12750	2250	740

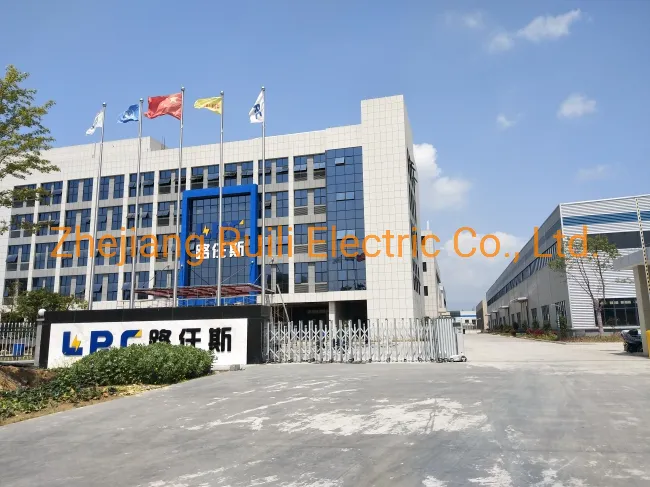

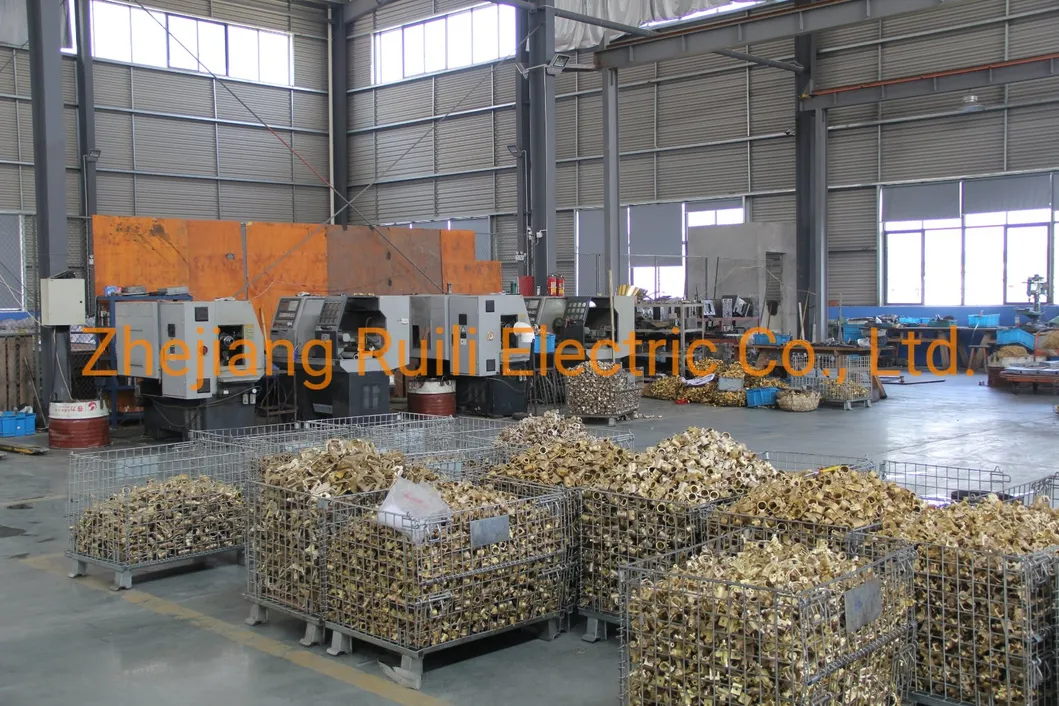

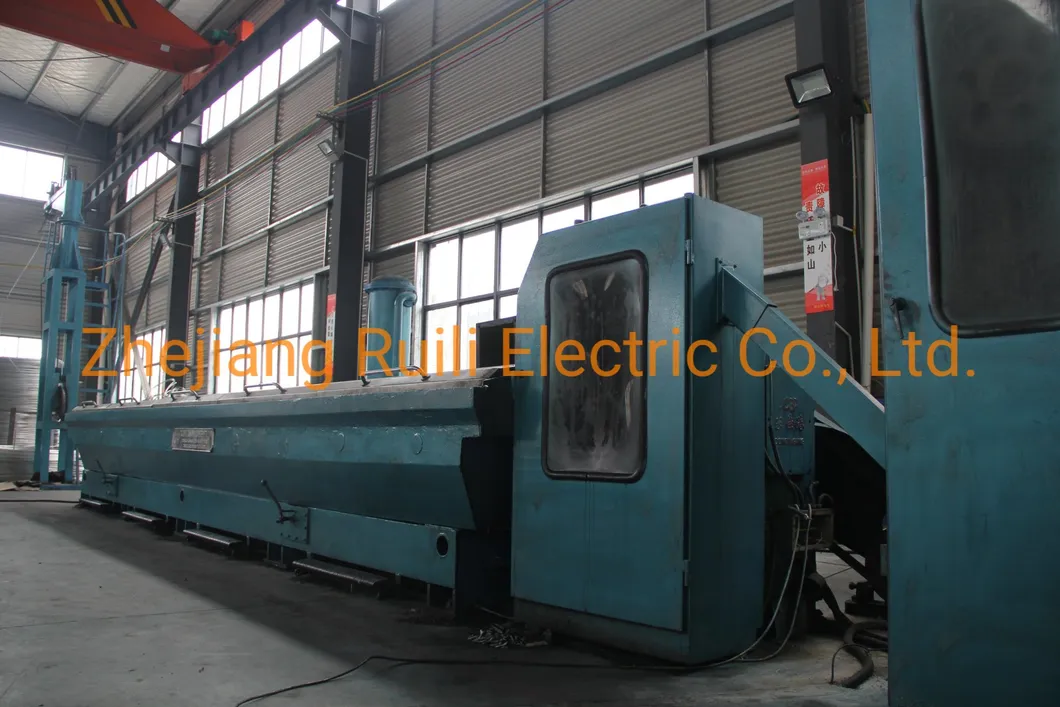

"Zhejiang Ruili Electric Co.,Ltd " was established in 2006, which now has 55,000 Square Meter production area, 200 employees, 8 engineers that annual sales can reach 200 million. Our company now is loacted in LiShui city ,Zhejiang province cause we have set up a new company "Laurence Electric Power Co.,ltd " in 2016 year .

As an all-around advanced technology enterprise who is turning produce, develop and study together in the industry of high voltage of Insulators, Zinc Oxide Surge Arrester, Fuse Cutout ,Disconnect switch ,Cables and Power Fittings
Our company follows the principle of high quality and high level, carrying out ISO9001 Quality Management System .And we also focus on product innovation .By now we have got a lot design patents .

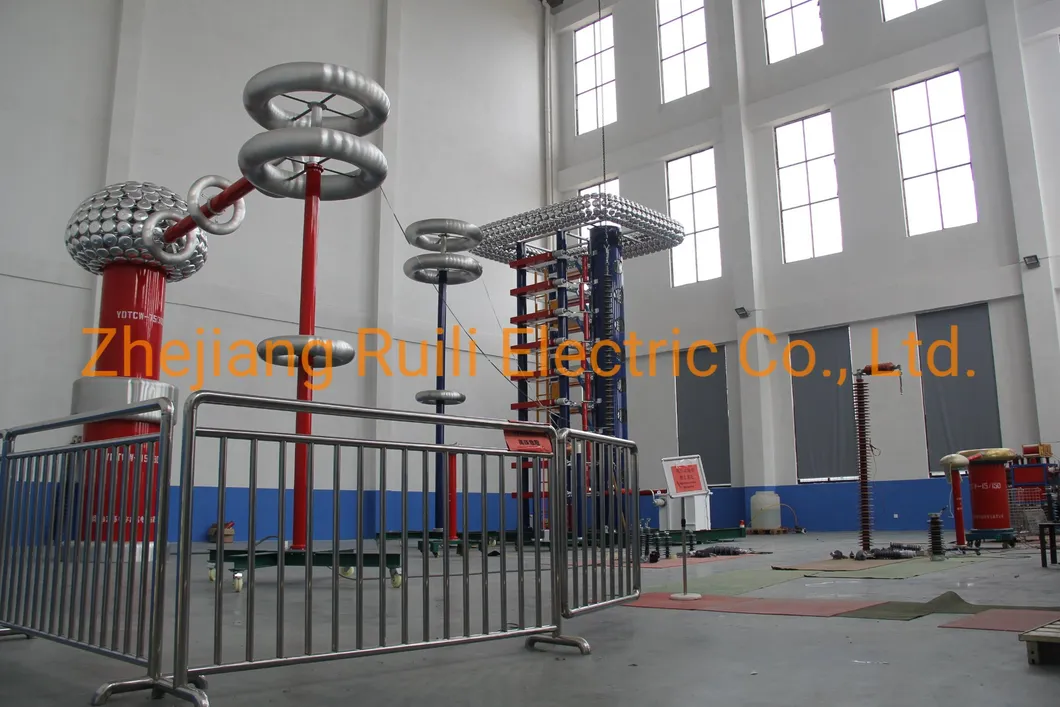

The prodtucs get the type test reports from Quality Inspection and Testing Centre of Electric Equipment Ministry of Electric Power, P.R. of China accord with IEC,ANSI,AS,EN standards .

So our products are well received both at home and abroad.

* More than 20 years manufacturing experience in electric power industry
* Top quality products, ISO9001, ISO14001, KEMA, CNAS certificates
* Custom tailored products, OEM & ODM are welcome
* Challenging prices for giving customers the greatest benefits
* Fast response time, we promise to reply customer's email within 24 hours
* Attractive lead times, plenty of equipments and workers to ensure the delivery on time
* Top skilled technicians
* Flexibility
