Product Description

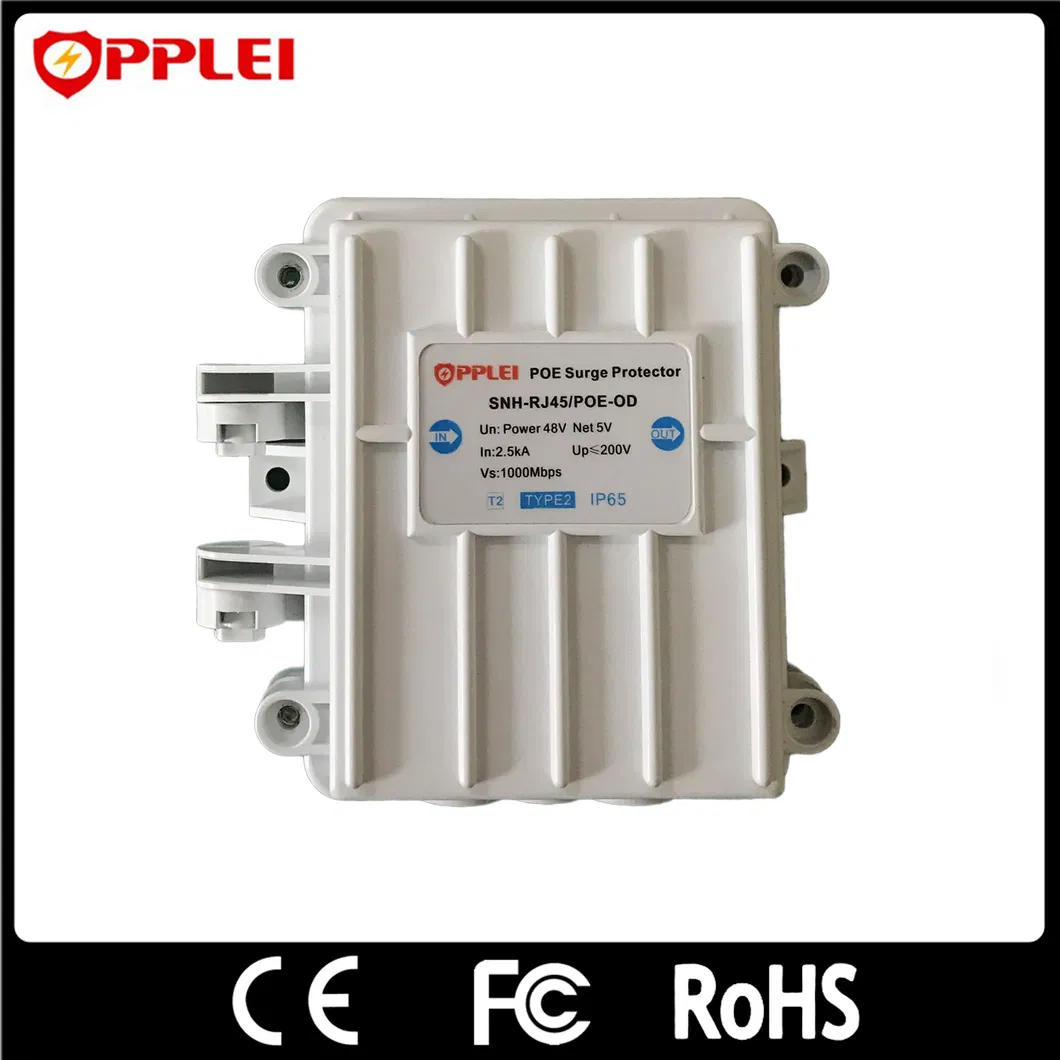

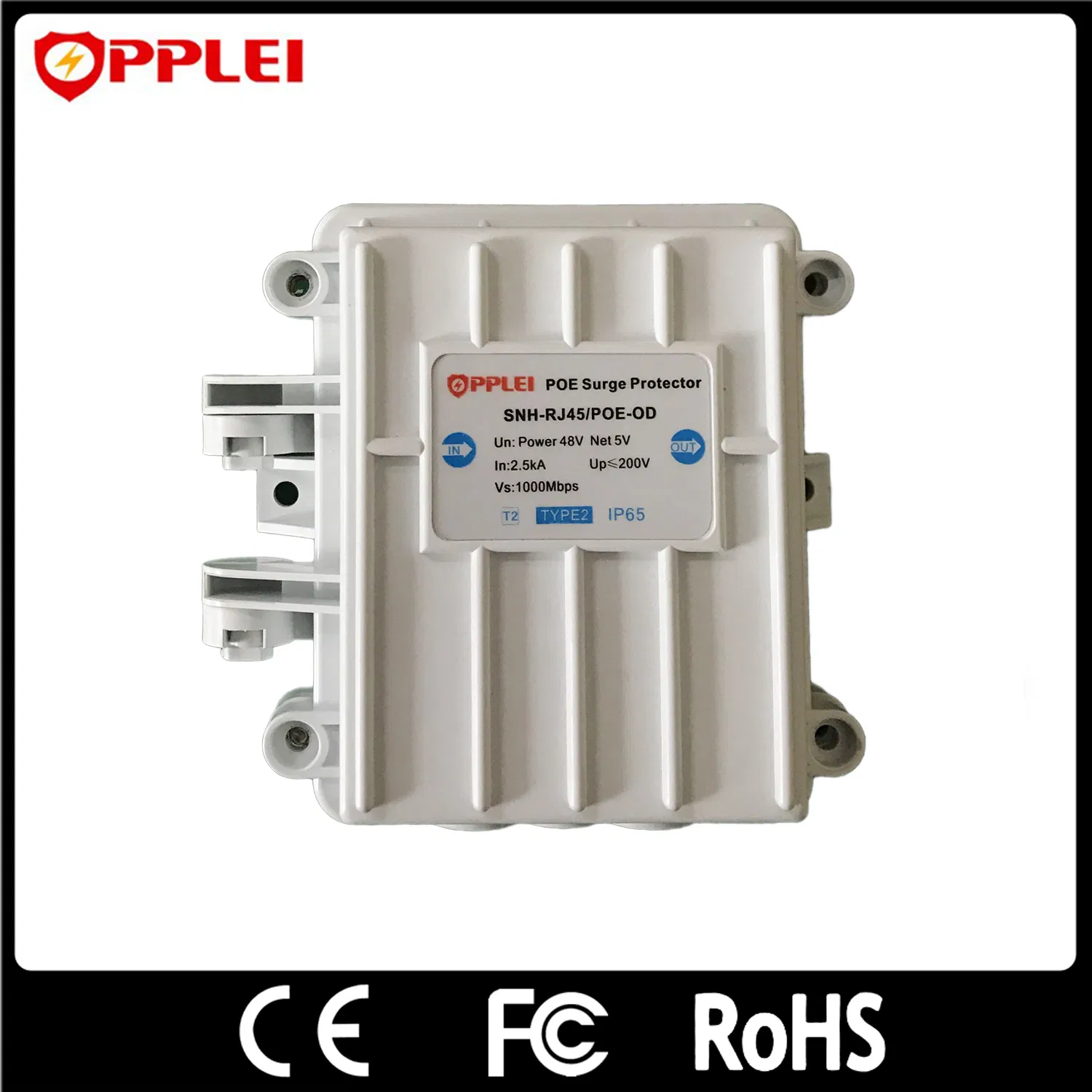

Super Star RJ45 100m Signal Channel Outdoor Poe Ethernet Surge Protector

Model: SNH-RJ45/POE-OD

Product Description

APPLICATIONS: Designed for PoE enabled device in the outside environment not to be spoiled by lightning over- voltage, induced over-voltage and static discharge. CAT5e and CAT5 compatible 802.3af 10/100 Base-T Ethernet protection LAN, FDDI, CDDI, ATM,WLAN PDH, SDH, SPDH Industrial control

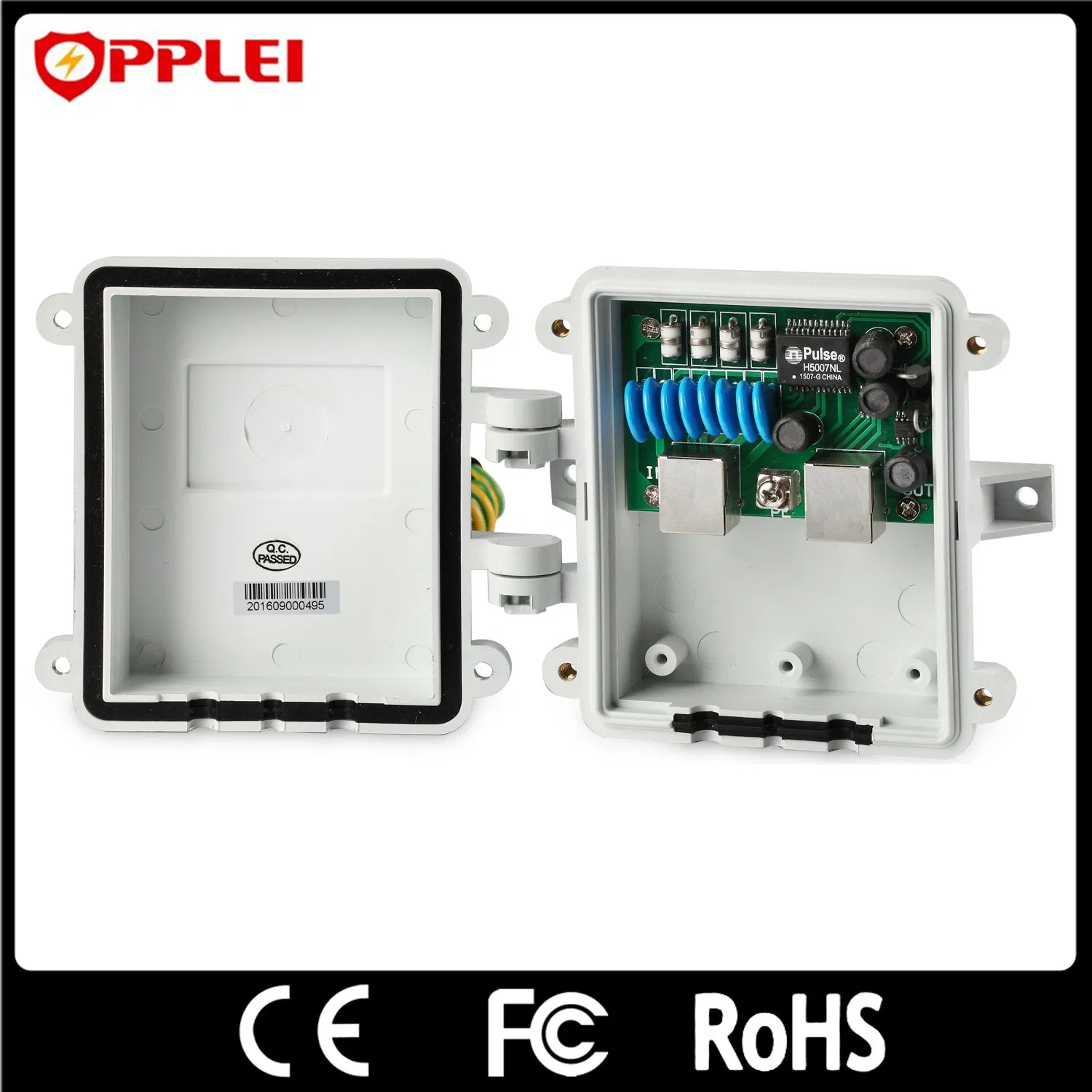

FEATURES: Injects regular CAT.5 input and 48VDC power input into PoE type output Multi. Protection circuits, Gas-Tube+ TVS technology ensuring excellent performance Dual protection in common mode and differential mode TVS array technology, low capacitance Multi-Strike Capability Large discharge capability and fast response time
TECHNICAL PARAMETER:
Model	SNH-RJ45/POE-OD
Power Parameter
Working voltage Un	48V
Max. continuous operating voltage Uc	60V
Nominal discharge current(8/20µs)In	5kA
Max. discharge current (8/20µs)Imax	10kA
Protection level (8/20µs)Up	100V
Protection line	1/2, 3/6
Connector type (input/output)	Compression/RJ45
Ethernet Parameter
Max. continuous operating voltage Uc	5V
Limiting voltage (10/700µs) Up Line-ground	≤500V
Nominal discharge current(8/20µs)In	3kA
Max. discharge current (8/20µs)Imax	5kA
Adapt transmission rate	100Mbps
Insertion loss	≤0.5dB
Protection line	1/2, 3/6
Response time t_A	1ns
Connector type (input/output)	RJ45/RJ45 one channel
Mechanical characteristics
Dimension	50(H)×100(W)×120(L)mm
Weight per unit	350g
IP Level	IP65
Working conditions	Temperature: -40 to 85ºC, Relative humidity: ≤95%
Standards Compliance	CE, FC, RoHS, ISO9001

Outdoor Single Port Gigabit Poe Ethernet Surge Arrester

6. FQA:
Q: Can I get some samples?
A: Yes, Sample orders welcomed.

Q: Can I use my own Logo or design on goods?
A: Yes, OEM Support. Customized logo and design on mass production are available.

Q:What is the delivery time?
A: 3 days for samples, 7-10 working days for mass production after payment.

Q: Can you give me a discount?
A: Yes. Big purchase. Large discount.

Q: What is the payment term?
A: T/T, L/C at sight, West union , Paypal, etc

Q: Can I trust you?
A: Absolutely YES, We are "Made In China" verified supplier for over 5 years.

Q: How is the After-Sale Service?
A: We assure 5 years warranty, 3 years replacement, any question we have technical department to help you.

Q: May I visit your factory?
A:Sure, welcome any time. We can also pick you up at airport or station.
