OEM Factory Price RJ45 Ethernet Surge Protection Device
SN-RJ45Ethernetsignal surge protector/arrester is designed according to IEC standards and GB standards.They are used for protecting Ethernet 10/100Base-T/Gigabit LAN from damage for inductive thunderbolt electric wave,surge and interference. It applies to multi-level protection, and RJ45 interface a......
Send Inquiry
Product Description

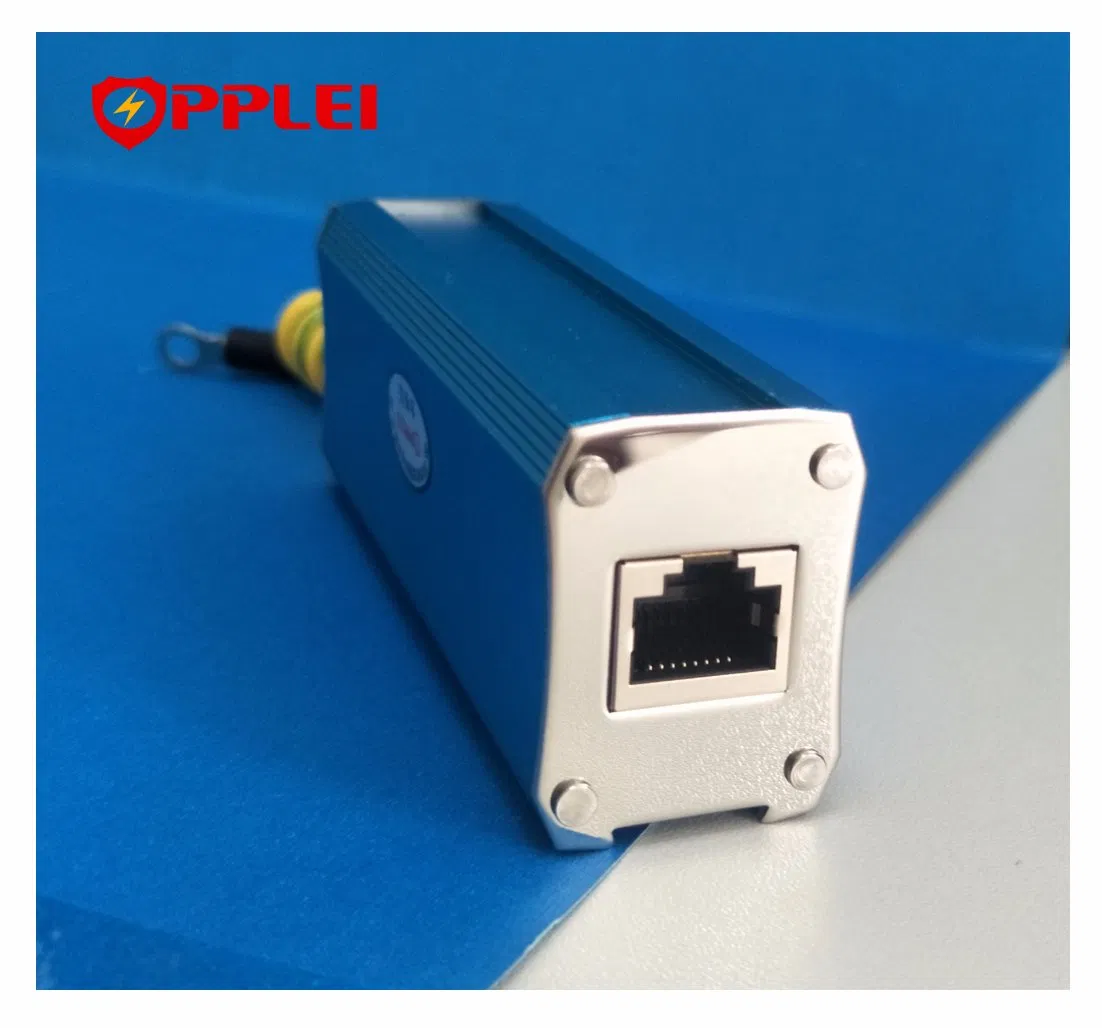

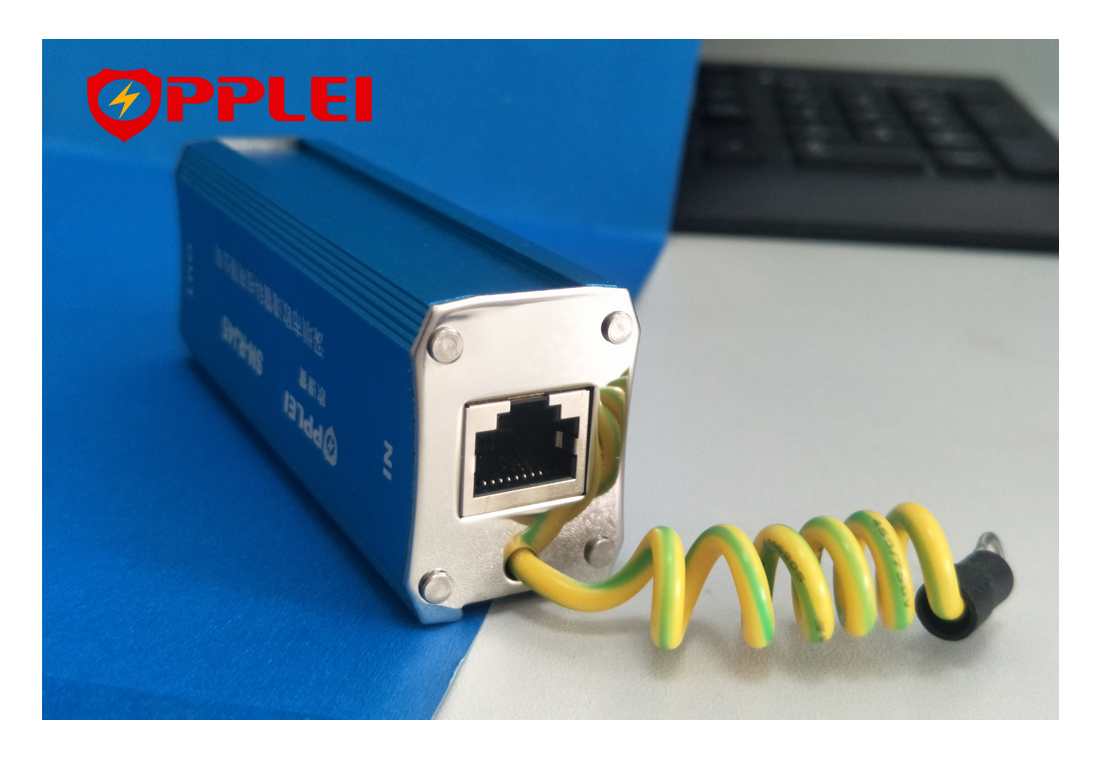

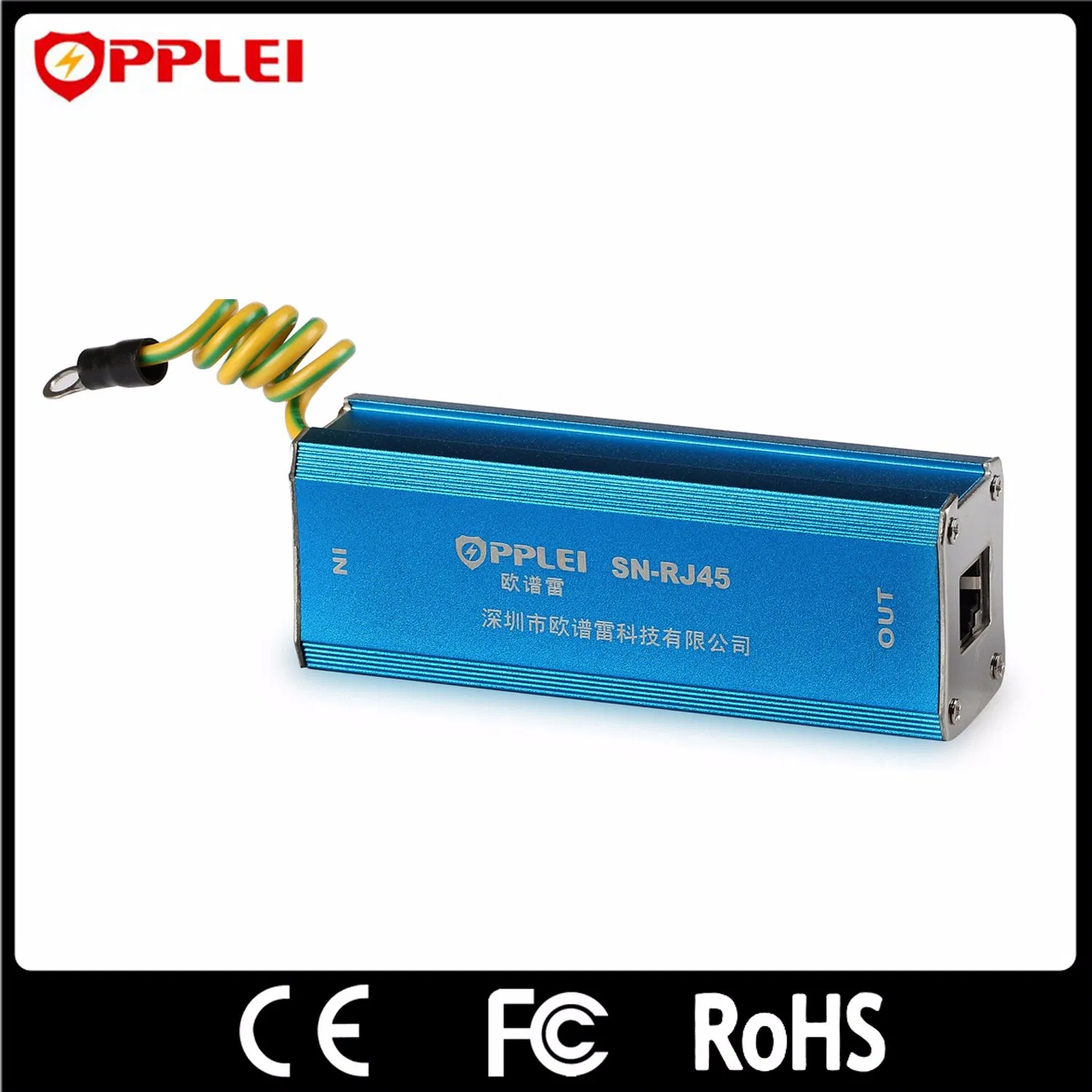

SN-RJ45
Ethernetsignal surge protector/arrester is designed according to IEC standards and GB standards.
They are used for protecting Ethernet 10/100Base-T/Gigabit LAN from damage for inductive thunderbolt electric wave,surge and interference. It applies to multi-level protection, and RJ45 interface allows it installed between various communication network equipments.
For high-speed data transmission: 10/1000baseT, CAT-5/5e
rj45 port for varous camera monitoring
Model | SN-RJ45 |
Electrical Parameter | |
Max. continuous operating voltage Uc | 6V |
Nominal discharge current(8/20µs)In | 3kA |
Max. discharge current (8/20µs)Imax | 5kA |
Voltage Protection Level Up | ≤25V |
Adapt transmission rate Vs | 1000M |
Insertion loss Ae | ≤0.5dB |
Response time Ta | ≤1ns |
Protection line | 1/2 3/6 |
Interface form | RJ45 |
Protection port | 1 |
Mechanical characteristics | |
Dimension | 80(L) ×43(W) ×29(H)mm |
Weight per unit | 120g |
IP Code | IP20 |
Working conditions | Temperature: -40 to 80ºC, Relative humidity: ≤95% |
Standards Compliance | IEC61643-1, RoHS |
Package details:
1. Poly bag with box packing,one in a box, boxes in cartons for RJ45 Ethernet Signal Surge Protector.
2. But if you have special requirements we can make adjustment according to customers' order requirements.
3. Delivery details: 7-10 wroking days for RJ45 Ethernet Signal Surge Protector after order confirmed
