Home > Products > Breaker & Protector > Arrester > Npe Surge Protective Device SPD Surge Protector 1p+ Npe 2p+ Npe 3p+ Npe 20-40ka

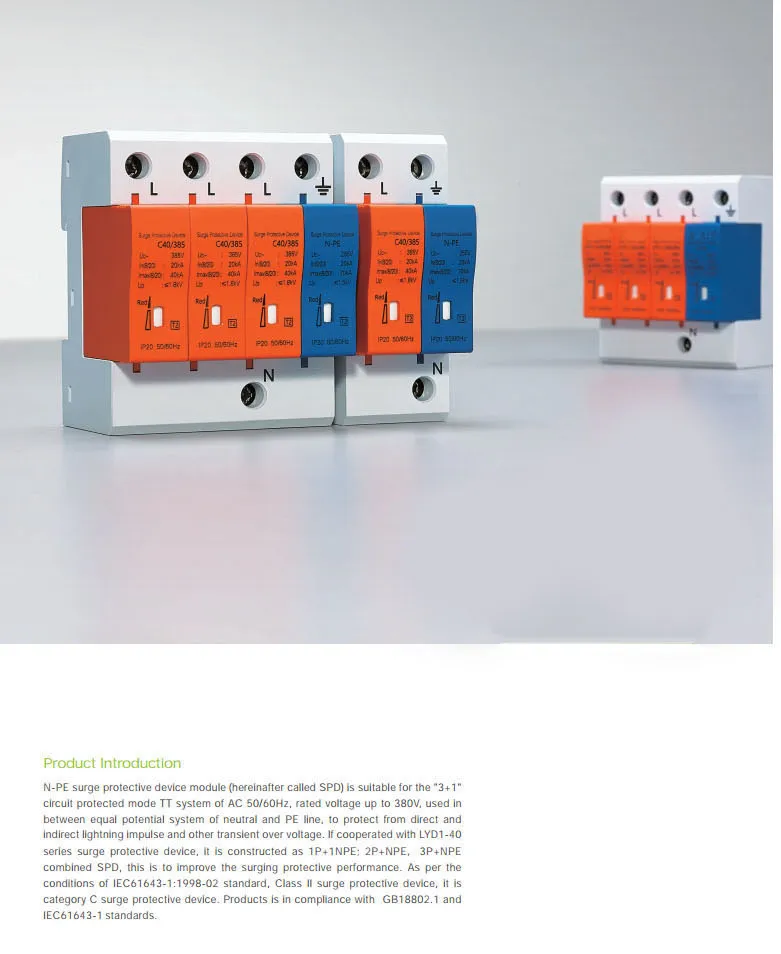

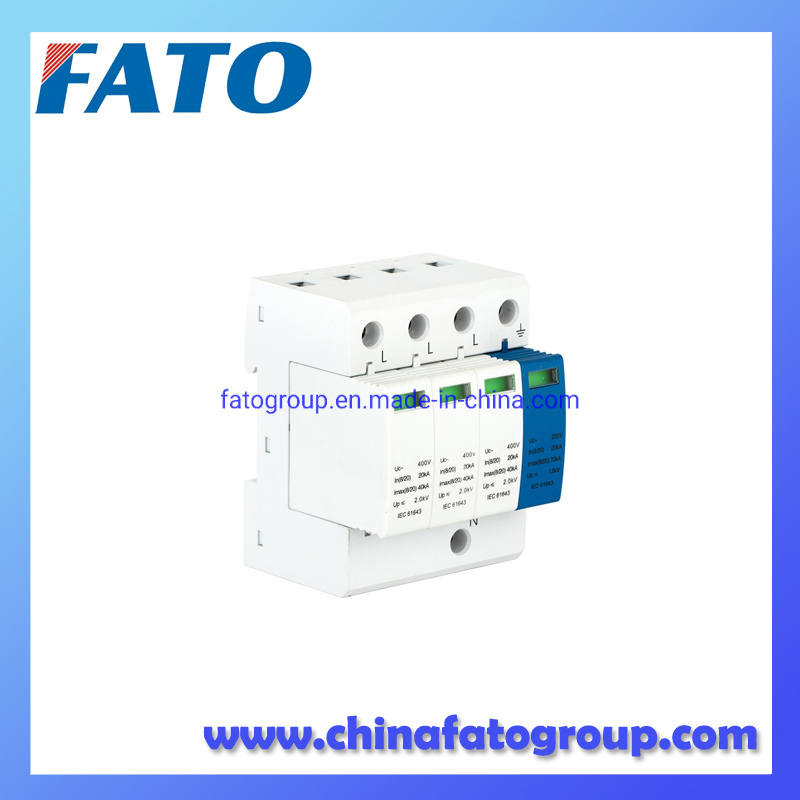

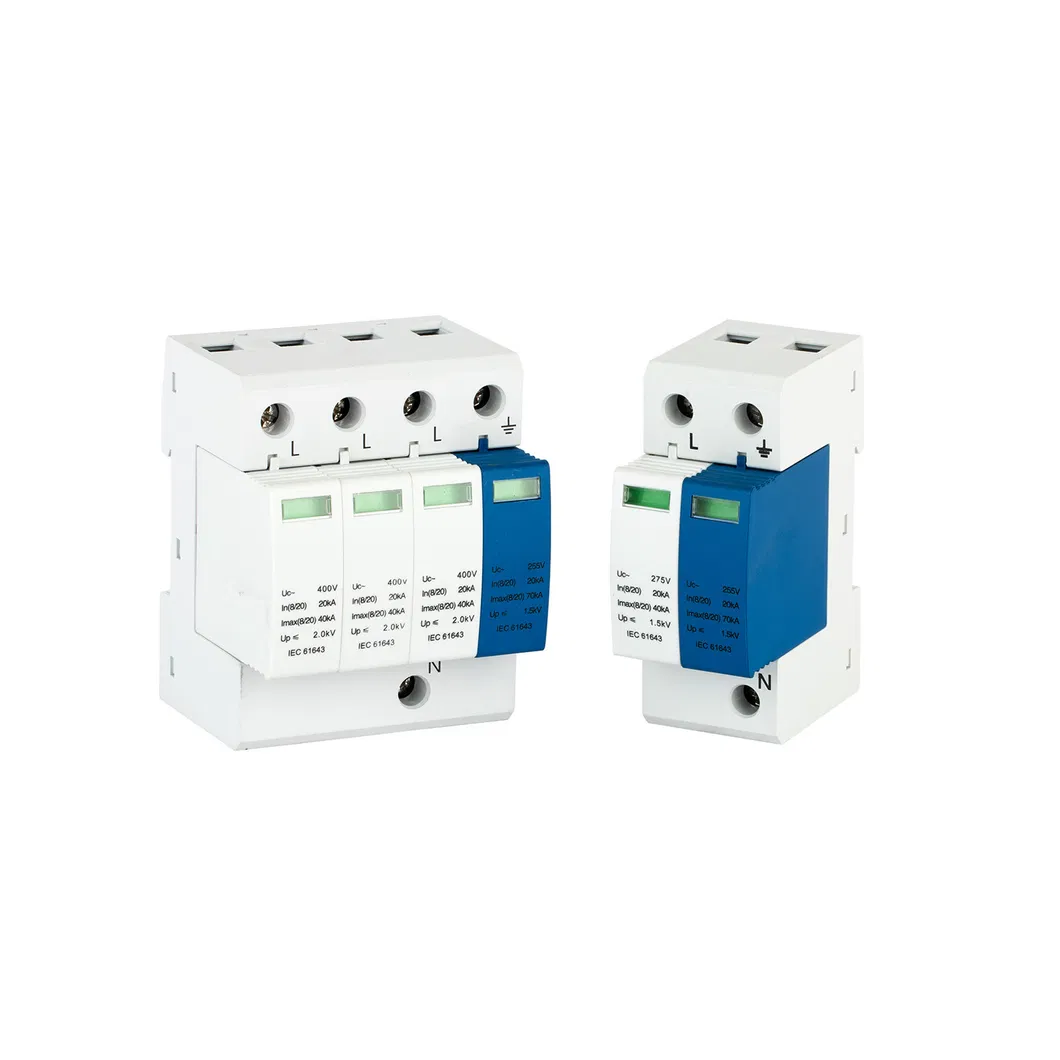

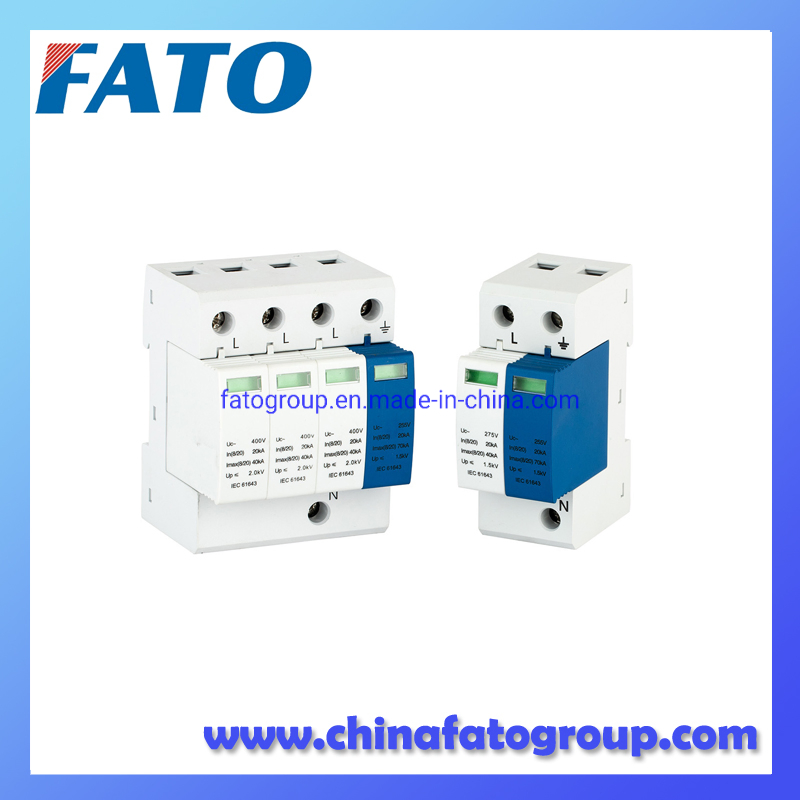

Npe Surge Protective Device SPD Surge Protector 1p+ Npe 2p+ Npe 3p+ Npe 20-40ka
Product Specification:N-PE Surge Protective Device module( SPD) is suitable for the "3+1" circuit protected mode TT system of AC 50/60Hz,rated voltage up to 380V,used in between equal potential system of neutral and PE line,to protect from direct and indirect lightning impuluse and other t......
Send Inquiry
Product Description
Product Specification:
N-PE Surge Protective Device module( SPD) is suitable for the "3+1" circuit protected mode TT system of AC 50/60Hz,rated voltage up to 380V,used in between equal potential system of neutral and PE line,to protect from direct and indirect lightning impuluse and other transient over voltage. If cooperated with D1-40 series surge protective device.It is constructed as 1P+NPE,2P +NPE,3P+NPE combined SPD,this is to improve the surging protective performance. As per the conditions of IEC61643-1 standard,Class II surge protective device.It is category C surge protective device.Products is in compliance with IEC61643-1 standard.
N-PE Surge Protective Device module( SPD) is suitable for the "3+1" circuit protected mode TT system of AC 50/60Hz,rated voltage up to 380V,used in between equal potential system of neutral and PE line,to protect from direct and indirect lightning impuluse and other transient over voltage. If cooperated with D1-40 series surge protective device.It is constructed as 1P+NPE,2P +NPE,3P+NPE combined SPD,this is to improve the surging protective performance. As per the conditions of IEC61643-1 standard,Class II surge protective device.It is category C surge protective device.Products is in compliance with IEC61643-1 standard.
