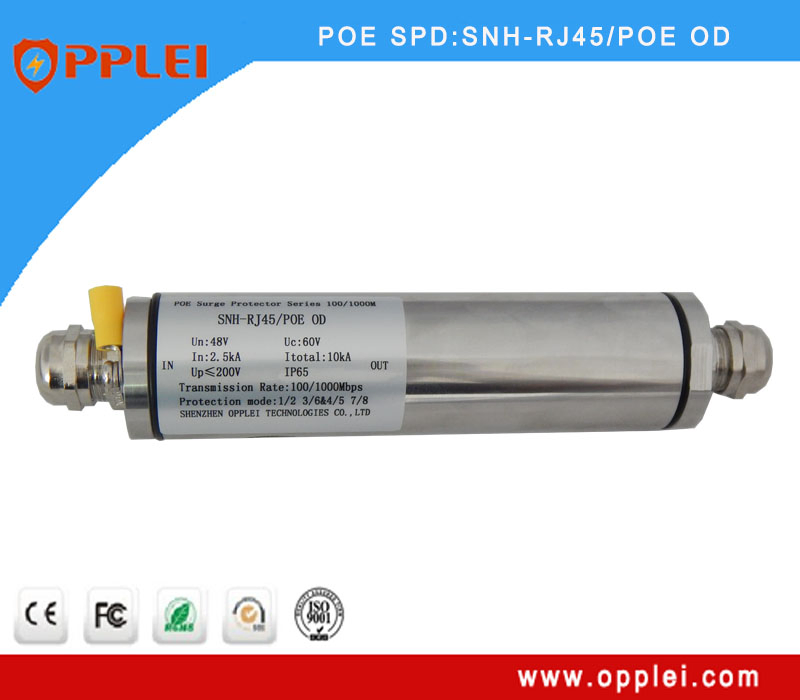

Explosion Proof Outdoor RJ45 PoE Network Lightning Protection Device

Product Description
Model: SNH-RJ45/POE-OD

APPLICATIONS: Designed for Ethernet device in the outside not to be spoiled by lightning over-voltage, induced over-voltage and static discharge. CAT6, CAT5e and CAT5 compatible 802.3af 10/100/1000 Base-T Gigabit Ethernet protection LAN, FDDI,CDDI, ATM,WLAN PDH, SDH, SPDH Industrial control POE IP cameras outdoor
FEATURES: Multi. Protection circuits, Gas-Tube + TVS technology Dual protection in Common mode and differential mode TVS array technology, low capacitance Multi-Strike Capability
TECHNICAL PARAMETER:
Model	SNH-RJ45/POE-OD
Electrical Parameter(Network & Power)
Nominal operating voltage Un	48V
Max. continuous operating voltage Uc	58V
Nominal discharge current(8/20µs)In	2.5kA
Total nominal discharge current I total	10kA
Limiting voltage Up
Line-line (@6kV, 10/700µs)	≤150V
Line-line (@3kA, 8/20µs)	≤150V
Adapt transmission rate	1000Mbps
Insertion loss	≤0.5dB
Protection line	1,2; 3,6; 4,5; 7,8
Response time	1ns
Mechanical characteristics
Dimension	174mm×Φ34mm
Weight per unit	(345±5)g
Protection grade	IP67
Wiring(In/Out)	RJ45 (Shielding) cable for both
Enclosure material	Stainless steel
Working conditions	Temperature: -40 to 80ºC, Relative humidity: ≤95%
Installation	Wall mounting
