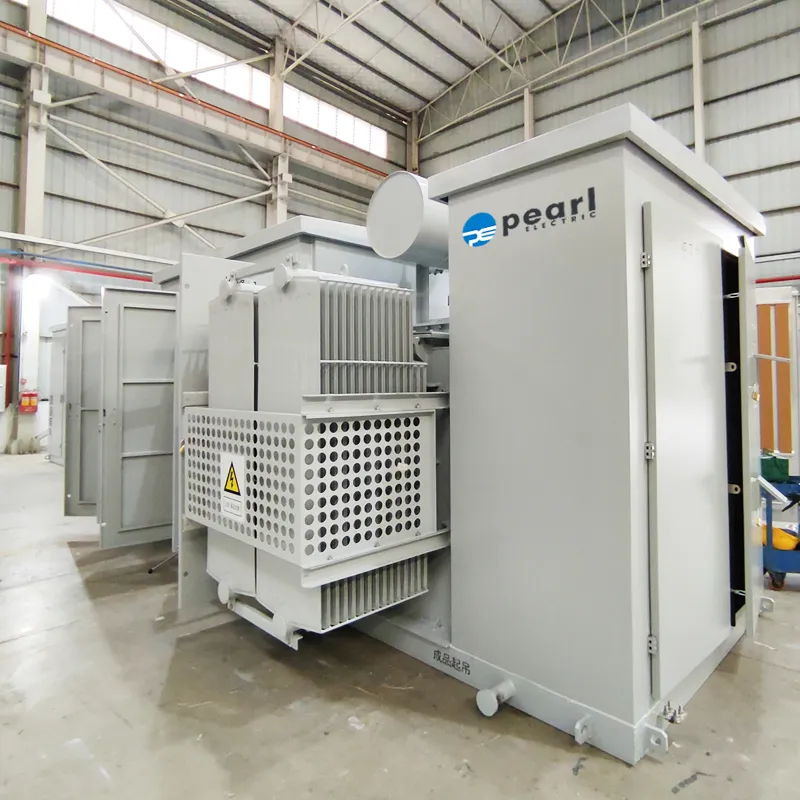

Three-Proof Pad-Mounted Transformer for Distribution Substation

Three-proof Pad-mounted Transformer for Distribution Substation




Pad-mounted Transformer Description:

Pad-mounted transformer consists of the body of transformer, oil-immersed load switch, protection fuse and the high and low voltage connection which are placed in a sealed oil-tank, equipping with a full range of operational monitoring instruments, such as pressure gauge, oil level gauge, oil temperature gauge, etc. and combining with the low voltage switchgear combination as a set of booster equipment.

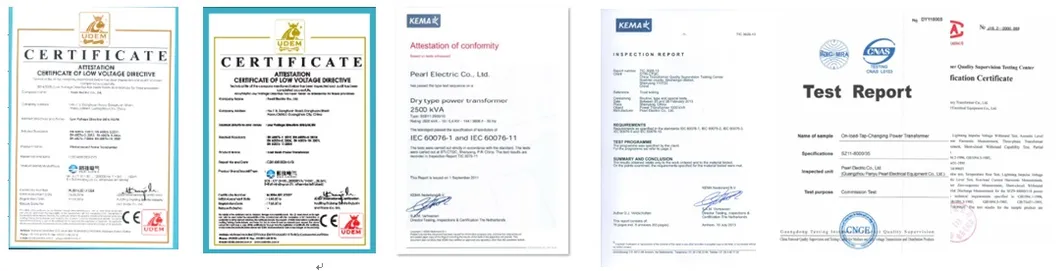

Transformer Test Report
1. KEMA Test Report for Oil immersed Transformer
2. CE  Test Report for Oil immersed Transformer.
3. CNCE Test Report for Oil immersed Transformer.
4. CEST Test Report for Oil immersed Transformer.
5. CTQC Test Report for Oil immersed Transformer.
6. CNAS Test Report for Oil immersed Transformer.



Transformer Chracteristics

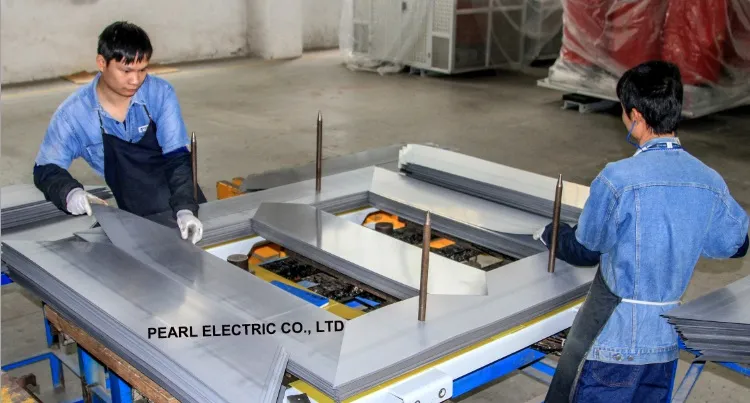

Transformer Core
1. The core is made of high quality grain-oriented cold-rollled silicon steel of high magnetic conductivity, by using 45°five-stepping all leaning lamination way to laminat. So the no-load losss and the no-load current are reduced effiently.

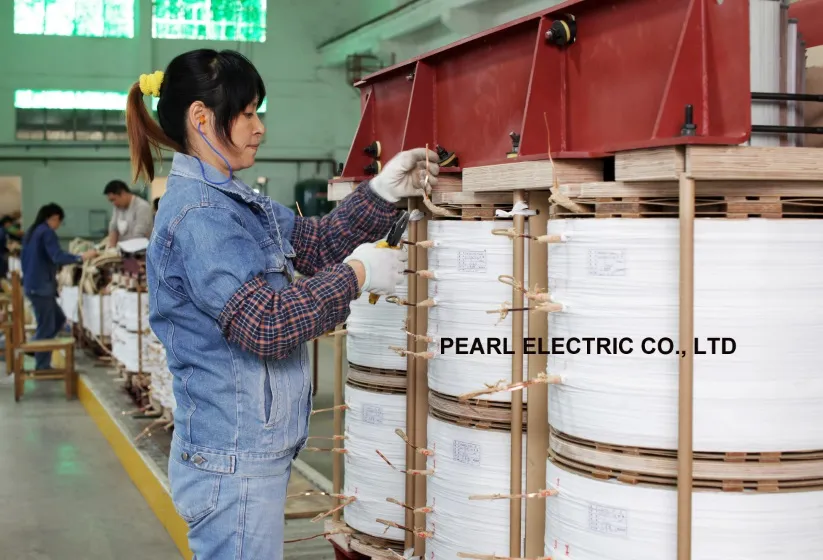

Transformer Windings

LV windings
1. LV winding is manufactured with high quality foil conductor or copper wire, and the ampere-turn is balanceable.The additional loss is low and the ability of anti-short is improved.
2. Oil drains of heat dispersion aer scientifically used in the winding, and the surface of heat dissipation is increased, so the tempertature is reduced and the ability of over-load is improved.

HV windings
HV winding is manufactured with high quality copper wire and excellent design structure. It improves the distribution of electric filed. With lighting impulse analysis, the ability of anti-lighting impulse hase been improved.

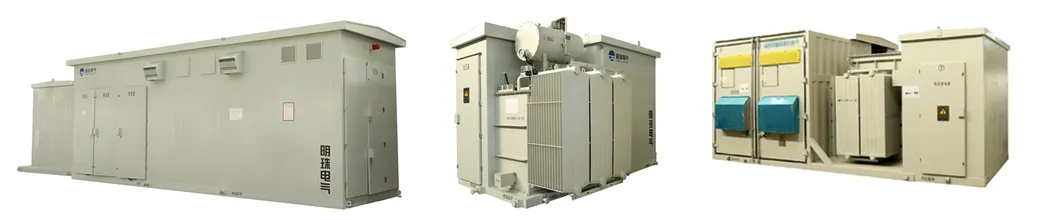

Substation Transformer  for New-energy Power Generation

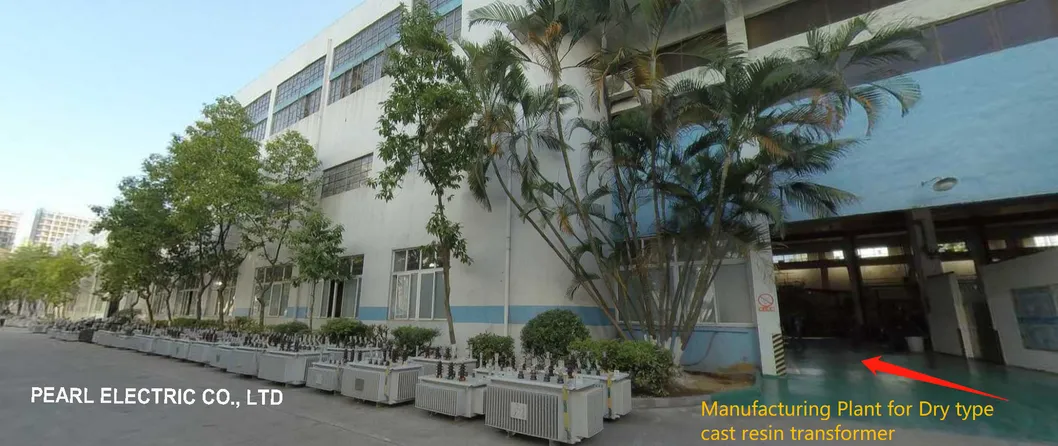

PEARL ELECTRIC CO., LTD

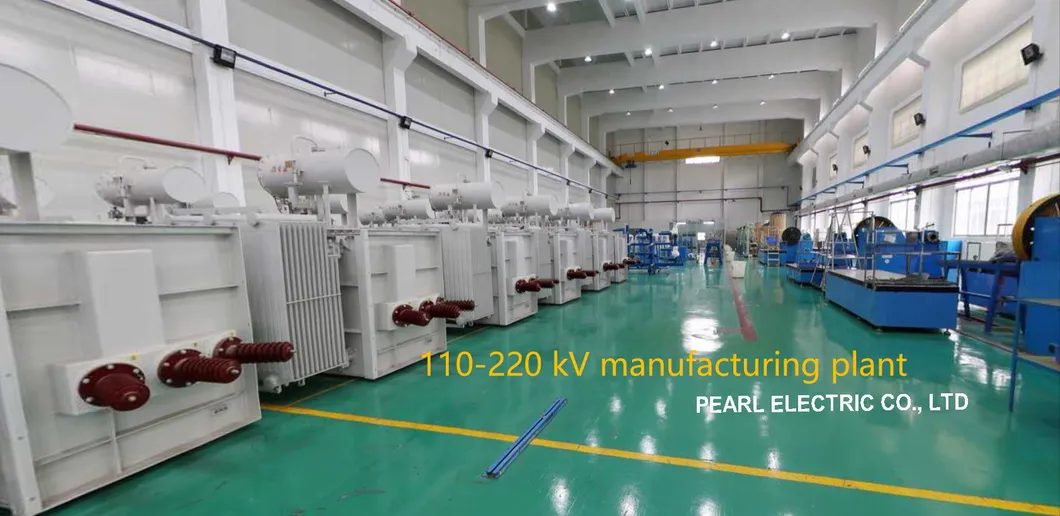

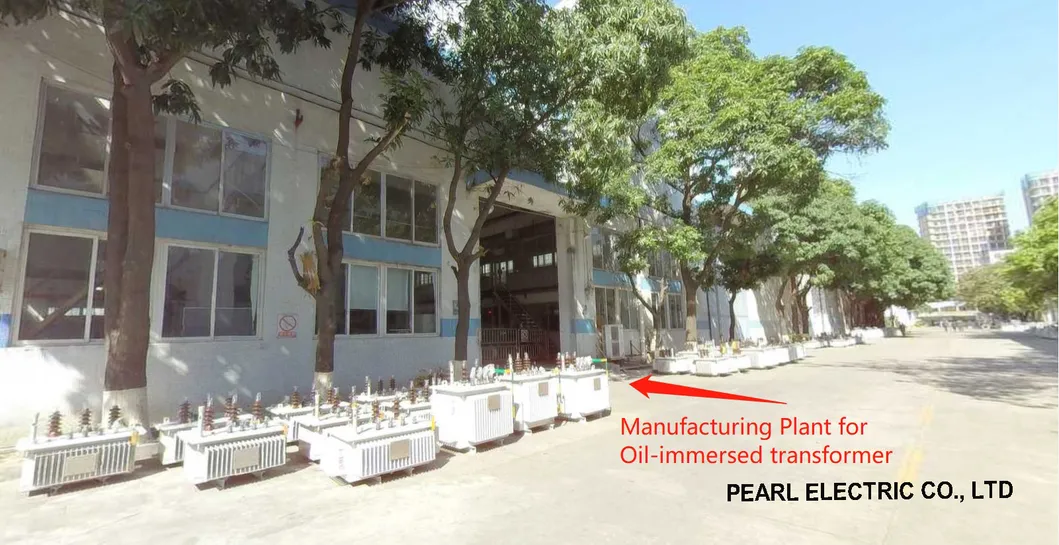

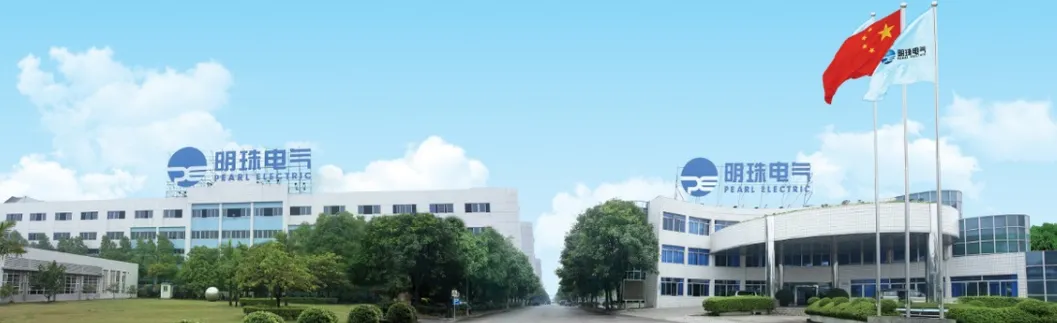

Established in 1958, located in Guangzhou City,  Pearl Electric Co., Ltd is one of  the most prominent power transformer manufacturer in China which design, produce and supply power transformers in domestic and abroad with almost 660 employees, more than 260 sets of specialized manufacturing equipment and 90,000 square meters area .

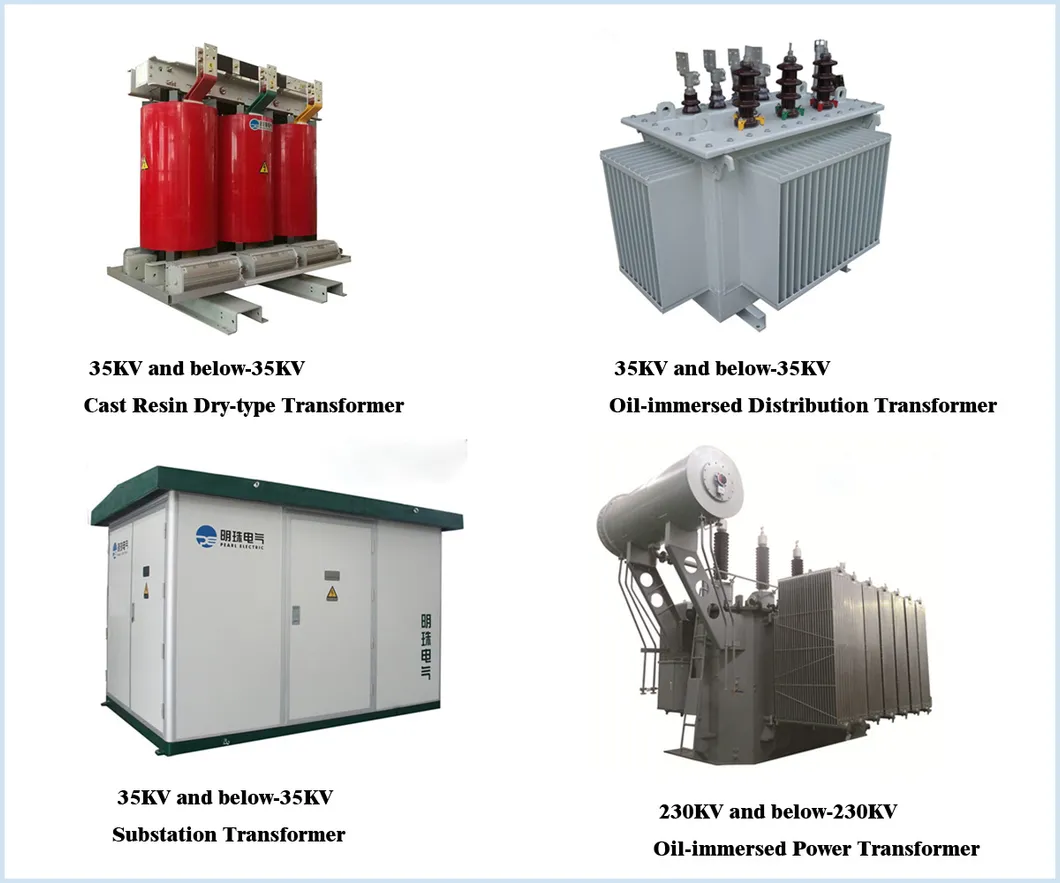

PEARL ELETRIC DESIGNS, MANUFACTURES AND SUPPLIES:


PEARL'S RESEARCH & DESIGN TEAM



INDUSTRIAL USERS IN DOMESTIC AND ABROAD




FAQ:
 1.Q: Are you manufacturer?
    A: Yes, we are manufacturer. Our factory is in Guangzhou City, Guangdong Province.
2.Q: Can I get guarantee of products?
    A:  Yes, every product is 1 year quality warrantee under customer correct using the products.
3.Q: Do you have any Certificate?
    A: Yes. Each of our unit has CE, 3C and KEMA certificate. If you need any other Certificate, we can help you to apply it.
4.Q: How can I pay you?
    A: Pay by T/T and  L/C is acceptable.
5.Q: What about the production?
    A: In general,  it take 4~6weeks and it depend on the different style.


Any need for power transformer, please feel free to contact us:
Sandy | Oversea sales | Oversea Dept.
Pearl Electric Co., Ltd.
Add: No. 118 Donghuan Road, Donghuan Street, Panyu Distric, Guangzhou City, Guangdong Province, China.  ZIP: 511400
Web:pearl-electric.en.made-in-china.com
