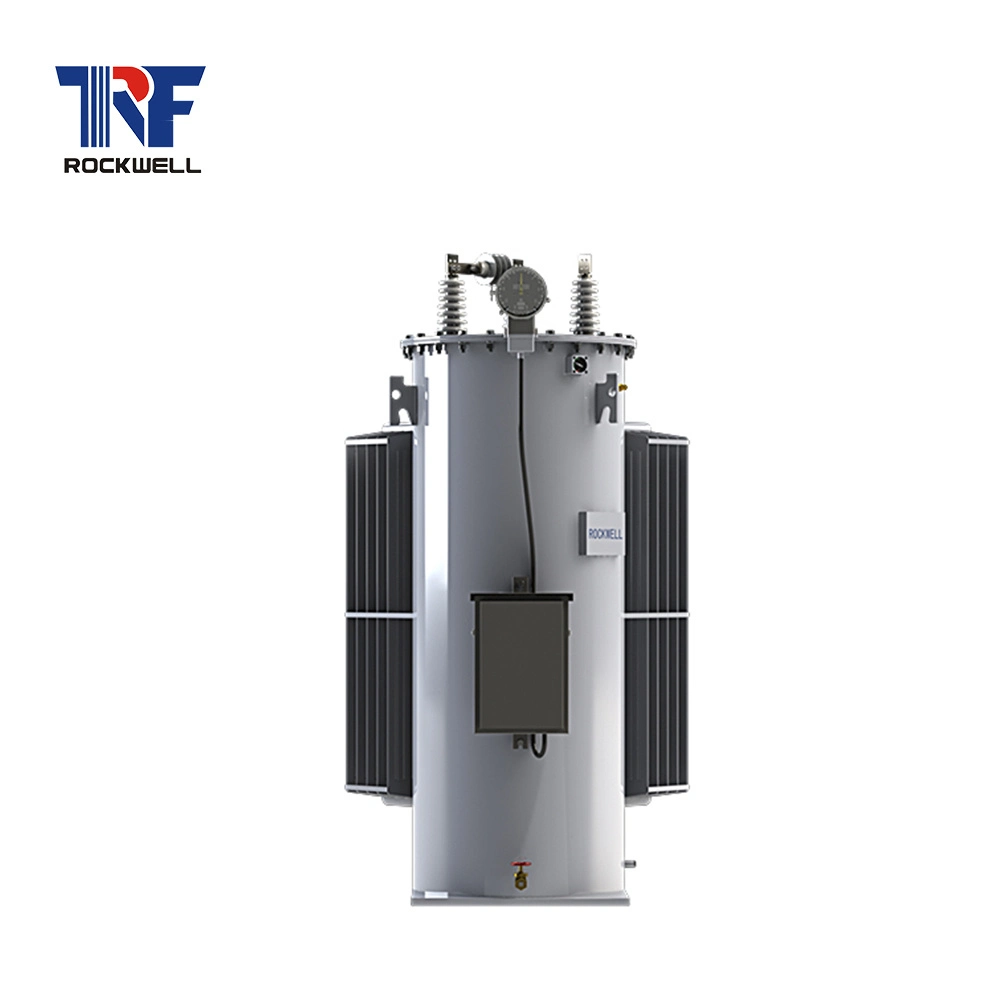

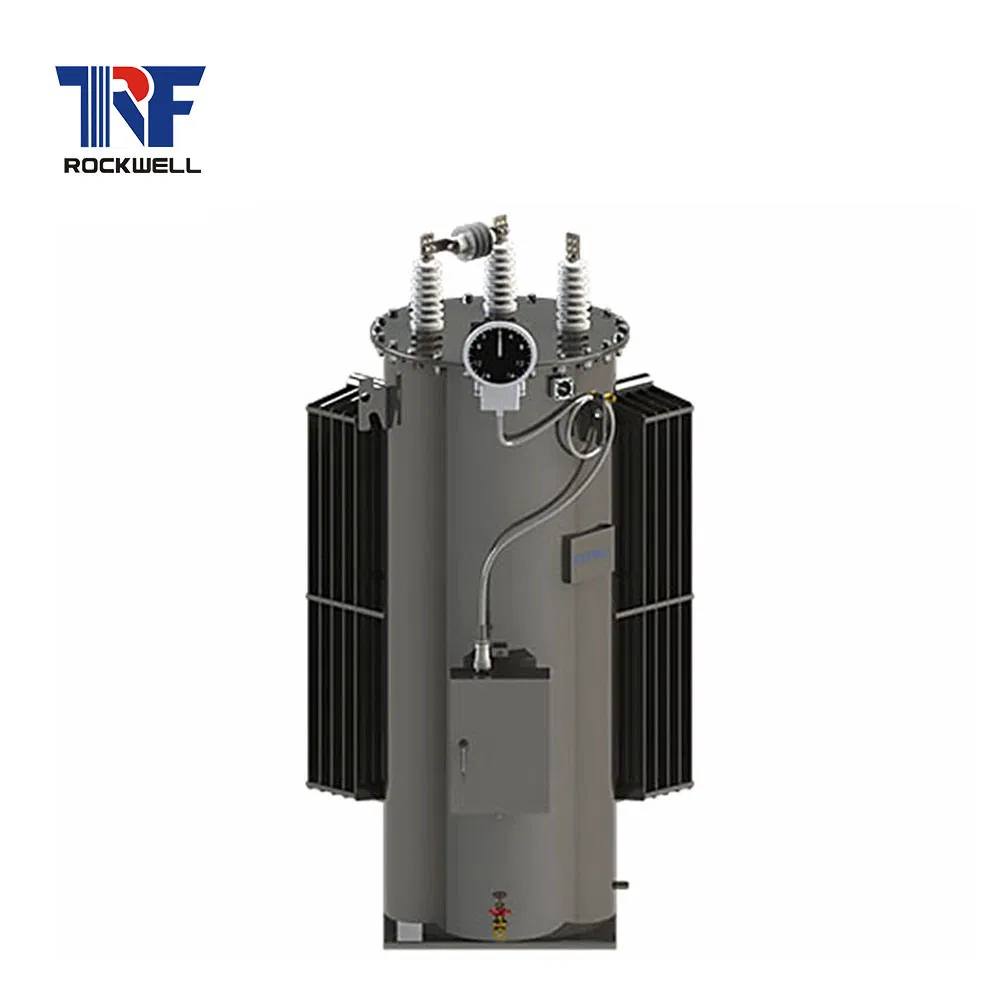

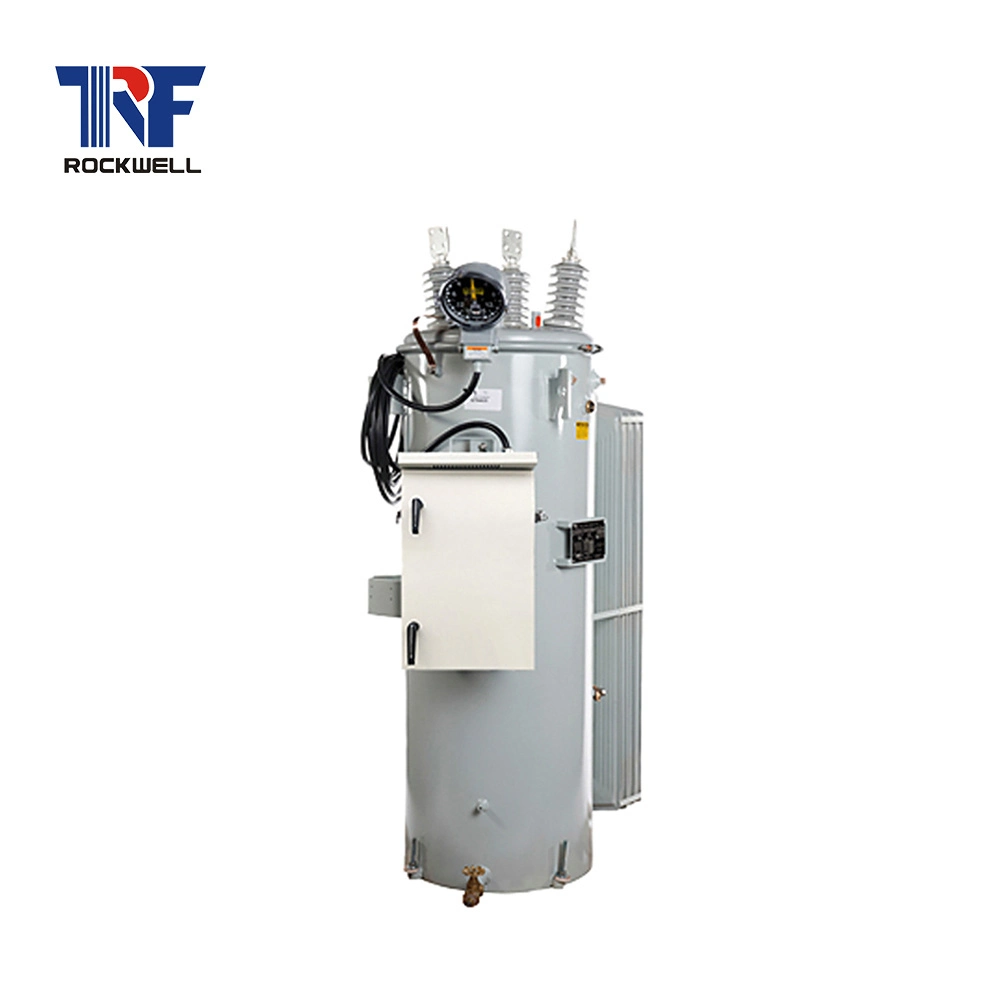

Single Phase Transformer
In the decentralized power distribution network, single-phase transformer as a distribution transformers have a greater advantage, it can be reduce the low voltage length of distribution lines, reduce line Loss, improve quality of power supply. Adapt core volume using energy efficient design, the tr......
Send Inquiry
Product Description
In the decentralized power distribution network, single-phase transformer as a distribution transformers have a greater advantage, it can be reduce the low voltage length of distribution lines, reduce line Loss, improve quality of power supply. Adapt core volume using energy efficient design, the transformer feature is adapt to column suspension installation, small volume, small investment in infrastructure
,reduce low voltage power supply radius, can reduce line loss of more than 60%. Transformer with fully sealed structure, strong overload capacity, continuous operation reliability and simple maintenance.
Suitable for rural power grids, remote mountainous areas, dispersed villages, agricultural production, lighting and power electricity, it can also be used in railways, urban energy-saving column grid type distribution lines.
Can run single-phase or three-phase operation as a single group.

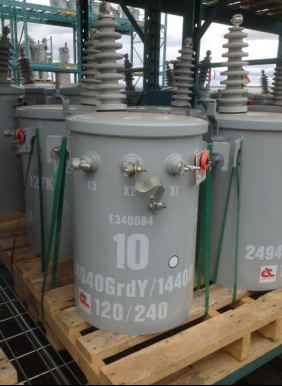

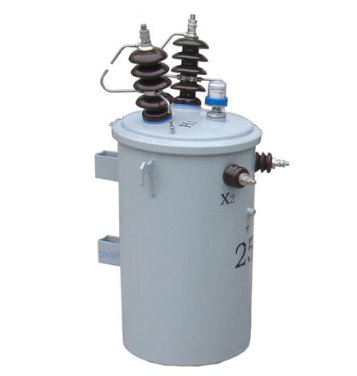

The company's single-phase pole-mounted distribution transformers, divided into common type and full captive-two, respectively silicon and amorphous alloy of two cores.
Normal: the transformer tank are sealed cylindrical bodies. All transformers are grounding devices and hooks, hanging stumbling American standard installation, the pressure release valve.
One (or two) in the high-voltage bushing cover leads, low pressure in the casing walls of the box leads are equipped with bolt hole type terminals. High voltage switching regulator should tap the power off situation, by adjusting the position indicated on the nameplate link.
Full self-protection type:
Transformer is full self-protection type, lightning, short circuit and overload protection can play its own role, self-protection system can protect the transmission and distribution lines is not due to its own transformer failure caused by power outages, in addition to its institutional features in common with the ordinary type, the type such as a cylindrical tank, outside the box hook, grounding device, nameplate , a core, a winding structure.
Otherwise the following features and equipment:
One (or two) high-voltage bushing. Drawn from the cover, the sleeve built-limiting fuses.
One (or two) arresters installed in the tank wall, near the end of a high voltage bushing outlet end is connected to the Copperbelt. A secondary short-circuit switch, installed in the tank, the tank wall tank equipped with external handle, reset and overload lights.
Low pressure in the tank wall casing leads, X2 is equipped with grounding device, a single high-pressure casing around near one end by a high voltage bushing leads other end.
ATTENTION:
1.The payment term: We accept TT,30% deposit and 70% balance against copy of BL.
2.The delivery time: Usually it will take about 15-20 days.
3.The standard of package: Usually use strong plywood case for protection.
4.The material of transformer: We have two types, one is with copper and another one is with aluminum. It depends on your requirement. In fact, those two have difference if normal work well. Only except the long life. Copper is better and also higher price.
5.The logo: If you have good quantity, it absolute no problem to do OEM.
6.Our market: our products are popular in Indonesia, Philippines, Russia, USA, Middle East and so on. Some of them are our regular customers and some of them are developing. We hope you can join us and make mutual benefit from our cooperation..
7.Warranty: in 12 month since BL date.
OUR SERVICE:
1.quick response in before sales period help you got order.
2.excellent service in production time let you know each step we made.
3.reliable quality solve you after sale headache.
4.long period quality warranty ensure you can buy without hesitate.
WHY CHOOSE ROCKWELL:
1. One-stop supplier globally.
2. More than 10 years professional experiences in electrical appliance industry.
3.We offer professional online technology support for perfecting your electrical solution free.
4. Experienced sales service and suggestion.
5. All the products with accessories under strict quality control and final inspection before shipping.
6. We can assure the powerful competitive price and reliable quality products.
7. Most competitive shipping rate from our own shipping forwarder.
8. Warranty assurance: 12 month
9. Whatever big or small order, we can provide you one-to-one service.
CONTACT US:
Contact person: Mr. Chen Chengming
Tel:86-577-27869969
Mobile:86-18668777248
Your Best Choice for Electrical Appliances Industry!!!
Please leave an inquiry to know more details about Price , Packing ,Shipping and Discount.
