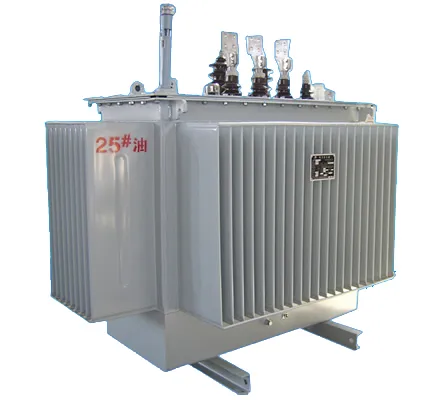

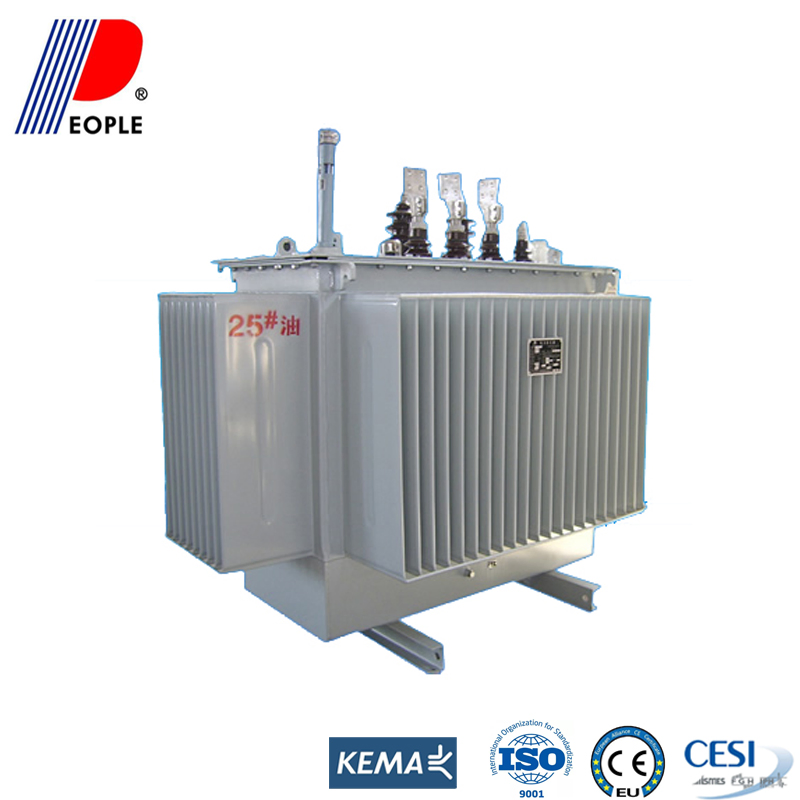

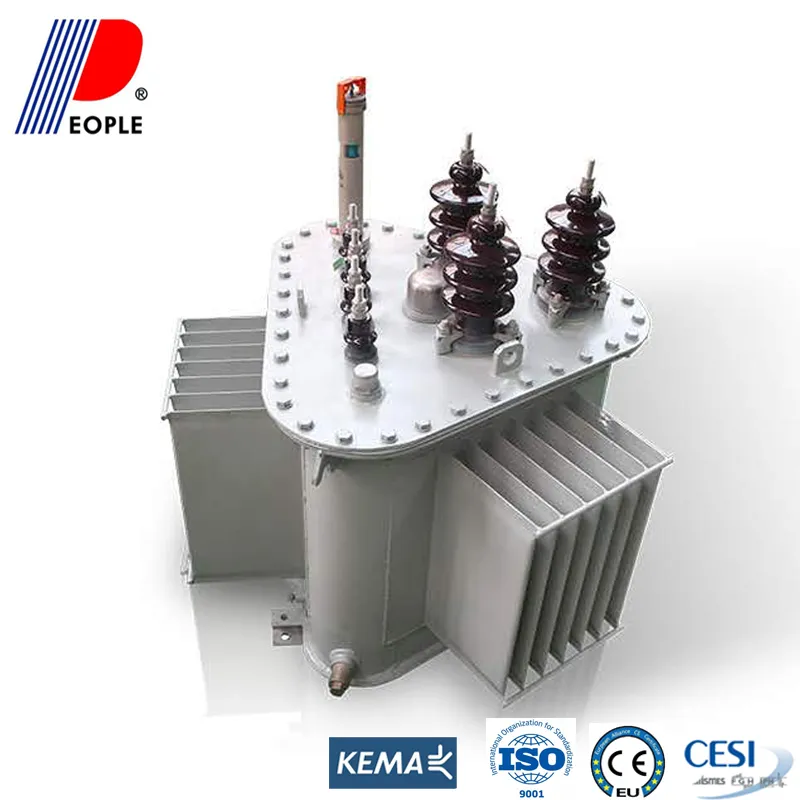

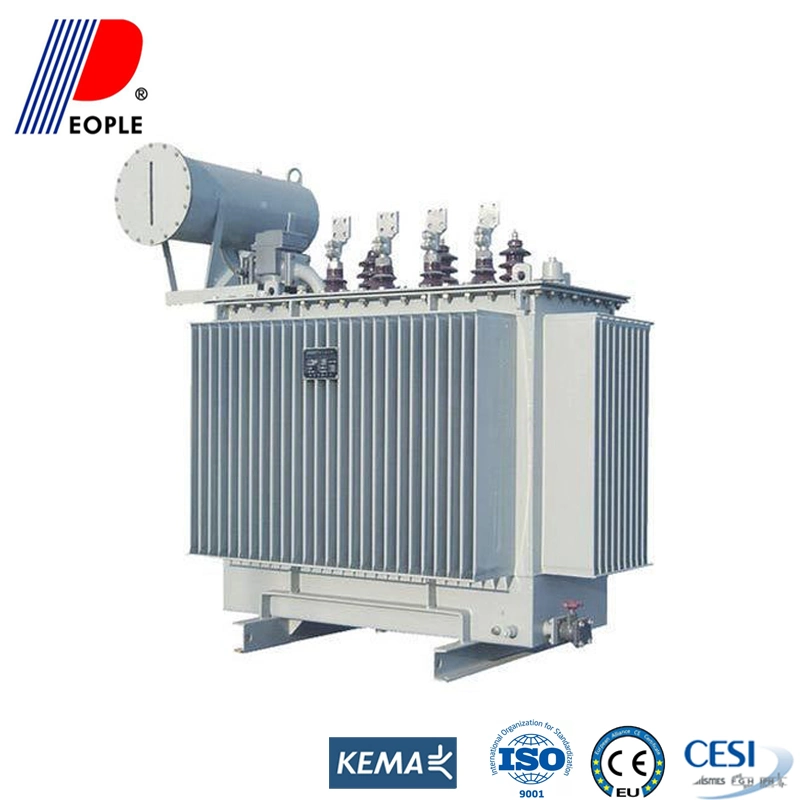

S9 S11 Serious 11kv 300kVA Oil Immersed Distribution Transfomer

Product Description

1. Features of Products

The three-phase oil Immersed distribution transformer applies new type insulating structure and make the short-circuit resistance strong. The Iron core is made of high quality cold rolled silicon steel plate. High -voltage winding groups is made up of high quality oxygen free copper lines and it adopts multi drum type structure.

2. Reliable Structure

With the fundament of traditional frames and proved techniques our company made a great improvement for instance. We employ spiral loops with longitudinal oil path to produce a better cooling effect. We improve the effectual support of the loop's terminal face to strengthen the anti-short circuit electricity capability.

3. Excellent Materials

We use Oxygen free cooper lines of lower resistivity, which will become smoother and burr free after series of additional treatment so the load loss of our transformer is lower and the electric performance is better. We also use high quality silicon steel plate and high quality wooden laminating insulation pieces, and also we use thoroughly filtrated transformer oil and high quality rubber sealing material. All raw materials have passed the quality testing with national standard ISO90000 inspection.

5. Good Technology and Economic Performance
Compare with previous products, S9 and above series reduces the no load loss by 10%, and load loss by 24%, and no load electric current by 46%, as a result, the operating cost will drop by 19%.

5.Technical data sheet of 11KV S9,S9-M oil immersed distribution transformer

Rated capacity(KVA)	Voltage Ratio		Connection group	Impedance	Losses		No load current (%)	Weight			Dimension (LXBXH)
Rated capacity(KVA)	High voltage	Low voltage	Connection group	Impedance	No load	Load	No load current (%)	Active part	Oil	Gross	Dimension (LXBXH)
5	11 10.5 10 6.3 6	0.4 0.69	Yyn0 Dyn11	4%	0.07	0.35	4	50	45	145	550450800
10					0.09	0.40	3.5	70	55	185	550450800
20					0.11	0.52	3.0	110	60	235	660505850
30					0.13	0.63/0.6	2.3	130	65	265	660530870
50					0.17	0.91/0.87	2.0	195	80	365	740600930
63					0.20	1.09/1.04	1.9	230	80	400	720620100
80					0.25	1.31/1.25	1.9	260	95	460	7706401030
100					0.29	1.58/1.5	1.8	300	95	510	820710970
125					0.34	1.89/1.8	1.7	335	115	585	10406801080
160					0.40	2.31/2.2	1.6	405	130	685	10906701130
200					0.48	2.73/2.6	1.5	490	150	810	11607601090
250					0.56	3.2/3.05	1.4	565	170	835	12157751180
315					0.67	3.83/3.65	1.4	655	200	1095	13458901205
400					0.80	4.52/4.3	1.3	840	250	1385	14509351240
500					0.96	5.41/5.15	1.2	935	235	1505	14109701290
630				4.5%	1.20	6.2	1.1	1100	330	1830	159510401315
800					1.40	7.5	1.0	1360	370	2225	176511701350
1000					1.70	10.3	1.0	1455	475	2555	185512551490
1250					1.95	12.0	0.9	1715	545	3140	188512701590
1600					2.40	14.5	0.8	2095	630	3680	195016202020
2000					2.80	19.8	0.8	2340	715	4190	206017402050
2500					3.30	23.0	0.7	2920	830	5100	225018002100
Note: Tapping range of high voltage : ±5%,±2*2.5%; Frequency 50Hz
