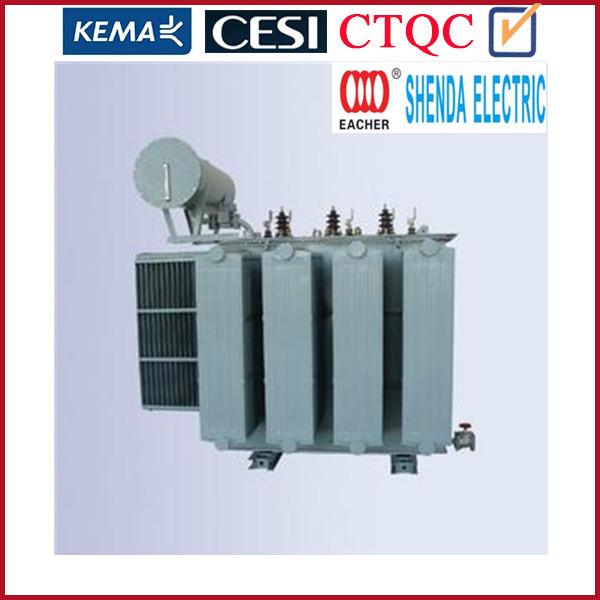

China Rectifier Transformer with Three-Phase Oil-Immersed Transformer

Product Description

900kva 11kv rectifier transformer
1 Top 1 in China
2 ISO9001,ISO14001,CE
3 Apply for IEC, ANSI

Description:

They are widely used in electrolysis, electrochemical , driving, traction , static de-dusting ,DC power transmission fields where rectification power source is necessary . A rectiformer is used for power supply of rectifying devices , most industrial DC power sources is transformed from an AC network via rectifying devices consisting of a rectiformer and a rectify. It is widely used in electrolysis , electrochemical , traction , driving ,DC transmission , frequency conversion and rectified power source fields. According to user's requirements , the secondary winding phase difference can be designed to 30 ,15 ,7.5, for rectification of 6-phase, 12-phase,24-phase and 48-phase.

Type	Rated Power (kVA)	Rated Voltage (Line Side) V	Rated Voltage (Valve Side) V	Connection Symbol	Active Part Weight (kg)	Oil Weight (kg)	Total Weight (kg)	Overall Dimension (LWH) (mm)
ZSSP-800/10	800	10000	400	Dyn11	1580	660	3240	216016251855
ZSSP-2000/35	2000	35000	400	Yyn0	3320	1280	5735	260012602740
ZSSP-4000/35	4000	35000	950	Dd0y11	5410	2040	9540	257017452720
ZSSP-6300/35	6300	35000	1000	D( ±7.5 °)dyn	8600	4860	18260	334018753370
ZSSP-7000/35	7000	35000	950	Dd0y11	8570	3390	14700	31859853475
ZSSP-8000/22	8000	22000	950	Dd0y11	8640	3340	14710	321019053375
ZSSP-8000/35	8000	35000	950	Dd0y11	9170	3590	15520	334018703490
ZSSP-9000/35	9000	35000	950	Dd0y11	9920	4070	15740	324019153720
ZSSP-10000/35	10000	35000	1000	D( ±7.5 °)dyn	11090	4400	18850	341019153845
