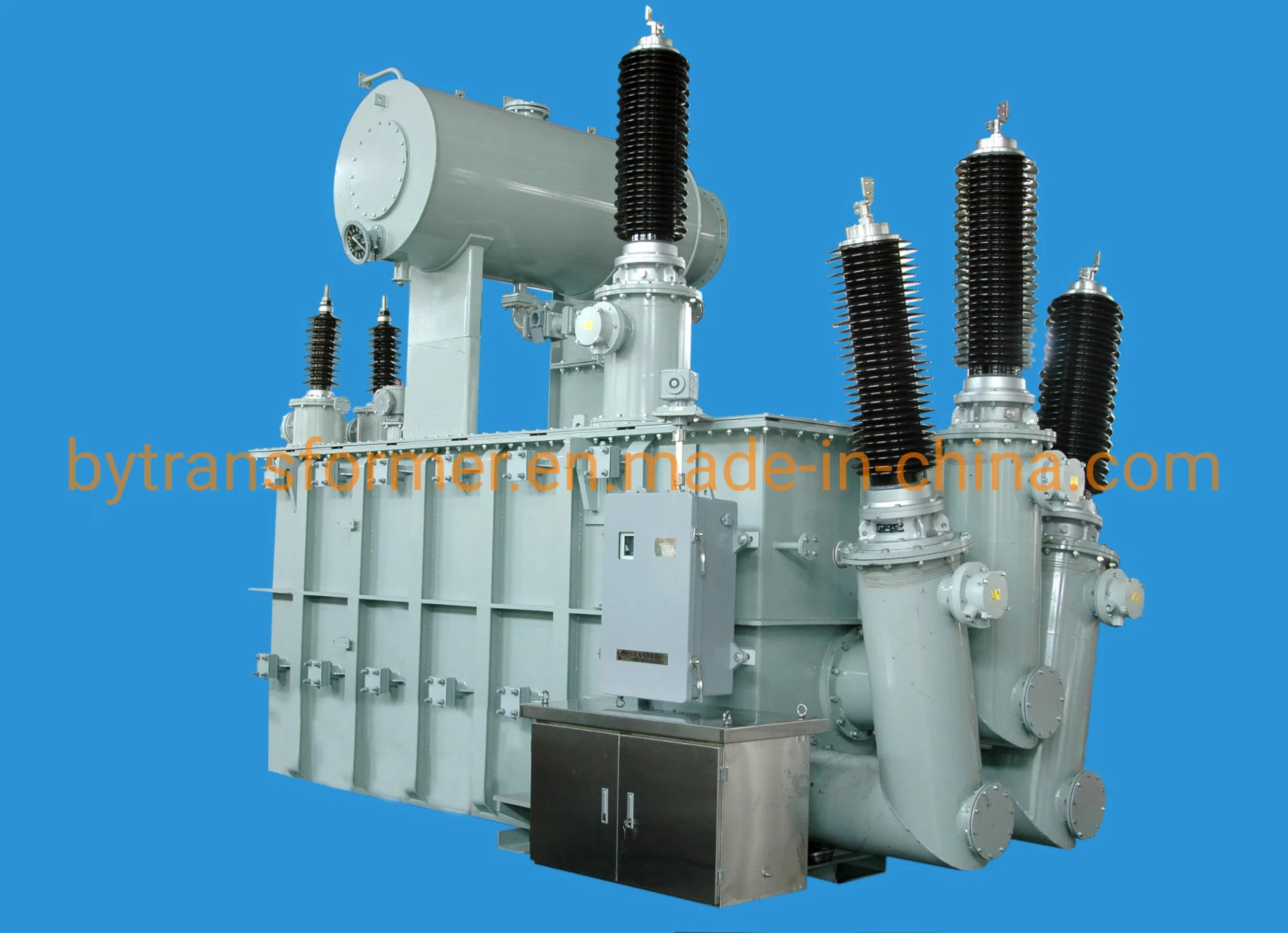

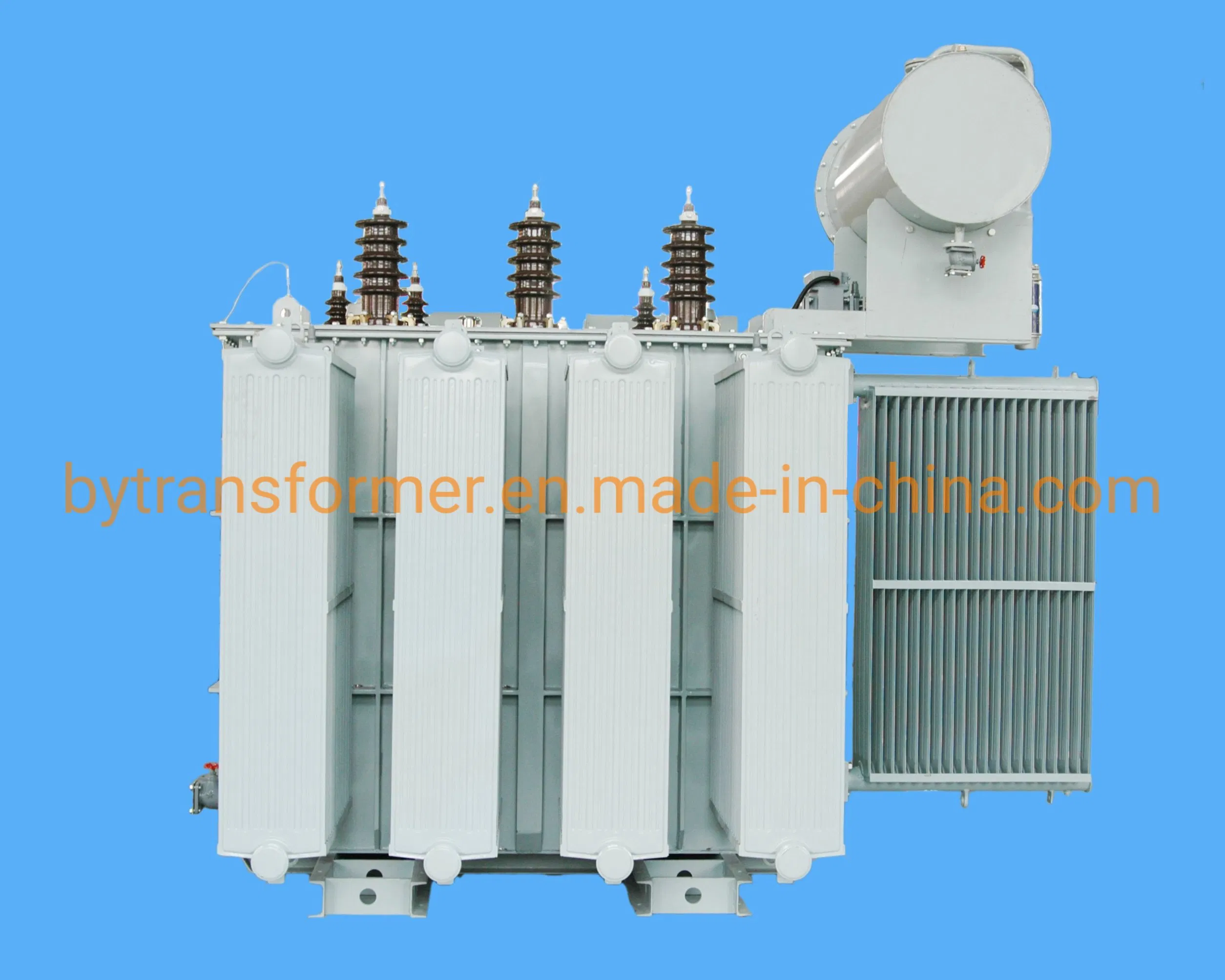

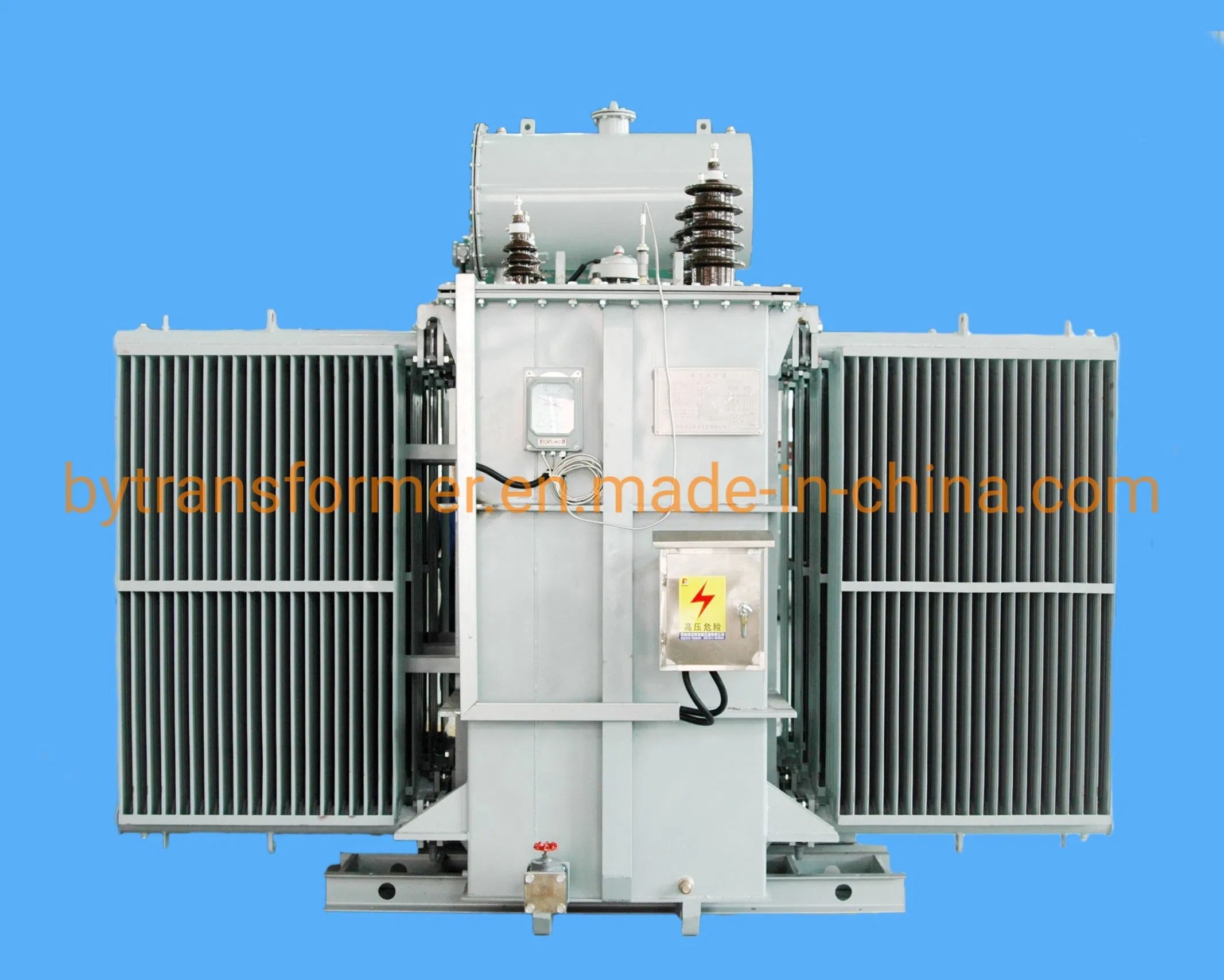

Oil-Immersed Electric Power Transformer for Transformation System (S13- 31500 /35)

Product Description

The power transformer is used as a device for power transmission and voltage level conversion to supply power to lower-level electrical equipment. Its performance parameters are formulated according to national standards. The main categories are divided into non-excitation voltage regulation series, on-load voltage regulation series, and oil-immersed power transformers; mainly used in substation, industrial and mining enterprises, and power transmission and transformation systems.

Technical Parameters:

Model No.	Rated Capacity(KVA)	Voltage Combination		Connection group symbol	Loss(KW)		NO-LOAD Current (%)	Short circuit impedance(%)	Weight(KG)			Dimensions(MM)LWH/Lifting height	Track gauge(mm)(MM)
Model No.	Rated Capacity(KVA)	HV(KV)	LV(KV)	Connection group symbol	NO-LOAD	ON-LOAD	NO-LOAD Current (%)	Short circuit impedance(%)	Body	Oil	Total	Dimensions(MM)LWH/Lifting height	Track gauge(mm)(MM)
SI3-1600/35	1600	35 ±22.5% or ±32.5%	6.3 6.6 10 10.5	Y,D11 Or D,Y11	1.85	16.67	0.8	6.5	2500	1380	5500	258017002530	820*1070
S13-2000/36	2000				2.3	19.24	0.78	6.5	3130	1630	6350	266018902660	820*1070
SI3-2500/35	2500				2.72	20.65	0.75	6.5	3800	1920	7950	275020002800	820*1070
S13-3150/35	3150				3.35	25.2	0.75	7	4360	2200	9300	288020502950	1070*1070
SI3-4000/35	4000				4	29.5	0.75	7	5190	2380	10900	300022603000	1070*1070
SI3-5000/35	5000				4.8	32.8	0.7	7	6290	2650	12300	312023003150	1070*1070
SI3-6300/35	6300				5.7	35.9	0.6	7.5	7200	3150	14200	318023303200	1070*1070
SI3-8000/35	8000			YN,D11 or D,Yn11	7.8	43.2	0.55	7.5	8950	3730	16900	332028503400	1505*1505
SI3-10000/35	10000				8.65	48.3	0.55	7.5	11000	4120	20200	353029803450	1505*1505
SI3-12500/35	12500				10.7	55.5	0.45	8	12850	4300	22500	373030603500	1505*1505
SI3-16000/35	16000				13.2	67.3	0.45	8	16300	5200	29300	400033203700	1505*1505
SI3-20000/35	20000				15.3	77.9	0.4	8	19500	6020	35800	410034003830	1505*1505
SI3-25000/35	25000				17	94.3	0.36	8	21800	6820	39300	425035304050	1505*1505
SI3-31500/35	31500				22.22	119.3	0.3	8	25350	9200	44950	440036004300	1800*1505
SZ13-2000/35	2000	35 ±22.5% or ±32.5%	6.6 10 10.5	Y,D11 or DY11	2.88	20.3	0.8	6.5	2780	1650	6140	215019002300	820*1070
SZ13-2500/35	2500				3.4	22	0.8	6.5	3570	1850	6780	278020002530	820*1070
SZ13-3150/35	3150				4.04	26.8	0.8	7	3700	1910	7500	296020502940	1070*1070
SZ13-4000/35	4000				4.84	31.2	0.75	7	4350	2170	8550	318023803100	1070*1070
SZ13-5000/35	5000				5.8	36	0.72	7	5230	2240	9800	298031102740	1070*1070
SZ13-6300/35	6300				7.04	38.7	0.68	7.5	6300	2700	11800	332033302950	1070*1070
SZ13-8000/35	8000			YN,D11 or D,YN11	9.85	45.3	0.6	7.5	7780	3130	14500	347031303230	1505*1505
SZ13-10000/35	10000				11.6	51.5	0.6	7.5	9500	3850	16900	335028803400	1505*1505
SZ13-12500/35	12500				13.7	59.8	0.56	8	10630	4640	19800	368031603500	1505*1505
SZ13-16000/35	16000				16.5	74.3	0.54	8	13300	5360	23300	380032203650	1505*1505
SZ11-20000/35	20000				19.5	87.2	0.54	8	17500	7200	31200	400033503830	1800*1505
SFZ11-15000/63	15000			YN,D11	16.2	77	0.65	13.5	14500	11700	33800	600046703050	2040*1475

FAQ
6.1.Q: Are you manufacturer?
    A: Yes, we are manufacturer. Our factory is in Suzhou City, Jiangsu Province.
6.2.Q: Can I get guarantee of products?
    A: Yes, every product is 1 year quality warrantee under customer correct using the products.
6.3.Q: Do you have any Certificate?
    A: All the electric parts with CE certificate, If you need any other Certificate, we can help you to get it.
6.4.Q: How to buy it? What about the delivery?
    A: Please contact me by email or online, let me know your situation, I will give you professional solution.We have shipping agent can choosing the cheapest and fastest delivery. FOB,CIF, C&F or EXW are no problem for us.
6.5.Q: How can I pay you?
    A: T/T, L/C is very well used.
6.6.Q: What about the production?
    A: Produce time is 4~6weeks.
6.7.Q: Could you offer some spare parts?
    A: Yes, no problem.
6.8.Q: What about the maintenance?
    A: All the goods past the test, maintenance is very easy.

We are professional transformer manufacturer with 15 years' experience, we mainly supply power transformer for electrical power system, rectifier transformer for electrochemistry industry and furnace transformer for industrial electric furnace smelting.
We already exported our transformers to Europe, Middle East, Africa, Australia, North America and South America. We have ISO, CE, SGS certificates.

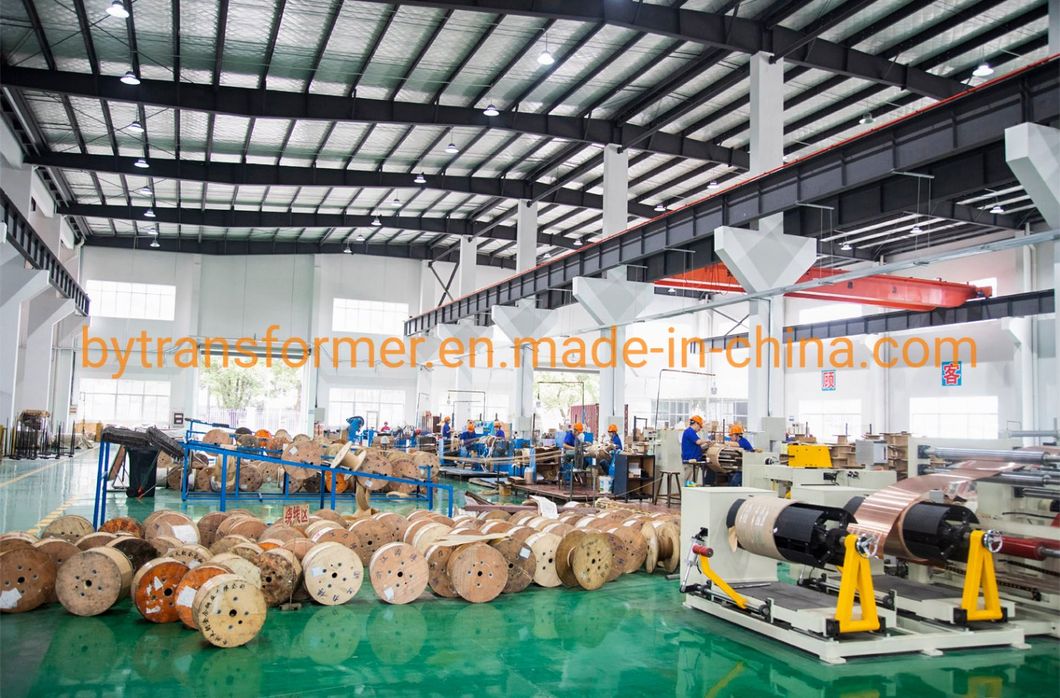

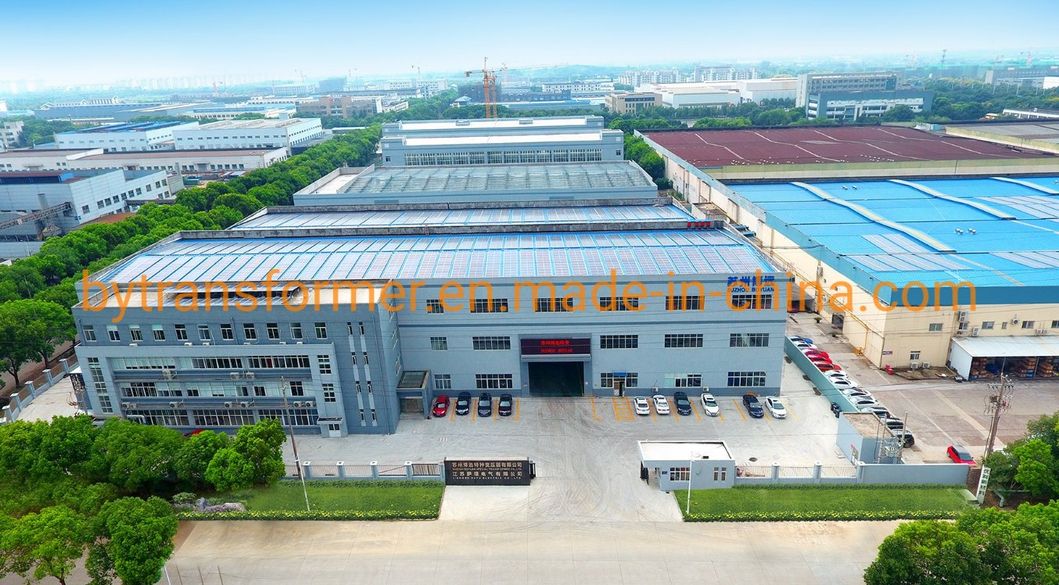

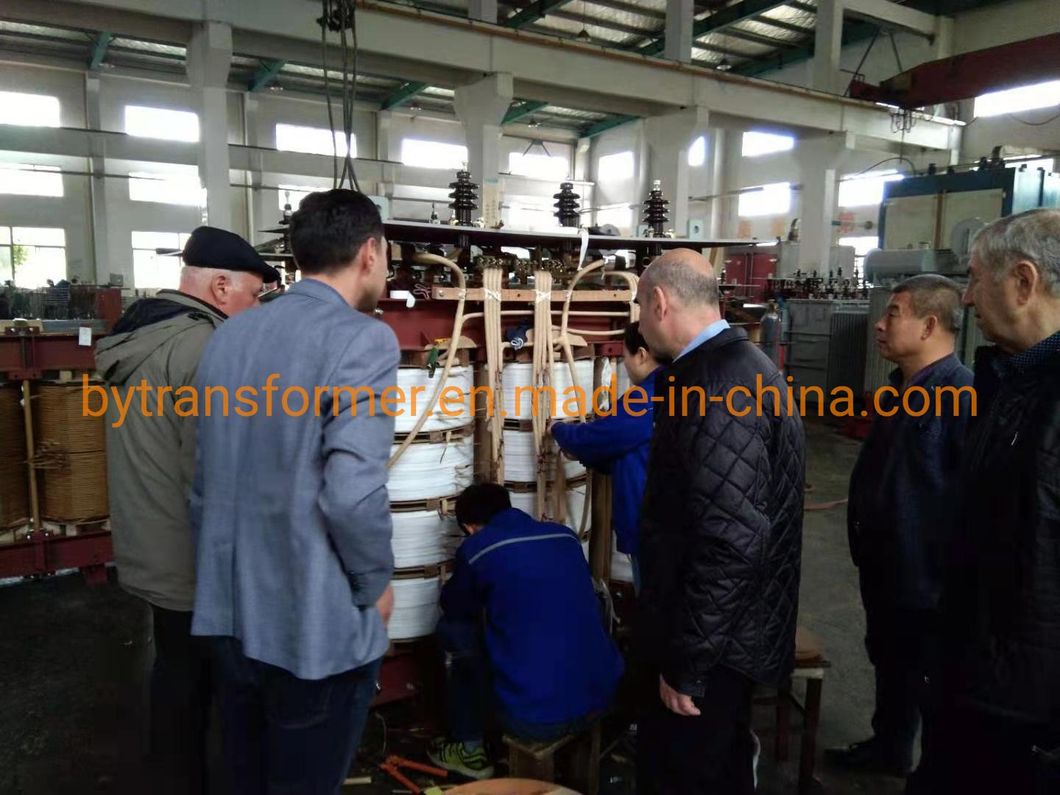

Company Panorama
