Product Description

Brief introduction:
1. Oil-immersed high voltage transformer test: large capacity, cheap, convenient maintenance, mainstream products.

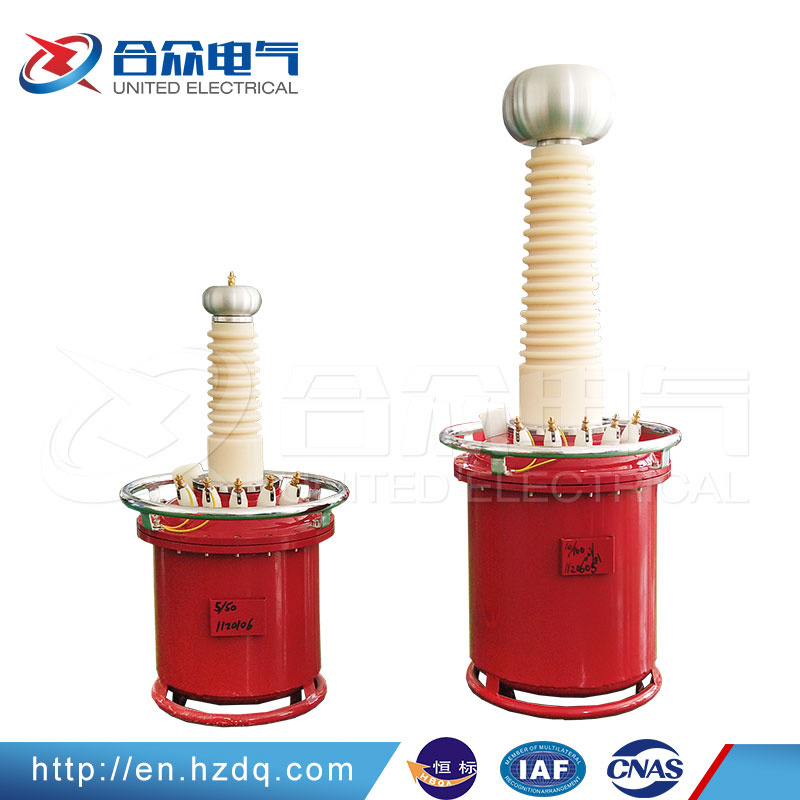

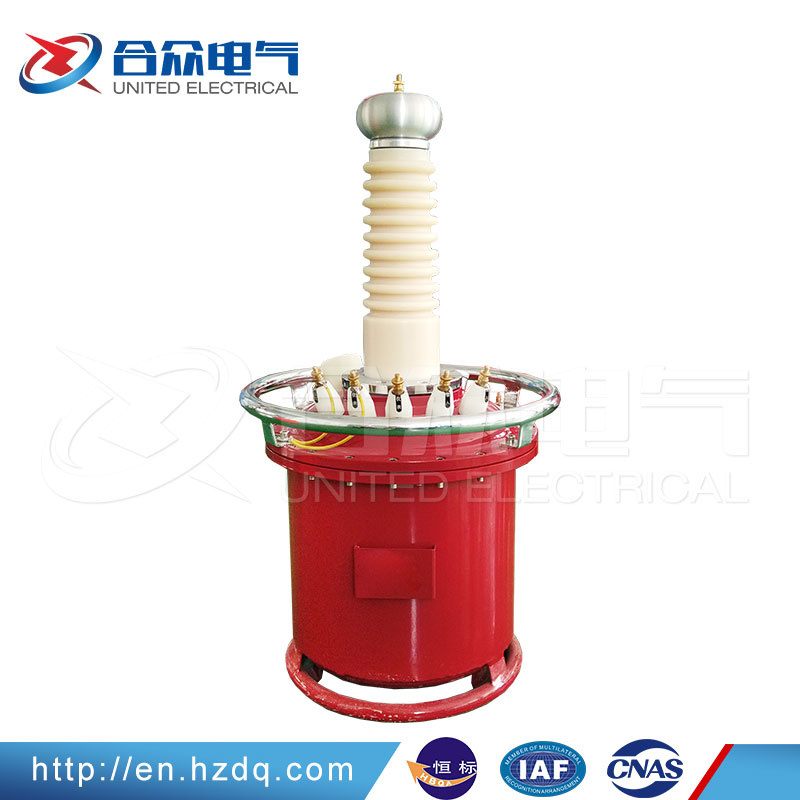

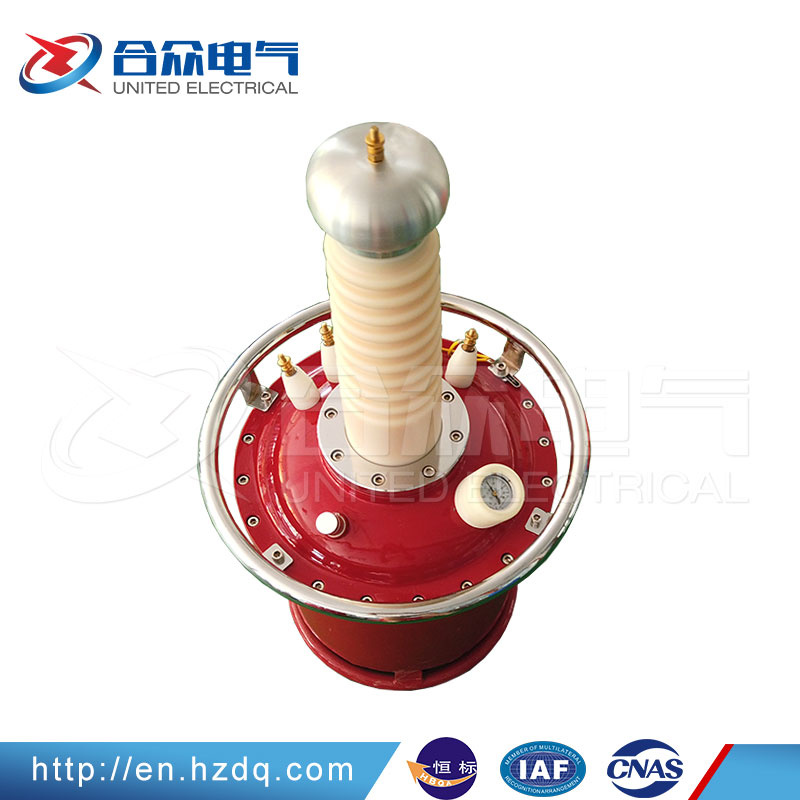

2. Inflatable high voltage test transformer : interrupter resistance, and light weight.
3. Dry typehigh voltage testing transformer: light weight, light volume, can run backward, price expensive.
4. Series type high voltage testing transformer: small volume, low voltage, light weight, easy to transport and install.

Product features:
1,This product has small vollume and light weight(Compared with the same level of oil immersed transformer test light 40%-65%),clean and no oil pollution, does not need maintenance.
2,Not affected by bad weather conditions, does not need static to do the test in field movement.
3,The insulation strength is obviously higher than that of oil immersed test transformer, minimal corona.

Product parameters:

Specification YDQ	Capacity (kVA)	Low Voltage Side		High Voltage Side		Measurement Ratio	Temperature Rise ºC	Impendance Voltage %	No-load Current%	Weight	Dimension LengthWidthHeight mmmmmm
Specification YDQ	Capacity (kVA)	Voltage V	Current A	Voltage kV	Current mA	Measurement Ratio	Temperature Rise ºC	Impendance Voltage %	No-load Current%	Weight	Dimension LengthWidthHeight mmmmmm
1.5/50	1.5	200	7.5	50	30	500:1	50	10	<4	30	200x275x640
3/50	3	200	15	50	60	500:1	50	10	<4	35	240x300x690
6/50	6	200	30	50	120	500:1	50	10	<4	40	250x355x710
10/50	10	200	50	50	200	500:1	50	10	<4	60	260x375x750
15/50	15	400	37.5	50	300	500:1	50	8	<4	70	270x420x800
20/50	20	400	50	50	400	500:1	50	8	<4	85	285x440x820
30/50	30	400	75	50	600	500:1	50	8	<4	100	295x386x840
50/50	50	400	125	50	1000	500:1	50	8	<4	120	320x416x910
10/100	10	200	50	100	100	1000:1	50	10	<4	65	350x475x1300
15/100	15	400	37.5	100	150	1000:1	50	8	<4	85	510x390x1320
20/100	20	400	50	100	200	1000:1	50	8	<4	100	540x400x1340
30/100	30	400	75	100	300	1000:1	50	8	<4	110	560x410x1360
50/100	50	400	125	100	500	1000:1	50	8	<4	125	600x460x1410
10/150	10	200	50	100	66.7	1500:1	50	10	<4	90	265x380x1750
15/150	15	400	37.5	150	100	1500:1	50	8	<4	100	510x390x1800
20/150	30	400	50	150	133.3	1500:1	50	8	<4	110	540x415x1800
30/150	30	400	75	150	200	1500:1	50	8	<4	125	560x430x1800
50/150	50	400	125	150	333.3	1500:1	50	8	<4	140	600x450x1800
20/200	20	400	50	200	100	2000:1	50	8	<4	140	600x600x1900
30/200	30	400	75	200	150	2000:1	50	8	<4	160	700x700x1900
50/200	50	400	125	200	250	2000:1	50	8	<4	200	750x750x2000
50/300	50	400	125	300	166	3000:1	50	8	<4	230	750x750x2300
100/300	100	400	250	300	333	3000:1	55	8	<4	300	850x850x2500
200/300	200	400	500	300	666	3000:1	55	8	<4	350	900x900x2600
300/300	300	400	750	300	1000	3000:1	55	8	<4	420
Note: Can be customized according to the user, non-standard products, not in the form of parameters range

Company Profile:
Wuhan Hezhong Electric Equipment Manufacture Co., Ltd is a high-tech enterprise professionally engaged in R & D, manufacture and marketing of power testing products, instruments, power industry automation systems for 20 years.We export completed set to Korea, Singapore, Vietnam, India, Ecuador, Paraguay, Pakistan, Philippines, Russia, Italy, Austria, Portugal, Chile such as PD test system, impulse voltage generator, temperature rising test system, transformer comprehensive test system, cable fault detect system and varies of instruments for transformer, circuit breaker, switchgear, lightning arrestor, insulator, cable, battery,SF6 gas and so on.
