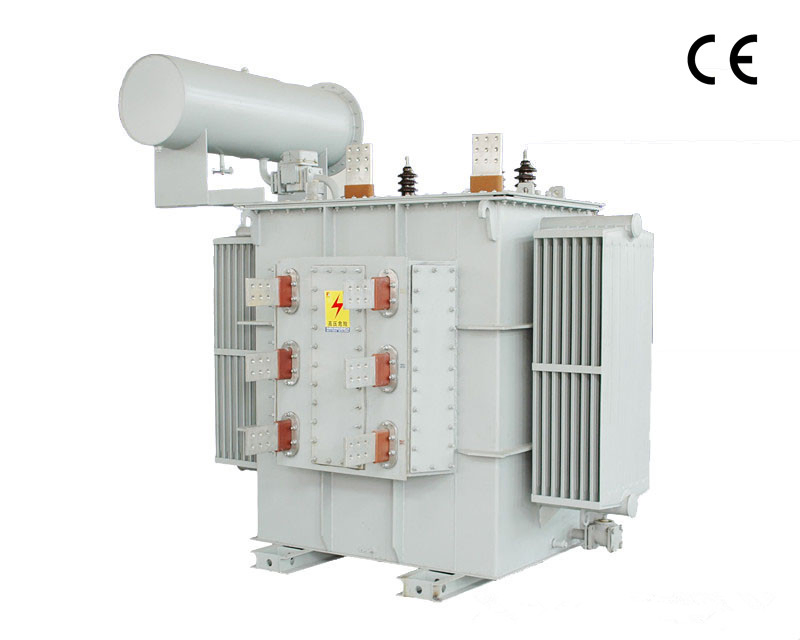

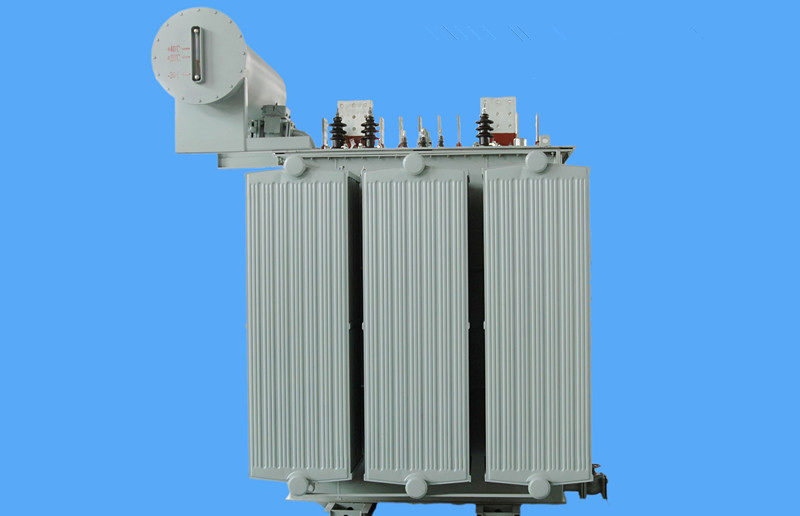

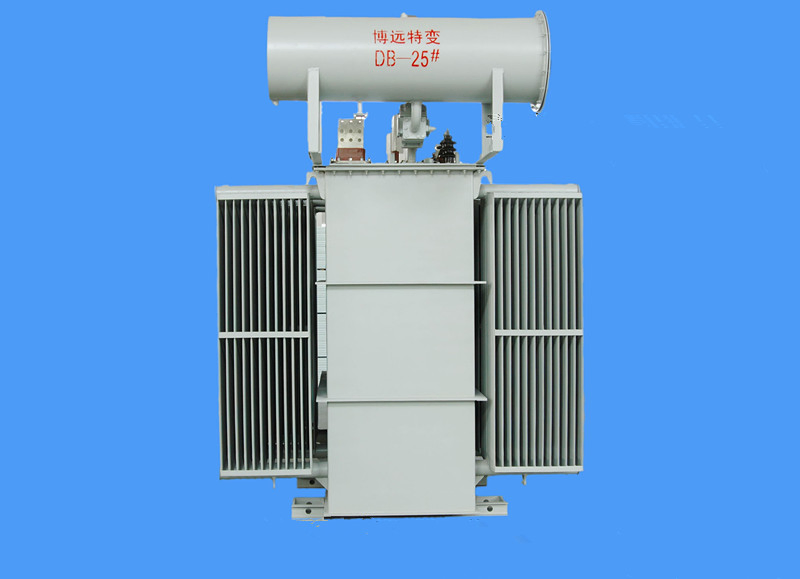

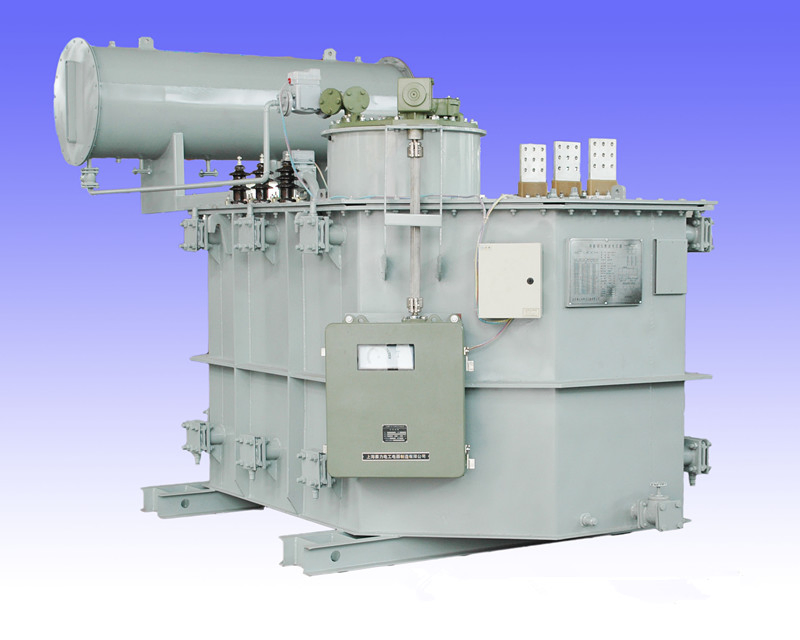

Electrochemistry Rectifier Transformer (ZHSK-900/10)

Product Description

Rectifier Transformers Series
Rectifier transformer is the most widely used power supply equipment.It is mainly used in electrochemistry, metallurgical electrolysis, DC drive, medium-frequency power supply and electric heating crystallization of silicon carbide and other occasions.

Features:
1.Low loss, low noise
2.Low impedance
3.Operation reliability
4.Pretty outline and compact structure

Product Description:
Model:ZHSK-900/10
Rated Capacity:900kVA
Primary Voltage:10KV
Connection Symbol:D/y11-y5
Rectifier Circuit:Double reverse star with balanced reactance

Technnical Parameters Of Electrochemistry Rectifier Transformer(the following data is for other models.And is just for reference)

Model NO.	Network Voltage (KV)	DC power supply parameters and characteristics				Connection group symbol	Weight of product (Kg)		Overall size(mm) LWH/lifting height
Model NO.	Network Voltage (KV)	Rectifier circuit	No-load voltage(V)	Work Current(A)	Voltage series equivalent pulse	Connection group symbol	body	Total	Overall size(mm) LWH/lifting height
ZHSK-1000/10	10	Double reverse star with balanced reactance	139	5250	5/6	D/y11-y5	2500	6000	220013002800/5000
ZHSZK-2300/10	10		90~170	8500	14/6	D/y11-y5	4600	11200	410023002900/5000
ZHSZK-2500/10	10		36-95	15000	13/6	D/y11-y5	5400	13600	420024002800/5000
ZHSZK-3150/10	10		180~126	12000	9/6	D/y11-y5	4800	13900	420031003800/5500
ZHSZK-3500/10	10		180~305	4600	9/6	Y/y0-y6	4460	12500	370032803900/6000
ZHSTK-6300/10	10		207-301	16000	19/6	Ya0 D/y11-y5	7000	16200	4200400038100/6000
ZHSZK-8000/10	10		90-180	25000	27/6	D/y11-y5	11200	25200	450038003900/6000
ZHSZK-4000/35	35		148~205	15000	27/6	Y/y0-y6	7200	16500	370022003900/6000
ZHSSPZK-4000/35	35		148~205	15000	27/6	Y/y0-y6	6500	14800	320020003800/6500
ZHSZK-9000/35	35		56~80	80000	13/6	Y/y0-y6	15500	40800	470045004600/8000
ZHSTK-7200/35	35		250~400	11000	27/6	Ya0 Y/y0-y6	10800	23800	480030003600/6000
ZHSTK-6000/35	35	3 phase bridge type	220~440	11000	27/6	Ya0 Y/d11-d5	8600	21000	410026003150/6000
ZHSTK-6000/10	6	Double star with balanced reactance	135~236	14000	27/6	Ya0 D/y11-y5	8300	20000	410028003000/6000
ZHSTK-15000/35	35		190~360	27000	27/12	Ya0 D-Y/Y-λ	22500	42500	410025004500/8000
ZHSTK-5600/35	35		125~224	1400	17/12	za(±7.5°)Y/Y-λ	13800	33800	500025003200/6000
ZHSTK-10000/35	35		9~90	75000	27/12	Ya0D-Y/Y-λ	15000	32000	550029004600/7500
ZHSTK-5000/10	10		105~195	15000	27/6	Ya0 D/Y-λ	9600	23500	350027003500/6000
ZHSTK-16500/35	35		310~165	31500	27/6	Ya0 D/Y-λ	15000	36000	370036004200/7500
ZHSTK-6500/6	6		111~154	40000	19/12	za(±7.5°)D/Y-λ	13800	32500	432033004800/8000
ZHSZ-1000/10	10	Bridge type	125~210	4200	9/6	Y/d11	2500	7400	320015503000/5000
ZHSZ-1600/10	10		75~205	6000	27/6	Y/d11	3500	8800	360019503100*5000
ZHSZ-3150/10	10		150~300	8400	27/6	Y/d11	4600	11000	390018003100/5000
ZHSZ-4200/10	10	Double-bridge same phase inverse link	134~250	16000	27/6	Y/d11-d5	9400	19200	430039004300/7500
ZHSZ-4500/35	35		192~390	11000	27/6	Y/d11-d5	8500	20000	360035003700/6000
ZHSZ-3200/35	35		49-99	30000	27/6	Y/d11-d5	7200	18000	390028003560/7000
ZHSZ-5900/35	35		122~204	27500	27/6	Y/d11-d5	8800	20800	430026003800/7000
ZHSZ-9500/35	35		192~390	22000	27/12	Y/a0 Y/	1800	35000	540040004300/8000
ZHSZ-5000/35	35		236~395	12000	27/6	Y/d11-d5	8400	19000	410026003700/7000
ZHSZ-6400/10	10		150~340	18000	27/6	D/d0-d6	11800	23500	460039004800/8000
ZHST-9000/35	35		25~256	22000	19/12	Ya0-D/d0-d6 Y/d11-d5	13000	27800	410033004000/7500
ZHSFZ-18000/35	35		218~515	23000	27/6	Ya0 D/	20000	41800	470041004400/7500
ZHSSPZ-12000/35	35		182~480	18000	27/6	Y/d11-d5	14000	30000	490047004600/7500
ZHSSPT-18000/35	35		272~408	24000	27/12	za(±7.5°)D/	24000	47500	540039004100/8000
ZHSSPT-16500/35	35		23~228	44000	27/12	Ya0Y(D)/	21000	44800	580039004000/8000
ZHSSPT-20000/35	35		305~508	23000	35/12	Ya-D/d0-d6 Y/d11-d5	25000	49000	570039004100/8000
ZHSSPT-24000/35	35		532~860	15000	27/12	za(±7.5°)D/	23000	48000	580039009500/8000
ZHSSPT-18800/35	35		164~426	24000	27/12	Ya0 Y(D)/	24000	47500	550043004600/8000

RFQ
6.1.Q: Are you manufacturer?
    A: Yes, we are manufacturer. Our factory is in Suzhou City, Jiangsu Province.
6.2.Q: Can I get guarantee of products?
    A: Yes, every product is 1 year quality warrantee under customer correct using the products.
6.3.Q: Do you have any Certificate?
    A: All the electric parts with CE certificate, If you need any other Certificate, we can help you to get it.
6.4.Q: How to buy it? What about the delivery?
    A: Please contact me by email or online, let me know your situation, I will give you professional solution.We have shipping agent can choosing the cheapest and fastest delivery. FOB,CIF, C&F or EXW are no problem for us.
6.5.Q: How can I pay you?
    A: T/T, L/C is very well used.
6.6.Q: What about the production?
    A: Produce time is 4~6weeks.
6.7.Q: Could you offer some spare parts?
    A: Yes, no problem.
6.8.Q: What about the maintenance?
    A: All the goods past the test, maintenance is very easy.
