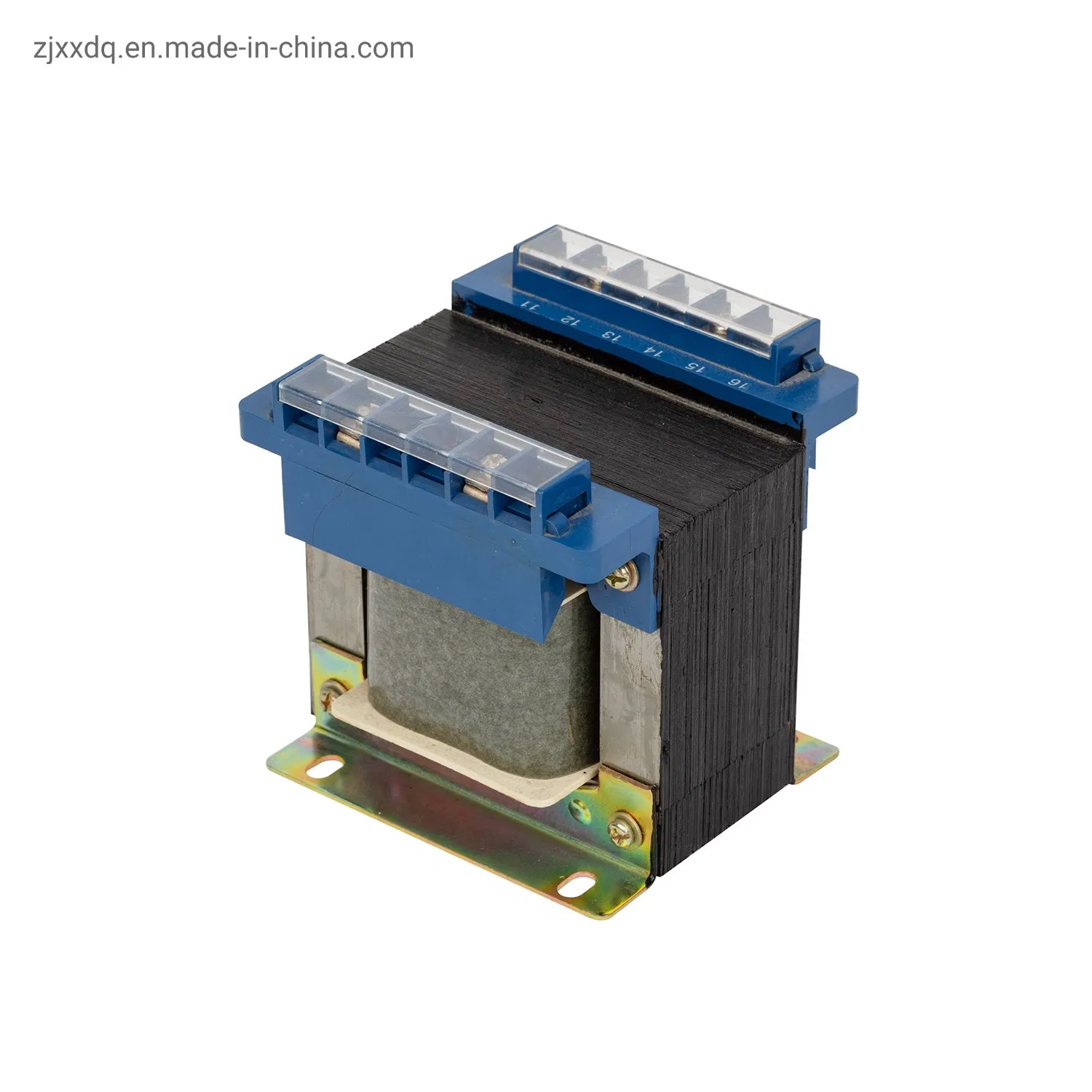

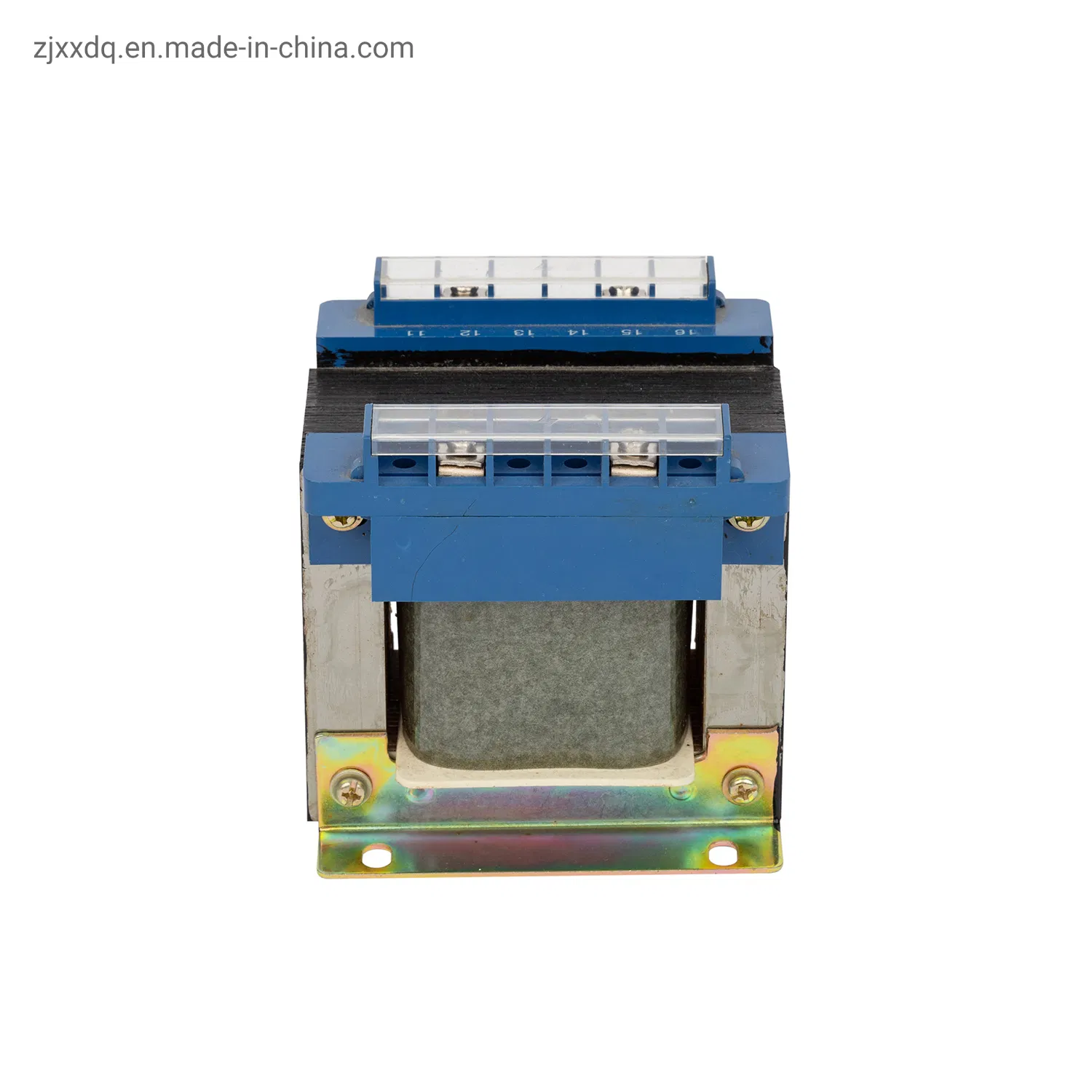

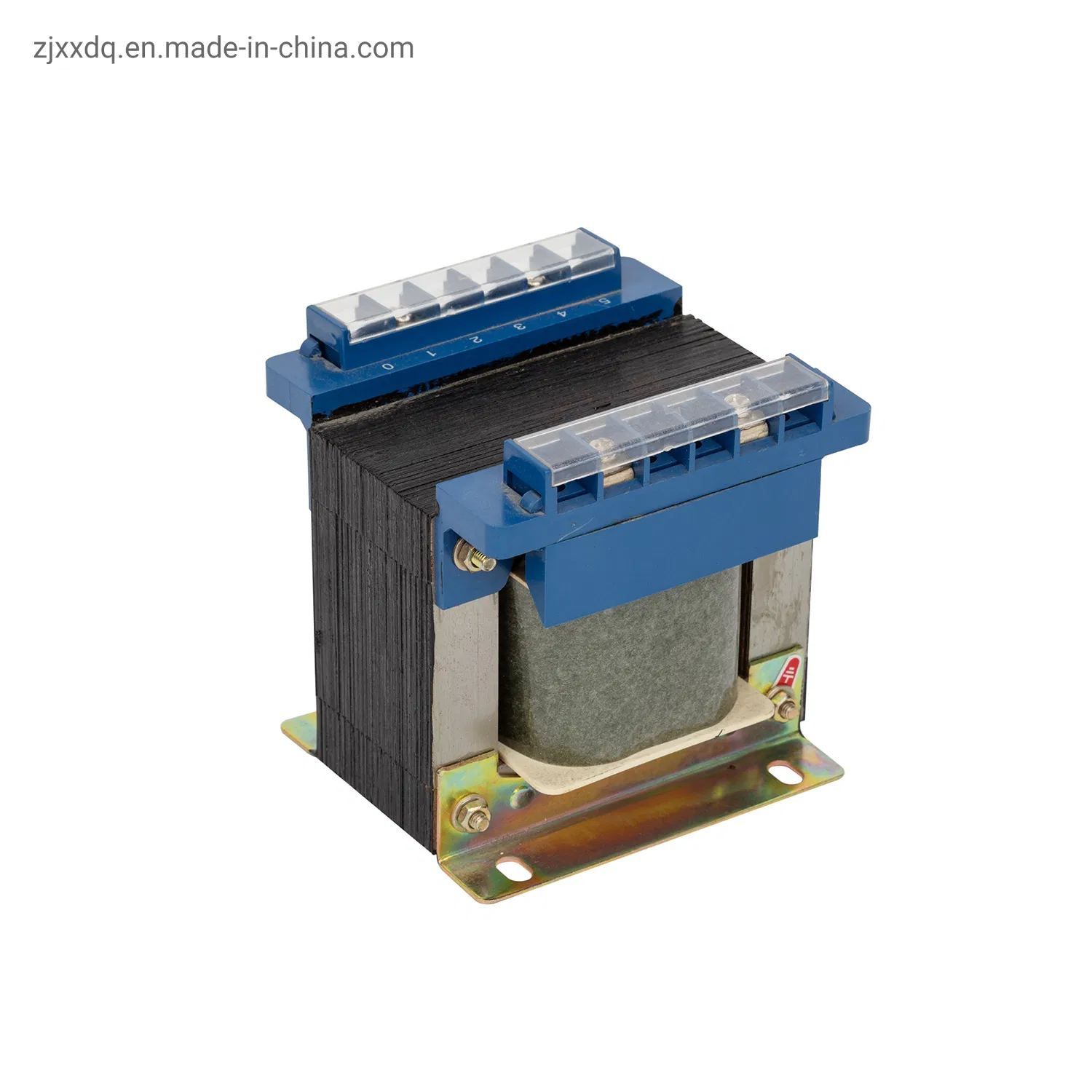

Bk 500va Control Transformer for Machine

Product Description

Product description
The BK series engine bed control transformer (here after refers to as transformer) to be suitable the voltage of 500V frequency 50-60Hz electrical circuit. Usually serves as power supply for engine bed control electric appliance or the partial flare and indicating lamp.
Working environment
1. Ambient air temperature: -5oC~+40oC, the highest monthly mean temperature should not exceed +35oC;
2. Altitude for installing place should not exceed 2000m;
3. When the ambient air temperature is +40, the relative humidity should not exceed 50%, and it allows higher relative humidity under lower temperature. Max average humidity in the dampest month is 90%, meanwhile the lowest average temperature of this month is +25oC, and condensation on the product surface caused by temperature change should be taken into consideration.

Model	Overall size	Overall size	Overall size	Hole distance for installation		Installation hole
(mm)	Bmax	Dmax	Emax	A(mm)	C (mm)	K x J(mm)
BK-25	76	80	77	65± 0.4	50± 1.5	5*7
BK-50	87	94	87	70± 0.4	60± 1.5	6*8
BK-100	108	95	101	85± 0.4	65± 1.5	6*8
BK-150	108	100	101	85± 0.4	75± 1.5	6*8
BK-200	115	107	101	85± 0.4	80± 1.5	6*8
BK-250	115	110	125	90± 0.4	95± 1.5	8*11
BK-300	115	115	125	90± 0.4	100± 1.5	8*11
BK-400	135	140	140	110± 0.4	100± 1.5	8*11
BK-500	135	145	140	110± 0.4	105± 1.5	*811**
BK-700	150	150	158	125± 0.4	100± 1.5	8*11
BK-800	155	150	160	125± 0.4	119± 1.5	8*11
BK-1000	155	160	160	125± 0.4	130± 1.5	8*11
BK-1500	180	220	180	143± 0.4	150± 1.5	8*11
BK-2000	180	240	180	143± 0.4	175± 1.5	8*11
BK-2500	210	230	240	185± 0.4	175± 1.5	8*11
BK-3000	210	230	240	185± 0.4	190± 1.5	8*11
BK-4000	250	250	280	195± 0.4	170± 1.5	8*11
BK-5000	250	265	280	195± 0.4	195± 1.5	8*11
