480V 3 Phase Low Voltage Transformer
480V 3 Phase Low Voltage Transformer480V 3 Phase Low Voltage Transformer is made with pure copper coils(three winding) and silicon steel core. This transformer is widely used in industrial mechanical equipment, medical devices, lighting equipment and so on.Specifications:Input Voltage415V AC (custom......
Send Inquiry
Product Description

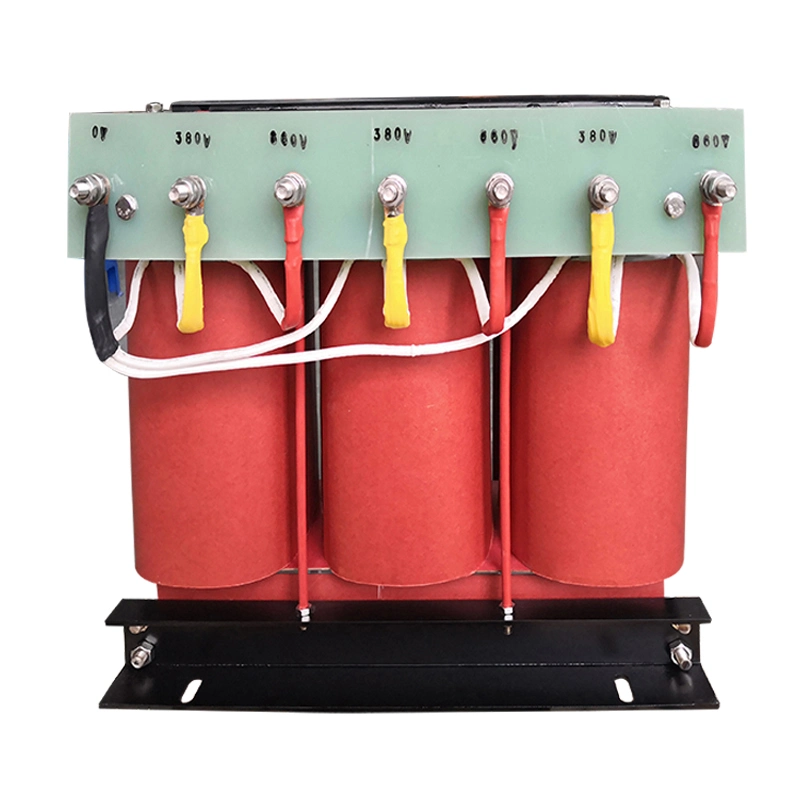

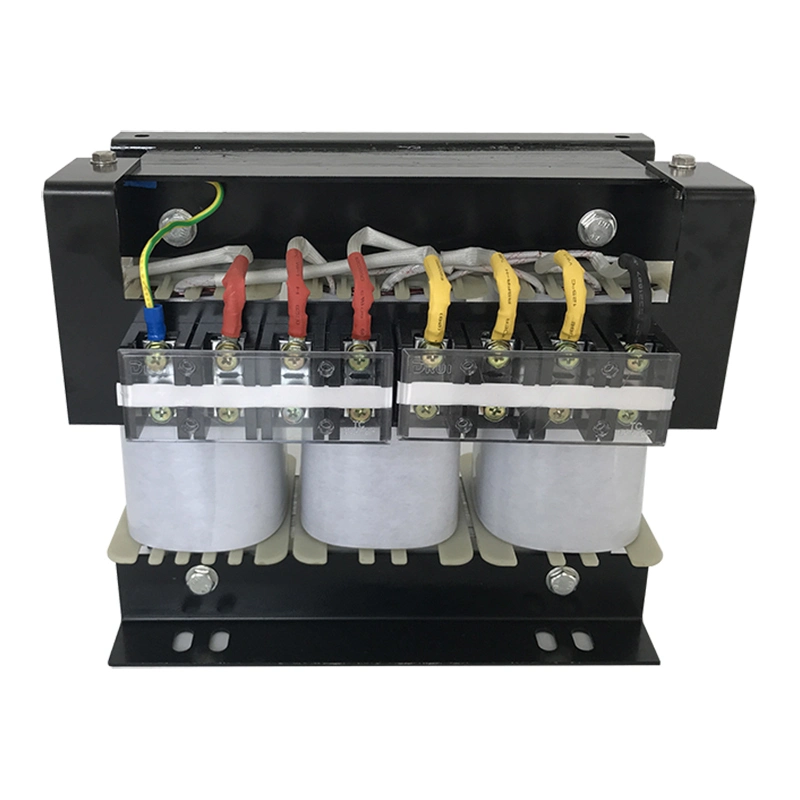

480V 3 Phase Low Voltage Transformer480V 3 Phase Low Voltage Transformer is made with pure copper coils(three winding) and silicon steel core. This transformer is widely used in industrial mechanical equipment, medical devices, lighting equipment and so on.
Specifications:
| Input Voltage | 415V AC (customized) | Output Voltage | 220V AC (cuatomized) |
| Noise | ≤50dB | Temperature Raise | ≤50ºC(in -25-45ºC environment) |
| Cooling | Air Cooling | Winding Material | Pure Copper |
| Insulation Grade | F/H(can be customized) | Efficiency | ≥98% |
| Insulation Resistance | ≥150MΩ | Impedance Voltage | ≤4% |
| Structure | Vertical | Service Life | 30 years |

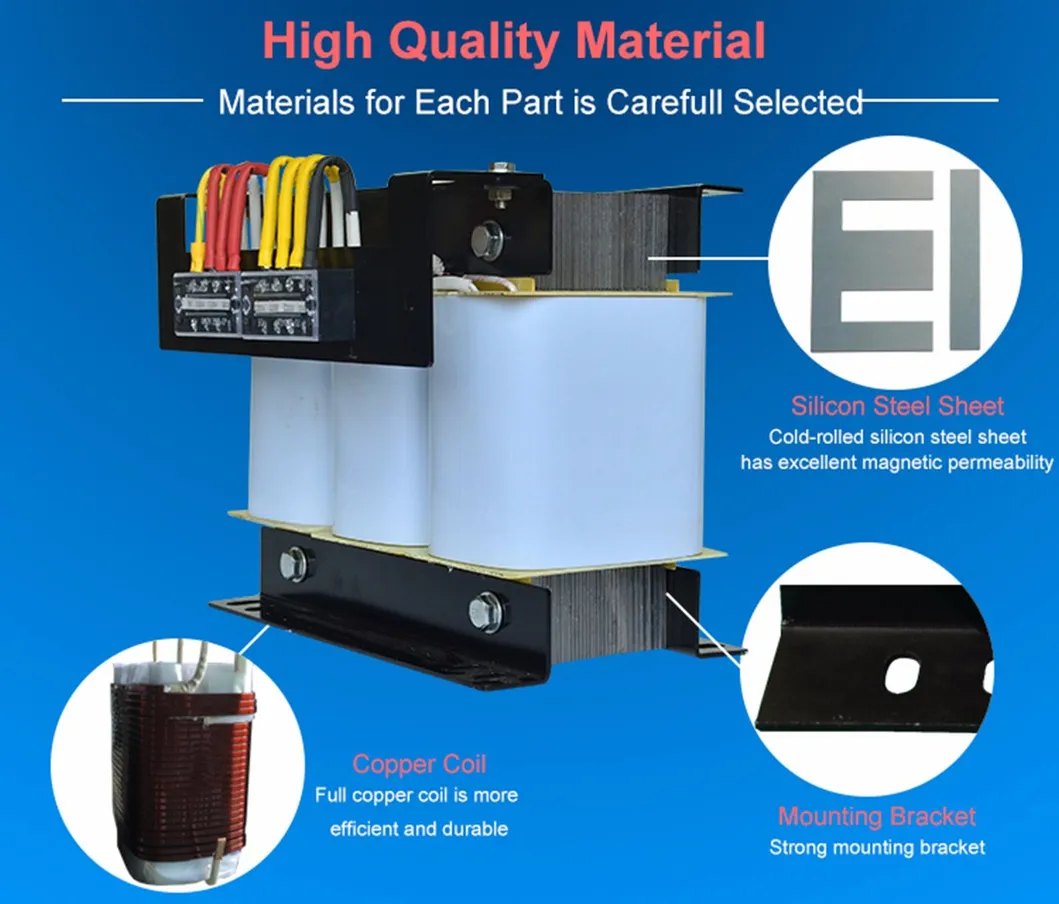

| Core Type | EI Type | Core Material | Cold Rolled Silicon Steel Sheet |
| Altitude Requirement | ≤2000M | Output Voltage Accuracy | ±1% |
| Overload Capacity | 1.2 times of rated power | Waveform Distortion | Distortionless |
| Working Temperature | -25-45ºC | Working Humidity | ≤95% Relative Humidity |
