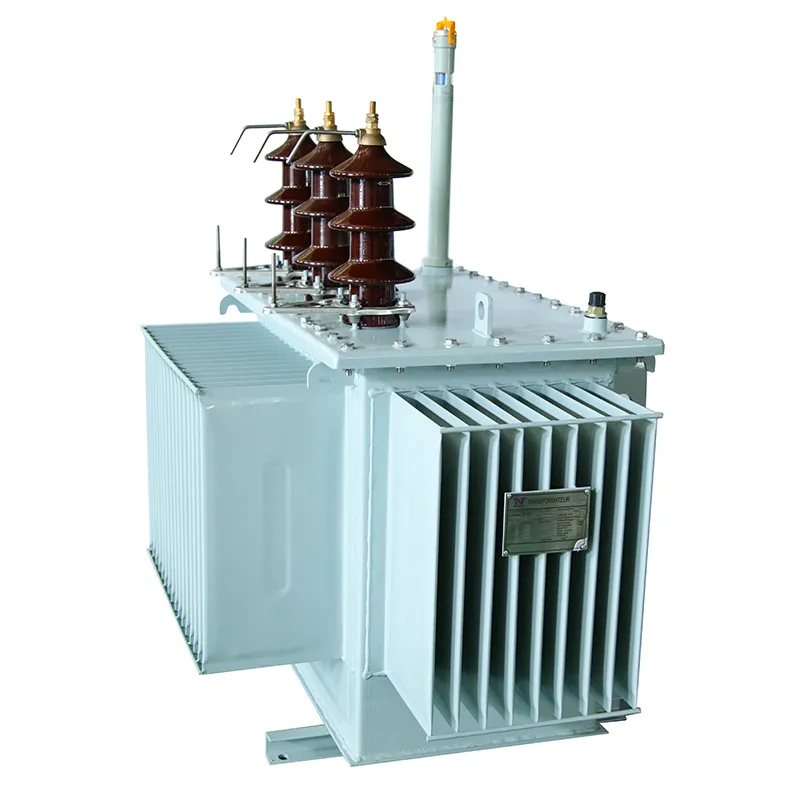

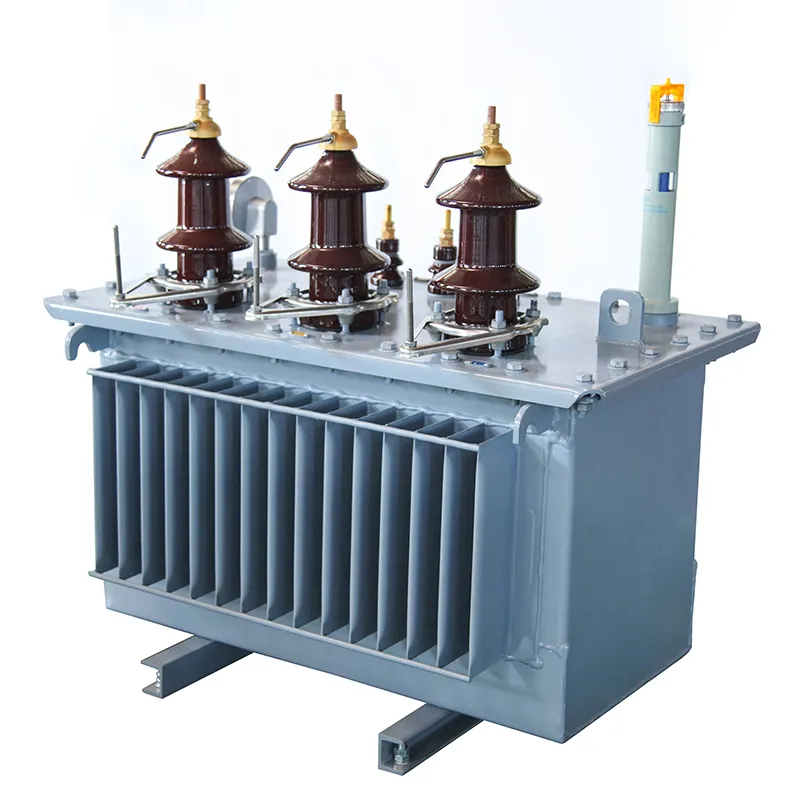

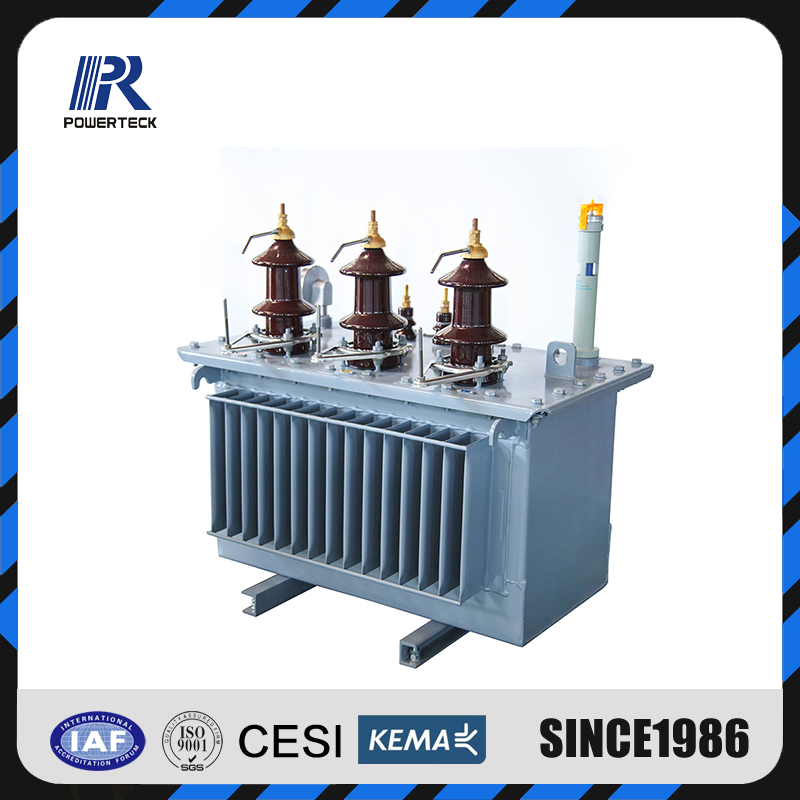

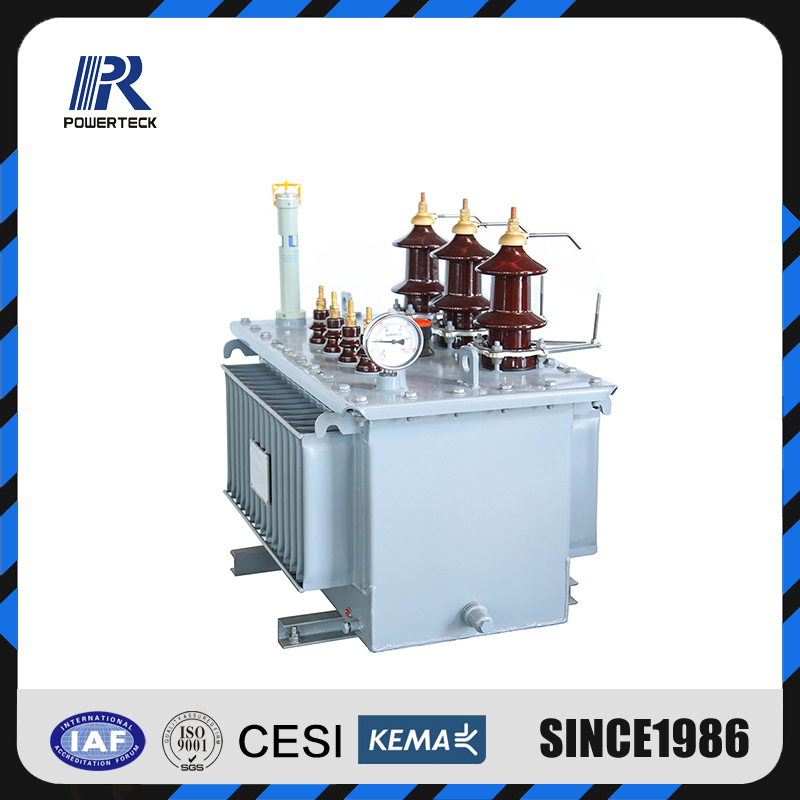

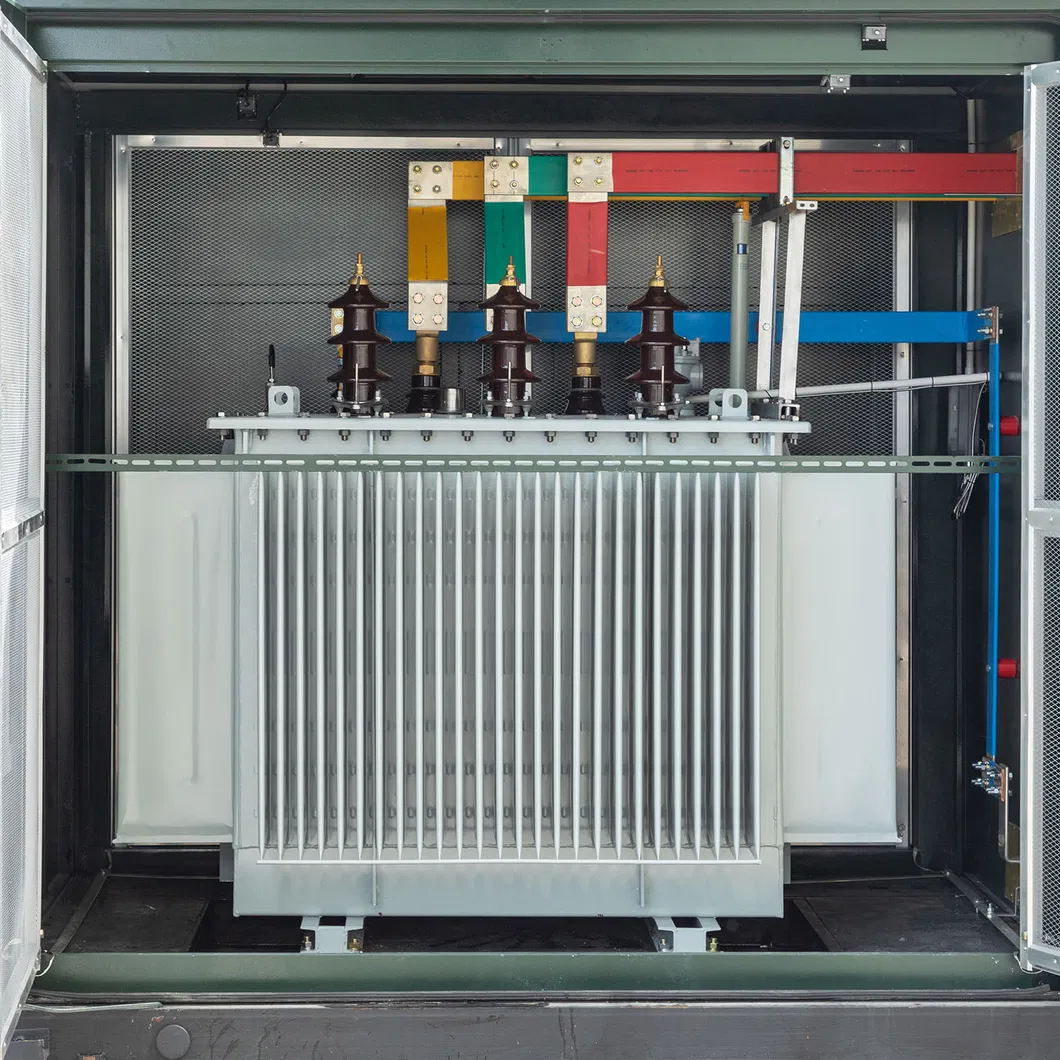

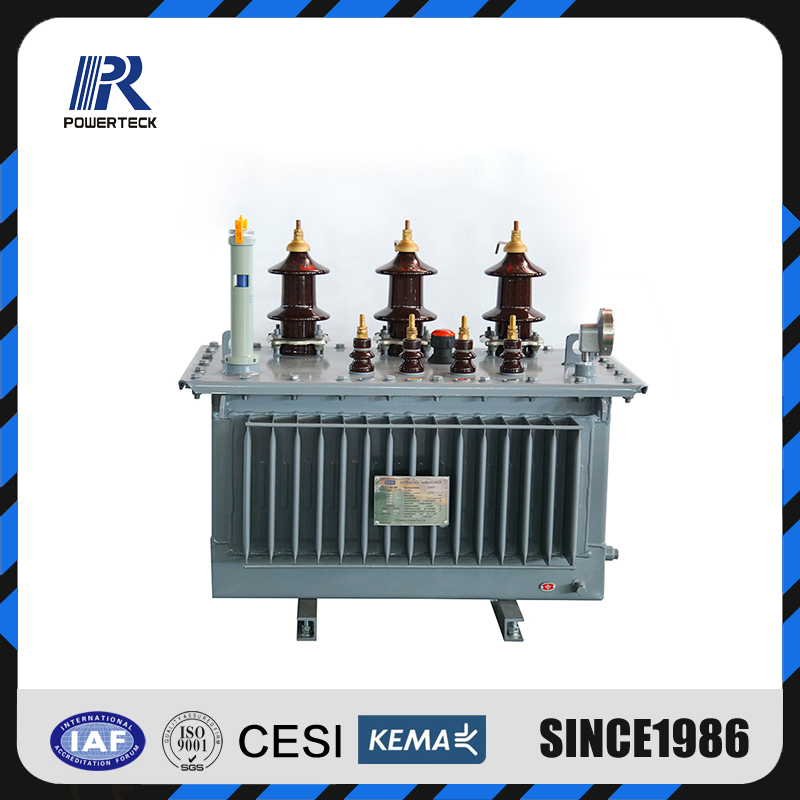

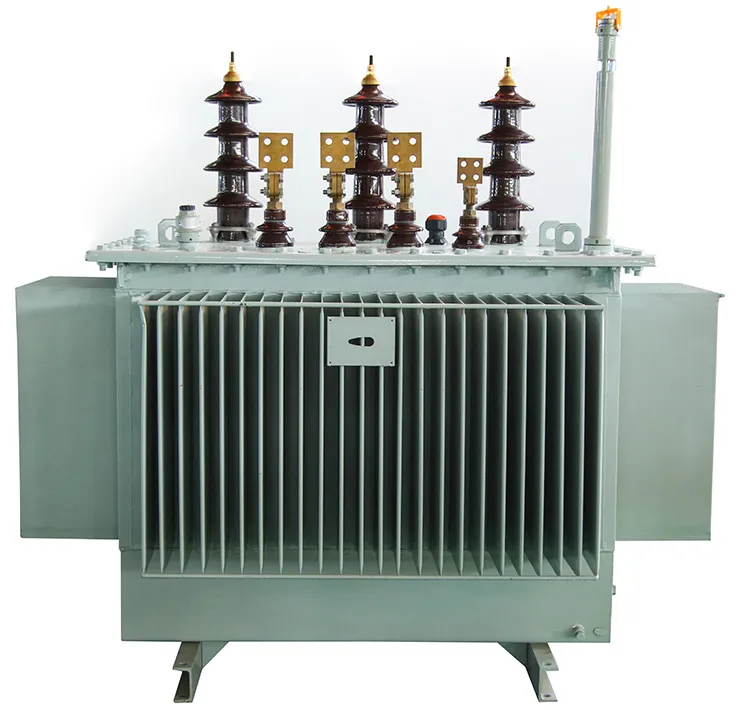

1250KVA Three Phase Full Sealed Oil Type ONAN Power Distribution Transformer

Improved from S9 series product, S11 series product reduce the no-load loss by 30%,no-load electric current by 70~85%, average temperature by 10K,nosie level by 2~4db, and double the products service life. even under 20% overloads, it can also work for long period of time.

Transformers service condition

The height above sea level is below 1000m;
Ambient temperature:
Highest temperature 40ºC,highest daily average temperature 30ºC
Highest annual average temperature 20ºC,lowest outdoor temperature -25ºC

Technical Datas

Rated capacity (KVA)	Voltage group(KV)	Vector group	Impedance voltage(%)	(KW) Loss		No-load current(%)
Rated capacity (KVA)	Voltage group(KV)	Vector group	Impedance voltage(%)	No-load	Load	No-load current(%)
10	(HV) 11 10.5 10 6.3 6 (LV) 0.4 0.69	Yyno Dyn11	4	0.065	0.4	3.5
20				0.08	0.52	3.0
30				0.1	0.63/0.6	2.3
50				0.13	0.91/0.87	2.0
63				0.15	1.09/1.04	1.9
80				0.18	1.31/1.25	1.9
100				0.2	1.58/1.5	1.8
125				0.24	1.89/1.8	1.7
160				0.28	2.31/2.2	1.6
200				0.34	2.73/2.6	1.5
250				0.4	3.2/3.05	1.4
315				0.48	3.83/3.65	1.4
400				0.57	4.52/4.3	1.3
500				0.68	5.41/5.15	1.2
630			4.5	0.81	6.2	1.1
800				0.96	7.5	1.0
1000				1.15	10.3	1.0
1250				1.36	12.0	0.9
1600				1.64	14.5	0.8
2000				1.96	19.8	0.8
2500				2.31	23.0	0.7

Note: High-pressure tap range: ± 5% or ± 2 × 2.5%; Frequency: 50HZ

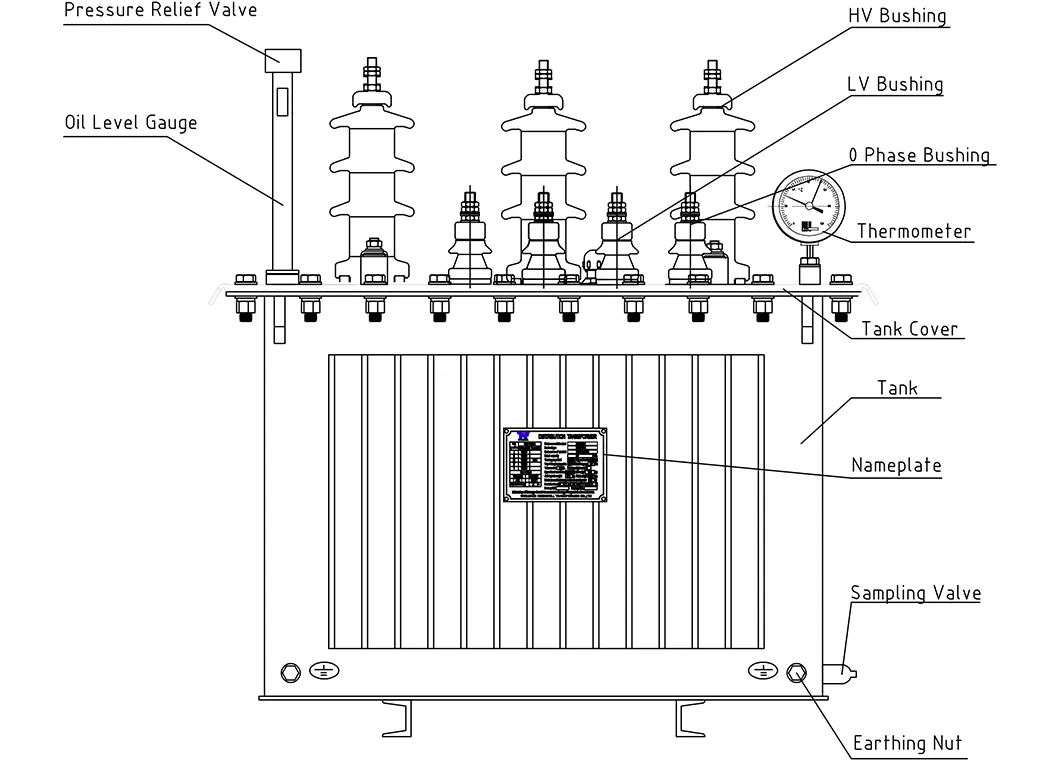

Outline Drawing

1250kVA Three Phase Full Sealed Oil Type Onan Power Distribution Transformer
