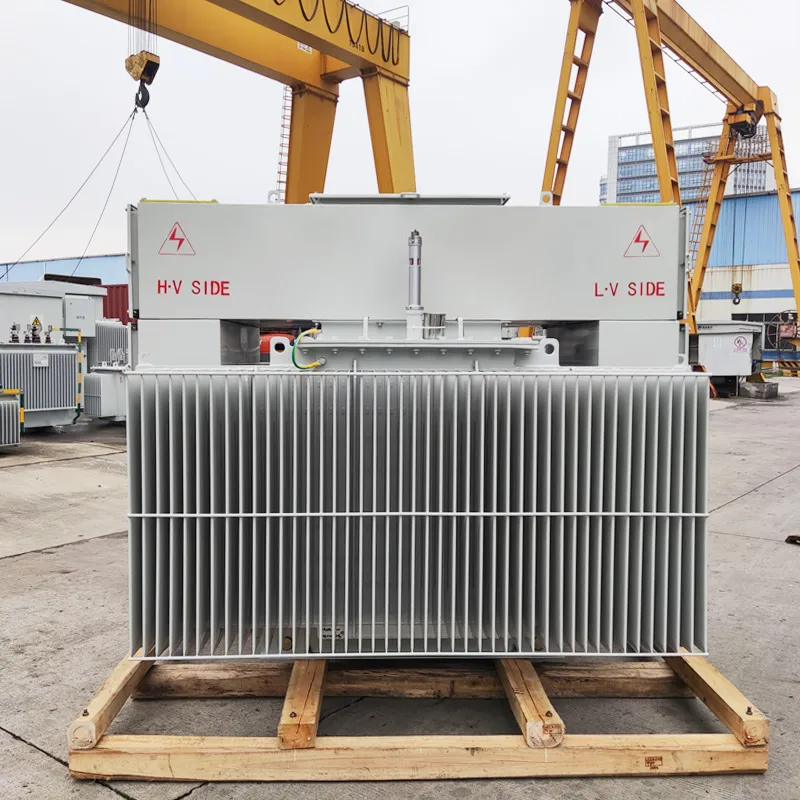

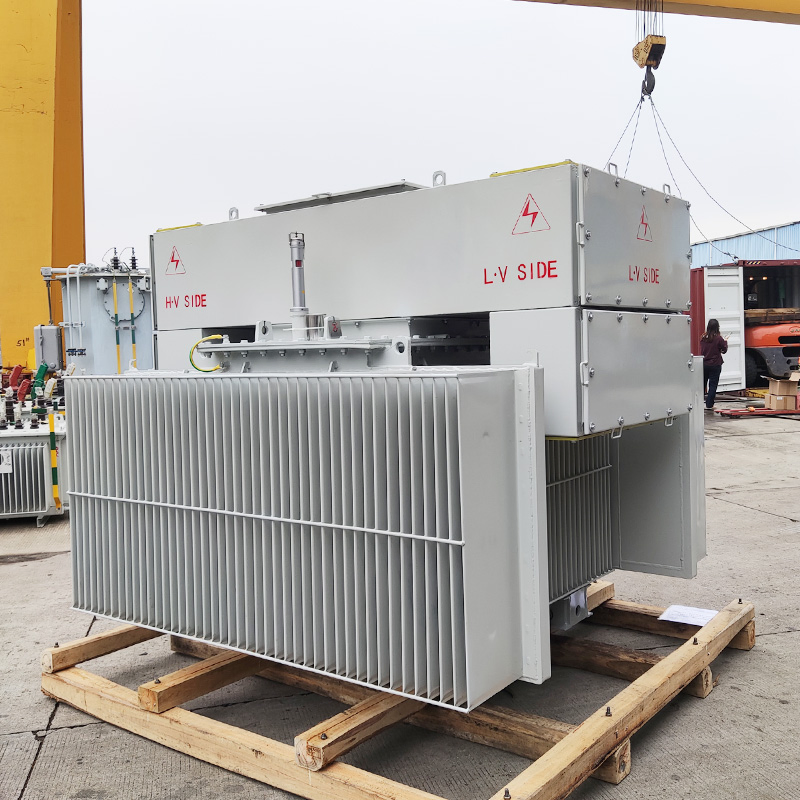

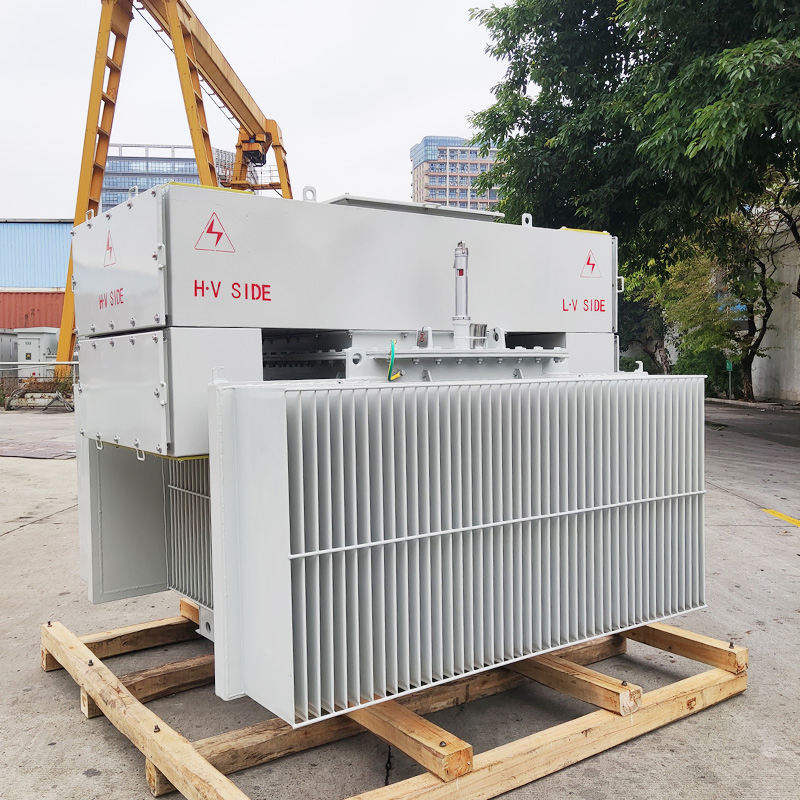

China 11-0.4kv 1600kVA Oil-Immersed Distribution Transformer with Copper Wiindings

Product Description

11-0.4kV 1600kVA Oil-immersed Distribution Transformer with Copper Wiindings

Transformer Advantage
1. Low loss, low noise, low partial discharge.
2. Strong anti-short circuit capability and high anti-lightning impact level.
3. Excellent moisture resistance for operation at 100% relative humidity.
4. Strong overload capability for long-term operation at 150% loading.

Transformer Test Report
1. KEMA Test Report for Oil immersed Transformer
2. CE Test Report for Oil immersed Transformer.
3. CNCE Test Report for Oil immersed Transformer.
4. CEST Test Report for Oil immersed Transformer.
5. CTQC Test Report for Oil immersed Transformer.
6. CNAS Test Report for Oil immersed Transformer.

11-0.4kv 1600kVA Oil-Immersed Distribution Transformer with Copper Wiindings

Transformer Chracteristics

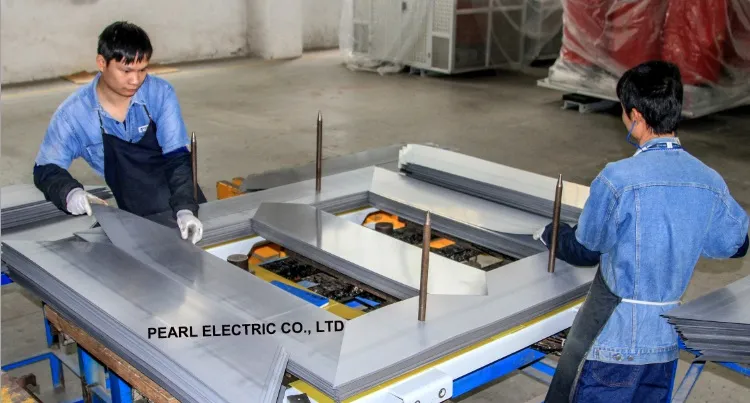

Transformer Core
1. The core is made of high quality grain-oriented cold-rollled silicon steel of high magnetic conductivity, by using 45°five-stepping all leaning lamination way to laminat. So the no-load losss and the no-load current are reduced effiently.

11-0.4kv 1600kVA Oil-Immersed Distribution Transformer with Copper Wiindings

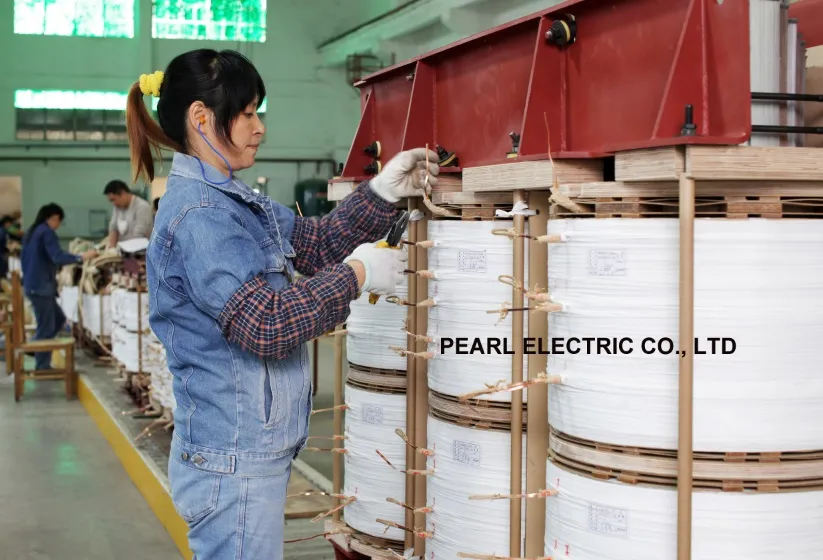

Transformer Windings

LV windings
1. LV winding is manufactured with high quality foil conductor or copper wire, and the ampere-turn is balanceable.The additional loss is low and the ability of anti-short is improved.
2. Oil drains of heat dispersion aer scientifically used in the winding, and the surface of heat dissipation is increased, so the tempertature is reduced and the ability of over-load is improved.

HV windings
HV winding is manufactured with high quality copper wire and excellent design structure. It improves the distribution of electric filed. With lighting impulse analysis, the ability of anti-lighting impulse hase been improved.

11-0.4kv 1600kVA Oil-Immersed Distribution Transformer with Copper Wiindings

Hot sale Trasformer Catalogue

Transformer Model No.	Capacity (kVA)	HV (KV)	LV (kV)	Description	Price(USD)
PEO-S-250/11/0.4	250	11	0.4	Oil immersed transformer	Kindly contact us for latest price.
PEO-S-400/11/0.4	400	11	0.4
PEO-S-800/11/0.4	800	11	0.4
PEO-S-1250/11/0.4	1250	11	0.4
PEO-S-2500/11/0.4	2500	20	0.4
PEO-S-3200/11/0.4	3200	20	0.4
PEO-S-5000/11/0.4	5000	35	0.4
PEO-S-10000/11/0.4	10000	35	0.4

PEARL ELECTRIC CO., LTD

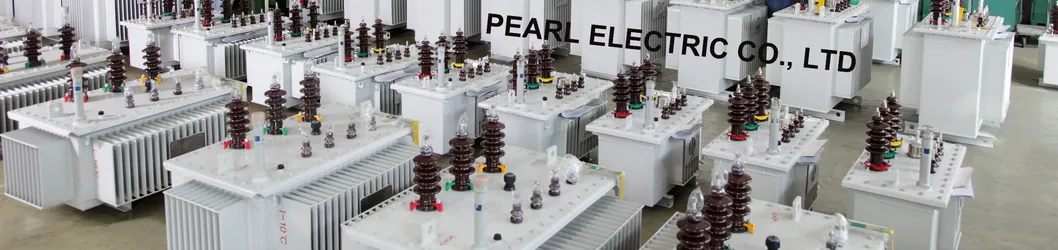

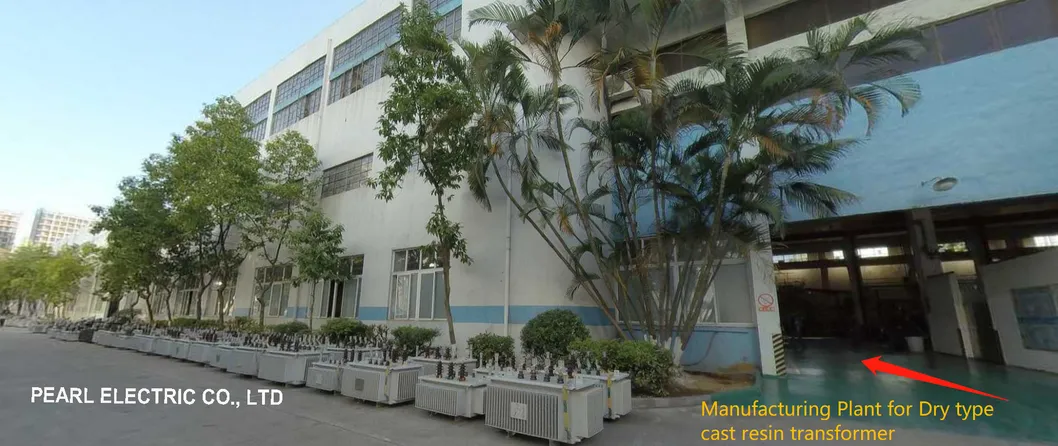

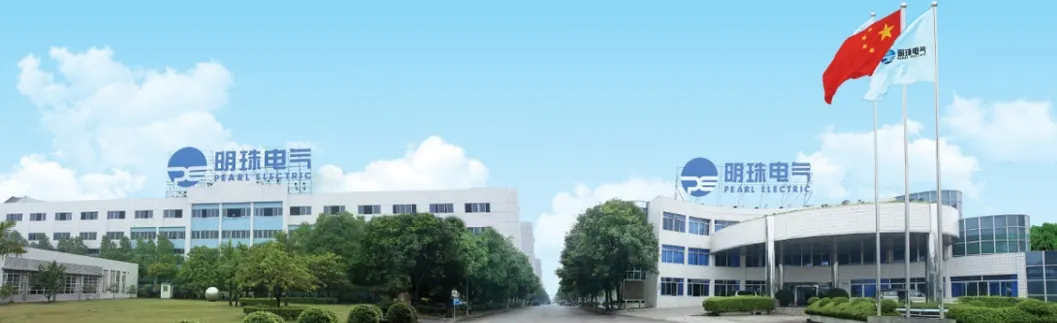

Established in 1958, located in Guangzhou City, Pearl Electric Co., Ltd is one of the most prominent power transformer manufacturer in China which design, produce and supply power transformers in domestic and abroad with almost 660 employees, more than 260 sets of specialized manufacturing equipment and 90,000 square meters area .

11-0.4kv 1600kVA Oil-Immersed Distribution Transformer with Copper Wiindings

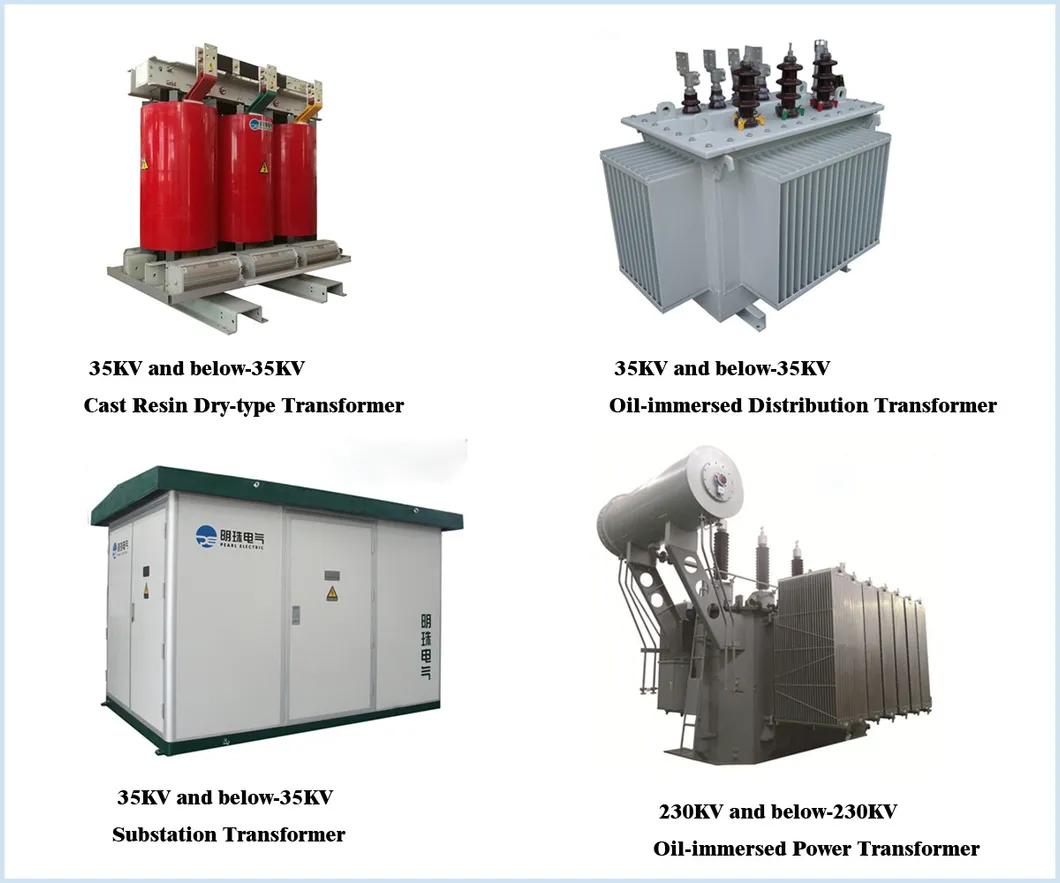

PEARL ELETRIC DESIGNS, MANUFACTURES AND SUPPLIES:

Staple Items	Annual Production Capability
Oil-immersed transformer	2.5 million kVA
Dry-type transformer	2 million Kva
Amorphous dry-type transformer	1 million
Amorphous oil-immersed transformer	2.28 million kVA
Pad-mounted transformer for wind power plant	500 sets
Pre-fabricated substation for wind power plant	500 sets
10kV pad-mounted transformer/pre-fabricated substation	500 sets
Arc suppression reactor earthing assembly	360 sets
Reactor	1.20 million kVA

PEARL'S RESEARCH & DESIGN TEAM

INDUSTRIAL USERS IN DOMESTIC AND ABROAD

FAQ:
1.Q: Are you manufacturer?
A: Yes, we are manufacturer. Our factory is in Guangzhou City, Guangdong Province.
2.Q: Can I get guarantee of products?
    A:  Yes, every product is 1 year quality warrantee under customer correct using the products.
3.Q: Do you have any Certificate?
    A: Yes. Each of our unit has CE, 3C and KEMA certificate. If you need any other Certificate, we can help you to apply it.
4.Q: How can I pay you?
    A: Pay by T/T and  L/C is acceptable.
5.Q: What about the production?
    A: In general,  it take 4~6weeks and it depend on the different style.

Any need for power transformer, please feel free to contact us:
