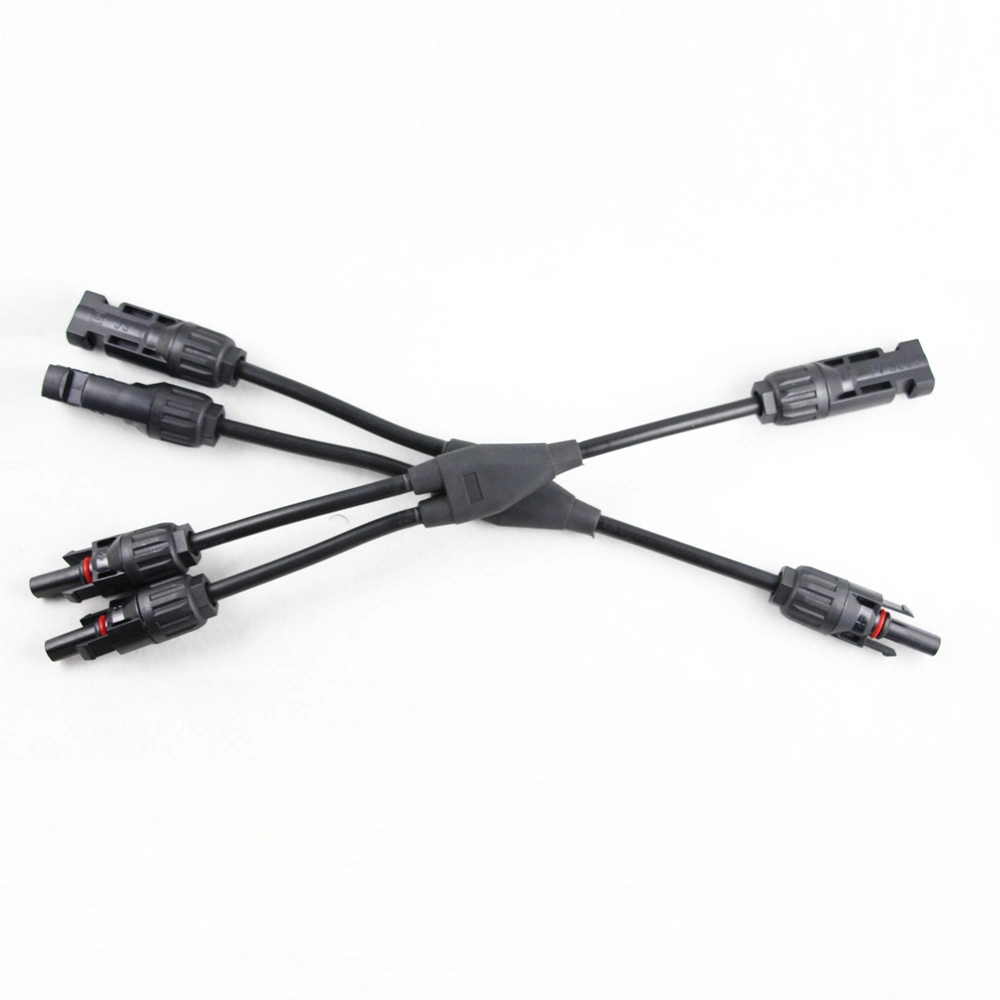

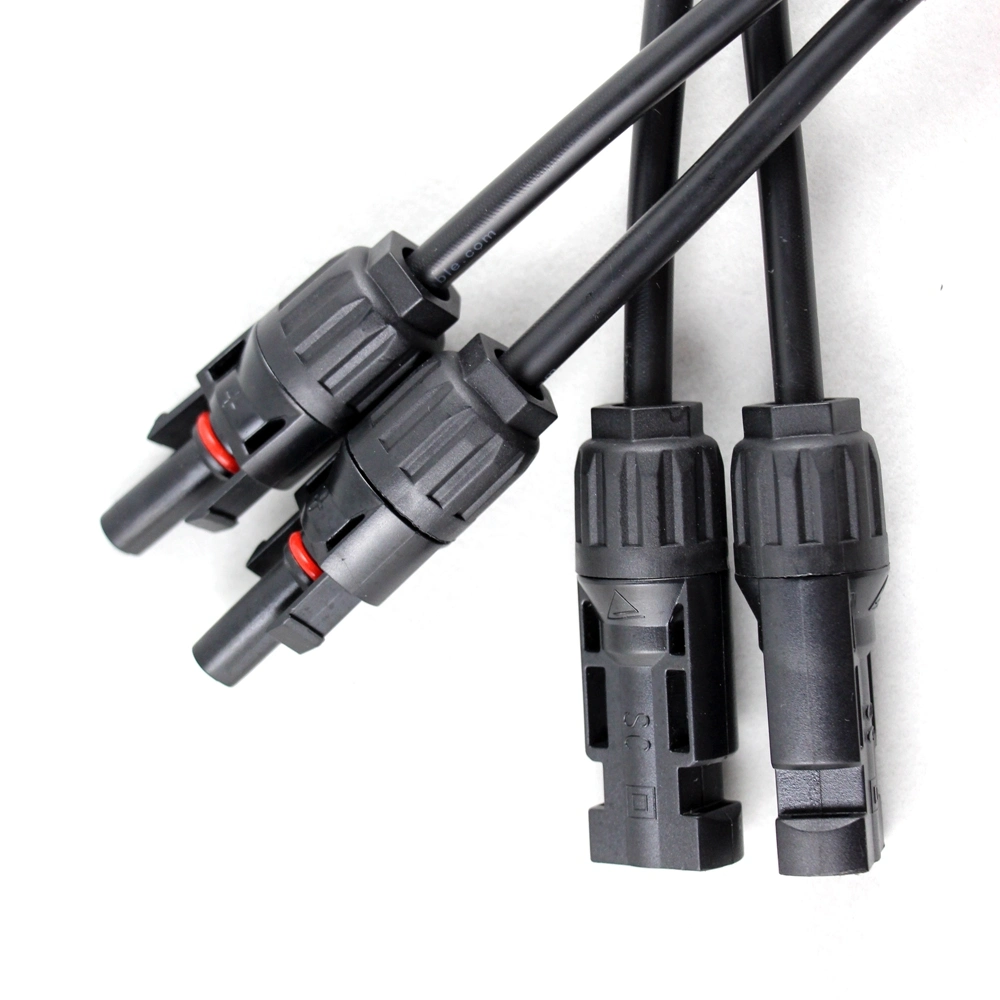

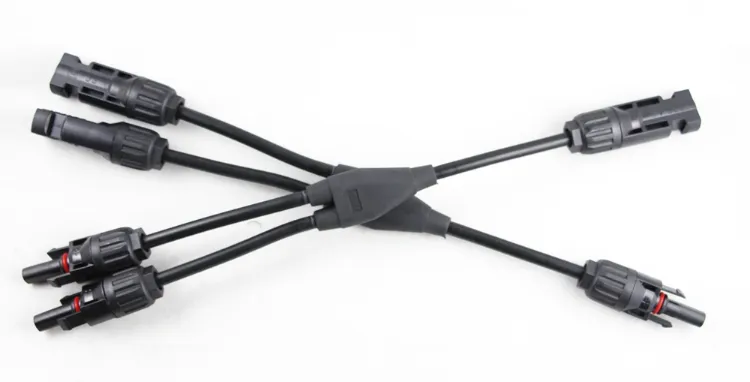

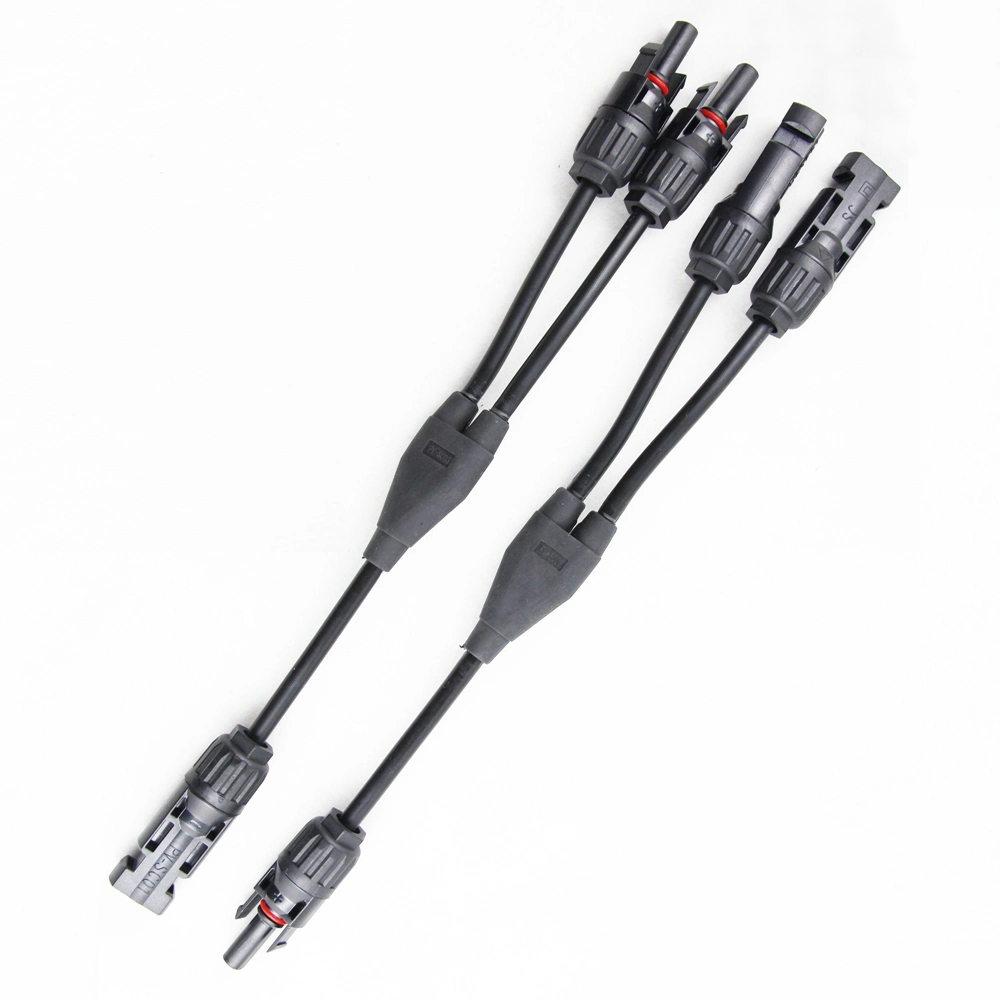

Y-Branch Connector for Solar Panels Installation to Solar PV Panels Energy Solution
SpecificationRate voltage:1000vRated current:25A(2.5mm2) , 30A(4mm2,6mm2)Test voltage:6KV(50Hz)Protect degree:IP67/IP2XInsulation material:PC/PA/PPO/TPEContact material:Silver plated copperOperating temperature:-40°C~+90°CSafe class:2Flame class:UL94-V0Contact resistance of plug conn......
Send Inquiry
Product Description
Specification
cable standard
2.5mm2 /4.0mm2/ 6.0mm2
cable length:according to Customer's request (usually 30cm each cable) ,
enable to install MC3 or MC4 connector to cable,

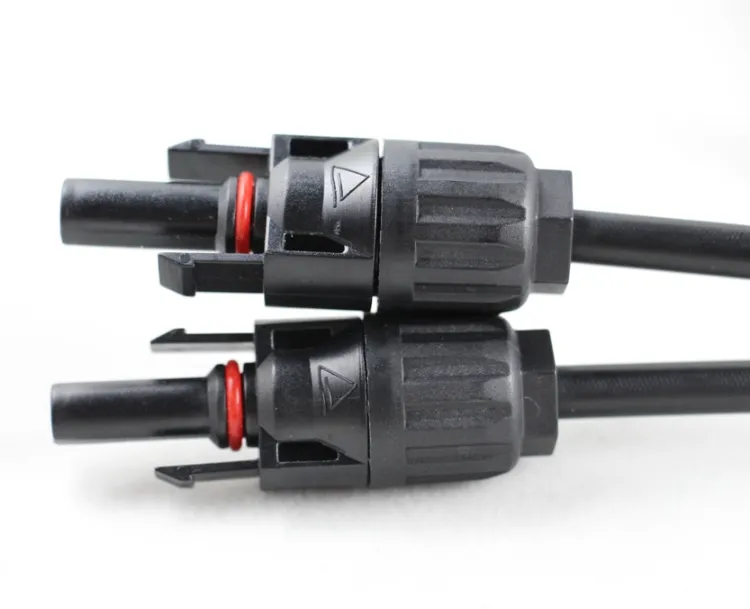

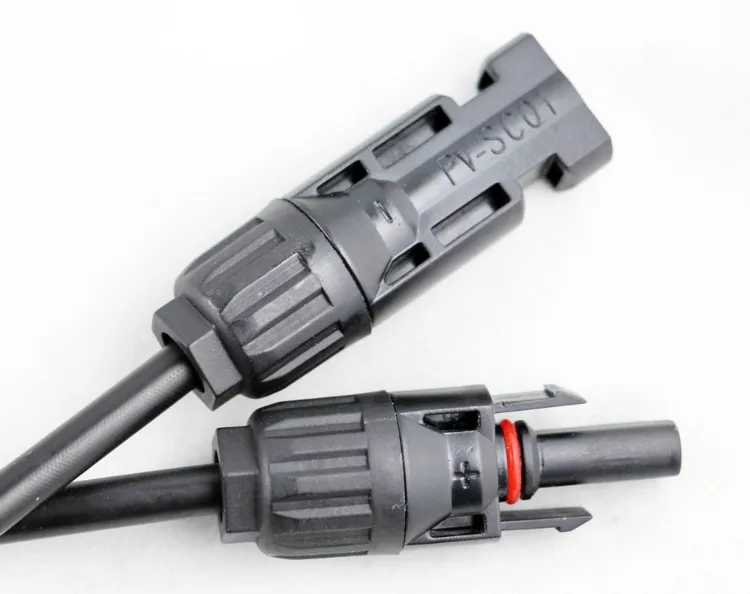

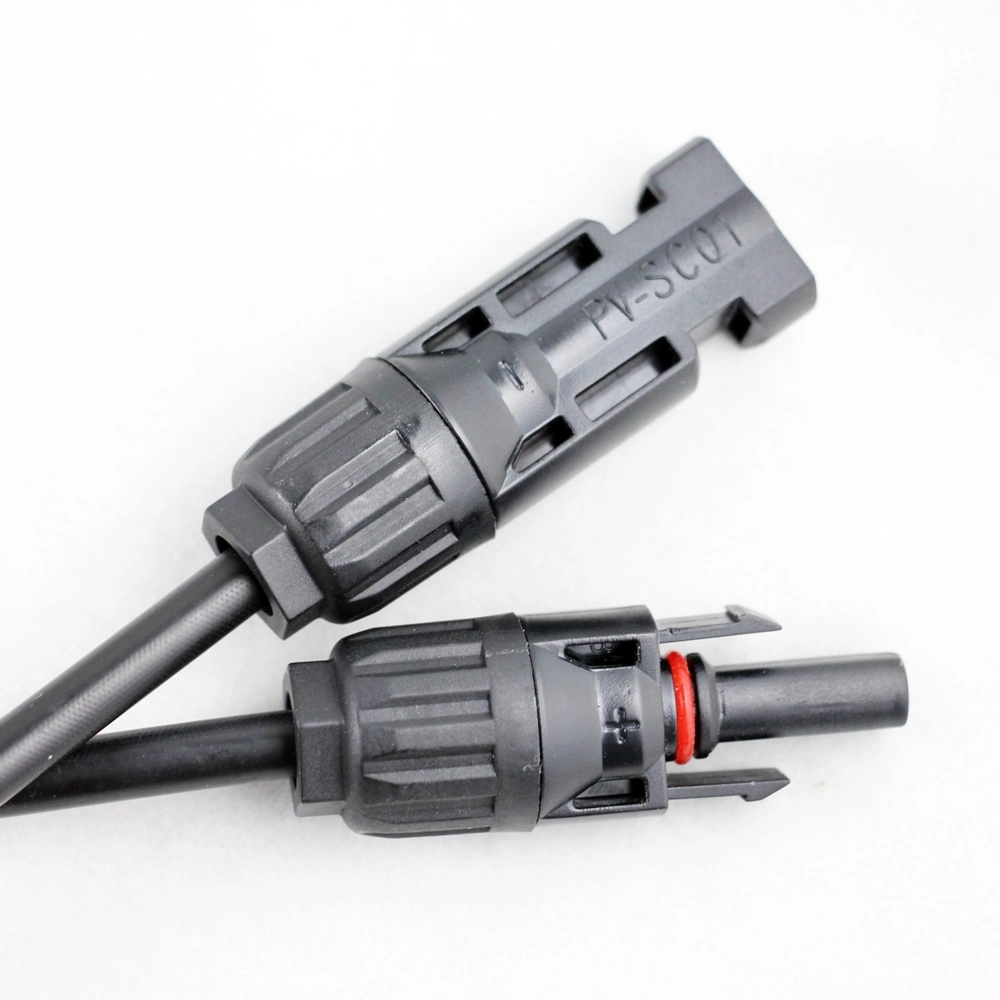

Advantages of MC4 Solar PV Connector
1) Acc.to DIN V VDE V 0126-3/12.06,UL1703 standard.
2) highly robustness,UV-Resistance.
3) Connector adopts touch and insertion of reed with inner-knob type.
4) Auto-lock equipment of male and female points enable connection more easy and reliable.
5) Popular figure suit most of field installation.
6) Simple on-site processing.
7) Accommodates PV cable with deferent insulation diameters.
8) High current carrying capacity.
Package
1.1 pair per plastic bag
2.we accept the customer's request
Packaging & Delivery
shipment
1. We ship to world wide
2. Most orders ship within 1~5 days after payment
3. Item shipped from china mainland using airmail by EMS,UPS,DHL,TNT or Hong Kong post,we accept the customer's shipping request
4.100% test before shipment,after we shipped the goods ,we will email you the shipping information.
Service
1.patient.attentive service from beginning to the and ,we depend on our customer satisfaction to succeed
2.if you have problem about the products ,please contact us ,we will solve it in 24 hours
| Rate voltage: | 1000v | |||
| Rated current: | 25A(2.5mm2) , 30A(4mm2,6mm2) | |||
| Test voltage: | 6KV(50Hz) | |||
| Protect degree: | IP67/IP2X | |||
| Insulation material: | PC/PA/PPO/TPE | |||
| Contact material: | Silver plated copper | |||
| Operating temperature: | -40°C~+90°C | |||
| Safe class: | 2 | |||
| Flame class: | UL94-V0 | |||
| Contact resistance of plug connectors: | ≤5mΩ | |||
| Insertion force: | ≤50N | |||
| Withdraw force: | ≥50N | |||
| Suitable cable: | 2.5mm2/4mm2/6mm2(AWG14/12/10) | |||
| Locking system: | Snap in | |||
cable standard
2.5mm2 /4.0mm2/ 6.0mm2
cable length:according to Customer's request (usually 30cm each cable) ,
enable to install MC3 or MC4 connector to cable,
Advantages of MC4 Solar PV Connector
1) Acc.to DIN V VDE V 0126-3/12.06,UL1703 standard.
2) highly robustness,UV-Resistance.
3) Connector adopts touch and insertion of reed with inner-knob type.
4) Auto-lock equipment of male and female points enable connection more easy and reliable.
5) Popular figure suit most of field installation.
6) Simple on-site processing.
7) Accommodates PV cable with deferent insulation diameters.
8) High current carrying capacity.
Package
1.1 pair per plastic bag
2.we accept the customer's request
Packaging & Delivery
| Packaging Details: | 50pairs/carton, neutral packing, 25*14*25 cm (Solar MC4 connector for Solar Panel System) |
1. We ship to world wide
2. Most orders ship within 1~5 days after payment
3. Item shipped from china mainland using airmail by EMS,UPS,DHL,TNT or Hong Kong post,we accept the customer's shipping request
4.100% test before shipment,after we shipped the goods ,we will email you the shipping information.
Service
1.patient.attentive service from beginning to the and ,we depend on our customer satisfaction to succeed
2.if you have problem about the products ,please contact us ,we will solve it in 24 hours
