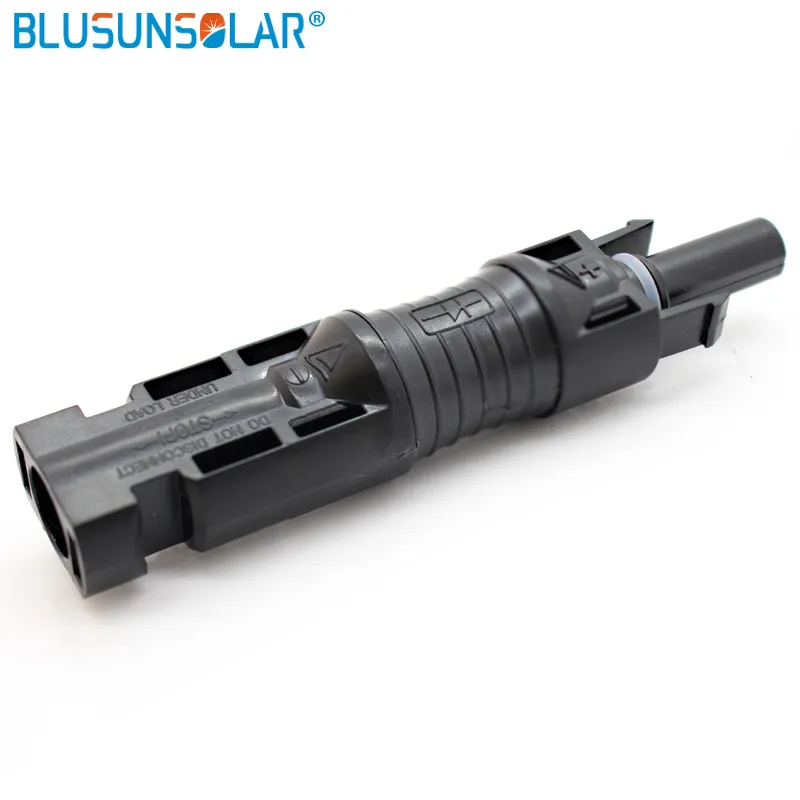

Waterproof IP68 MC4 Diode Connector TUV Certification for Solar PV System
PRODUCT DESCRIPTION:Compatible with MC4 cable solar connector PV-KBT4/KST4.15 Years of production experience in solar connectorsQuick and easy to installProtection class IP67 Suitable for outdoor harsh environmentsStable connection & Reducing maintenance cost CHARACTERISTICS:DC Diode Solar Plug ......
Send Inquiry
Product Description
PRODUCT DESCRIPTION:
- Compatible with MC4 cable solar connector PV-KBT4/KST4.
- 15 Years of production experience in solar connectors
- Quick and easy to install
- Protection class IP67 Suitable for outdoor harsh environments
- Stable connection & Reducing maintenance cost
CHARACTERISTICS:
DC Diode Solar Plug Connector, 15A Photovoltaik MC4 Solar Diode Connector
Products details :
Diode Current :3A 8A 10A 15 A 20A
Easy , quickly and reliable connection of the solar cables to the photovoltaic system (solar panels, converters).
1.Connector adopts touch of reed with inne-knob type.
2.Auto-lock enable connection more easy and reliable.
3.Popular figure suit most of field installation.
4.Quickly to connector.
5.Water proof and prevent dust.
6.Long life.
| Insulation material | PPO |
| Rated voltage | TUV 1000 DC/ UL 600V DC |
| Test voltage | 6KV(50Hz,1Min) |
| Contact material | Copper, tin plated |
| Contact resistance | Less than 0.5 m ohm |
| Degree of protection | IP67 |
| Pollution Degree | 2 |
| Protection class | Class II |
| Flame calss | UL94-V0 |
| Plug Force | less than 50N |
| Withdrawal force | more than 50N |
| Ambient temperature range | -40 ~ + 90. |
| Diode | 8 A ~ 15 A |
| Pin dimention | 4.0mm |
