High Quality Copper Cable Lug Terminals with Inspect Hole
Product DescriptionTinned SC(JGK) Copper Cable LugTinned SC(JGK) Copper Cable Lug are suitable for the connection of copper conductors(section 1.5-1000mm2) in power cable with electronic equiment they are made of with higher 99.9% pure copper tube T2 and coated with tin.working temperature-55oC-150o......
Send Inquiry
Product Description

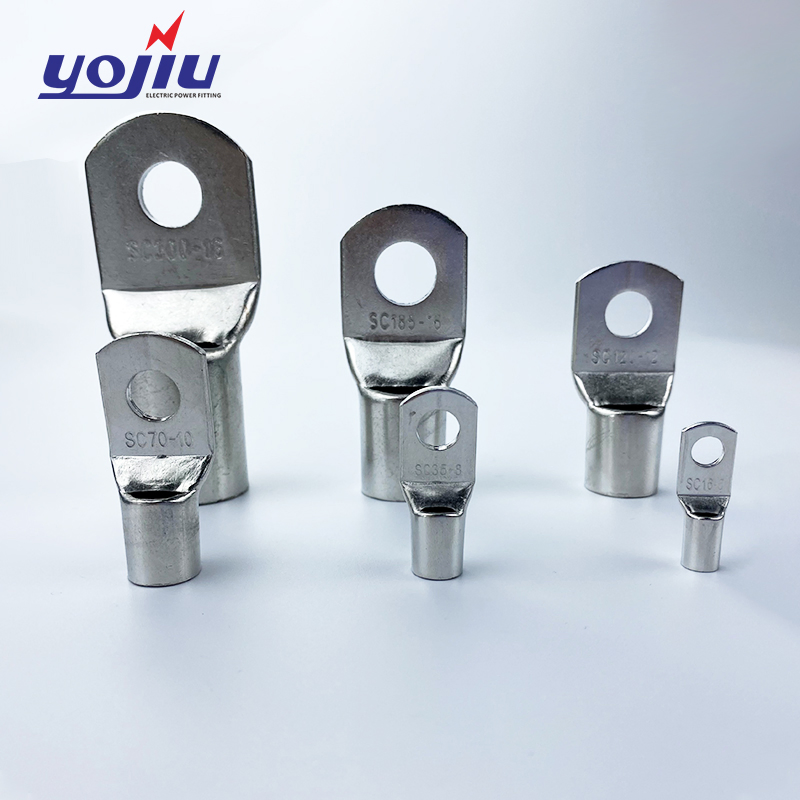

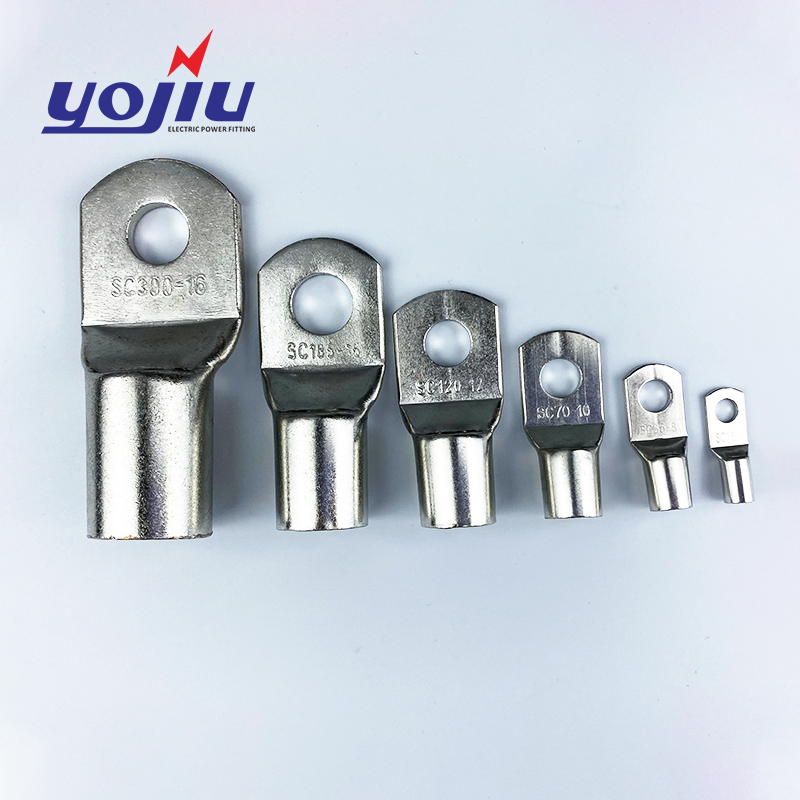

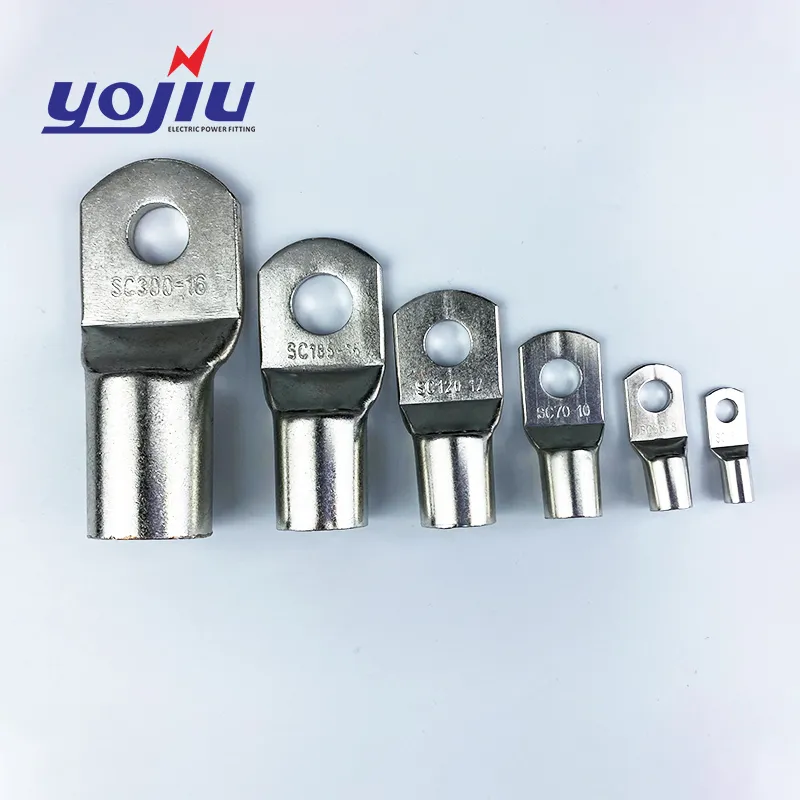

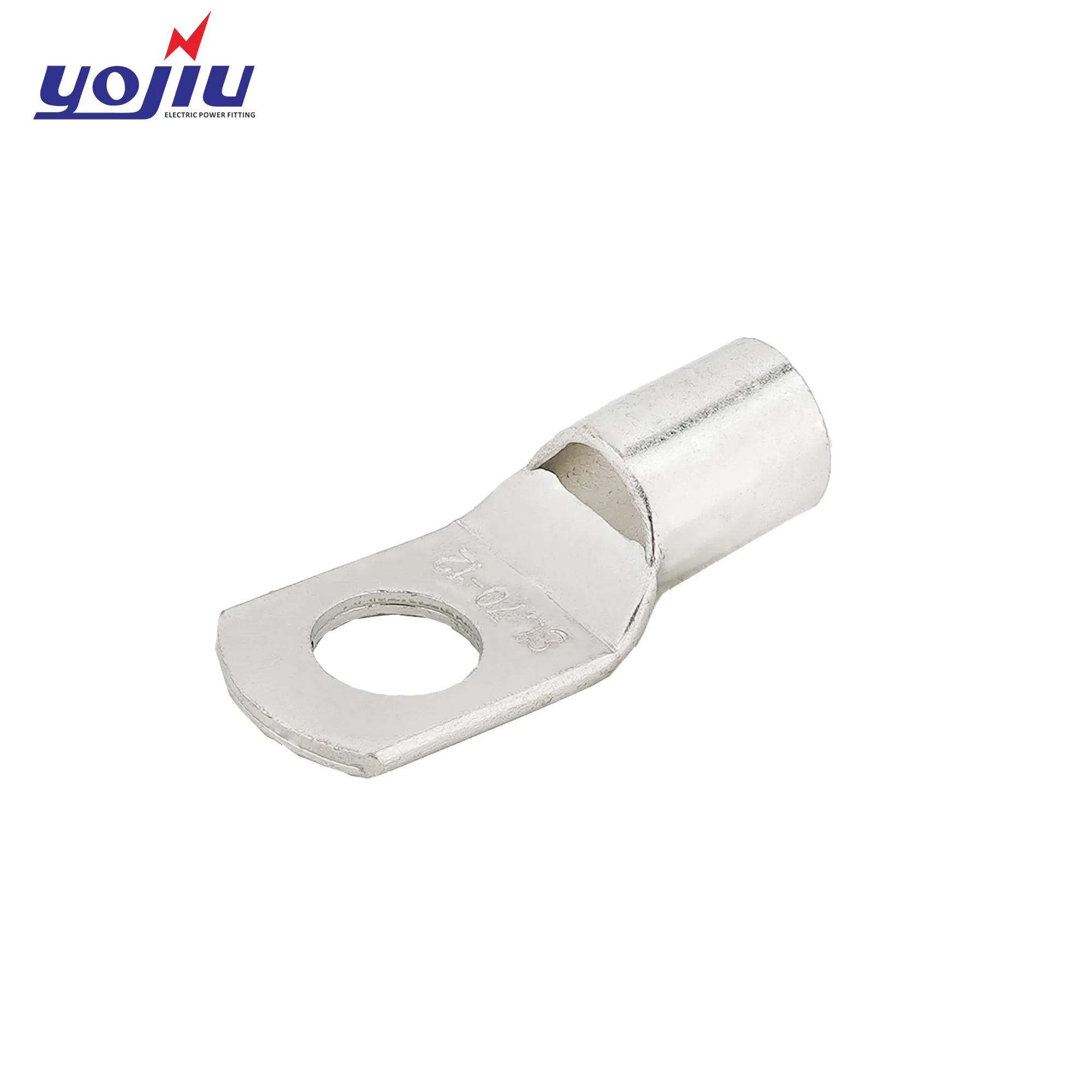

Product DescriptionTinned SC(JGK) Copper Cable Lug
Tinned SC(JGK) Copper Cable Lug are suitable for the connection of copper conductors(section 1.5-1000mm2) in power cable with electronic equiment they are made of with higher 99.9% pure copper tube T2 and coated with tin.working temperature-55oC-150oC.
Dimension
| Item No. | Applicable Bolts | Dimensions(mm) | Note | ||||
| D | d | L2 | L1 | φ | |||
| SC2.5 | m4,m6 | 4 | 2.4 | 23 | 7 | 5.5 | (1)Can be produced according to customer's drawings. |
| SC4 | 4.8 | 3.1 | 24 | 9 | 5.5 | ||
| SC6 | m5,m6,m8,m10,m12 | 5.5 | 3.8 | 27 | 9 | 5.5 | |
| SC10 | 7 | 5 | 30 | 11 | 6.5 | ||
| SC16 | m6,m8,m10 | 8 | 6 | 30.5 | 12 | 8.5 | |
| SC25 | m6,m8, m10,m12 | 9 | 7 | 35.5 | 15 | 8.5 | |
| SC35 | 11 | 9 | 44 | 18 | 8.5 | ||
| SC50 | 12.5 | 10 | 47 | 20 | 10.5 | ||
| SC70 | m8,m10,m12,m16 | 15 | 12 | 53 | 23 | 10.5 | |
| SC95 | 17 | 14 | 57 | 24 | 12.5 | ||
| SC120 | m10,m12,m16 | 19 | 16 | 64 | 28 | 12.5 | |
| SC150 | 21 | 17 | 74 | 30 | 14.5 | ||
| SC185 | m10,m12,m16,m20 | 23.5 | 19 | 80 | 34 | 14.5 | |
| SC240 | 26 | 21 | 93 | 40 | 17 | ||
| SC300 | m16,m20 | 29 | 23 | 102 | 46 | 17 | |
| SC400 | m16,m20 | 32 | 26 | 107 | 46 | 17 | |
| SC500 | m16,m20 | 36 | 29 | 125 | 48 | 17 | |
| SC630 | m16,m20 | 42 | 34 | 155 | 60 | 17 | |
FAQ
Q:CAN YOU HELP US IMPROT AND EXPORT?
A:We will have a professional team to serve you.
Q:WHAT'S THE CERTIFICATES DO YOU HAVE?
A:We have certificates of ISO,CE, BV,SGS.
Q:WHAT'S YOUR WARRANTY PERIOD?
A:1 year in general.
Q:CAN YOU DO OEM SERVICE?
A:YES,we can.
Q:WHAT YOU LEAD TIME?
A:Our standard models are in stock ,as for big orders ,it take about 15 days.
Q:CAN YOU PROVIDE FREE SAMPLES?
A:Yes,please contact us to know the sample policy.
