Gtl Electric Cable Connector (Tube) , Electric Bimetal Connector with Copper
Product property:Due to the coupling effect when Aluminum comes in contact with Copper, corrosion will happen in a short time,Currently the best solution is to use Aluminum-Copper bimetal connectors. A bimetal link should be used for joint,the friction welding is well done, and its aluminum barrel c......
Send Inquiry
Product Description
Product property:
Due to the coupling effect when Aluminum comes in contact with Copper, corrosion will happen in a short time,
Currently the best solution is to use Aluminum-Copper bimetal connectors. A bimetal link should be used for joint,
the friction welding is well done, and its aluminum barrel capped is filled with joint compound to avoid oxidization.

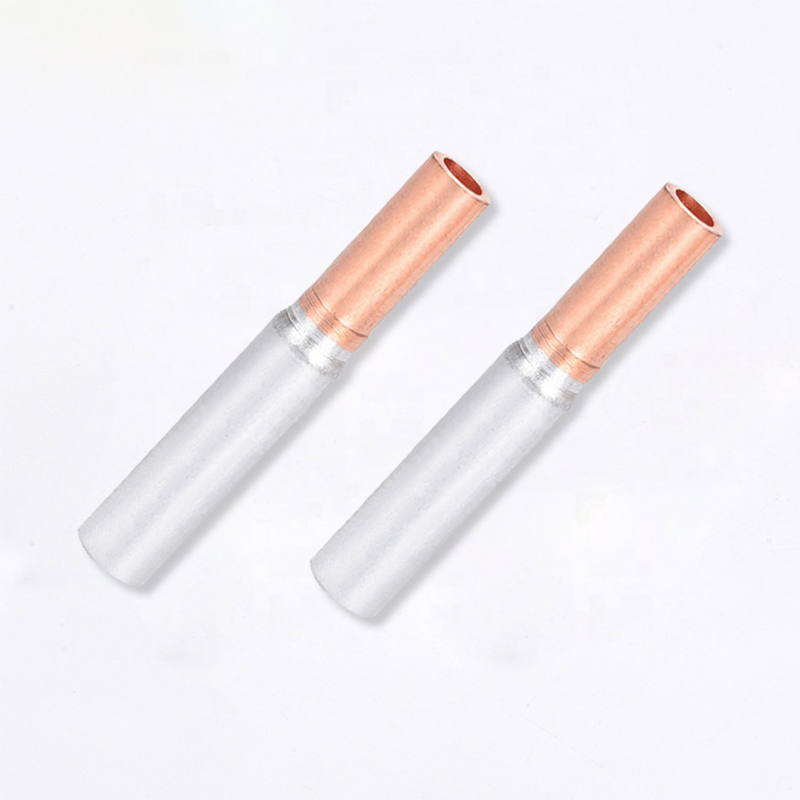

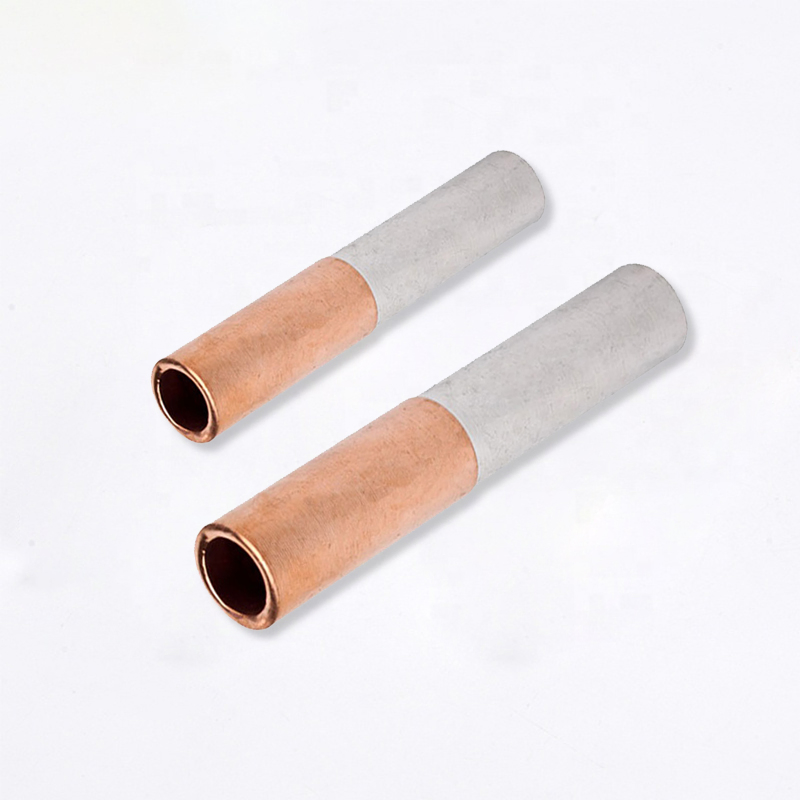

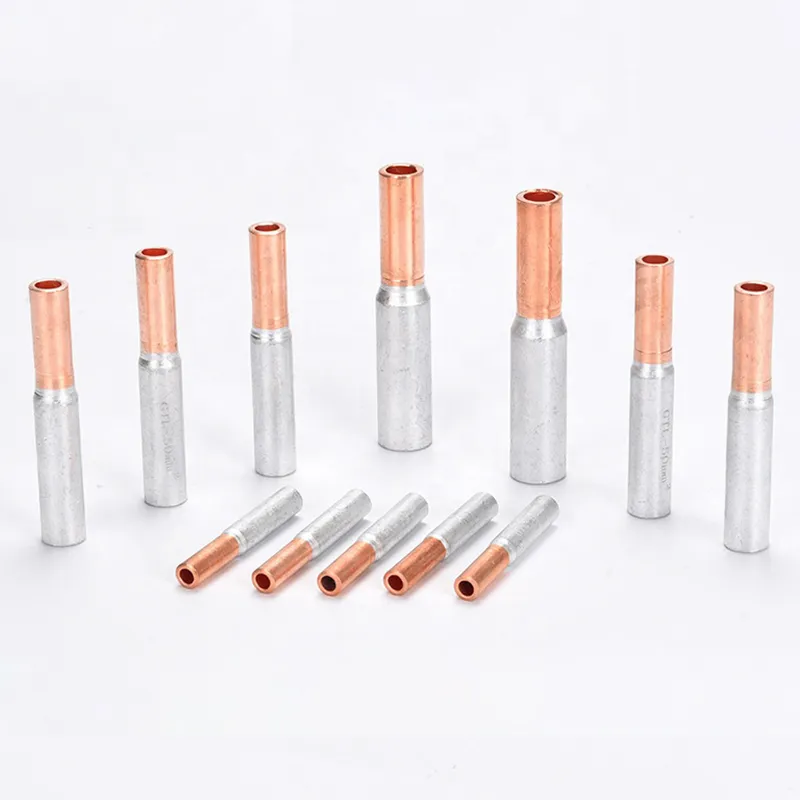

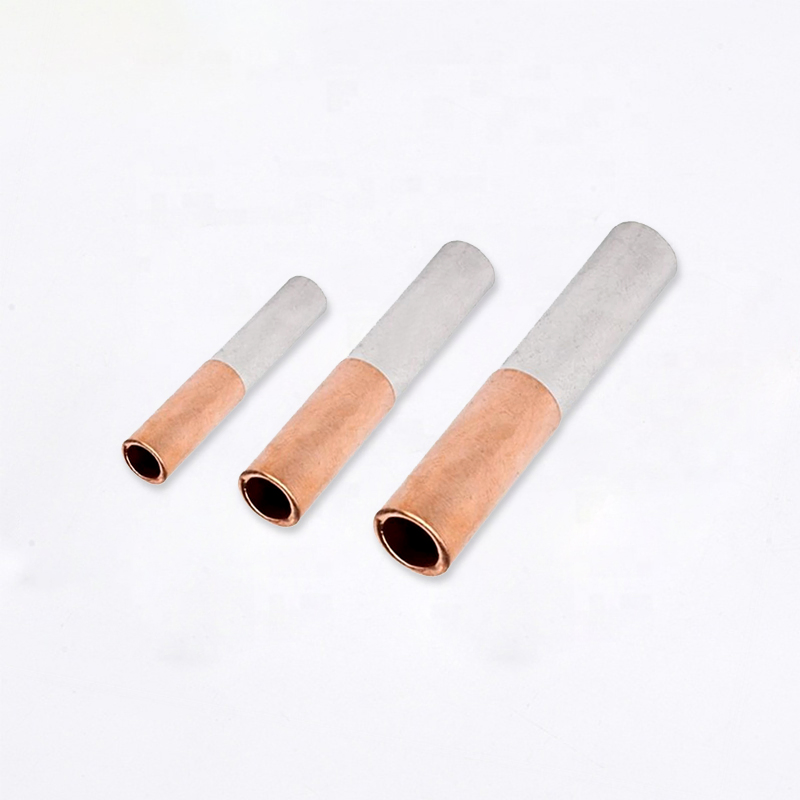

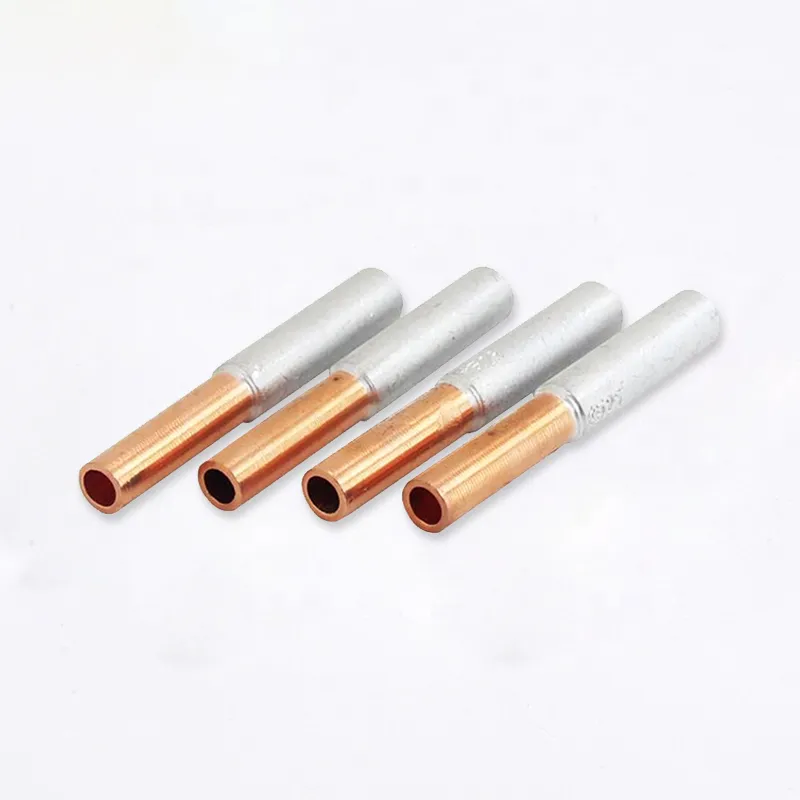

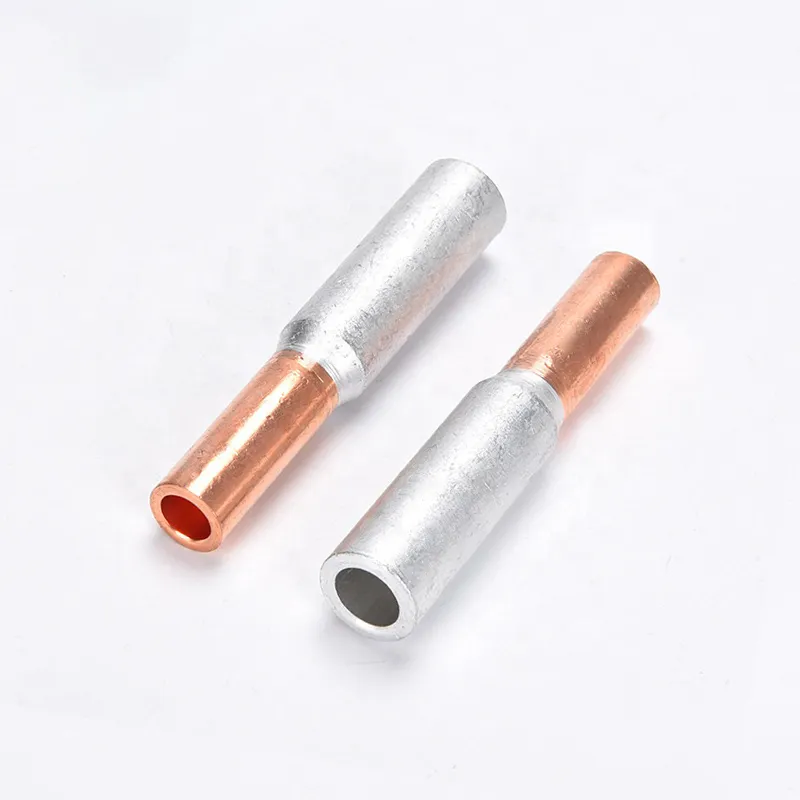

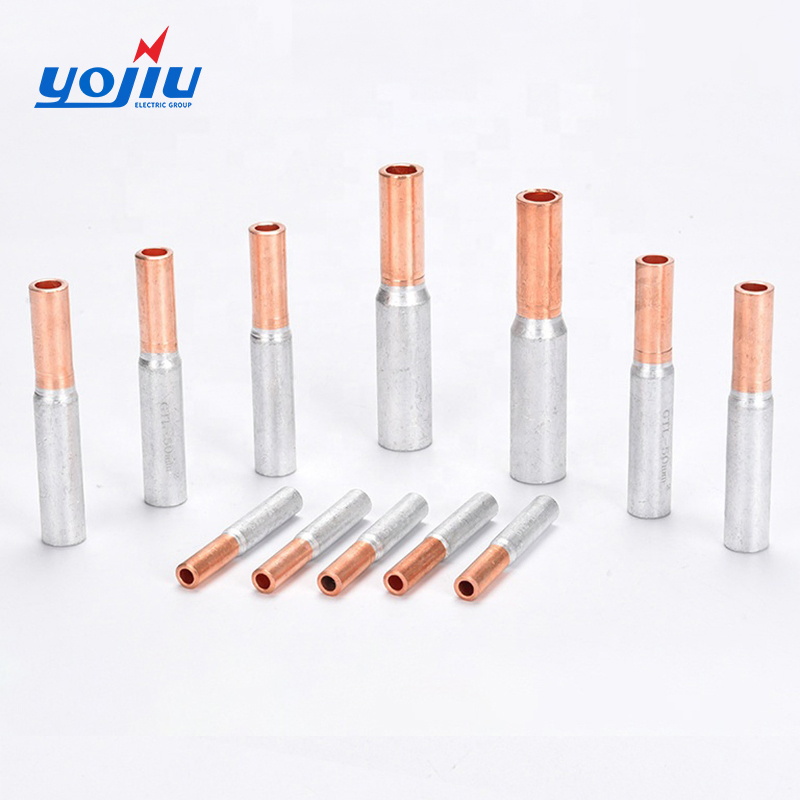

GTL Bimetallic Connector(Link),Bimetal tube with copper and aluminium;
(1) Material: Aluminium & Copper;
(2) Friction welded;
(3) Sector type available;
GTL Bimetallic Connector(Link),Bimetal tube with copper and aluminium;
Note:
(1) GTL Bimetallic Connector(Link) can be produced according to customer's drawings
(2) Friction welded
| Item No. | Cable spec(mm2) | Dimensions(mm) | |||||||
| Al | Cu | d1 | D1 | d | D | L1 | L2 | L | |
| GTL16 | 16 | 10 | 5.5 | 9 | 6.5 | 11 | 34 | 25 | 70 |
| GTL25 | 25 | 16 | 6.5 | 10 | 7.5 | 12 | 43 | 26 | 82 |
| GTL35 | 35 | 25 | 7.5 | 11 | 9 | 14 | 45 | 28 | 85 |
| GTL50 | 50 | 35 | 9 | 12 | 10 | 16 | 45 | 33 | 90 |
| GTL70 | 70 | 50 | 10 | 14 | 12 | 18 | 48 | 35 | 95 |
| GTL95 | 95 | 70 | 12 | 16 | 14 | 21 | 50 | 37 | 100 |
| GTL120 | 120 | 95 | 14 | 18 | 15.5 | 23 | 53 | 41 | 107 |
| GTL150 | 150 | 120 | 15.5 | 20 | 17 | 25 | 58 | 44 | 120 |
| GTL185 | 185 | 150 | 17 | 22 | 19 | 28 | 60 | 46 | 125 |
| GTL240 | 240 | 185 | 19 | 24 | 21 | 30 | 60 | 49 | 130 |
| GTL300 | 300 | 240 | 21 | 27 | 23 | 34 | 70 | 54 | 145 |
| GTL400 | 400 | 300 | 23 | 30 | 27 | 45 | 70 | 60 | 155 |
| GTL500 | 500 | 400 | 27 | 34 | 29 | 47 | 75 | 65 | 165 |
| GTL630 | 630 | 500 | 29 | 38 | 35 | 54 | 80 | 70 | 180 |
