AWG22 -16 Red Nylon Insulation Male Female Terminal

Product Description

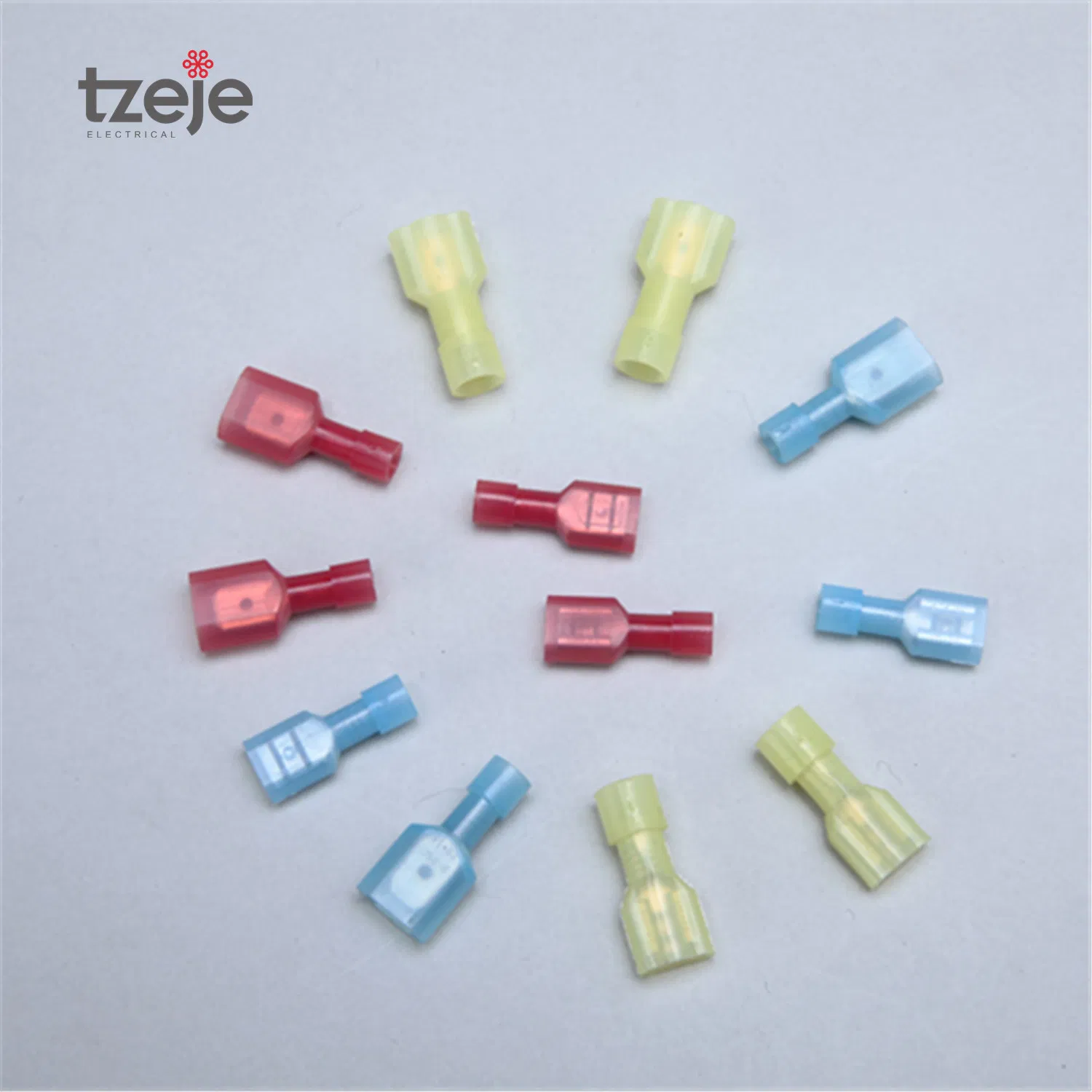

AWG22-16 Red Nylon Insulation Male Female Terminal

About Products

1. Products Name: Nylon Male Terminal

2. Body material: Brass

3. Insulation: Nylon

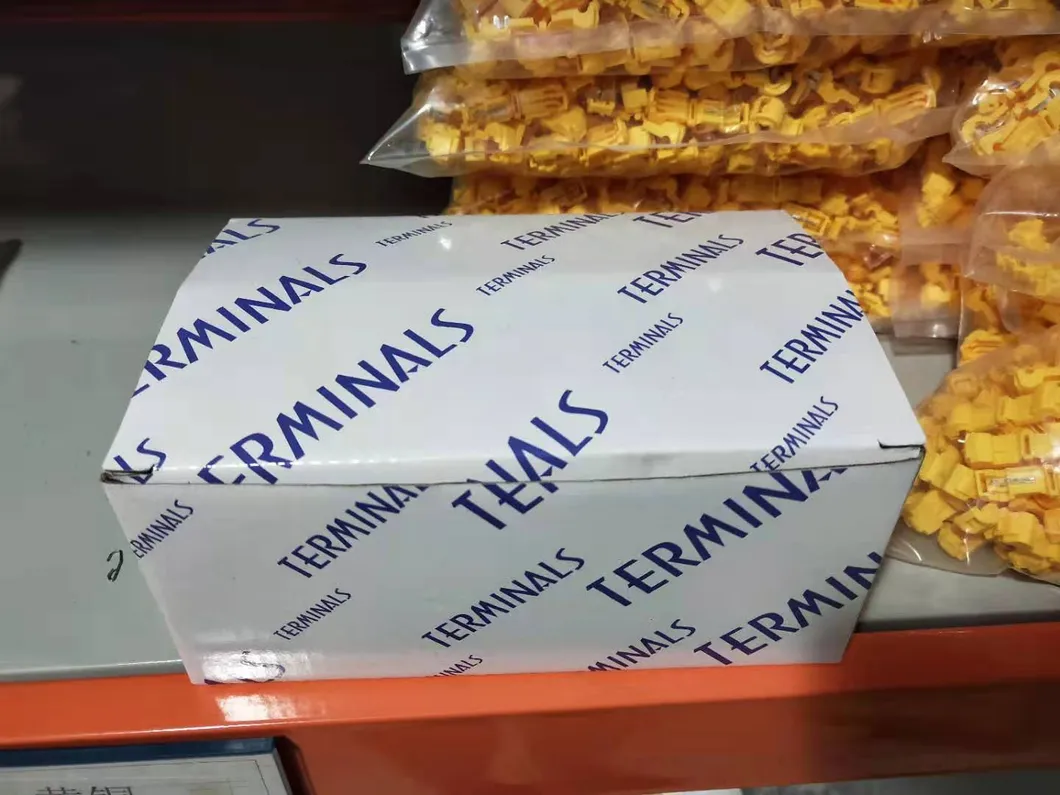

4. Packing: 100pcs/bag, inner box and export carton

5. Color: Red/Blue/Yellow

AWG22-16 Red Nylon Insulation Male Female Terminal

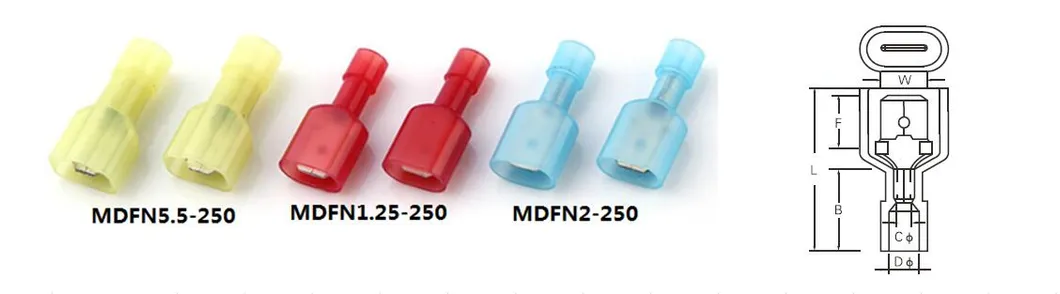

Item No.	Plug Specifications	Dimension(mm)			B	DΦ	CΦ	T	Color	Description
Item No.	(mm)	W	F	L	B	DΦ	CΦ	T	Color	Description

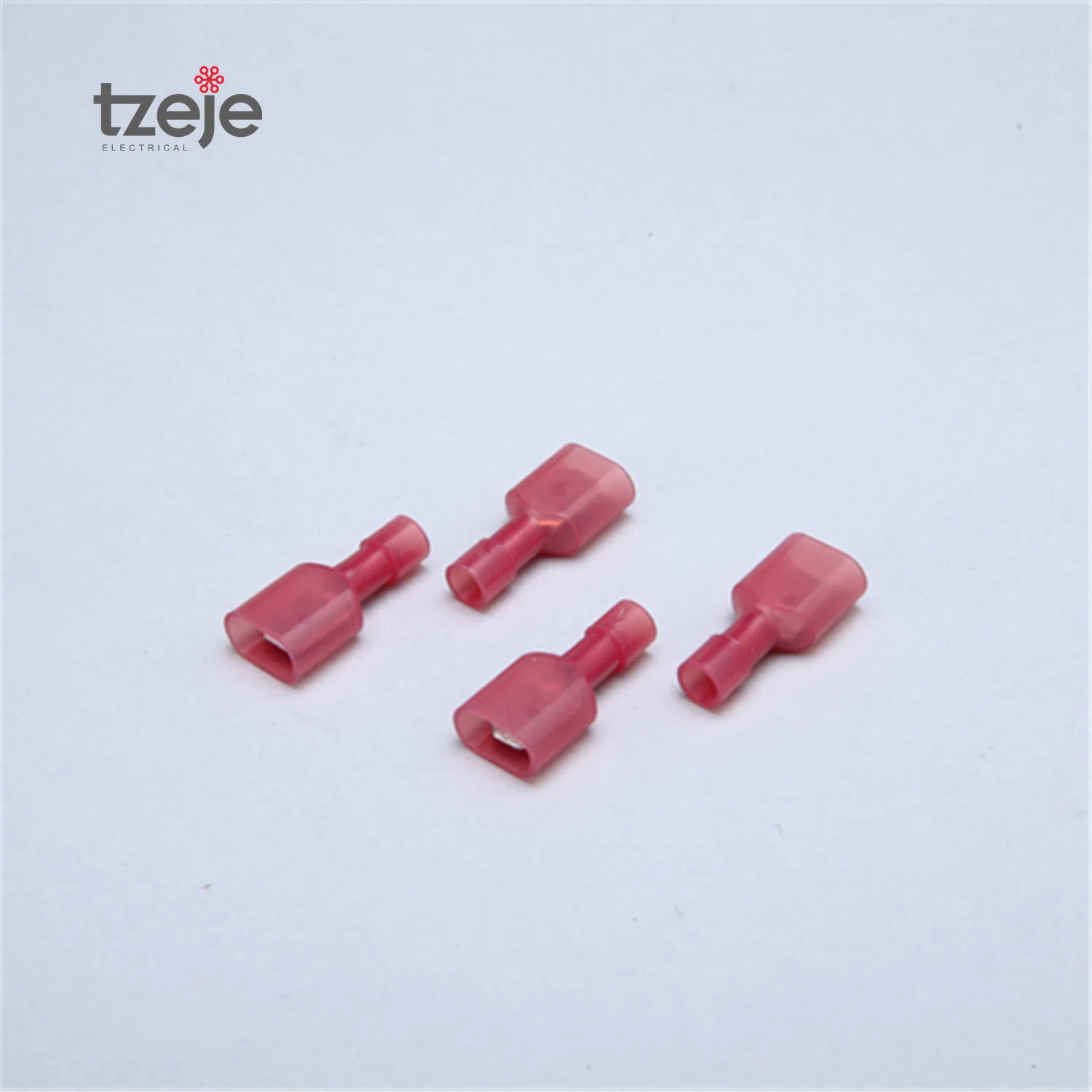

MDFN1.25-250	0.8X6.35	6.35	7.7	24.0	11.0	4.0	1.7	0.4	RED	Lead Section:0.5-1.5mm2 A.W.G.:22-16 Max. Current: 10A

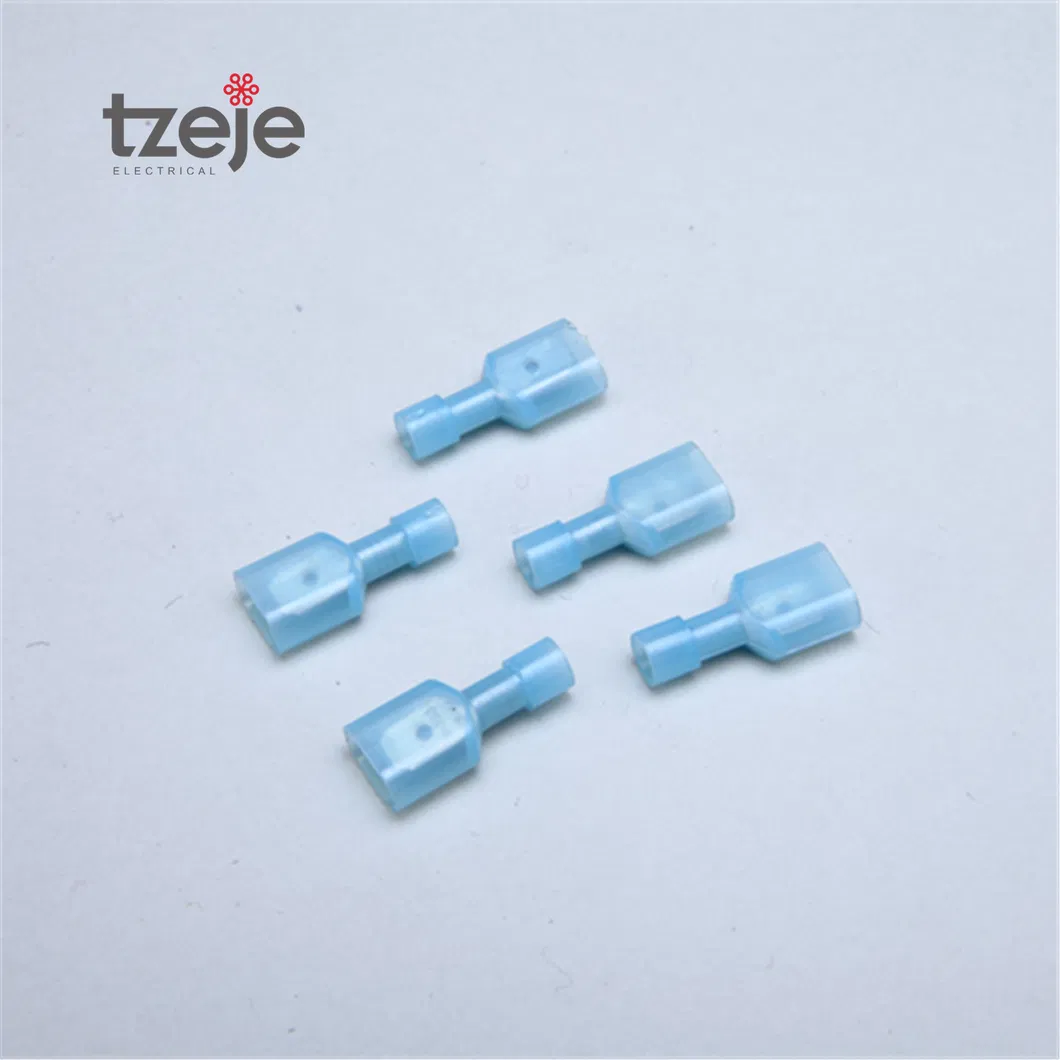

MDFN2-250	0.8X6.35	6.35	7.7	24.0	11.0	4.5	2.3	0.4	BLUE	Lead Section:1.5-2.5mm2 A.W.G.:16-14 Max. Current: 15A
MDFN5.5-250	0.8X6.35	6.35	7.7	25.0	13.0	6.3	3.4	0.4	YELLOW	Lead Section:4-6mm2 A.W.G.:12-10 Max. Current: 24A

About Factory

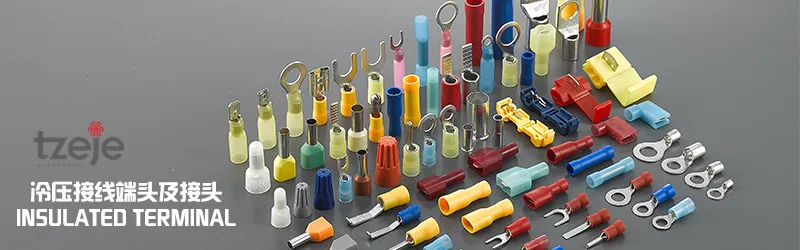

Wenzhou Zhijie Electric Co., Ltd. is a professional manufacturer. Specialized in designing, development, production and marketing of various terminal studs, cold press terminals, connectors, spiral type street crimping caps and cable accessories. The company refer to Europeam and American technical requirements and quality development, the products have passed CE, ROHS and SGS.

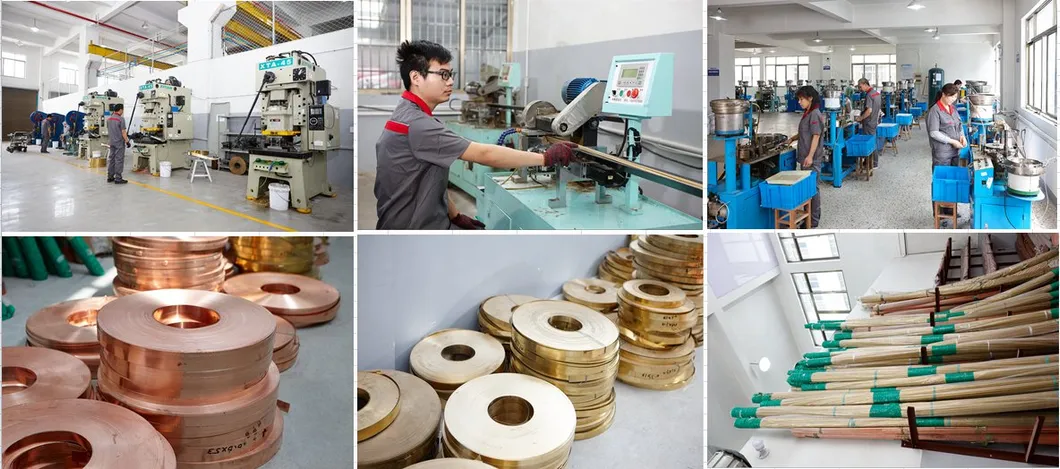

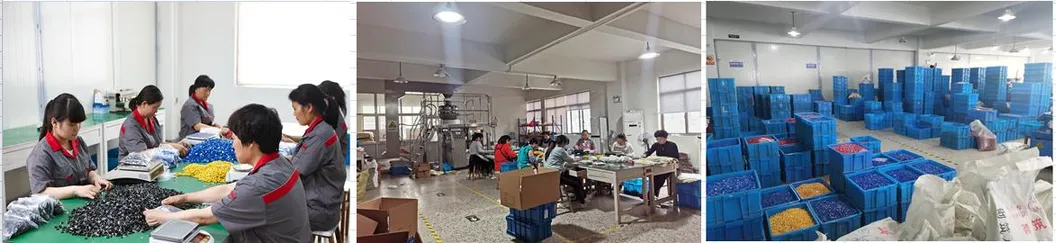

The company boasts of advanced automation equipment and chek out test sets, high quality management team and employees of grass roots, all of these enable the company to establish good image of brand.
Abiding by the quality policy of promoting production with qulaity, seeking development with technologu, winning benefit with management, and attracting customers with credit standing, we sincerely hope to cooperate with friends from all social sectors at home and abroad, made development and creat brilliance together.
