Product Description

1.Features:

<1> Flat wiping contact system
Minimal contact resistance at high current, wiping action cleans contact surface during connection/ disconnection

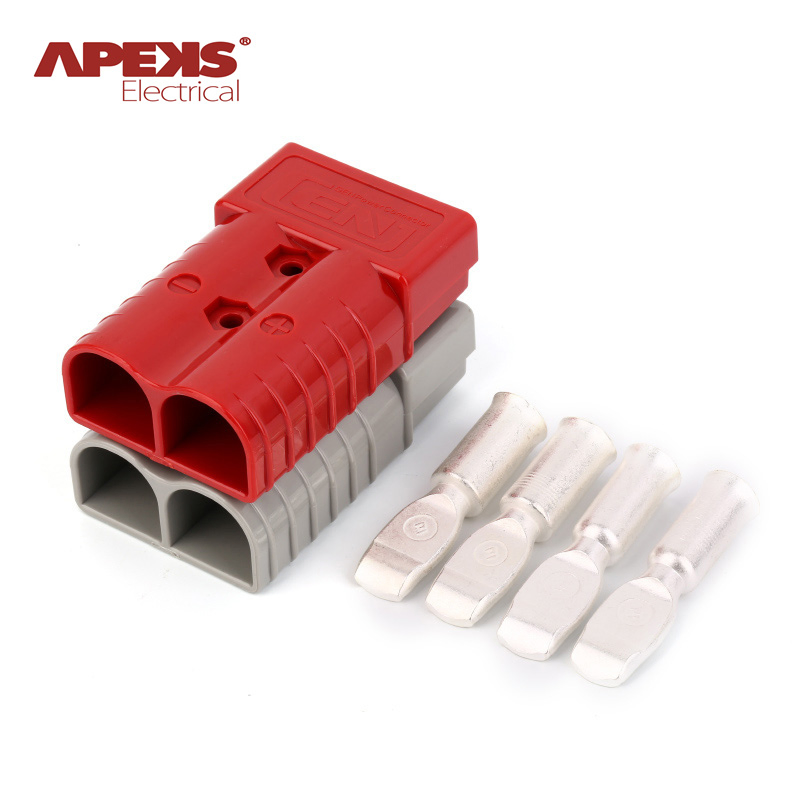

<2>Structured color-coded
Prevents accidental mating of components operating at different voltage levels.

<3> Interchangeable genderless design
Makes assemble easy and reduces stock.

<4>Flexible application
Meet cable to cable connection and cable to board requirement.

<5> Finger proof
Helps prevent fingers (or probes) from accidentally touching live contacts.

<6> Molded-in dovetails
Secures individual connectors into "keyed" assemblies which prevents misconnection with similar configurations.

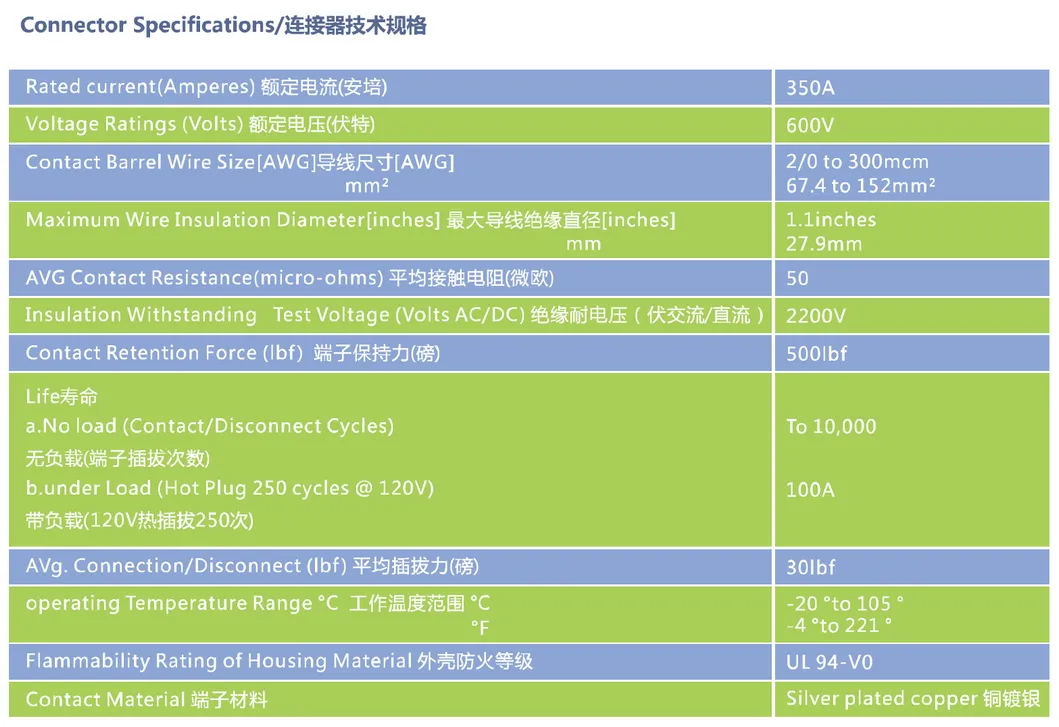

Rated current (amperes):		350A
Rated voltage (volts):		600V

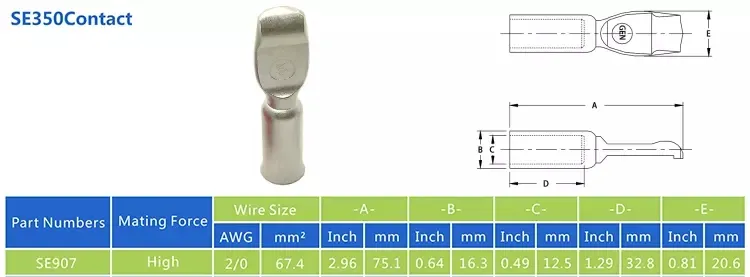

Contact barrel wire size (AWG) :		1/0-3/0(AWG)
Contact material:		copper, plate with silver
Insulation material:		PC
Flammability:		UL94-V0
Life	without load (contact/disconnect cycles):	To 10,000
	with load (hot plug 250 cycles & 120V):	100A
Average contact resistance (micro-ohms):		<40
Insulation resistance:		5000MΩ
Average connection\disconnection(N)		280N
Connector holding force(lbf)		500 N Min
Environment temperatures(ºC)		-20ºC...+75ºC

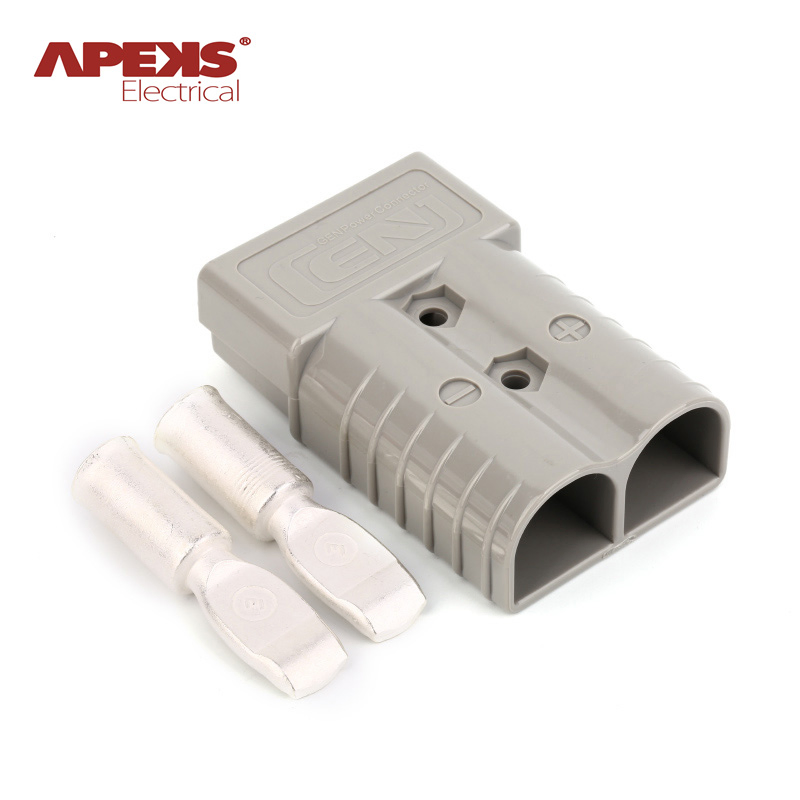

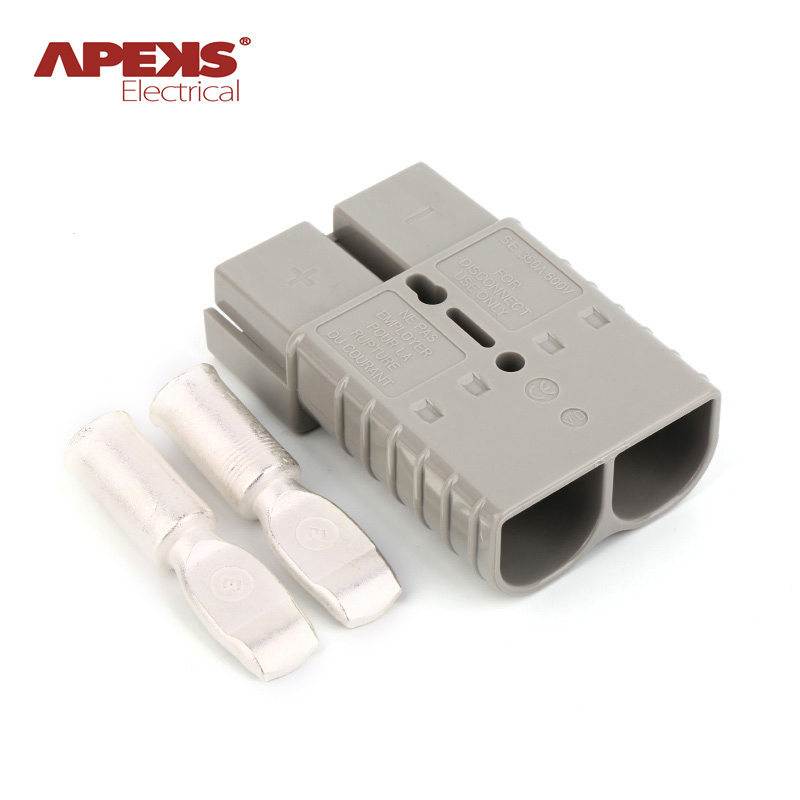

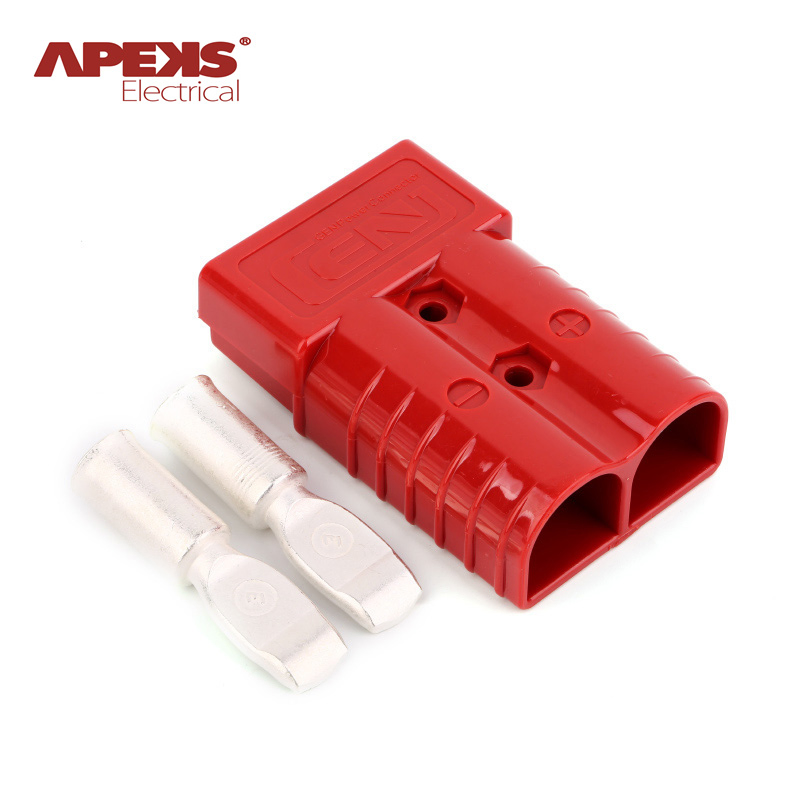

350A Anderson Style Forklift Connector / Forklift Charger Connector / Battery Quick Plug

2.Applications

This series of products meets strict UL, CUL, CCC certification which can be used safety in logistics communication, power-driven tools,UPS system Electric vehicles, medical equipment AC/DC power etc of widely industry and the most area around the world.

350A Anderson Style Forklift Connector / Forklift Charger Connector / Battery Quick Plug
