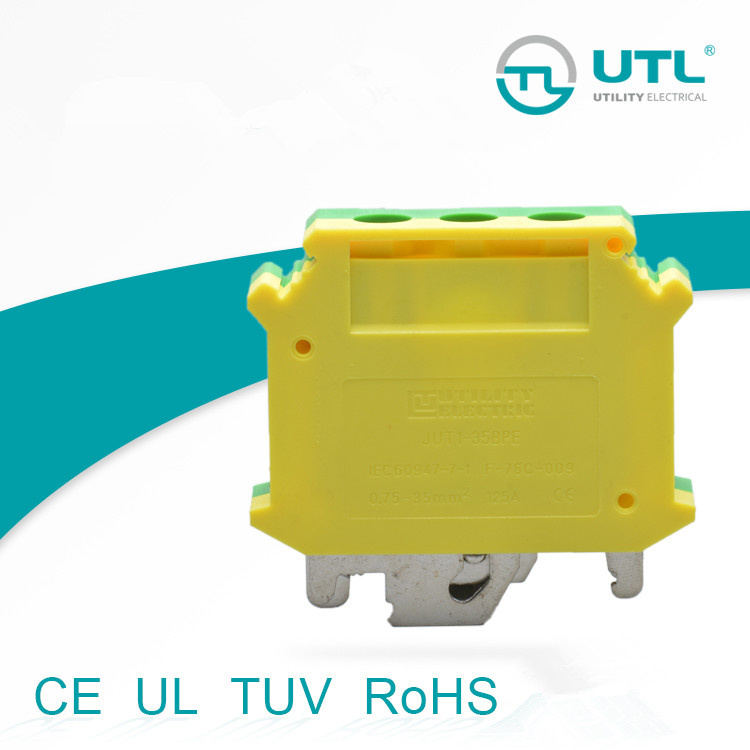

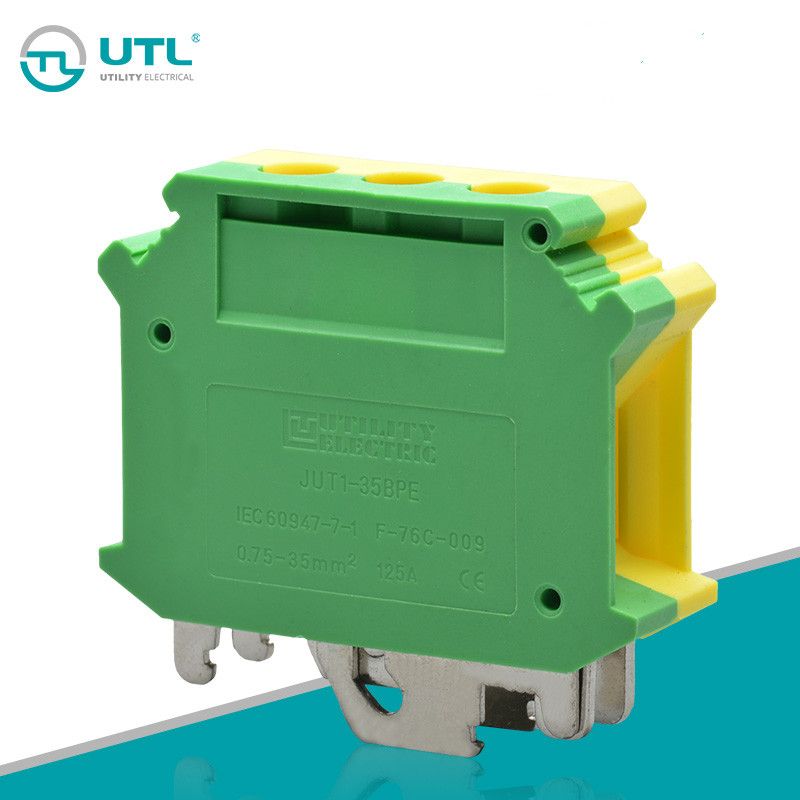

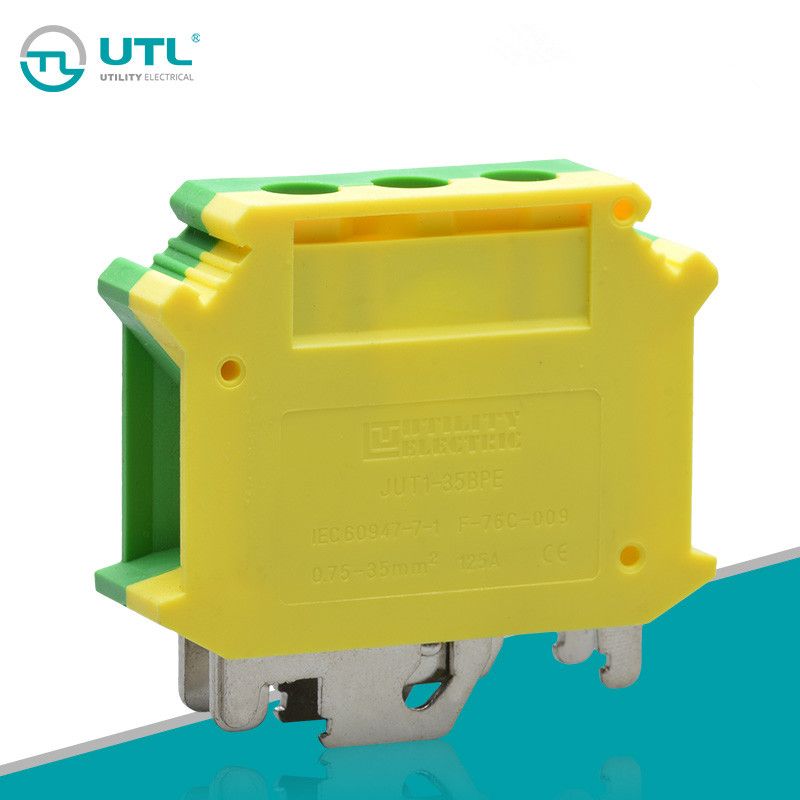

18-0 AWG Small Volume Electrical Terminal Connector
18-0 AWG Small Volume Electrical Terminal Connector Model NoJUT1-35B/PEItem name JUT1 Screw Series ColorYellow green as photo,or OEM ColorSizeTH:15.2 W:55 H:51 H:56Terminal With mounting feet,installed on tracks NS32-G or NS35-U Rigid/soft Cable0.75-35mm2Conductor ......
Send Inquiry
Product Description
| Model No | JUT1-35B/PE |
| Item name | JUT1 Screw Series |
| Color | Yellow green as photo,or OEM Color |
| Size | TH:15.2 W:55 H:51 H:56 |
| Terminal | With mounting feet,installed on tracks NS32-G or NS35-U |
| Rigid/soft Cable | 0.75-35mm2 |
| Conductor Size | 18-0AWG |
| Central adaptor | Used at the center of terminal for transverse bridge connection,and screw head with insulation ring,which is divied into:2-digit,3-digit,5-digit and 10-digit |
| Current rating | 125A |
| Logo | Customized logo are available as request |
Design ability | We can supply sample,OEM&ODM is welcome |
Features:
Terminal: With general-purpose mounting feet, can be installed on tracks NS32 or NS35.
Two ends on the top with white marking system to realize uniformed sign.
The insulating shell is made if imported engineering plastic-polyamide Nylon 66(PA66). It is of
high mechanical intensity, good electic property, and super flexibility.General auxiliaries, such as the end plate, segment spacer, and spacer, are attached for terminal
with multiple sections.Electric potential distribution is realized by eitherconnecting central adaptor to the center of terminal
or inserting a side adaptor to the cone jack.Closed bolt leading hole will not only facilitate operation of screwd-rivers, also prevent the bolt from dropping out.
