    Fkc Pipe Liquid Sensor Capacitive Proximity Switch Sensor 12-24 VDC IP67 Fkc2210-N 10mm
    • Fkc Pipe Liquid Sensor Capacitive Proximity Switch Sensor 12-24 VDC IP67 Fkc2210-N 10mmFkc Pipe Liquid Sensor Capacitive Proximity Switch Sensor 12-24 VDC IP67 Fkc2210-N 10mm
    • Fkc Pipe Liquid Sensor Capacitive Proximity Switch Sensor 12-24 VDC IP67 Fkc2210-N 10mmFkc Pipe Liquid Sensor Capacitive Proximity Switch Sensor 12-24 VDC IP67 Fkc2210-N 10mm
    • Fkc Pipe Liquid Sensor Capacitive Proximity Switch Sensor 12-24 VDC IP67 Fkc2210-N 10mmFkc Pipe Liquid Sensor Capacitive Proximity Switch Sensor 12-24 VDC IP67 Fkc2210-N 10mm
    • Fkc Pipe Liquid Sensor Capacitive Proximity Switch Sensor 12-24 VDC IP67 Fkc2210-N 10mmFkc Pipe Liquid Sensor Capacitive Proximity Switch Sensor 12-24 VDC IP67 Fkc2210-N 10mm

    Fkc Pipe Liquid Sensor Capacitive Proximity Switch Sensor 12-24 VDC IP67 Fkc2210-N 10mm

    F&C FKC Pipe liquid Sensor Capacitive proximity switch 12-24 VDC IP67 FKC2210-N 10mmPart Number: FKC2210-N NPN.NOFKC2210-N2 NPN.NCFKC2210-P PNP.NOFKC2210-P2 PNP.NC Can be offered 150mm cable with a male connector type Three Visual direction, convenience checks;Detection of liqu......

    Send Inquiry

    Product Description

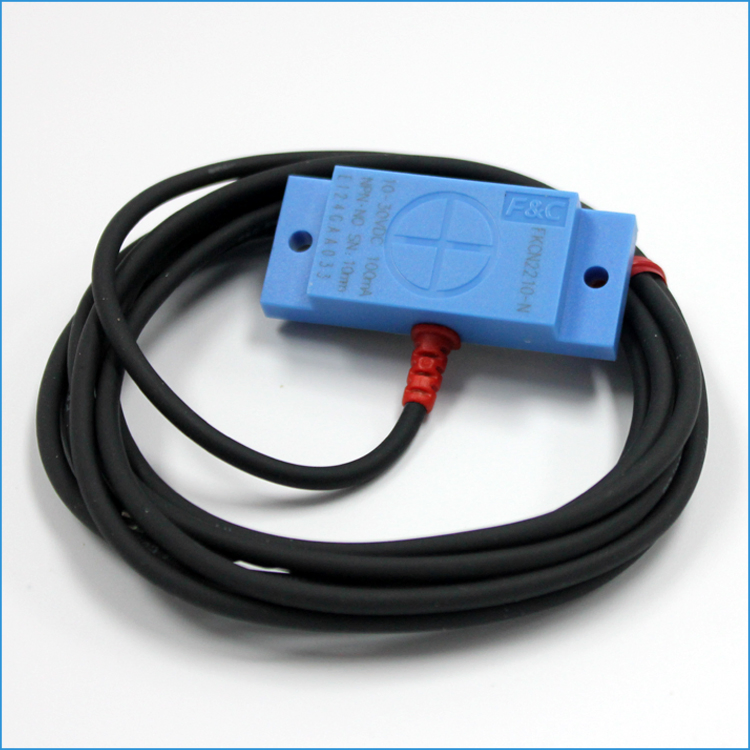

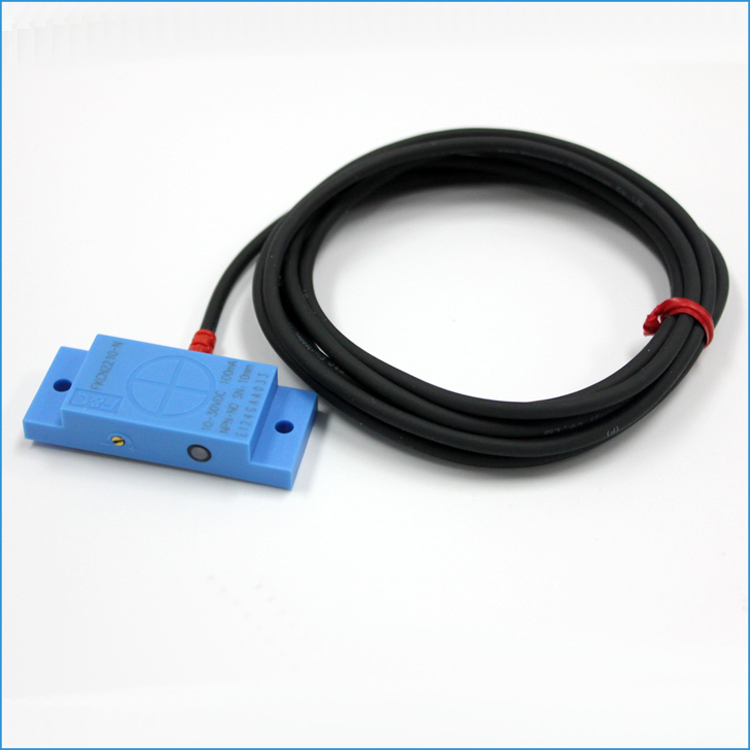

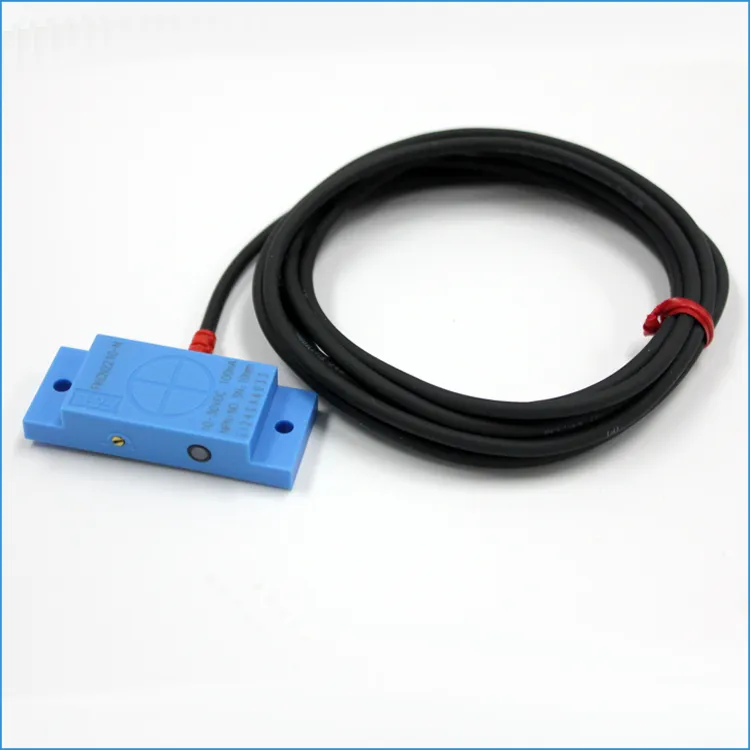

    F&C FKC Pipe liquid Sensor Capacitive proximity switch 12-24 VDC IP67  FKC2210-N  10mm

    Part Number:



    FKC2210-N      NPN.NO

    FKC2210-N2    NPN.NC

    FKC2210-P      PNP.NO

    FKC2210-P2    PNP.NC



    Can be offered 150mm cable with a male connector type



    • Three Visual direction, convenience checks;
    • Detection of liquid level and non-metallic objects;



    ModelsFKC2210 series
    Standard sensing objectmetal/non-metal
    Response friquencyDC:300Hz
    Hysteresiswithin 1O% sensing distance
    Operating voltageDC:10~30VDC±10%
    Current consumptionDC:≤8mA No-Load
    Load currentsDC:30V 200mA Max
    Leakage currentsDC:≤1.1mA no-Load
    Residual votageDC:≤1.5VDC No-load
    Operating temperature-20°C~+70°C
    MaterialABS
    Wiring methodφ3×2M/3-wires
    Protection degreeIP67

    Fkc Pipe Liquid Sensor Capacitive Proximity Switch Sensor 12-24 VDC IP67 Fkc2210-N 10mm

    ;Fkc Pipe Liquid Sensor Capacitive Proximity Switch Sensor 12-24 VDC IP67 Fkc2210-N 10mm
    Fkc Pipe Liquid Sensor Capacitive Proximity Switch Sensor 12-24 VDC IP67 Fkc2210-N 10mm

    Why Choose F&C sensor?

    (1) 23+ years manufacture and 10+ years OEM service sensor experience.
    (2) 4000+ models Sensors
    (3) Long service time, 8+ years
    (4)Fast delivery time. Most delivery within 1 days (Stocks)
    (5) IP67 protection grade
    (6) CE, RoHS certification
    Fkc Pipe Liquid Sensor Capacitive Proximity Switch Sensor 12-24 VDC IP67 Fkc2210-N 10mm


    Fkc Pipe Liquid Sensor Capacitive Proximity Switch Sensor 12-24 VDC IP67 Fkc2210-N 10mm

    Our Services

    1. The warranty periodis 18 months.

    2. If we send the wrong parts to you, free replacement will be available.

    3. As for the installation of the parts  if you have any questions, do not hesitate to contact us at any time.

    Q: What's your leadtime?

    A:Generally speaking,we have stocks for 110 kind of different models and can ship at any time. If we don't have stock,our leadtime is 5-7 working days.We will pull in the production schedule if your demand is urgently.

    Q: What's your payment term?

    A:You can pay us by T/T, Paypal, Westunion.

    Q:How do you arrange the shipment ?

    AWe normally ship by Fedex, UPS and TNT, we are VIP of this courier and get 60% discount.  We also can accept other ship method if there is an need.


    FAQ

    Fkc Pipe Liquid Sensor Capacitive Proximity Switch Sensor 12-24 VDC IP67 Fkc2210-N 10mm

    Fkc Pipe Liquid Sensor Capacitive Proximity Switch Sensor 12-24 VDC IP67 Fkc2210-N 10mm
