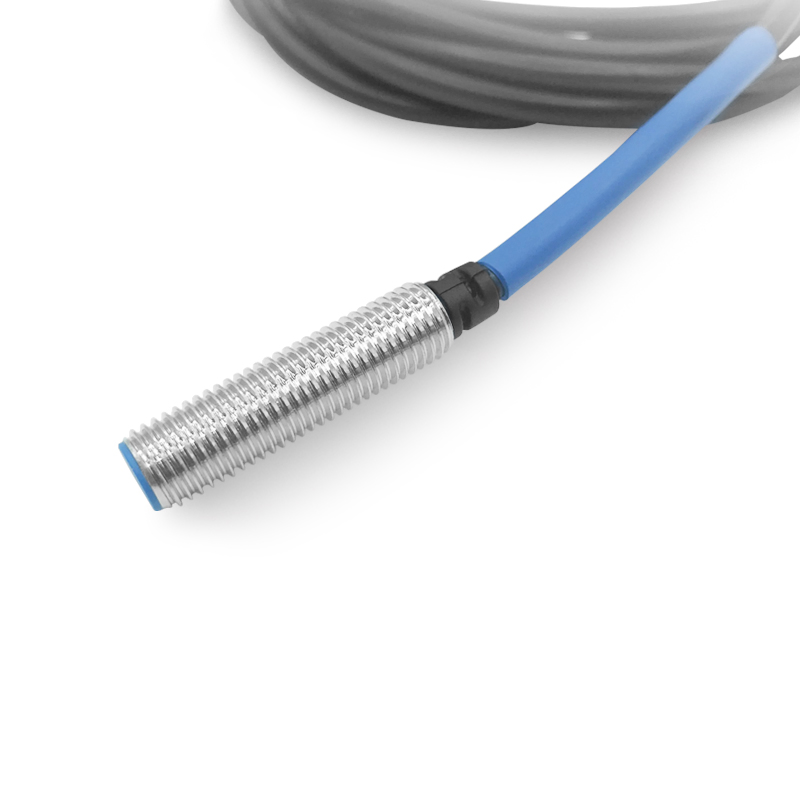

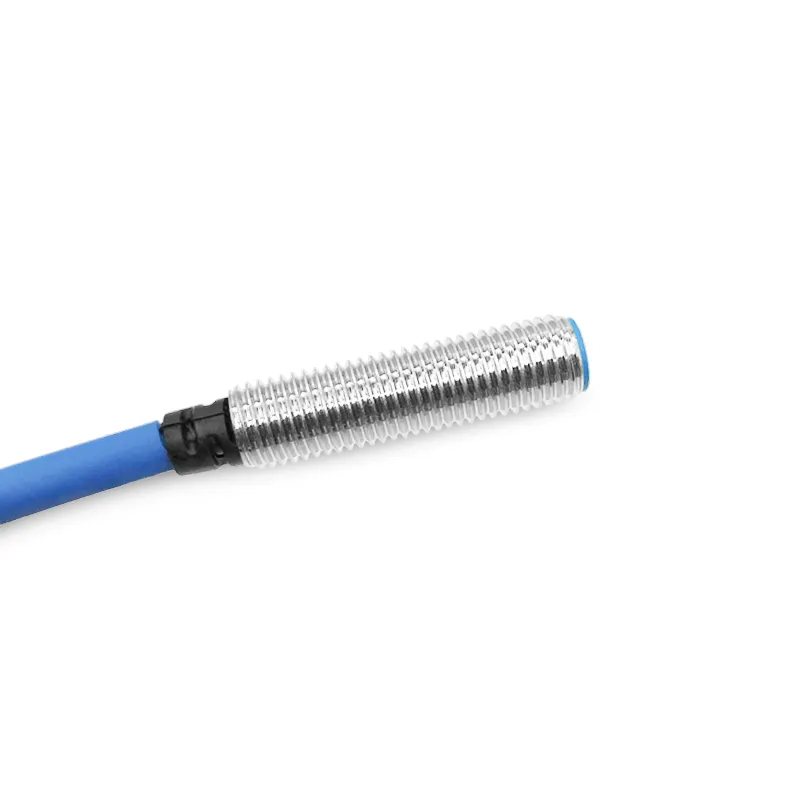

China Bh-108mc M8 Inductive Sensor Proximity Switches with Cable NPN PNP No/Nc Output

Product Description

model	BH-108MC
Type	Direct current (DC), buried type
shape	M8
Detection distance	1.5 mm ±10%
Detectable object	Ferrous metals (see Non-ferrous metals characteristics)
Standard target (iron, t = 1 mm)	10 x 10 mm
Hysteresis	10 x 10 mm
Response frequency	800 Hz
Operation mode	N.C.
Temperature characteristics	Maximum ±10% of the detection distance at 23ºC, within -25 to +70ºC
Control output (switching capacity)	5 to 80 mA
protect the circuit	Reverse current protection, over voltage
voltage	12 to 24 VDC, ripple (P-P) 20% or less
Consumption (leakage) current	Current consumption (leakage current): 1.0 mA maximum, residual voltage: 3.6 V maximum (with 2 m cable)
Residual voltage	Residual voltage: 3.6 V max (with 2 m cable)
Shell protection level	IP67
Ambient temperature	-25 to +80 °C (no freezing)
Relative humidity	35 to 95% RH (non-condensing)
Shock resistance	10 to 55 Hz, double amplitude 1.5 mm, 2 hours each in X, Y, and Z directions
Impact resistance	500 m/s2, 3 times each in X, Y, and Z directions
Shell material	Stainless steel (SUS304)
Accessories	Nut×2 Toothed washer×1 Instruction manual
weight	About 42 g
