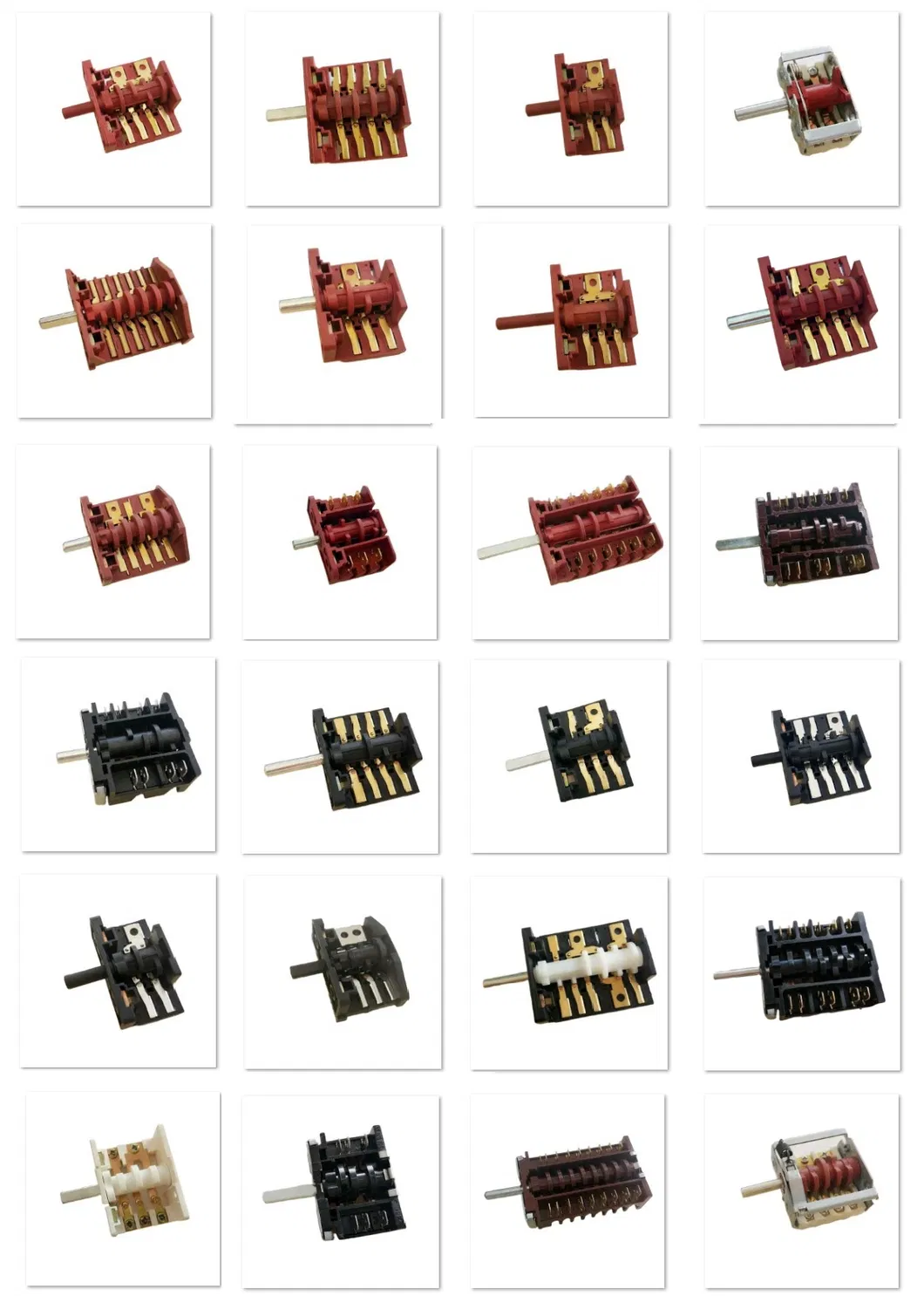

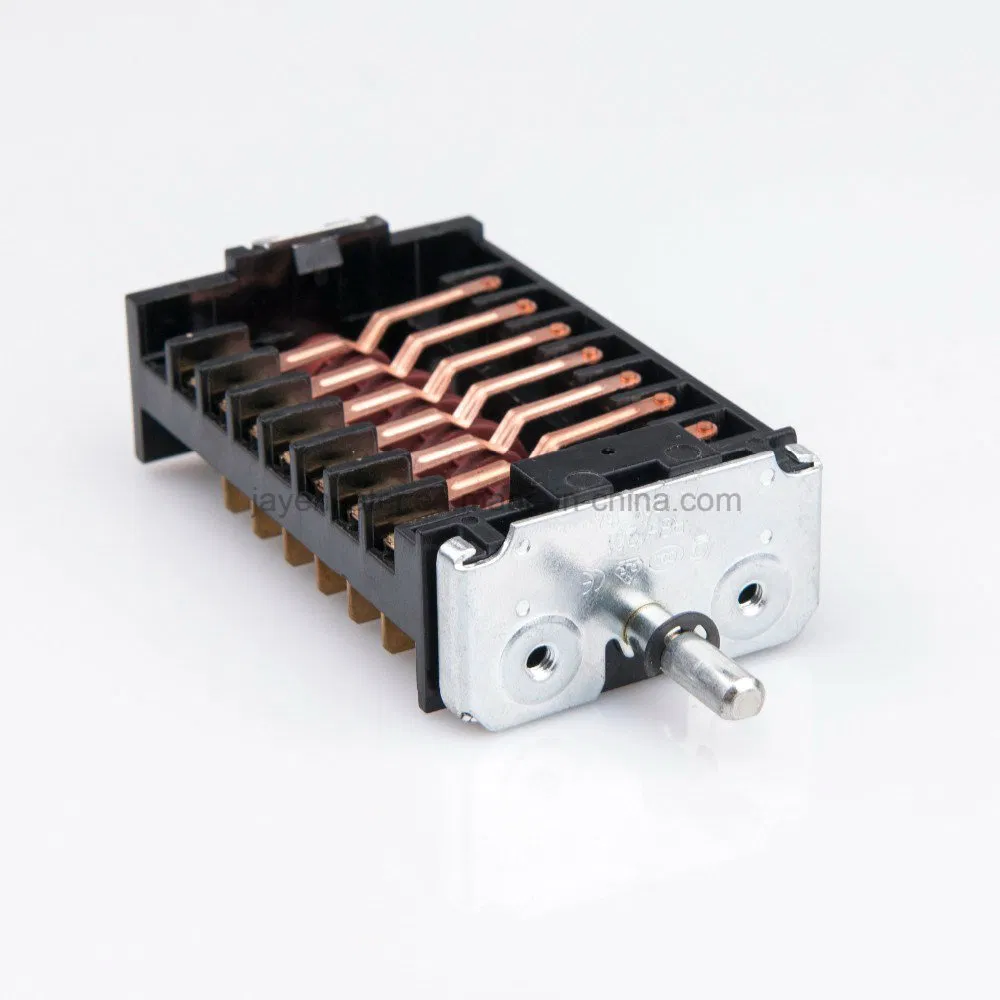

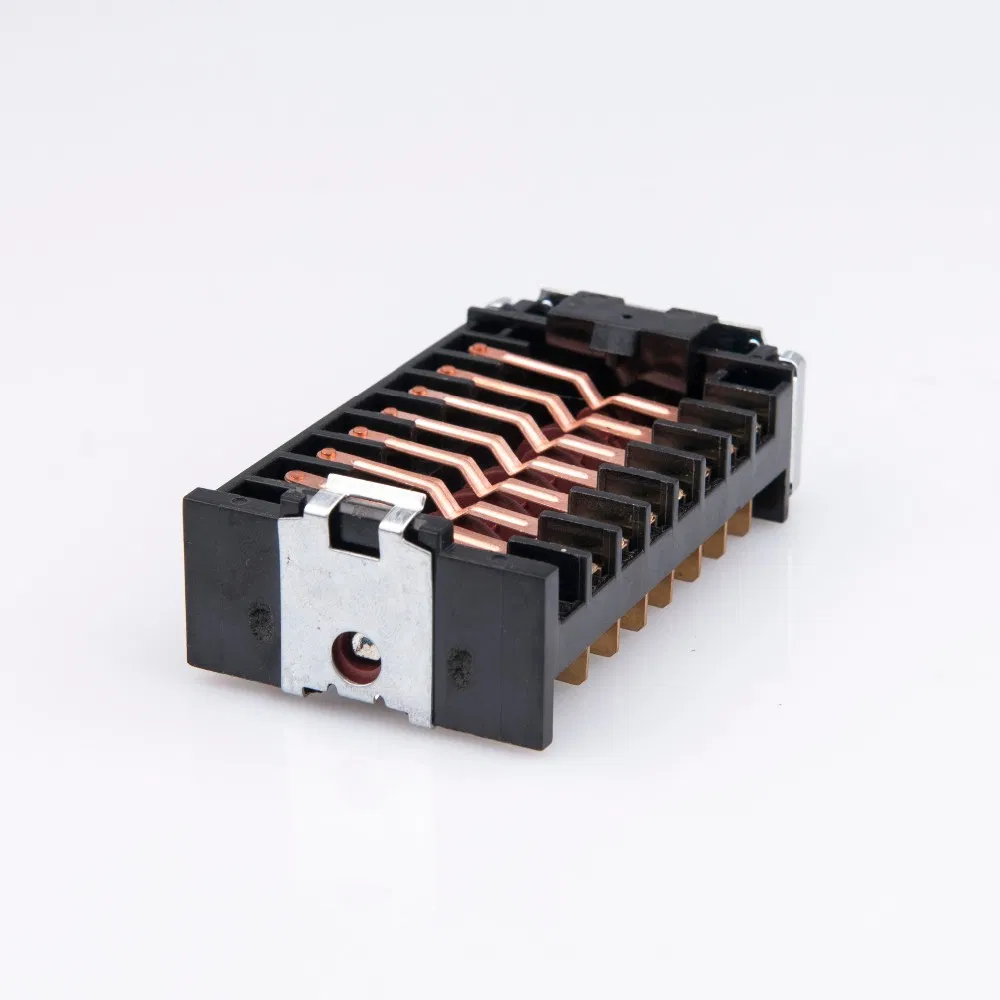

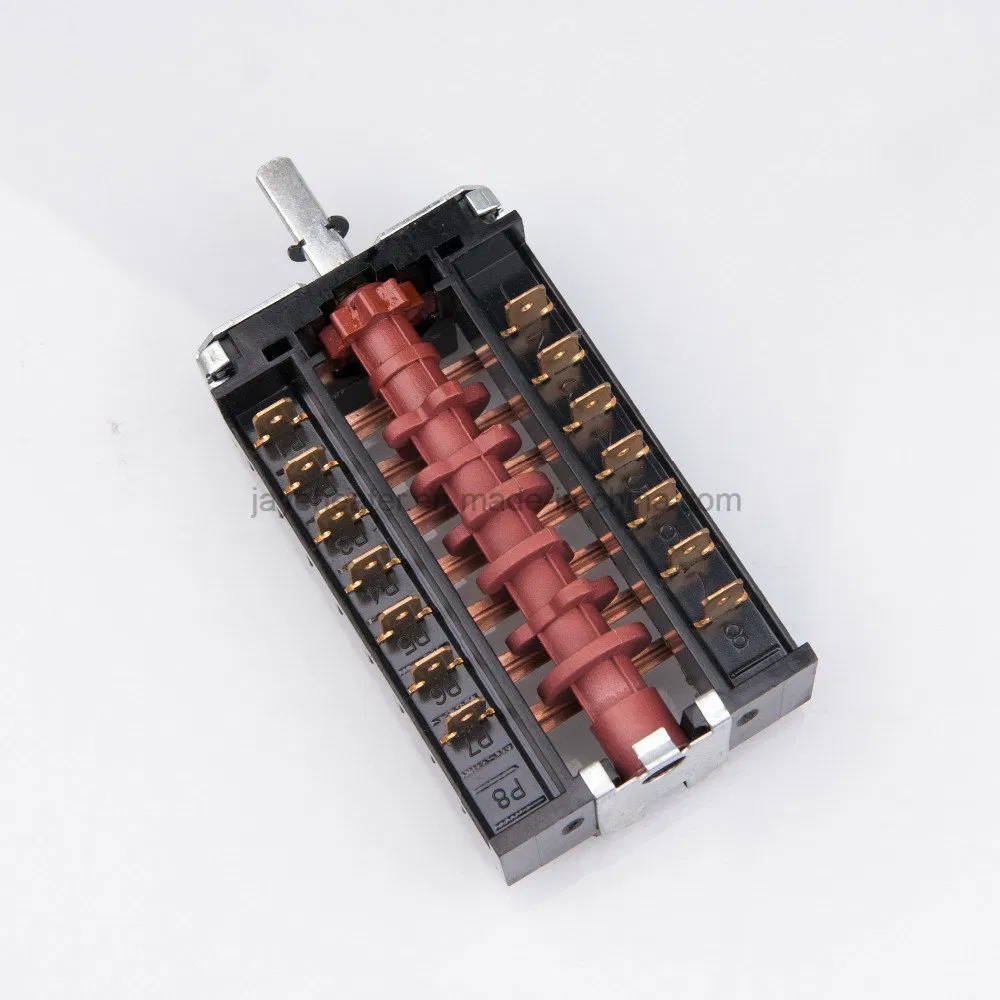

Bakelite Rotary Cooker Switch for Hot Plate and Oven
Bakelite Rotary Cooker Switch for Hot Plate and OvenThis kind of position switch can be used in a variety of high-power electrical appliances. Such as electric heater, oven, etc. With 360 degree rotation, the angle between gears can be 90 / 60 / 45 degrees( It can be used as 4th, 6th and 8th gear.)P......
Send Inquiry
Product Description

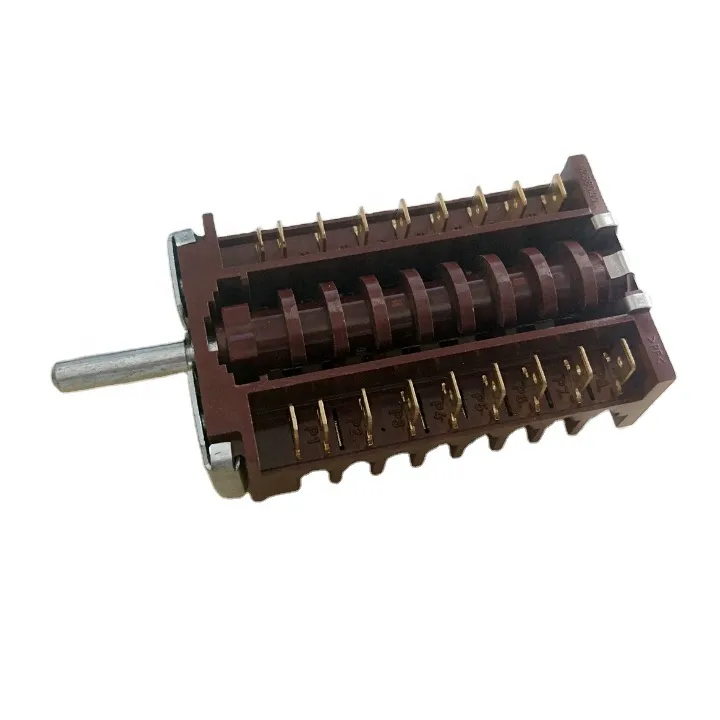

Bakelite Rotary Cooker Switch for Hot Plate and Oven
This kind of position switch can be used in a variety of high-power electrical appliances. Such as electric heater, oven, etc. With 360 degree rotation, the angle between gears can be 90 / 60 / 45 degrees( It can be used as 4th, 6th and 8th gear.)
Product Description:
1. General parameters:
1) Applicable temperature range: - 10 ~ 90 ºC
2) Test environment: ambient temperature range: 5 ~ 35 ºC, relative humidity range: 45 ~ 80%
3) Rating: 16A 125V AC / 12a 250V AC
4) Electrical strength:
a). Contact resistance: if the test is conducted under the test specification value of micro ohmmeter (0.2v/0.1a DC), the contact resistance shall be less than 20m Ω.
b) Insulation resistance: if the test is conducted under the test specification value of insulation resistance meter (DC 500V), the insulation resistance shall be greater than 100m Ω.
C) Withstand voltage: when two terminals with different levels open circuit, they must withstand voltage through 1200V AC for 1 minute.
d) Terminal and metal shell: must pass 1200V AC withstand voltage for 1 minute.
e) Endurance test: 10000 times
5)Materials: PCB, nylon 66, brass. Random test.
3. Note:
1) Specific designs are also acceptable. Welcome to provide us with your drawings.
2) Most of our products are customized. We can fully meet your needs.
This kind of position switch can be used in a variety of high-power electrical appliances. Such as electric heater, oven, etc. With 360 degree rotation, the angle between gears can be 90 / 60 / 45 degrees( It can be used as 4th, 6th and 8th gear.)
Product Description:
1. General parameters:
1) Applicable temperature range: - 10 ~ 90 ºC
2) Test environment: ambient temperature range: 5 ~ 35 ºC, relative humidity range: 45 ~ 80%
3) Rating: 16A 125V AC / 12a 250V AC
4) Electrical strength:
a). Contact resistance: if the test is conducted under the test specification value of micro ohmmeter (0.2v/0.1a DC), the contact resistance shall be less than 20m Ω.
b) Insulation resistance: if the test is conducted under the test specification value of insulation resistance meter (DC 500V), the insulation resistance shall be greater than 100m Ω.
C) Withstand voltage: when two terminals with different levels open circuit, they must withstand voltage through 1200V AC for 1 minute.
d) Terminal and metal shell: must pass 1200V AC withstand voltage for 1 minute.
e) Endurance test: 10000 times
5)Materials: PCB, nylon 66, brass. Random test.
3. Note:
1) Specific designs are also acceptable. Welcome to provide us with your drawings.
2) Most of our products are customized. We can fully meet your needs.
- Specification
Rating
16A 250VAC T150(TUV) Operating
temperature
-25~150ºC Contact resistance 30mΩ Max Insulation resistance 100mΩ Min Electrical life 10000cycles(16A 250VAC T150) Applicable standard IEC61058-1:2002+A2 - Material list

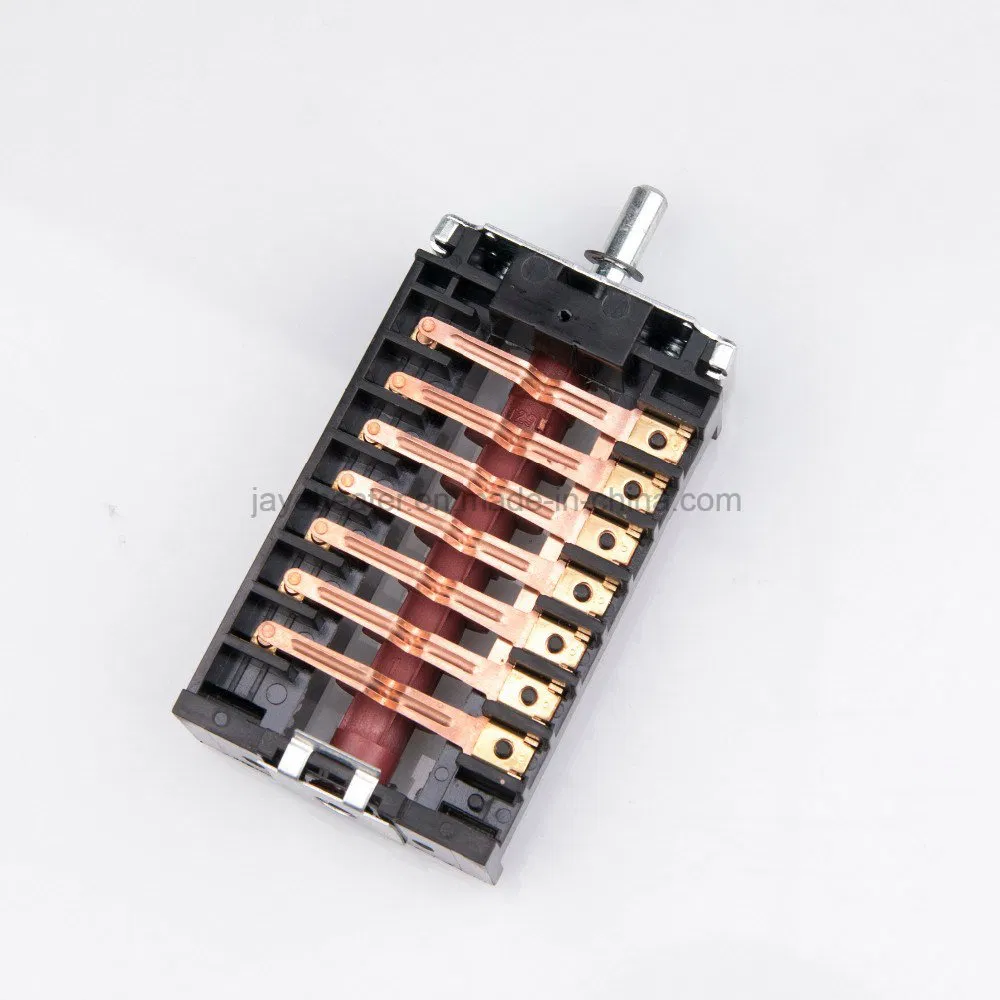

Contact leg Beryllium copper alloy Contact Silver alloy Terminals Brass T=0.8mm Case Bakelite Gear Bakelite

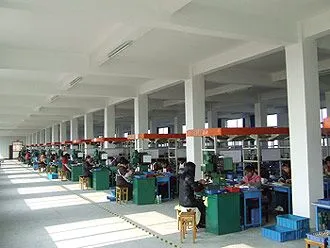

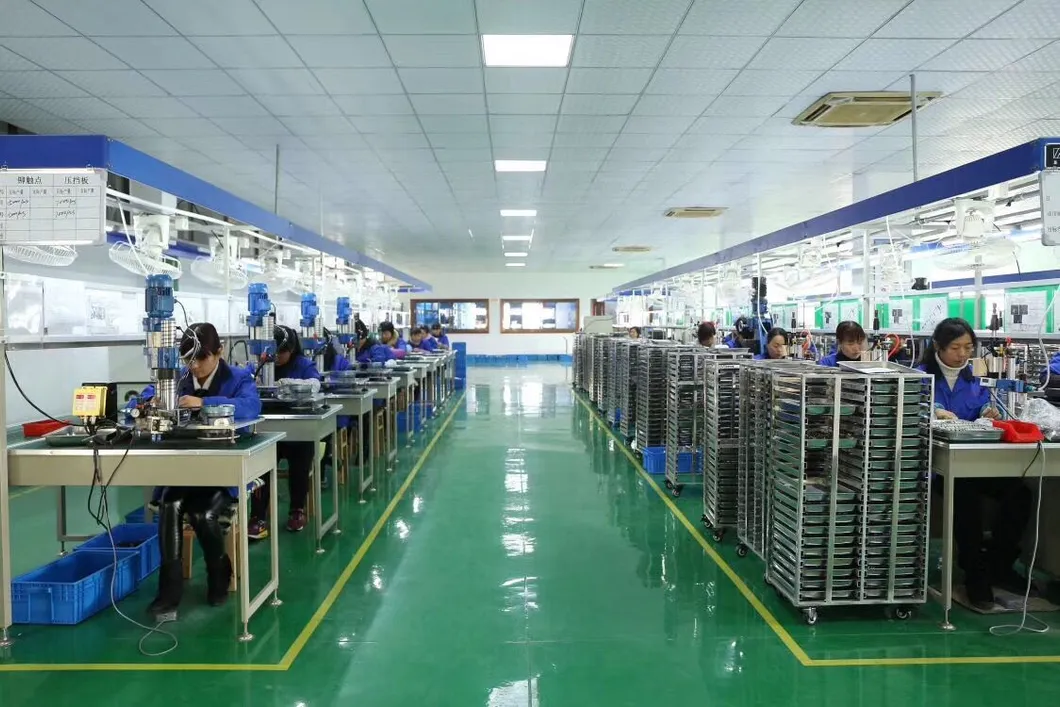

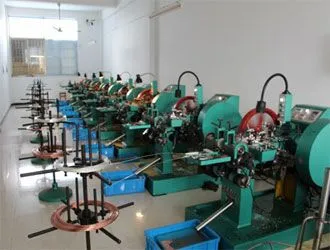

Production line:
Shipping & Transport
FAQ
(1). Q: Can you give me a discount price?
A: It is dependng on the quantity. The larger the quantity is, the more discount you can enjoy.
(2). Q: How can I get a sample?
A: Normally For most our products can be sent free of sample charge if the quanity is small and customers just need to bear the shipping charge, or you can provide your DHL,FEDEX,EMS,UPS courier account number to us. If the quantity is big, need sample charge.
(3). Q: Why is your price a bit higher than other Chinese suppliers?
A: We are focusing on manufacuturing high quality performance products in order to establish a long term and friendly cooperation with all customers.
Our price maybe not the lowest, but our cost performance is the highest.
(4). Q: How can you guarantee the quality of mass production keep the same with the sample sent to me before?
A: Our warehouse staff will leave another same sample with your company name marked in our company before sending the samples to you to ensure the same production as the samples.
