Product Description

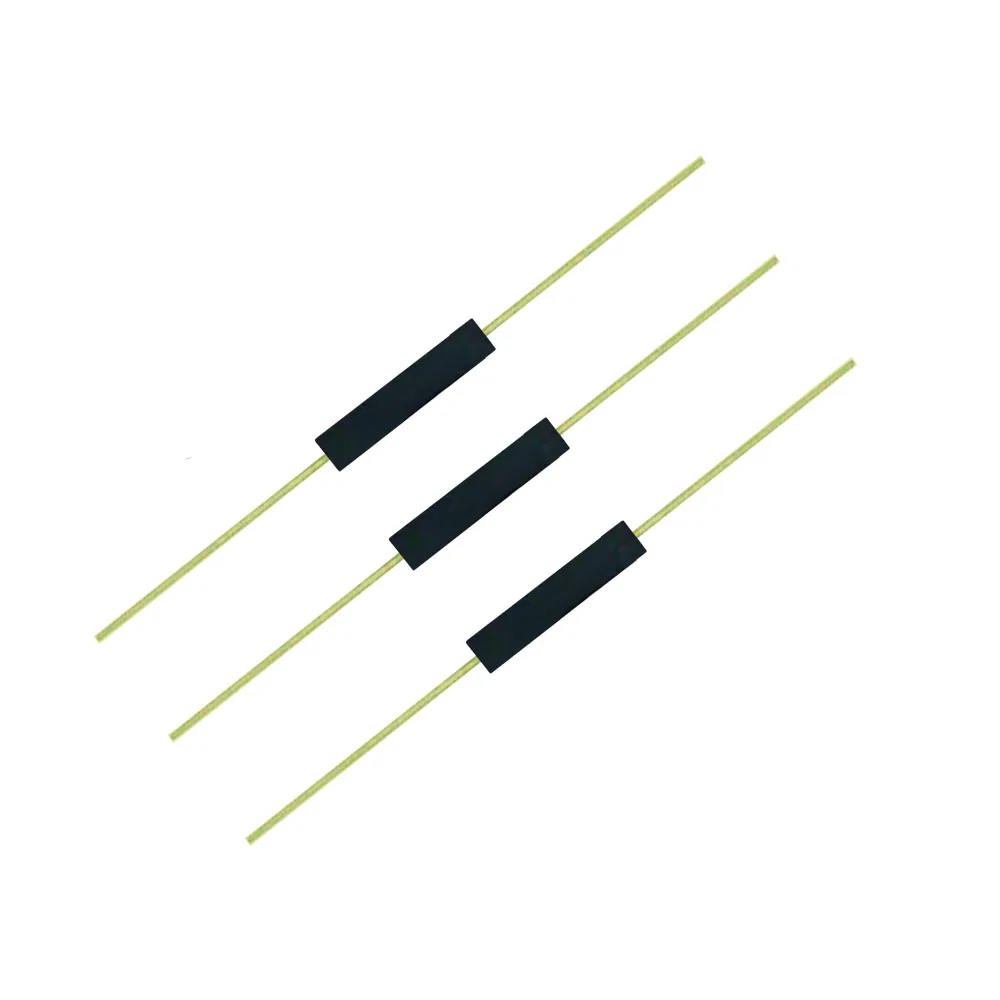

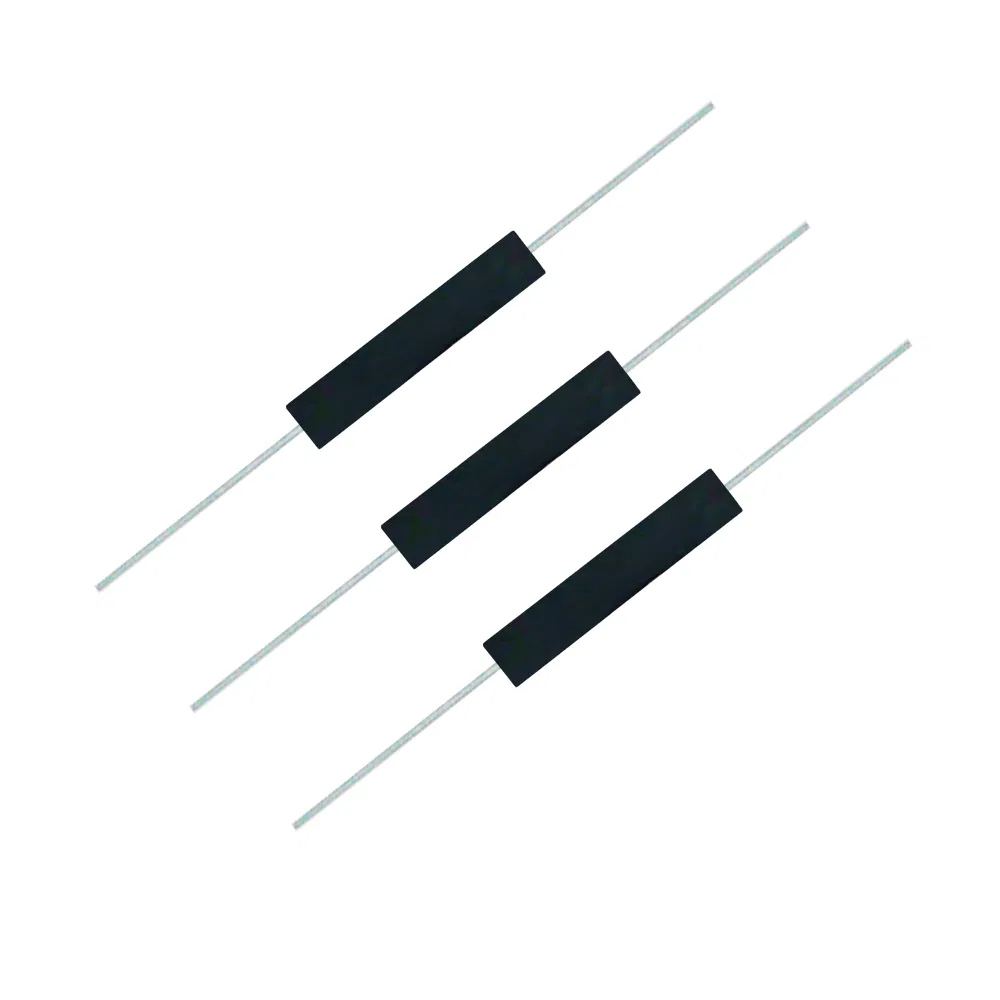

5celec Plastic Moulded Reed Switch Prs-10110 11mm

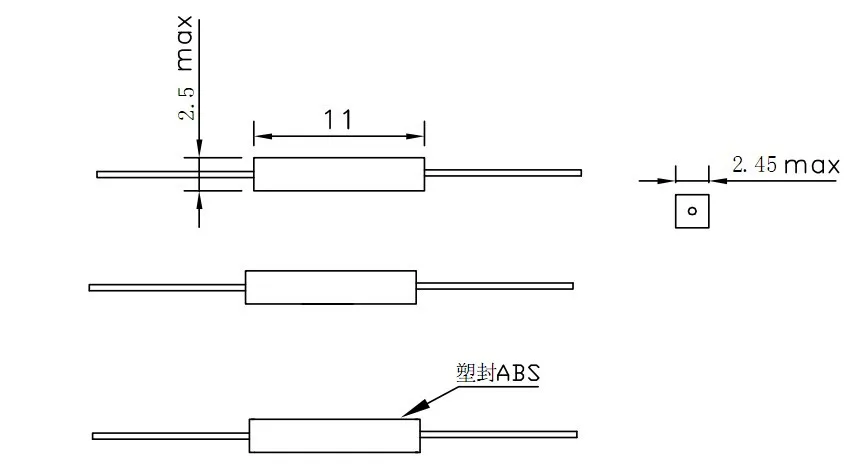

5CELEC magnetic plastic reed switch sensor moulding 11mm PRS-10110
Brand name	5CELEC	Contact type	Normally closed
Model NO.	PRS-10110
Sensitivity	7-10AT 10-13AT
Max. switching voltage	100 VDC
Max. Switching current	0.5A
Max. operating load	10W
Working temperature	-20~80ºC
Contact type	Form A
Reed switch usually consists of a pair of flexible reeds made of a magnetic material, and sealed in a glass tube filled with inert gas. The reeds are overlapped but separated by a small gap , this kind is called normally open. There are three contacts for the normally open and closed reed switch.Compared with general mechanical switch, It has the advantages of simple structure, small size, high speed and long working life. Compared with the electronic switch, it has the characteristics of strong resistance to load impact and high reliability. Reed switches are widely used in Automotive Sensors, Security Anti-theft, Household Electrical Appliances Sensors, and Automation Control Fields.
