China Three Holes TV FM Sat TV Wall Socket Through-Type

Product Description

10 years manufacture for TV+FM+SAT End-Type or Through-Type Optional

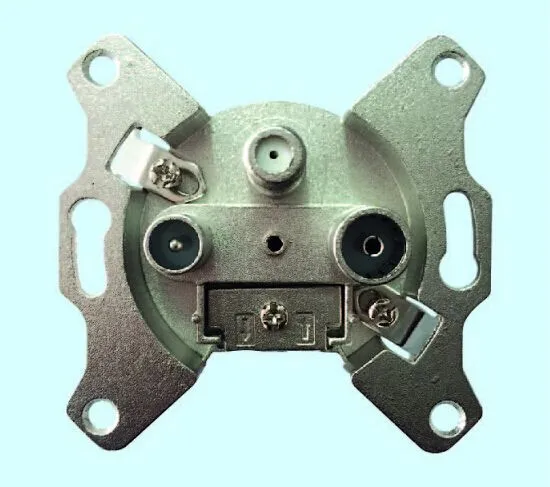

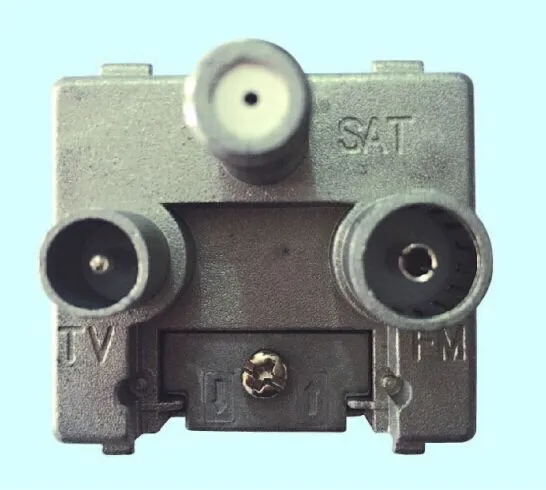

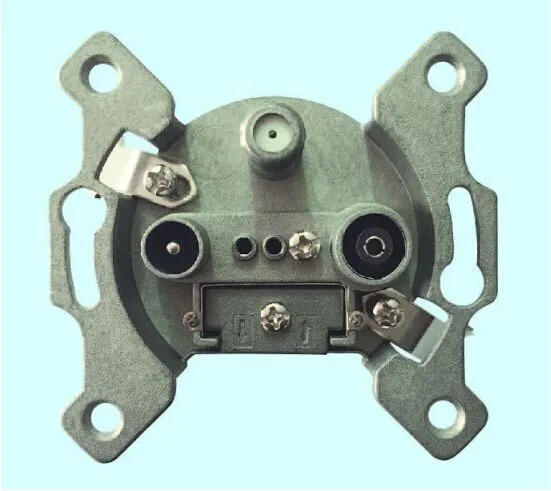

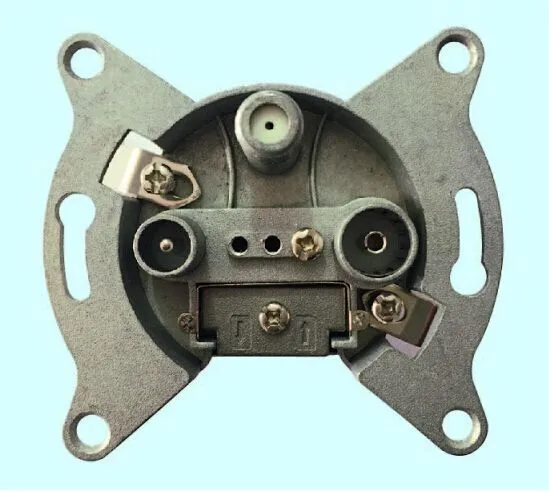

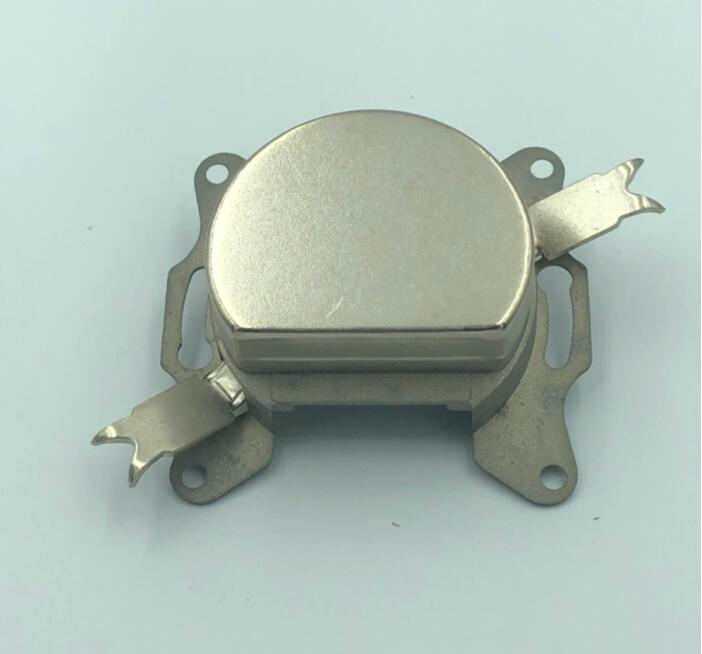

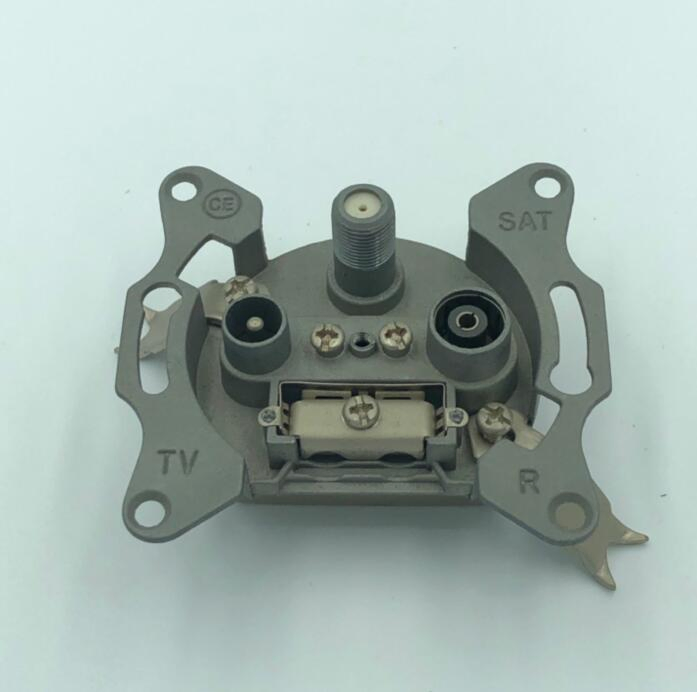

Three Holes TV+FM+Sat TV Wall Socket Through-Type

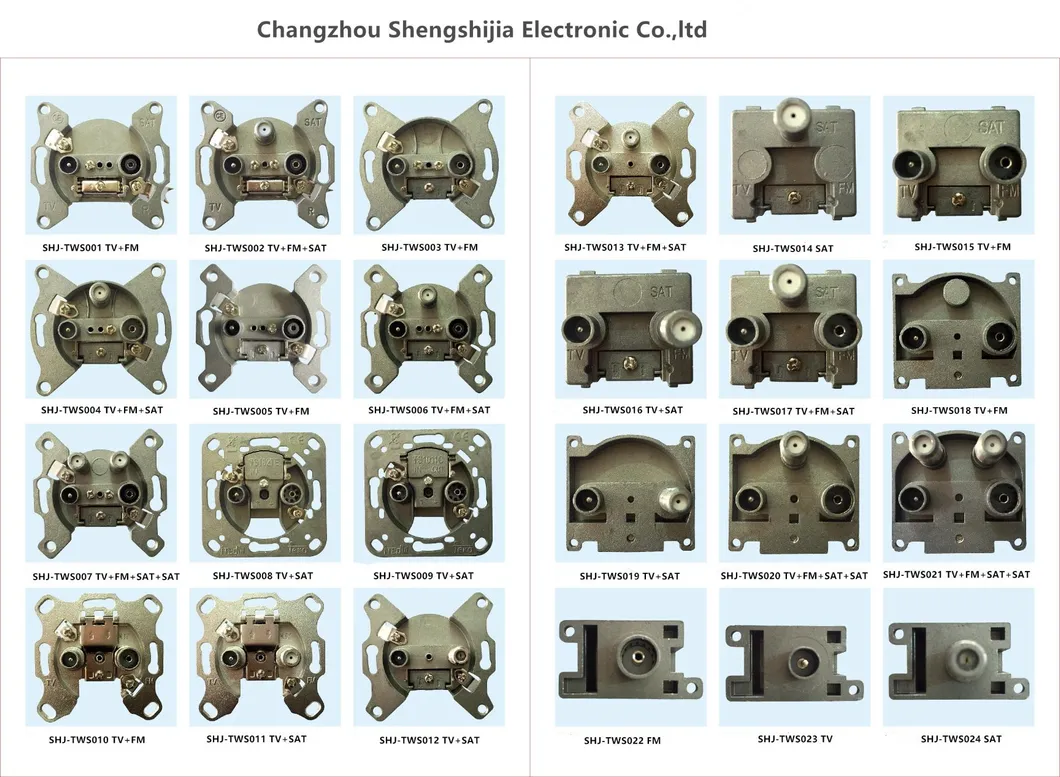

Changzhou Shengshijia Electronic Co.,ltd is the manufacture with mor than 10 years factory experience. We are specialized in producing all kind of:

1. 5-2450MHZ TV, FM, SAT, TV+FM, TV+SAT, TV+FM+SAT, TV+FM+SAT+SAT End/Through-Type Wall Socket Outlet.
2. Satellite finder & satellite meter;
3. CATV attenuator/Amplifier & Satellite splitters;
4. CATV Splitter &DiSEqC switch CATV TAPS
5. Catv splitter, log splitter, power splitter, splitter
6. Catv Drop Splitter in Power Transmission & Transformer
7. Divider, Disintegration, Abruption, Distributor, Outside Splitter, Tap And Splitter, Splitter And Tap

1. TV+FM+SAT
2. 5-2400MHz
3. It is used for TV, SAT and Radios

TV+FM+SAT

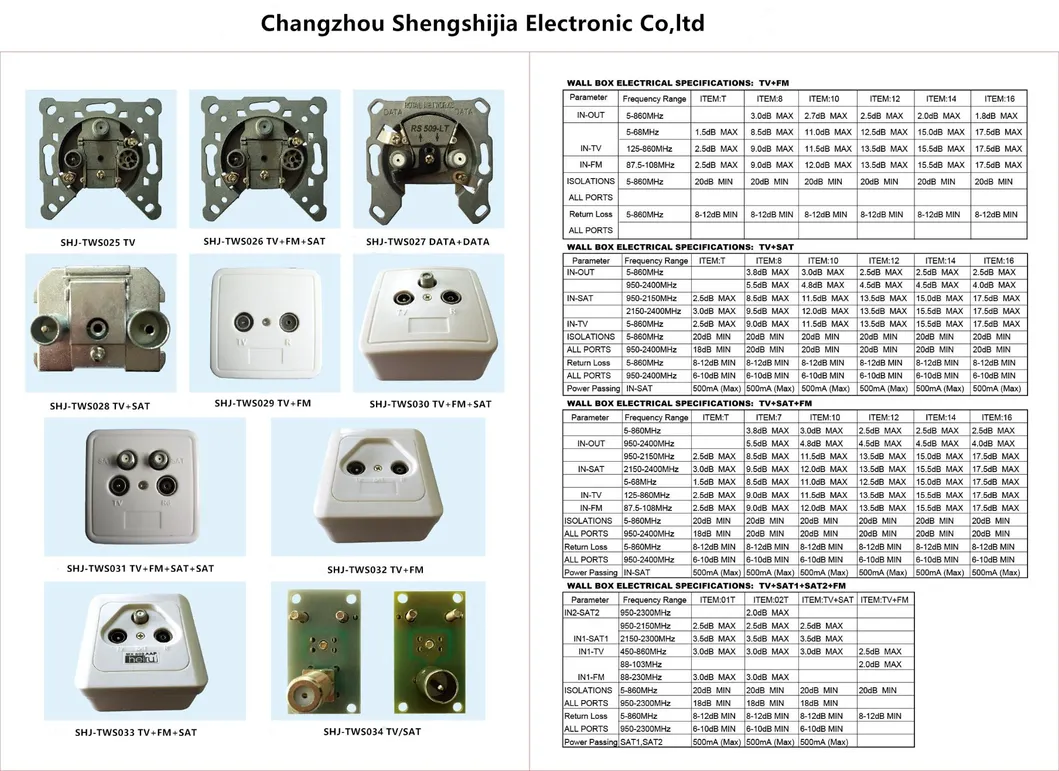

Parameter	Frequency Range	ITEM:T	ITEM:7	ITEM:10	ITEM:12	ITEM:14	ITEM:16
IN-OUT	5-860MHz		3.8dB MAX	3.0dB MAX	2.5dB MAX	2.5dB MAX	2.5dB MAX
IN-OUT	950-2400MHz		5.5dB MAX	4.8dB MAX	4.5dB MAX	4.5dB MAX	4.0dB MAX
IN-SAT	950-2150MHz	2.5dB MAX	8.5dB MAX	11.5dB MAX	13.5dB MAX	15.0dB MAX	17.5dB MAX
IN-SAT	2150-2400MHz	3.0dB MAX	9.5dB MAX	12.0dB MAX	13.5dB MAX	15.5dB MAX	17.5dB MAX
IN-TV	5-68MHz	1.5dB MAX	8.5dB MAX	11.0dB MAX	12.5dB MAX	15.0dB MAX	17.5dB MAX
IN-TV	125-860MHz	2.5dB MAX	9.0dB MAX	11.5dB MAX	13.5dB MAX	15.5dB MAX	17.5dB MAX
IN-FM	87.5-108MHz	2.5dB MAX	9.0dB MAX	12.0dB MAX	13.5dB MAX	15.5dB MAX	17.5dB MAX
ISOLATIONS	5-860MHz	20dB MIN	20dB MIN	20dB MIN	20dB MIN	20dB MIN	20dB MIN
ALL PORTS	950-2400MHz	18dB MIN	20dB MIN	20dB MIN	20dB MIN	20dB MIN	20dB MIN
Return Loss	5-860MHz	8-12dB MIN	8-12dB MIN	8-12dB MIN	8-12dB MIN	8-12dB MIN	8-12dB MIN
ALL PORTS	950-2400MHz	6-10dB MIN	6-10dB MIN	6-10dB MIN	6-10dB MIN	6-10dB MIN	6-10dB MIN
Power Passing	IN-SAT	500mA (Max)	500mA (Max)	500mA (Max)	500mA (Max)	500mA (Max)	500mA (Max)
