Screwless 45X45mm EU Socket Module Angle Schuko Socket/Electrical Outlet with Connector
Characteristic:Serial No.ParameterDescription1Panel MaterialPC 94-V02Inside materialTin phosphorous bronze3Surface finishGlossy4Input voltage100~240v/AC 50~60Hz5ColorWhite /Black/Red6Number of terminals2 screw terminals7OutletFrench socket8IK degree of protectionIK049IP degree of protectionIP2110Dim......
Send Inquiry
Product Description
Characteristic:
Environmental requirements

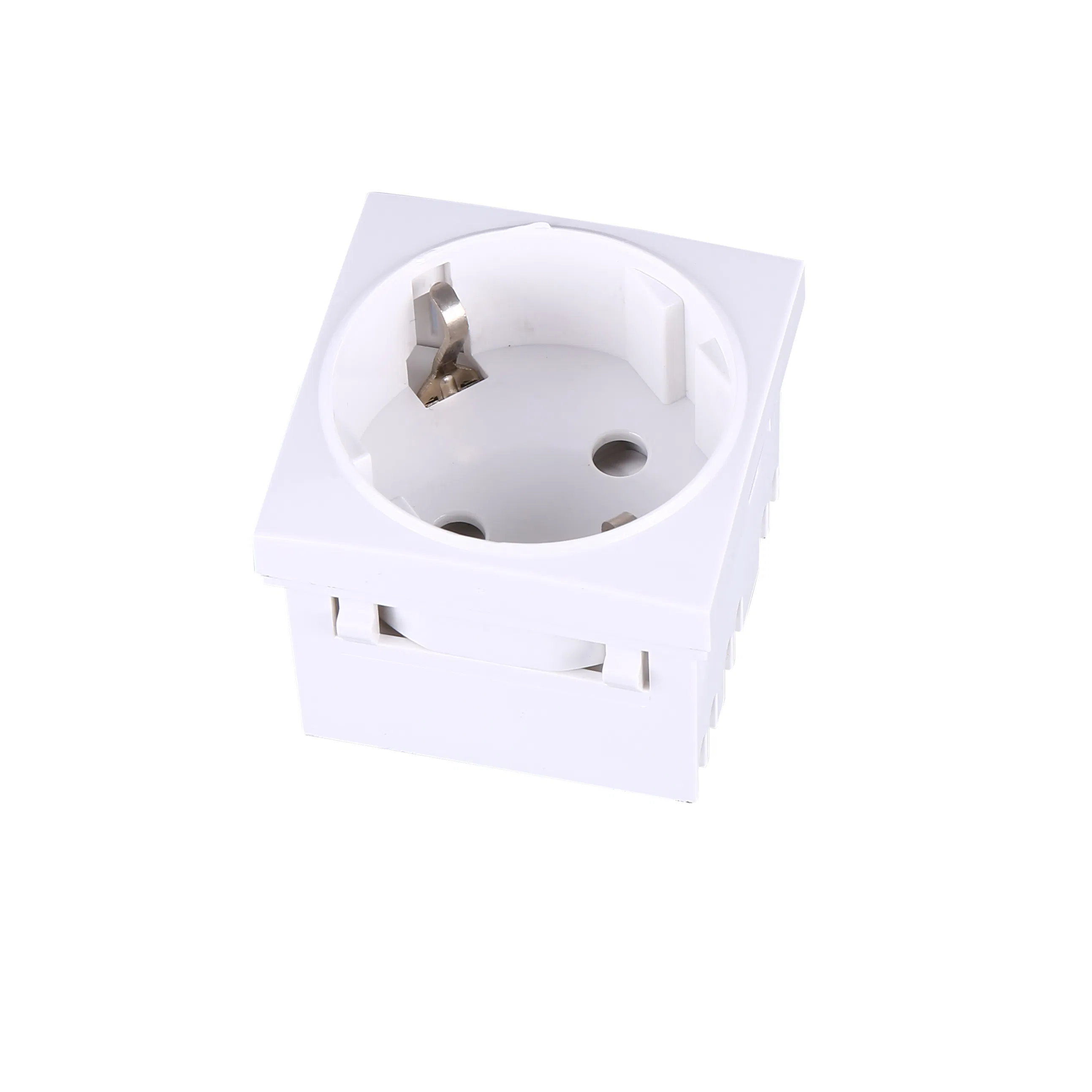

Product Show :
Application:
1.embedded into the wall
2.under table trunking
3.onset floor mini-column/tower socket
Feature:
Company introduction
This is Safewire Electrical by Feilifu which is 20+ year-experienced OEM manufacturer of Floor boxes & Sockets for most global brand in China, granted by ISO9001, ISO14001 and OHSAS18001 system with products certified by TUV, Germany.
| Serial No. | Parameter | Description |
| 1 | Panel Material | PC 94-V0 |
| 2 | Inside material | Tin phosphorous bronze |
| 3 | Surface finish | Glossy |
| 4 | Input voltage | 100~240v/AC 50~60Hz |
| 5 | Color | White /Black/Red |
| 6 | Number of terminals | 2 screw terminals |
| 7 | Outlet | French socket |
| 8 | IK degree of protection | IK04 |
| 9 | IP degree of protection | IP21 |
| 10 | Dimension of product | 45*45mm |
| 11 | With safety shutter | SAQB-45A |
| 12 | Without safety shutter | SA-QB-45B |
Environmental requirements
| Serial No. | Parameter | Description |
| 1 | Operating temperature | -10ºC~+40ºC;Operating |
| 2 | humidity | 20%~90% RH |
| 3 | Storage temperature | -20ºC~+85ºC;storage |
| 4 | humidity | 10%~95% RH |
| 5 | Resistance to pressure | ≥3Kv/AC 1min |
| 6 | Isolation resistance | 500v DC/100MΩ |

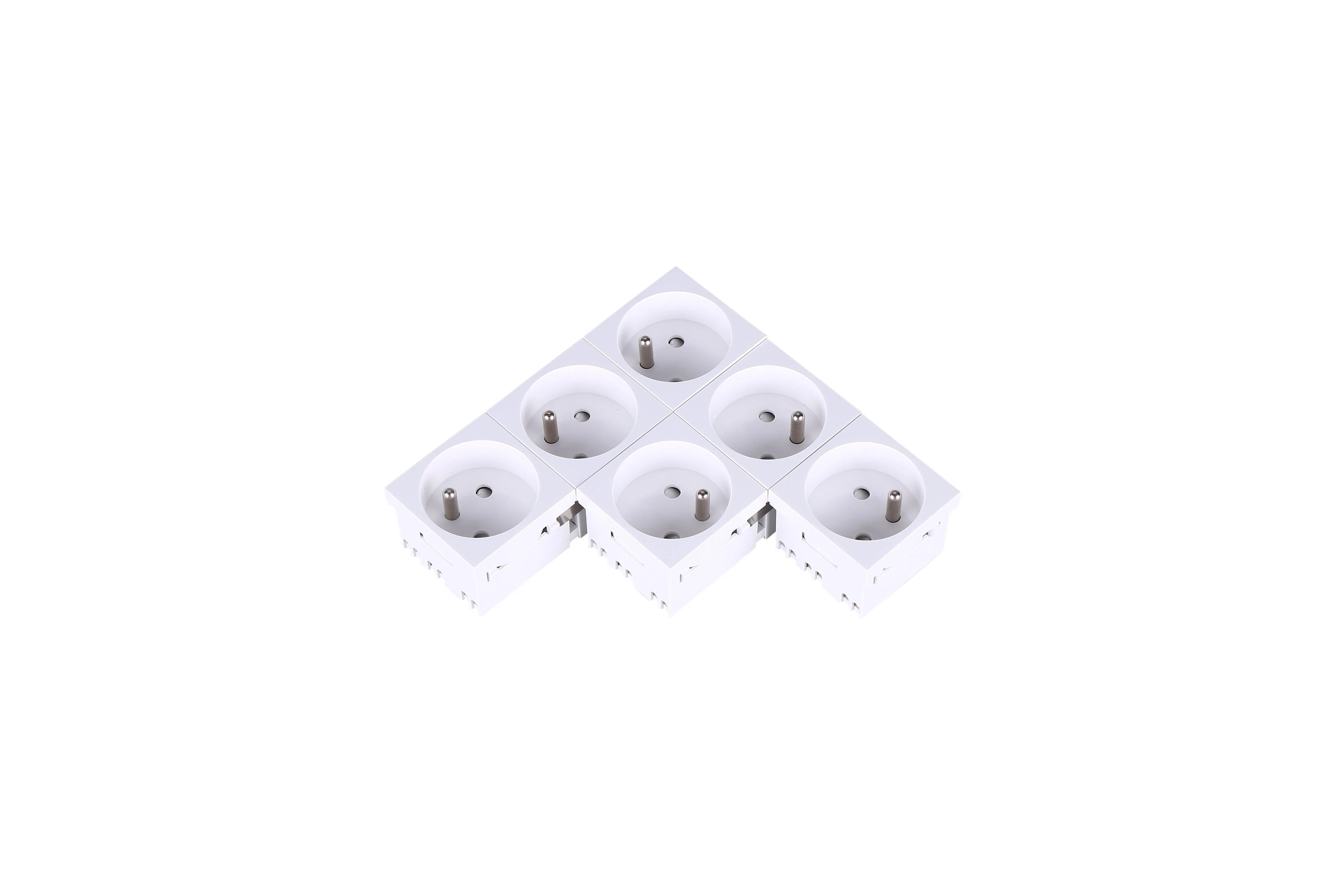

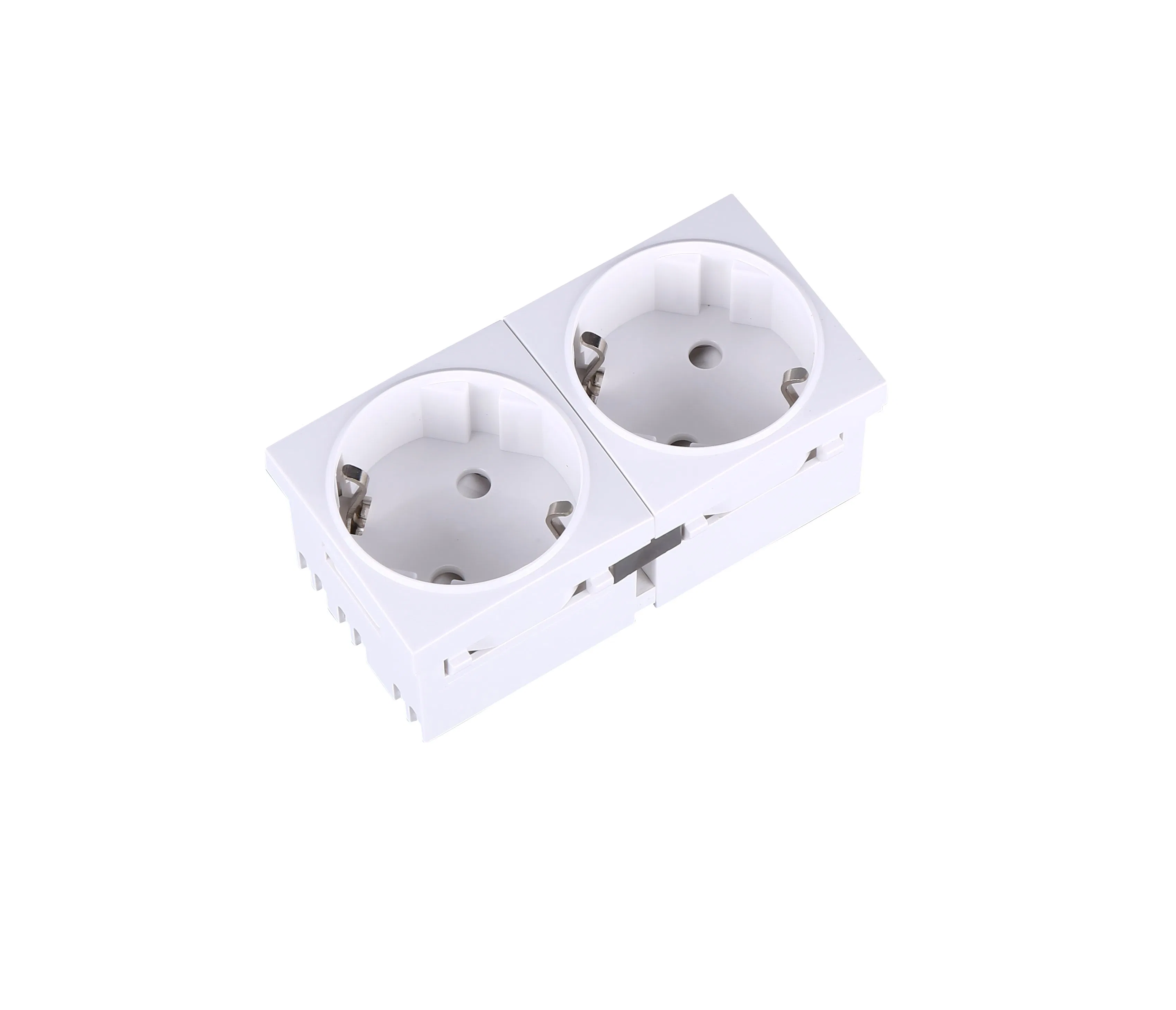

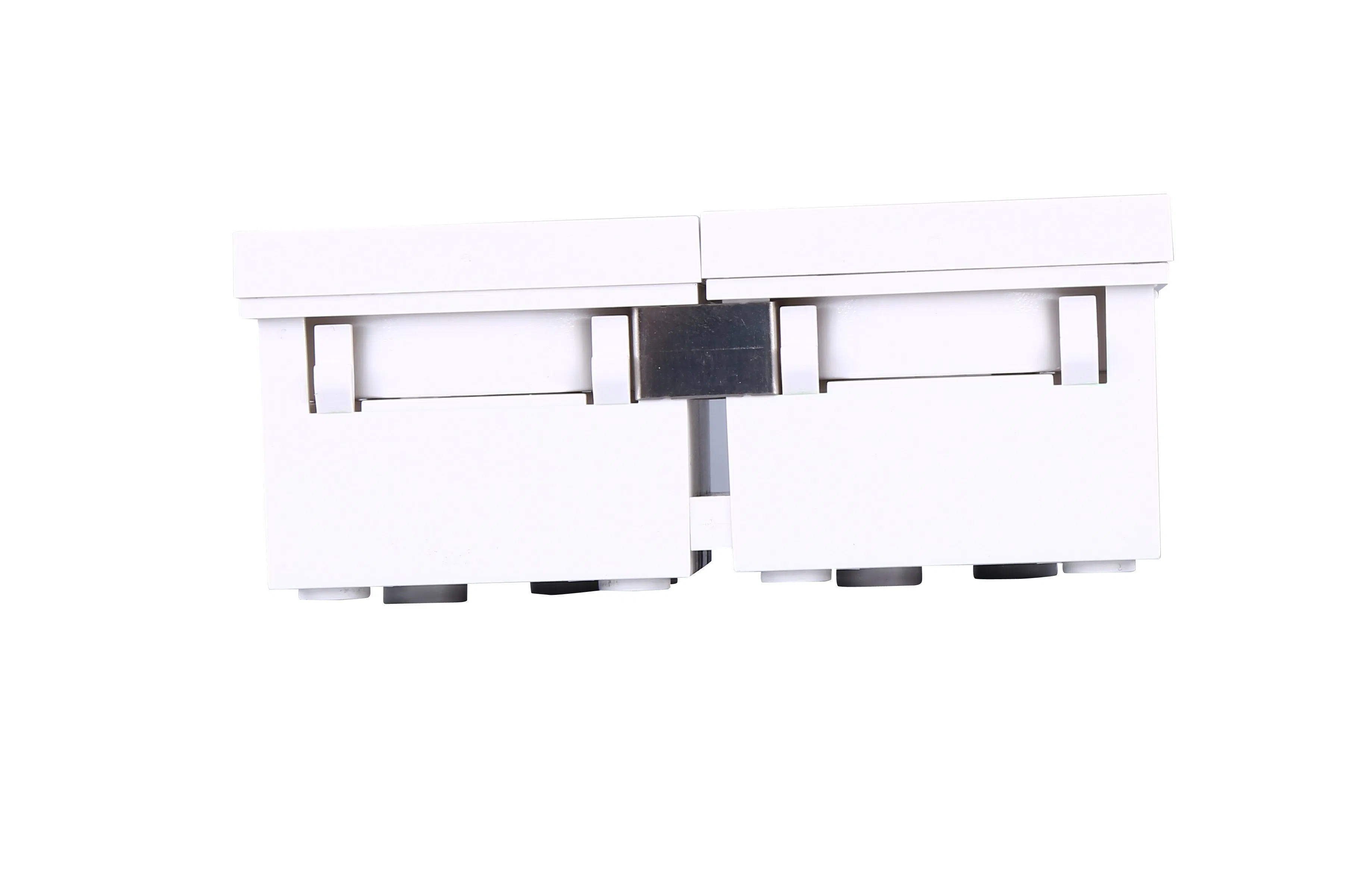

Product Show :
Application:
1.embedded into the wall
2.under table trunking
3.onset floor mini-column/tower socket
Feature:
- tooless installation

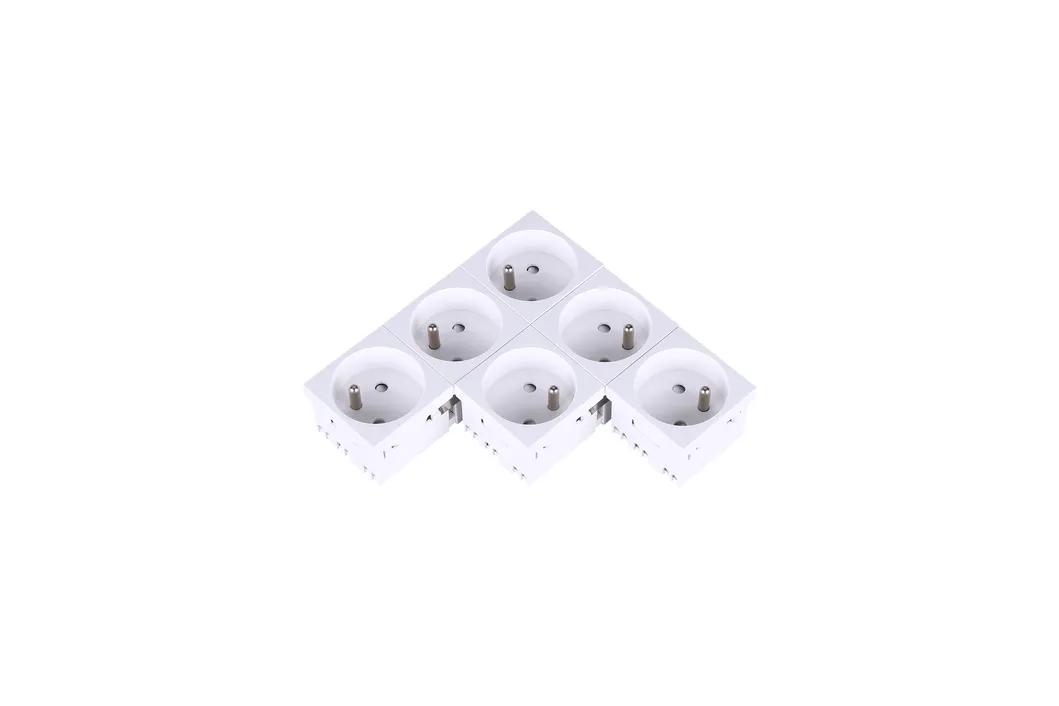

- Single,double,triple,multi-socket using the connection block
- With optional safety key
- With red,green,white finish for UPS,health sector or specific power supply.
RoHS Certificate of Compliance:Conforms with the Directive 2002/95/EC (ROHS) regarding to limitation of dangerous substances,in particular to clause 4 which forbids the use of substances.

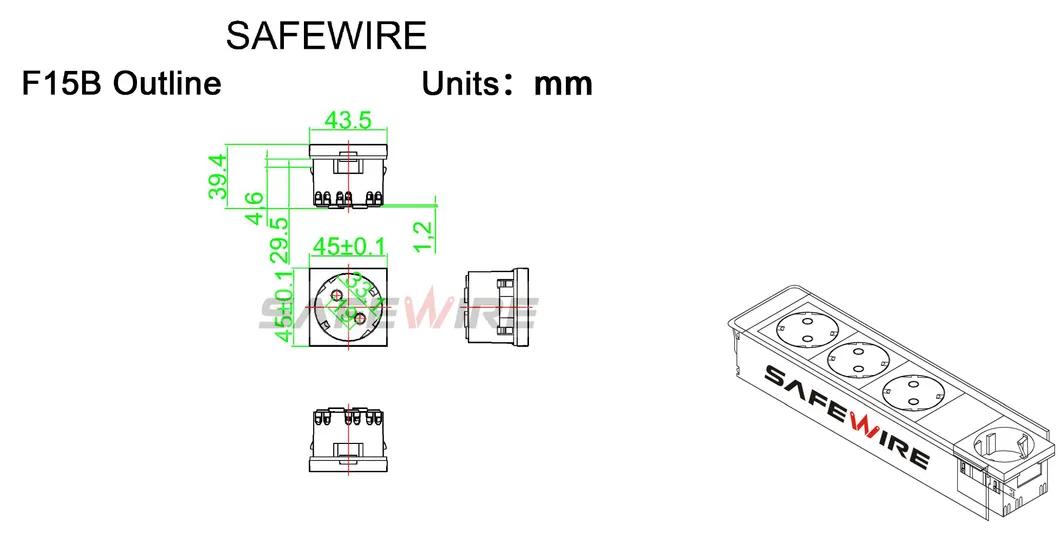

F15B Outline drawing
Installation Process
1.For indoor use only.
2.This product must be installed/wired by a qualified electrician.
Attentions:
1.Protect children from touch skirt of socket.
2.Ensure current and voltage as rating current/voltage .Do not overload
3.Prevent from corrosive liquid, gas (strong acid, strong alkali, paint)and humidity.

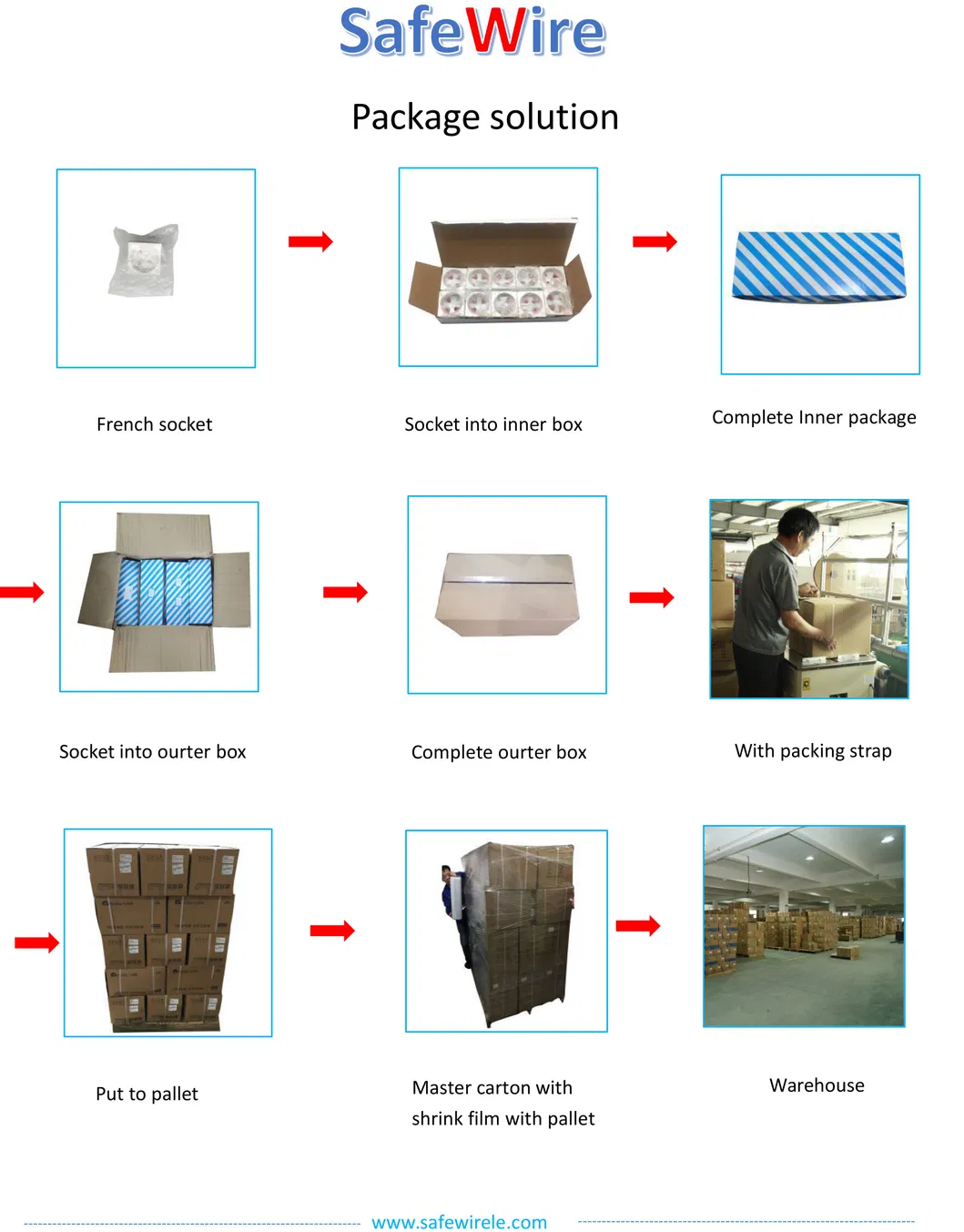

Package:10 Pcs connector 20pcsmetal hooks in poly bag with label. modules and parts is separate.F15B Outline drawing
Installation Process

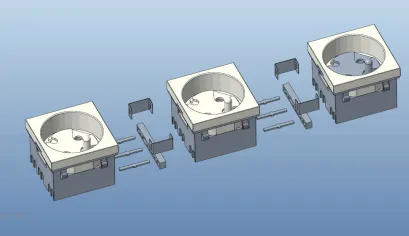

- Insert the connection block in the contacts of the socket
- Easy to install: Pre-assembled system product need only a screwdriver to have their cables connected and to fit them on the boxes-just a few seconds work for an incredible long-last installation.
1.For indoor use only.
2.This product must be installed/wired by a qualified electrician.
Attentions:
1.Protect children from touch skirt of socket.
2.Ensure current and voltage as rating current/voltage .Do not overload
3.Prevent from corrosive liquid, gas (strong acid, strong alkali, paint)and humidity.
Company introduction
This is Safewire Electrical by Feilifu which is 20+ year-experienced OEM manufacturer of Floor boxes & Sockets for most global brand in China, granted by ISO9001, ISO14001 and OHSAS18001 system with products certified by TUV, Germany.
