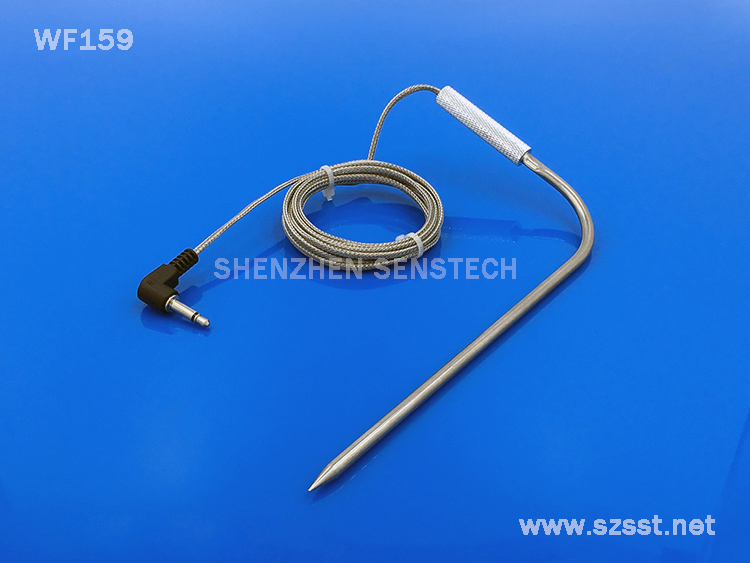

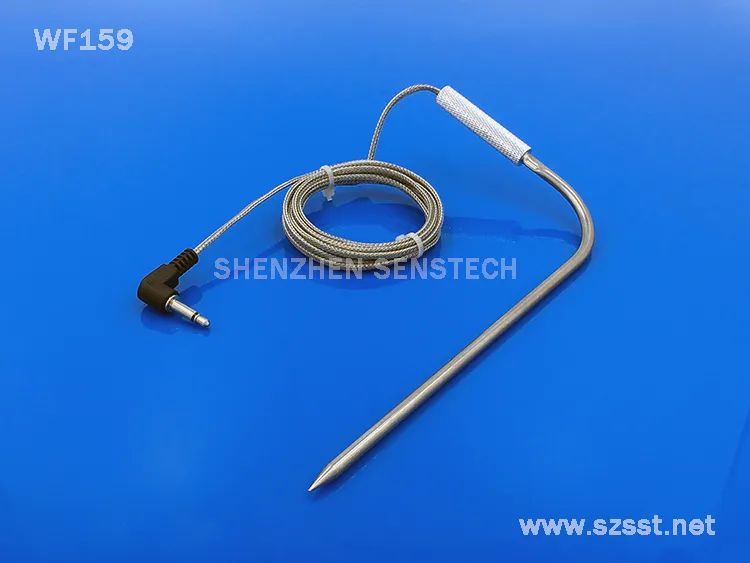

Stainless Probe with Handle 2.5mm Jack Grilling Temperature Probe
ALL PRUDCTS ARE CUSTOM-MADE AS PER REQUIREMENT, PLEASE FEEL FREE TO REQUEST. Stainless Probe with Handle 2.5mm Jack Grilling Temperature ProbeStainless Probe with Handle 2.5mm Jack Grilling Temperature ProbeSpecificationR25=100K±1% B=3950KMaterialStainless steel probe 304 Cable Length1mCa......
Send Inquiry
Product Description
ALL PRUDCTS ARE CUSTOM-MADE AS PER REQUIREMENT, PLEASE FEEL FREE TO REQUEST.
Stainless Probe with Handle 2.5mm Jack Grilling Temperature Probe
Stainless Probe with Handle 2.5mm Jack Grilling Temperature Probe Notes:
-1. Probe size can be customized: Φ3.8, Φ4.0, Φ4.2, Φ4.5, Φ5.0, etc.
-2.Cable length can be custom-made, 1.2m, 1.5m, 1.8m,2m;3m; etc.
-3.More plugs are available(both straight and bent, mono and stereo): 2.5mm, 3.5mm, 6.35mm, etc.
-4.Please contact us for more information !
Stainless Probe with Handle 2.5mm Jack Grilling Temperature Probe Description:
Stainless Probe with Handle 2.5mm Jack Grilling Temperature Probe is a food temperature inspection probe,
which is made from reliable NTC thermistor connected to high temperature resistance cable and encapsulated into food-grade
stainless steel shaft. It features a piercing tip and step down design for fast response. This probe is used to monitor
the internal temperature of turkey, sausage, steak, salmon, fish, mash tun, oil, chicken, beaf, etc. So as to be sure the
food is at the desired temperature.
Stainless Probe with Handle 2.5mm Jack Grilling Temperature Probe Tips:
To offer you the right sensor solution and accuracte price, please kindly advise your requirement about:
a. resistance @25ºC=____? B=____?
b. probe size, cable length ?
c. working environment & temperature range ?
d. connector model ?
MORE OPTIONS:
Welcome to contact us for more detail information and price!
MORE OPTIONS:
Stainless Probe with Handle 2.5mm Jack Grilling Temperature Probe
| Stainless Probe with Handle 2.5mm Jack Grilling Temperature Probe | |
| Specification | R25=100K±1% B=3950K |
| Material | Stainless steel probe 304 |
| Cable Length | 1m |
| Cable | Stainless steel braided cable |
| Working Temp. Range | -40ºC to +350ºC |
Stainless Probe with Handle 2.5mm Jack Grilling Temperature Probe Notes:
-1. Probe size can be customized: Φ3.8, Φ4.0, Φ4.2, Φ4.5, Φ5.0, etc.
-2.Cable length can be custom-made, 1.2m, 1.5m, 1.8m,2m;3m; etc.
-3.More plugs are available(both straight and bent, mono and stereo): 2.5mm, 3.5mm, 6.35mm, etc.
-4.Please contact us for more information !
Stainless Probe with Handle 2.5mm Jack Grilling Temperature Probe Description:
Stainless Probe with Handle 2.5mm Jack Grilling Temperature Probe is a food temperature inspection probe,
which is made from reliable NTC thermistor connected to high temperature resistance cable and encapsulated into food-grade
stainless steel shaft. It features a piercing tip and step down design for fast response. This probe is used to monitor
the internal temperature of turkey, sausage, steak, salmon, fish, mash tun, oil, chicken, beaf, etc. So as to be sure the
food is at the desired temperature.
Stainless Probe with Handle 2.5mm Jack Grilling Temperature Probe Tips:
To offer you the right sensor solution and accuracte price, please kindly advise your requirement about:
a. resistance @25ºC=____? B=____?
b. probe size, cable length ?
c. working environment & temperature range ?
d. connector model ?
MORE OPTIONS:
| Sensor | NTC thermistor, PT100, PT500, PT1000 |
| R25(25ºC) | 50KΩ, 98.63KΩ, 100KΩ, 200KΩ, 230KΩ, 1000KΩ |
| B value | 3950K, 3977K, 4066K, 4520K, 4537K, 4600K, 4608K, etc |
| Accuracy | ±1%, ±2%,±3% |
| Operating Temperature | -40ºC~350ºC |
| Probe | Φ3, Φ4, Φ5, Φ6, or customized |
| SS304 | |
| straight, bent | |
| Cable | Silicon, Teflon, Stainless steel braided |
| 1m, 2m, or customized | |
| Connector | Audio jack plug (2.5mm, 3.5mm, 6.35mm) |
| Audio jack plug(straight, bent) | |
| Others or to be advised |
Welcome to contact us for more detail information and price!
