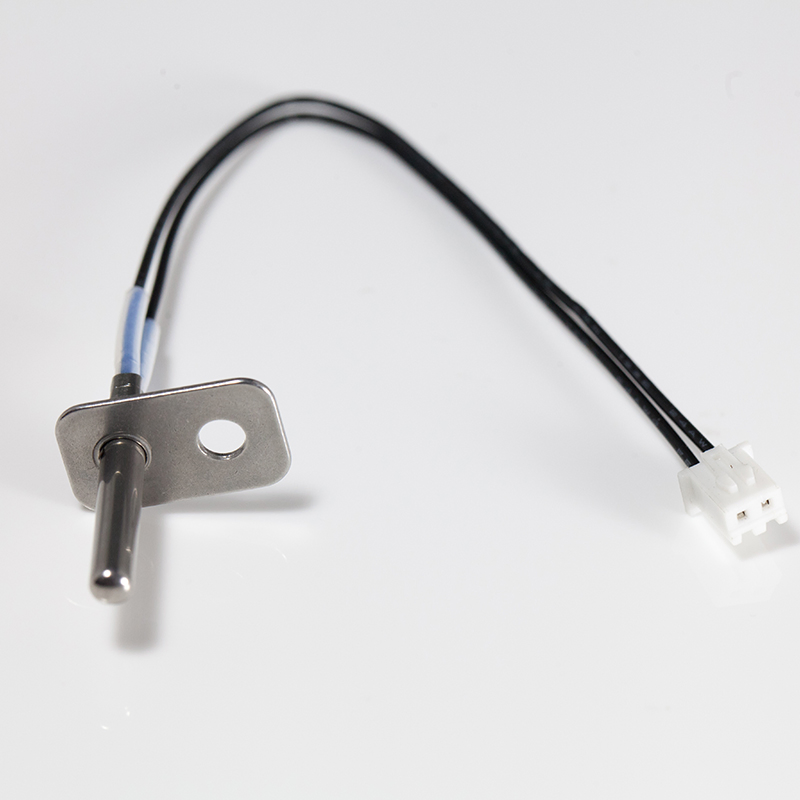

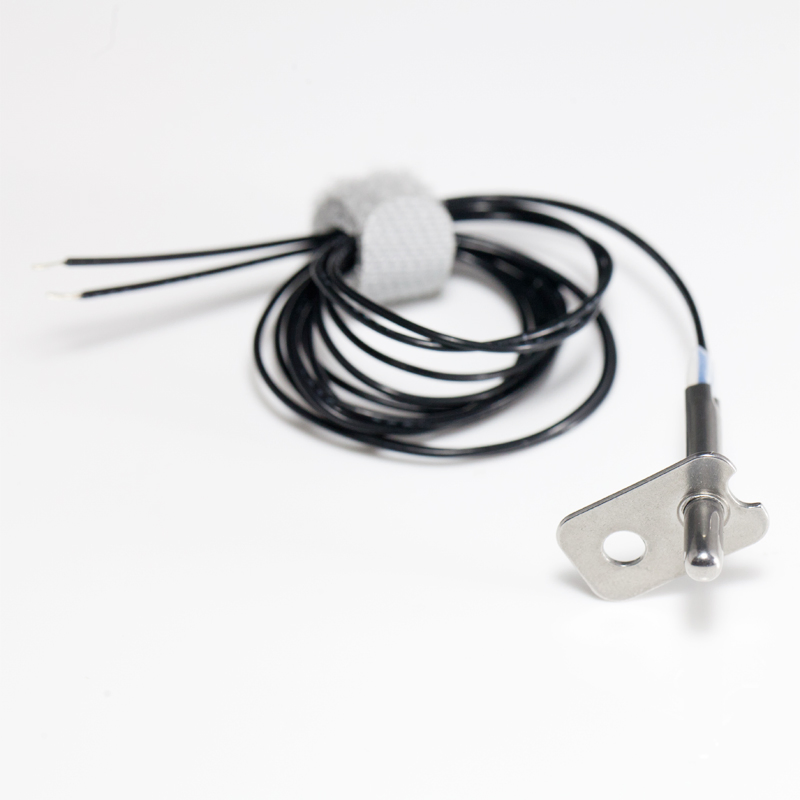

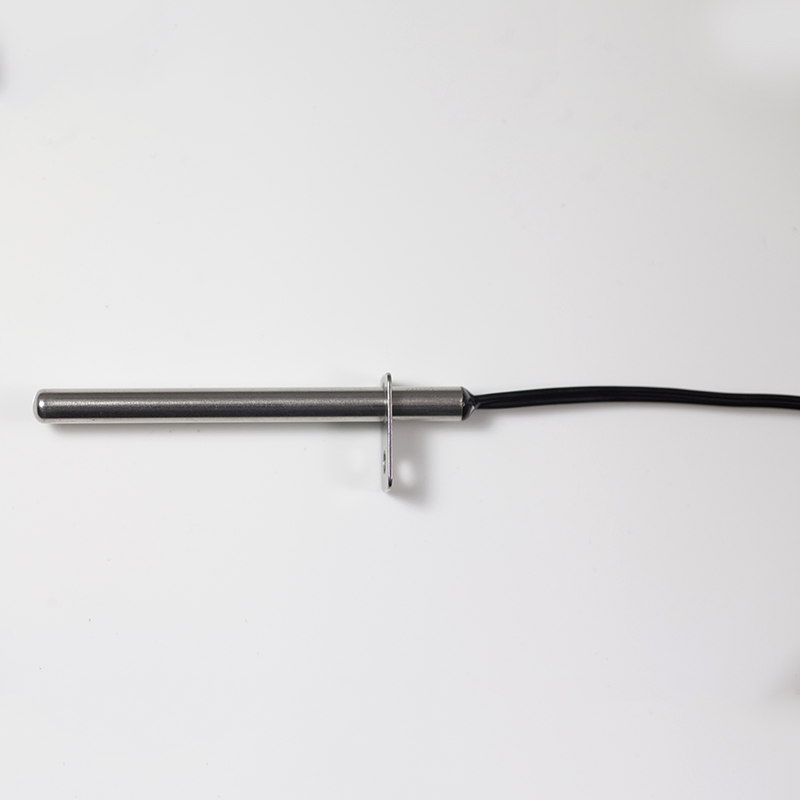

Ntc Duct Temperature Sensor 10K 3950 1% Tolerance

Product Description

MFT series temperature sensor using NTC thermistor as temperature sensing element. Products can be custom according to different temperature environent or application.

With our mature manufacturing technology, it can be made with a variety of specifications. Customers can use directly without fabricating.

Regular resistance value, 1K, 5K, 10K, 50K, 100K, 150K, 200K, etc.

Regular B value, 3435K, 3470K, 3950K, etc.

Ntc Duct Temperature Sensor 10K 3950 1% Tolerance

Typical Applications	Features
• Ice maker machine	• SUS, copper, plastic housings reach to food grade.
• Refrigerator	• Fast response, high accuracy.
• Heat pump	• High stability and interchange capability.
• Water heater
• Floor heating system
• Air conditioner

Technical Data

Item	Specification
Sensing element	NTC thermistor (R and B value can be customized on request )
Temperature range	-40 ~ +200 ºC (Can be customized on request)
Time constant	≤ 60 sec. (in air)
Dissipation factor	Approx. 6 mW/ºC (in air)
Long-term stability	Drift ≤ 3% after 1000h heat or cold store (80 ºC/ -30 ºC)
Housing material	SUS/ Copper/ Plastic/ TPE/ Epoxy resin
Wire	24AWG/ 26AWG/ Double line wire/ Silicon round jacket/ PTFE/ Fiberglass
Regular R value	1K, 5K, 10K, 50K, 100K, 150K, 200K, etc.
Regular B value	3435K, 3470K, 3950K, etc.

About us

Focusens are Chinese Sensor Expert that have more than 15 years manufacturing experience. We are committed to provide high quality thermal Components NTC thermistors, PTC thermistors, NTC sensors, PT100 PT1000 RTD sensors ,thermocouples, silicon liner PTC sensors as well as digital sensors.

Our activities covers all over the world. Key players like Bosch, Schneider Samsung as well as Chinese manufacturers like Galanz, Medtronic, Mindray, BYD etc. are among our clients list.

Flexible custom design and prompt delivery are our always advantages. Meanwhile we accept OEM on customers design.
Contact us now for details and improve projects efficiency with our expertise!

Ntc Duct Temperature Sensor 10K 3950 1% Tolerance

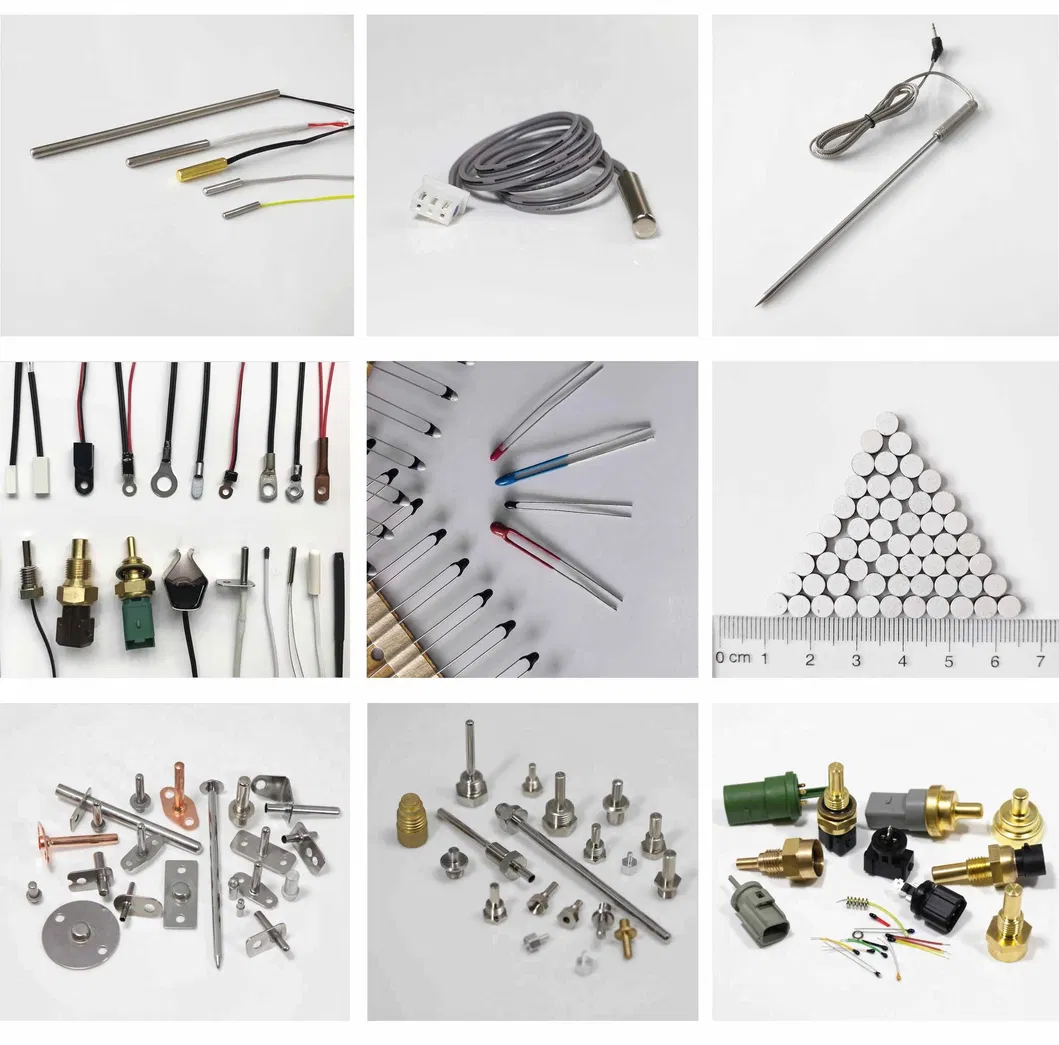

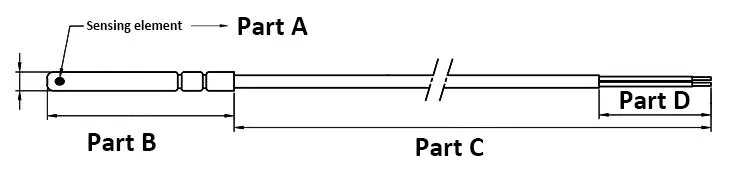

All parameters can be customized. Please see below information for your reference, tell us your detailed requirements.

Part A: Sensing Elements

Item	Specification
Thermistor	NTC, PTC
RTD series	PT10, PT20, PT100, PT200, PT500, PT1000
Digital series	DS18B20, STS35, TMP117 etc.
Analog series	LM35

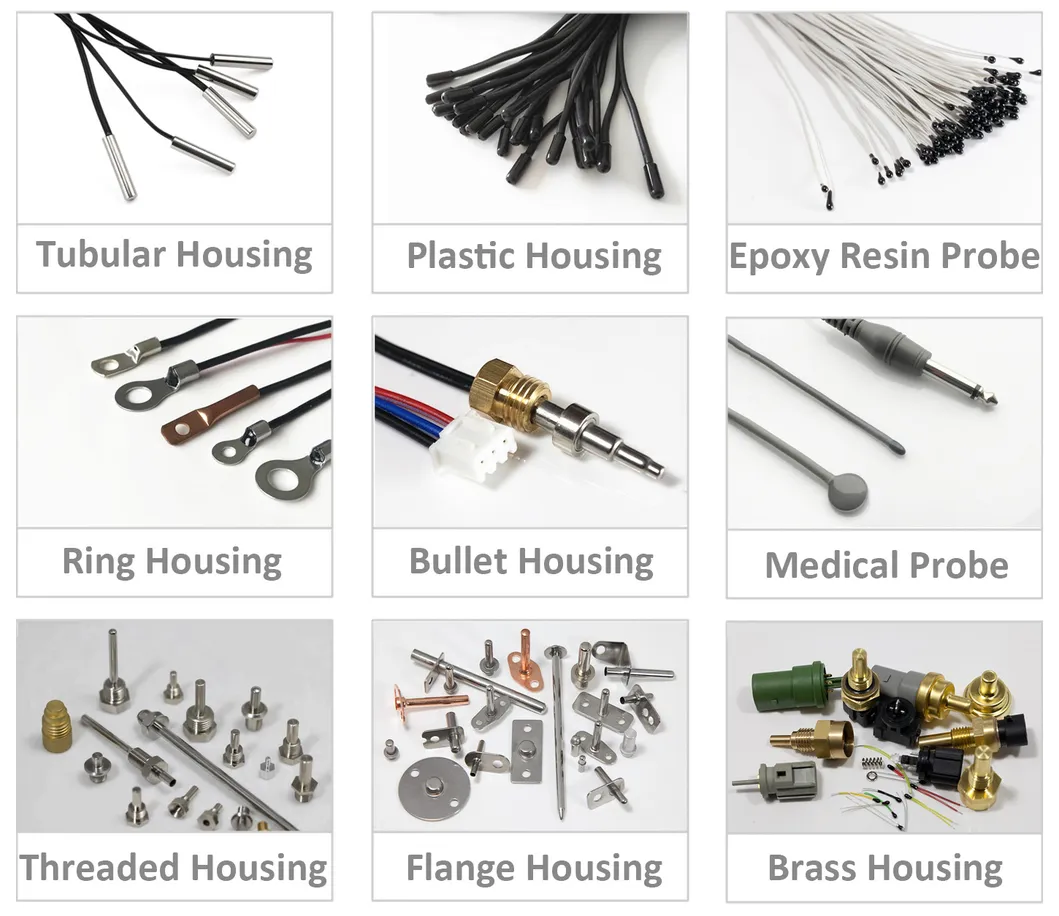

Part B: Housings

Ntc Duct Temperature Sensor 10K 3950 1% Tolerance

Part C: Wires

Item	Specification
AWG	18, 20, 22, 24, 28 etc.
Material	PVC, Teflon, Silicone, Fiberglass
Outer diameter	2.5mm, 3.0mm, 3.2mm, 4.0mm, 5.0mm, 6.0mm

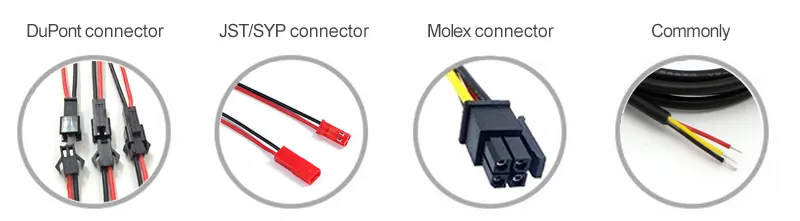

Part D: Connectors

What Focusens can provide you:

1. Stable supply capacity. With near 10 years manufacturing experience, over 7 years export experience, Focusens promise you a guaranteed quality, quantity and lead time.

2. Quick products iteration. Focusens possesses multiple production lines, therefore whatever your requirements are, a quickly respond can be provided.

3. Efficient service. Your request will be responded no more than 12 hours.

Ntc Duct Temperature Sensor 10K 3950 1% Tolerance

1. How can I get samples?
Discuss to one of our sales, tell him or her your requirements. After confirmed details, we will arrange samples production. Customer need to pay for shipping cost. (Check with sales whether your samples can be free)

2. When can I receive samples?
Normally it takes 15-30 days to produce samples.

3. How to pay?

We accept Telegraphic Transfer and Trade Assurance. Negotiate with sales if you have questions.

4. Do you accept customized?
Yes, we accept ODM&OEM. Products can be customised upon customer's requirements.

5. How long is your lead time?
Generally, 2-3 weeks for regular products. Sometimes, it needs more time to prepare materials and do more tests to ensure products' accuracy.
