    Hall Effect Sensor ( AH4158 ) , Sensor, Magnetic Sensor, Hall Switch, BLDC Motor Detection, Position Sensor

    Features Rated working voltage 4.5 V ~ 24 V, the limit voltages as low as 3.5 V;Operating temperature range: -55ºC ~ 150ºC; Rated output current (sink) : 300 mA, it can directy drive the coils of DC motor (Fan ).Special design make the sensor owns imunity to logic race conditi......

    Send Inquiry

    Product Description

    • Features
          Rated working voltage 4.5 V ~ 24 V, the limit voltages as low as 3.5 V;
    • Operating temperature range: -55ºC ~ 150ºC;
    •  Rated output current (sink) : 300 mA, it can directy drive the coils of DC motor (Fan ).
    • Special design make the sensor owns imunity to logic race condition, short switch time and good switch sensitivity.
    • No mechanical contact, no spark, switch signal stability, no shaking moment, high reliability and safety;
    • Products meet the EU RoHS instruction 2011/65 / EU and REACH regulations 1907/2006 / EU requirements
    .AH4158 unipolar two ends complementary output switch type Hall Sensor, when the "S" pole faces the sensor's mark surface and is closed to sensor (B≥Bop),output terminal VO1 outputs low level, and the output terminal VO2 outputs high level; when the magnet is far away from the sensor (B≤Brp),output terminal VO1 outputs high level, the output terminal VO2 output low level. Stable hysteresis (Bh= Bop- Brp) ensures stable switch status, The magnetic and electric transfer characteristic curve of AH4158 is shown as the figure:

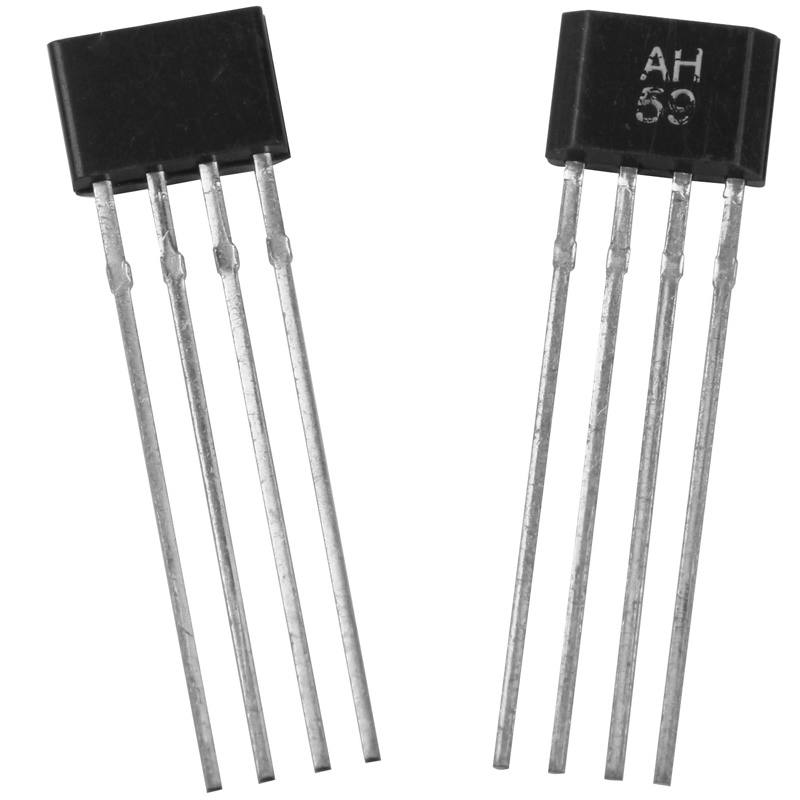

    AH4158 Hall Sensor is a kind of unipolar field excitation two ends complementary output switch type Hall IC. Complementary output Hall sensor is particularly suitable for double coil DC motor, double coil DC fan, speed measurement and rotation control. The sensor chip intergrated bandgap reference voltage source, Hall voltage generator, signal amplifier, hysteresis controller, reverse voltage protection diode, and two way complementary output open collector output driver which sink current reaches 300mA and so on circuit unit. Excellent bandgap reference voltage source ensures the sensor can keep concordant sensitivity in a wide temperature range. Reverse voltage protection diode can avoid reverse power failure.
    Limit Parameter
    ParameterSymbolMin.Max.Unit
    Storage Temp.Ts-55150ºC
    Supply VoltageVCC3.528V
    Output Cut-off VoltageVO(off)-25V
    Magnetic InductionBunlimitedunlimitedmT
    Output CurrentIO-500mA


    • Electrostatic Grade
    Under human being mode, the Electrostatic compression is large than ±6kV.



    • Operating Condition
    ParameterSymbolMin.Max.Unit
    Supply VoltageVCC4.524V
    Operating Temp.Ta-2585ºC
    Output CurrentIO-300mA

    • Electrical Characteristc
    ParamaterSymbolTest ConditionTyp.MaxUnit
    Output Low LevelVOLVCC1=4.5, VCC2=24V, IO=25mA,B≥BOP0.20.4V
    Output High LevelVOHVCC1=4.5, VCC2=24V, IO=25mA,B≤BRP23.524V
    Output Leakage CurrentIOHVCC2=24V,VCC1 open circuit0.110μA
    Supply CurrentICCVCC1=24V,Vo open circuit612mA
    Output Rise Edge TimetRVCC1=VCC2=12V,
    RL=1.2kΩ,    CL=20pF    		125150ns
    Output Fall Edge TimetF6080ns


    Magnetic Characteristic
    Test condition:VCC1 = VCC2 =24V,IO = 50mA
    Parameter SymbolMin.Typ.Max.
    Operate PointBOP-1020
    Release PointBRP35-
    Hysteresis
    ∣Operate point-Release point∣    		BH
    ∣BOP-BRP∣    		3-16


    Note 1: Unit is mT, 1mT=10Gs
    Note2:  When the "S" Pole of the magnetic field is vertical to the front mark of product, we call the magnetic field B>0.
      Hall Effect Sensor (AH4158) , Sensor, Magnetic Sensor, Hall Switch, BLDC Motor Detection, Position SensorHall Effect Sensor (AH4158) , Sensor, Magnetic Sensor, Hall Switch, BLDC Motor Detection, Position SensorHall Effect Sensor (AH4158) , Sensor, Magnetic Sensor, Hall Switch, BLDC Motor Detection, Position SensorHall Effect Sensor (AH4158) , Sensor, Magnetic Sensor, Hall Switch, BLDC Motor Detection, Position Sensor
