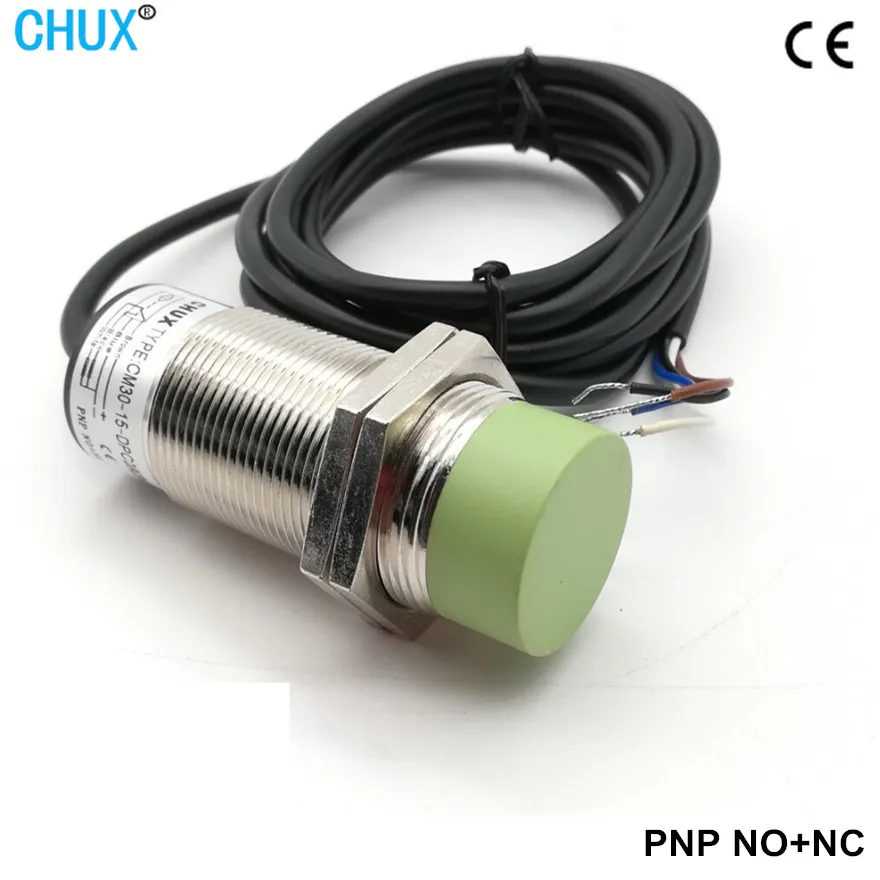

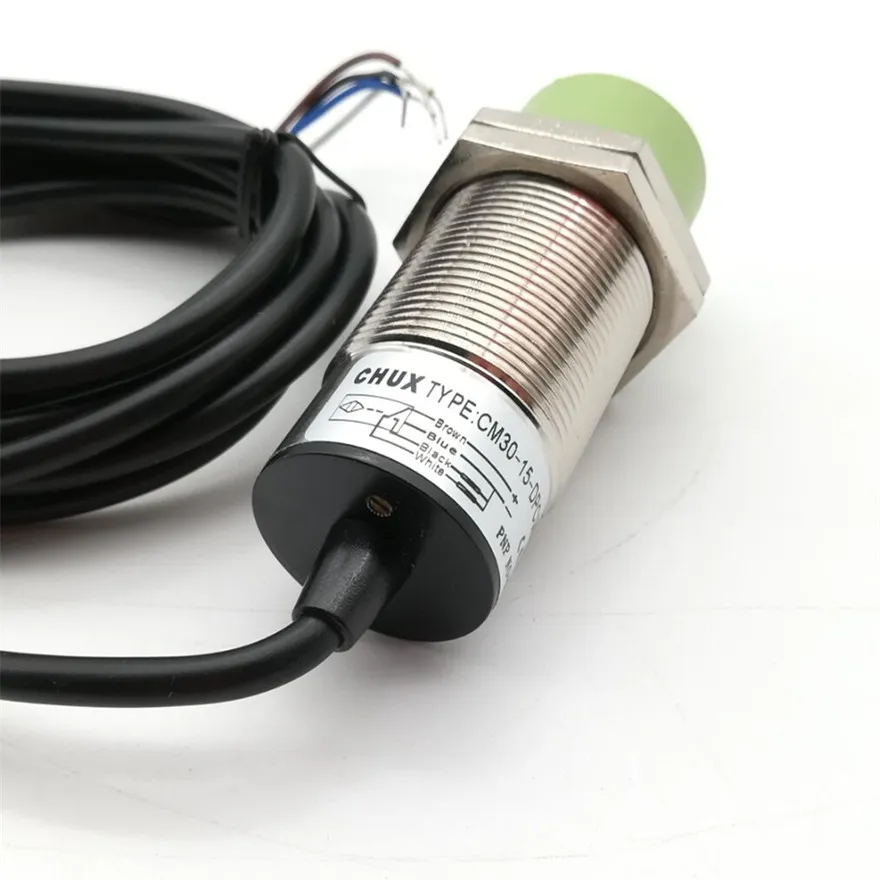

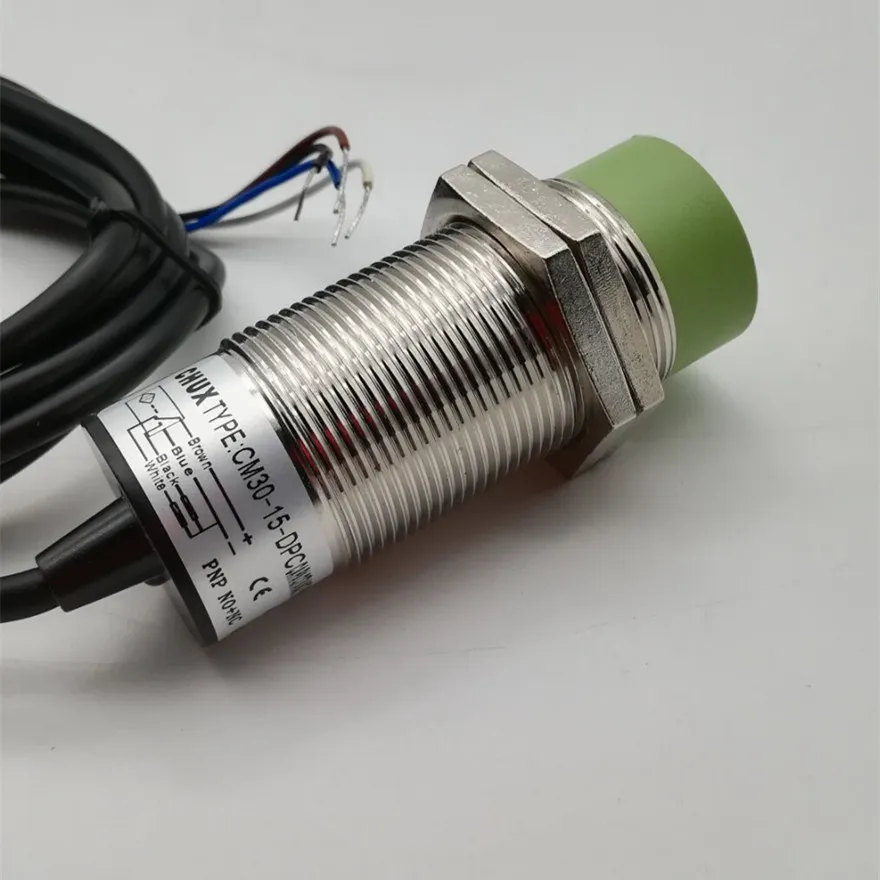

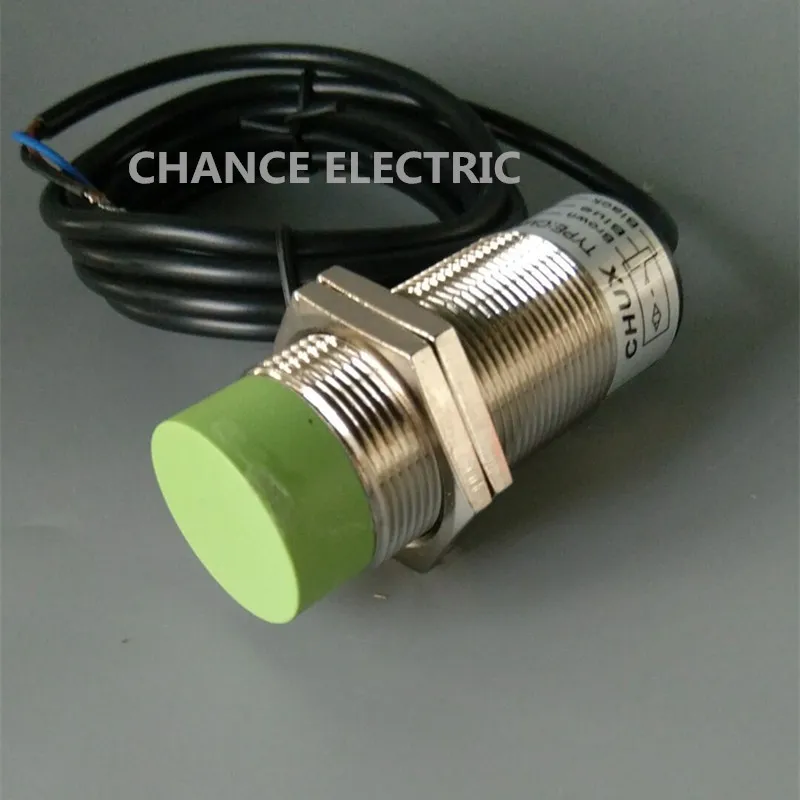

M30 Cylinder No+Nc 15mm Count Bottles Capacitance Proximity Sensor Switch PNP
M30 Cylinder No+Nc 15mm Count Bottles Capacitance Proximity Sensor Switch PNP 1 : About CHUX sensor2: Details Parameters Main features:Compact volumeHigh precision of repeated locationDiversified exterior structuresGood performance of anti-interference.Many output formsHigh on-off frequency.Wide vol......
Send Inquiry
Product Description
M30 Cylinder No+Nc 15mm Count Bottles Capacitance Proximity Sensor Switch PNP
1 : About CHUX sensor
2: Details Parameters
Main features:
Compact volume
High precision of repeated location
Diversified exterior structures
Good performance of anti-interference.
Many output forms
High on-off frequency.
Wide voltage range
Dust proof, vibration proof, water proof and oil proof.
With short-circuit protection and inverted connecting protection.
Long service life
Parameter Data
3: Sensor wiring diagram
4: Products advantage
5: Produce And Packing
5: About CHUX
1 : About CHUX sensor
2: Details Parameters
Main features:
Compact volume
High precision of repeated location
Diversified exterior structures
Good performance of anti-interference.
Many output forms
High on-off frequency.
Wide voltage range
Dust proof, vibration proof, water proof and oil proof.
With short-circuit protection and inverted connecting protection.
Long service life
Parameter Data
| Model | CM30-15-DPC |

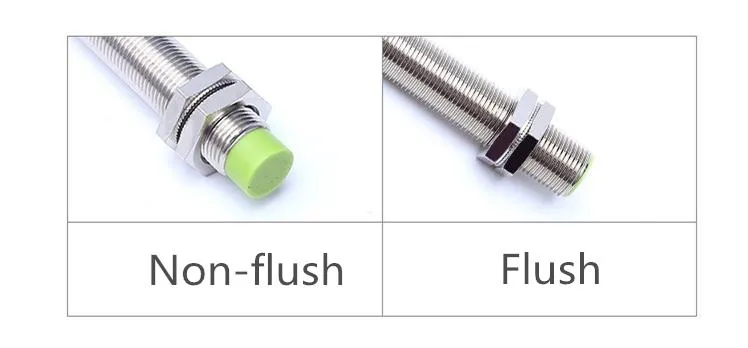

| Mounting | non-Flushed |
| Sensing distance | 15mm |
| Supply voltage | 10-30VDC |
| Output | PNP NO+NC |
| Wires | 4 wires |
| Load current | <200mA |
| Voltage drop | <2.5V |
| Current consumption | <15mA |
| Repeated accuracy | <3% |
| Frequency | 50Hz |
| Output display | LED lighting |
| Polarity protection | Yes |
| Short-circuit protection | Yes |
| Ambient temperature | -25~+75C |
| Protection degree | IP54 |
| Housing material | copper alloy |
| Connection | 2m PVC Cable |
| Certification | CE, |

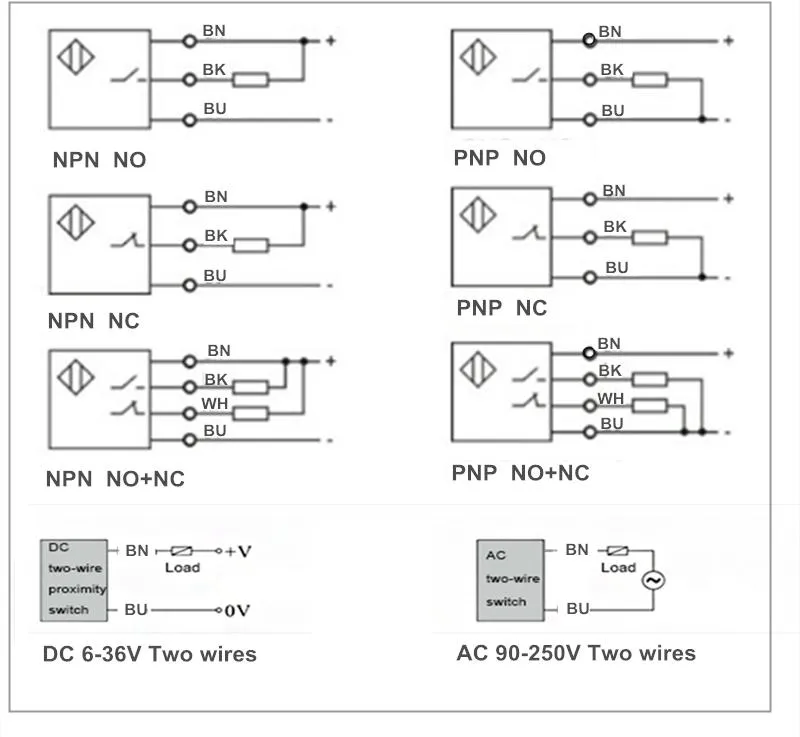

3: Sensor wiring diagram

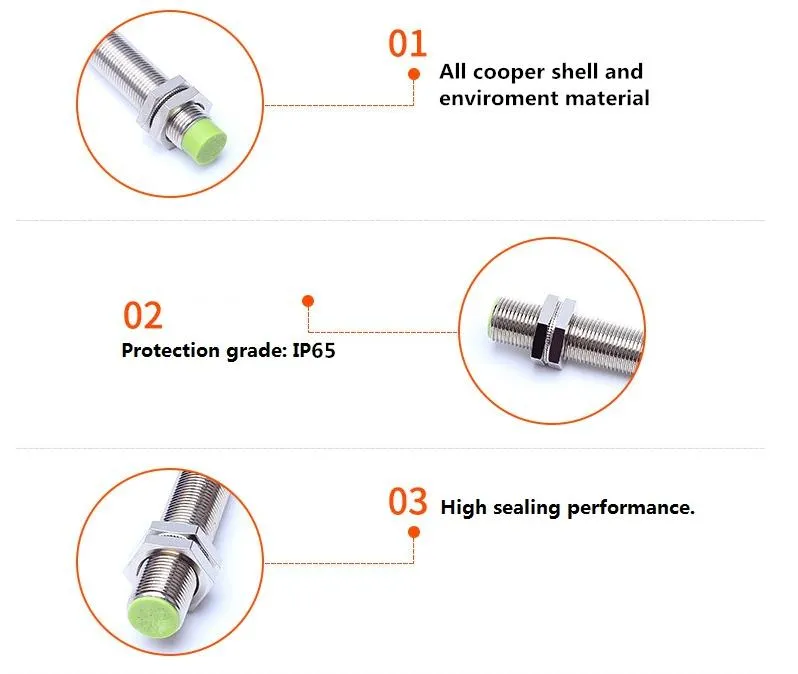

4: Products advantage

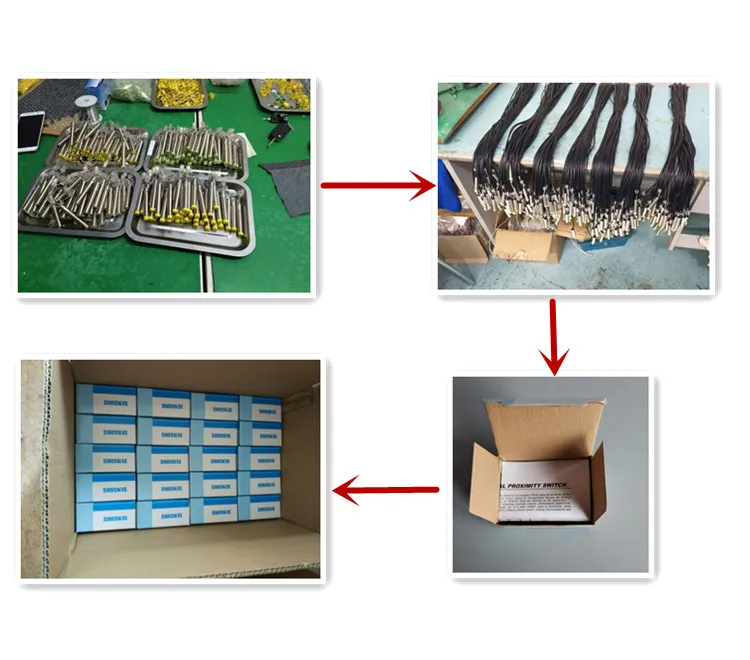

5: Produce And Packing
5: About CHUX
