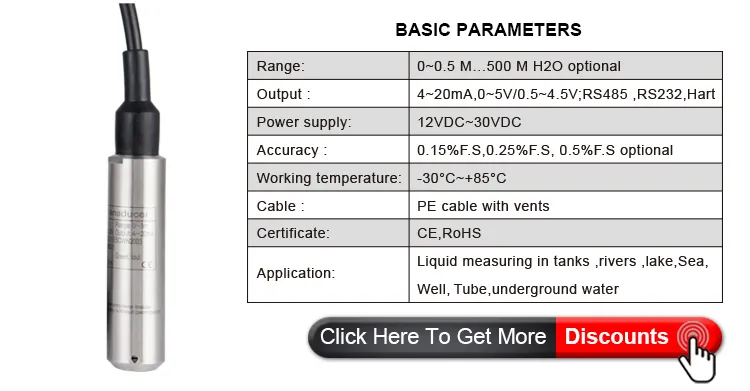

Exia Iict6 and Ce FCC Certificate Submersible Pressure Level Sensor
Holykell Rs485 4-20Ma 0-5V 0-10V Submersible Pressure Level Sensor Product DescriptionHPT604 is a sewage water level sensor probe suitable for liquid level and depth measurement. It consists of an imported MEAS......
Send Inquiry
Product Description
Holykell Rs485 4-20Ma 0-5V 0-10V Submersible Pressure Level Sensor

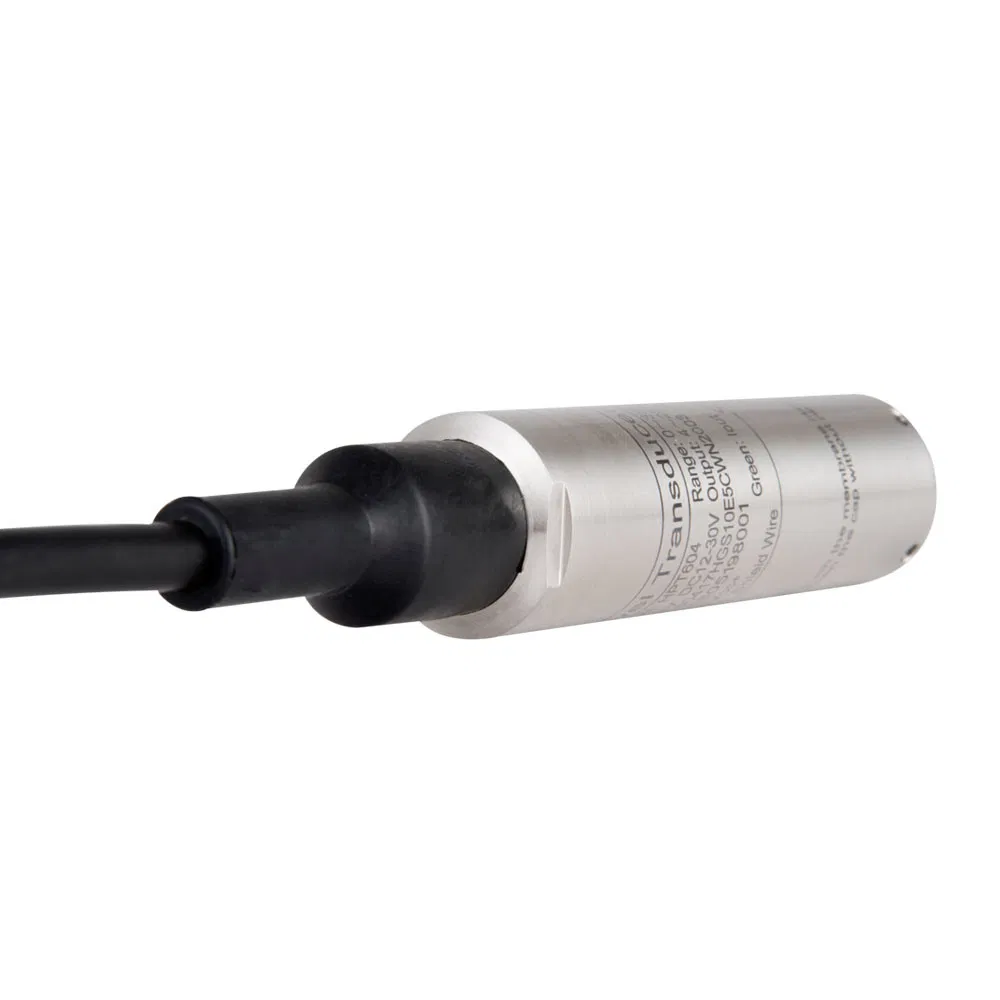

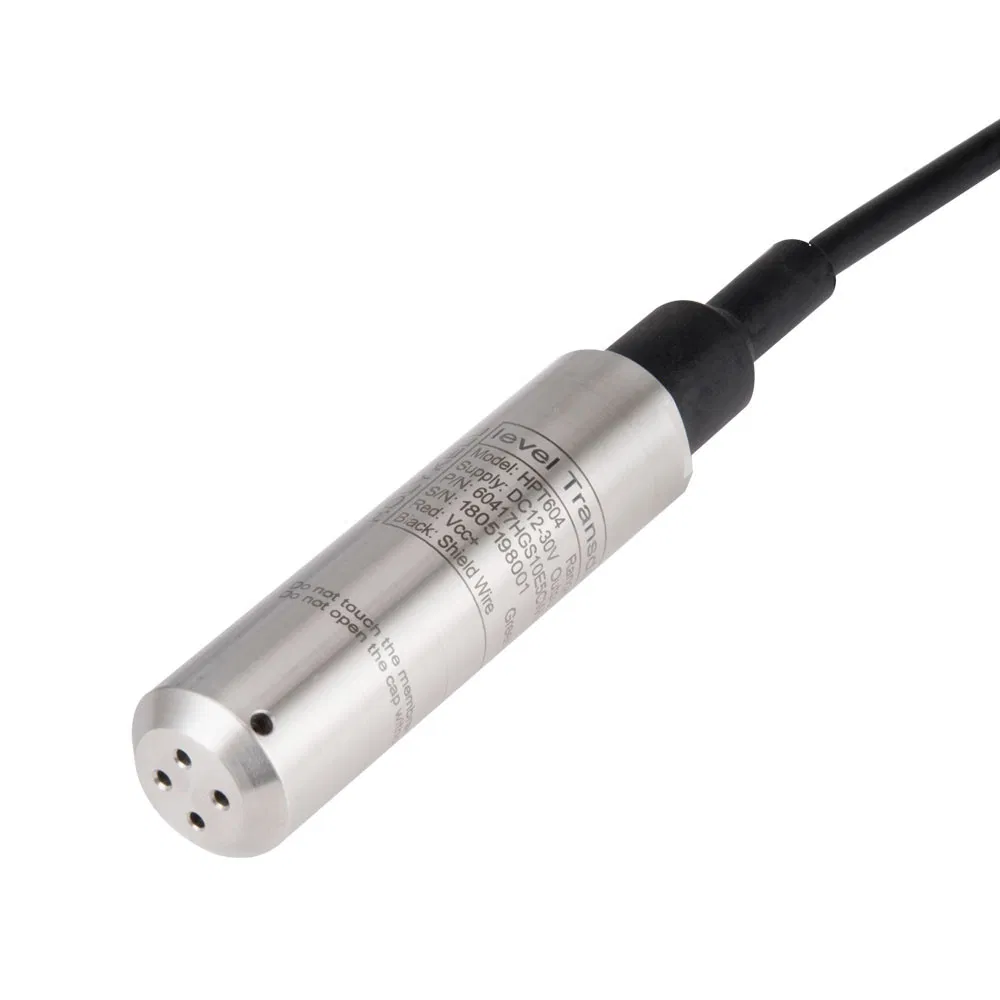

HPT604 is a sewage water level sensor probe suitable for liquid level and depth measurement. It consists of an imported MEAS TE piezoresistive sensing element encased in 316 SS housing. And adopt the military printed-circuit board and wiring, with good electromagnetic compatibility;Anti-interference is enhanced by 300%, the stability is over 10 years.
You will benefit from Our HPT604 wastewater water level sensor ?
Advantage | Benefit |

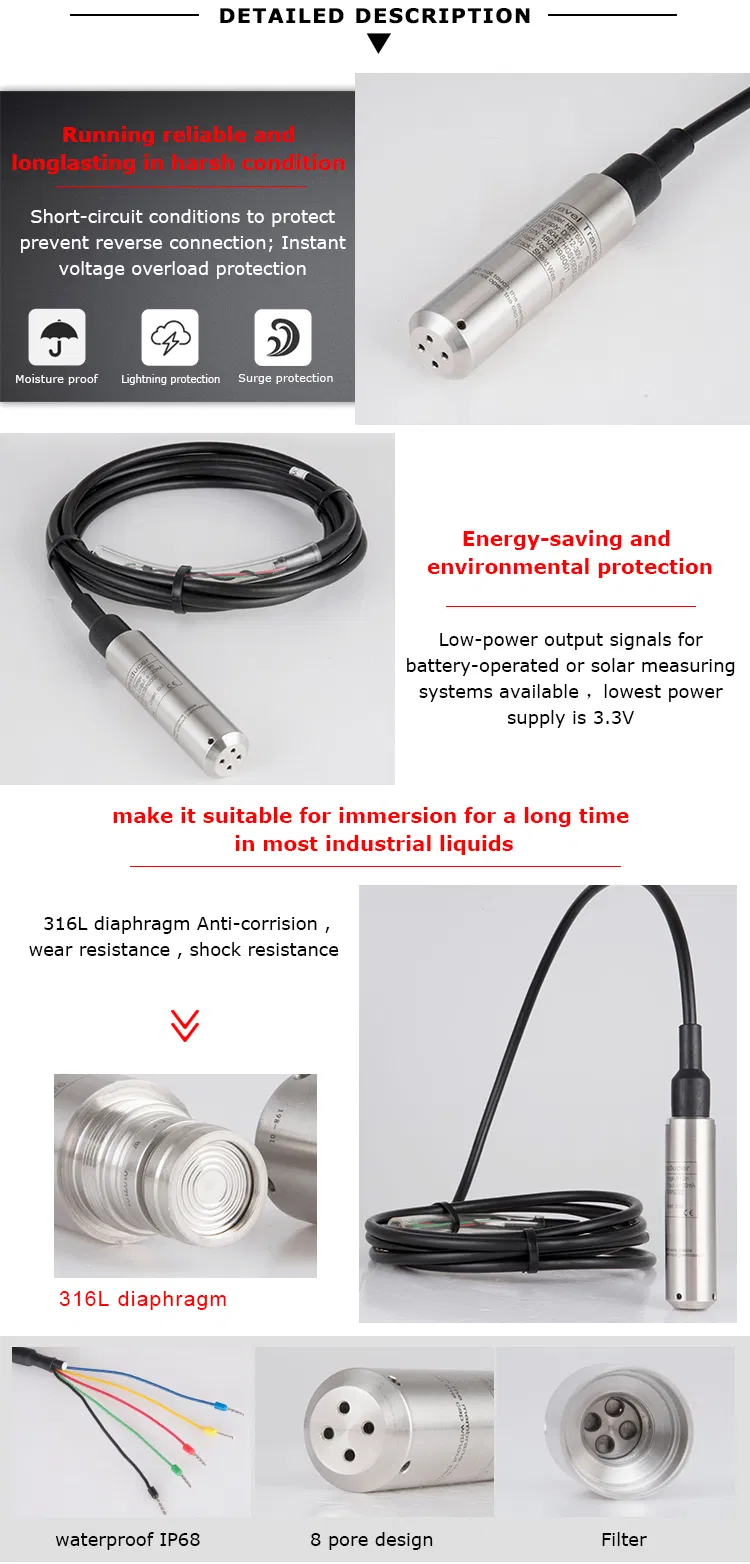

short-circuit conditions to protect prevent reverse connection; Instant voltage overload protection | running reliable and longlasting in harsh condition |
breath atmospher and protect moisture enter transducer | without maintenance, even in the most humid environments. |
High accuracy 0.25%,Small temperature drift,automatically compensates for changes in barometric pressure | Stability,keep sensor running longer by reducing downtime and maintenance costs |
Low-power output signals for battery-operated or solar measuring systems available ,lowest power supply is 3.3V | energy-saving and environmental protection |
Anti-corrision ,wear resistance , shock resistance | make it suitable for immersion for a long time in most industrial liquids |
8 pore design Anti-blocking Prevent plugging rate increases more than 80% | Simple maintenance ,easy to cleaning and installation |
1. 5-10 years design life, the lifelong maintenance; Import diffusion silicon core body, ≤1 ms response time; Its service life is 2-3 times of similar products.
2. Adopt the military printed-circuit board and wiring, with good electromagnetic compatibility;
Anti-interference is enhanced by 300%, the stability is over 10 years.

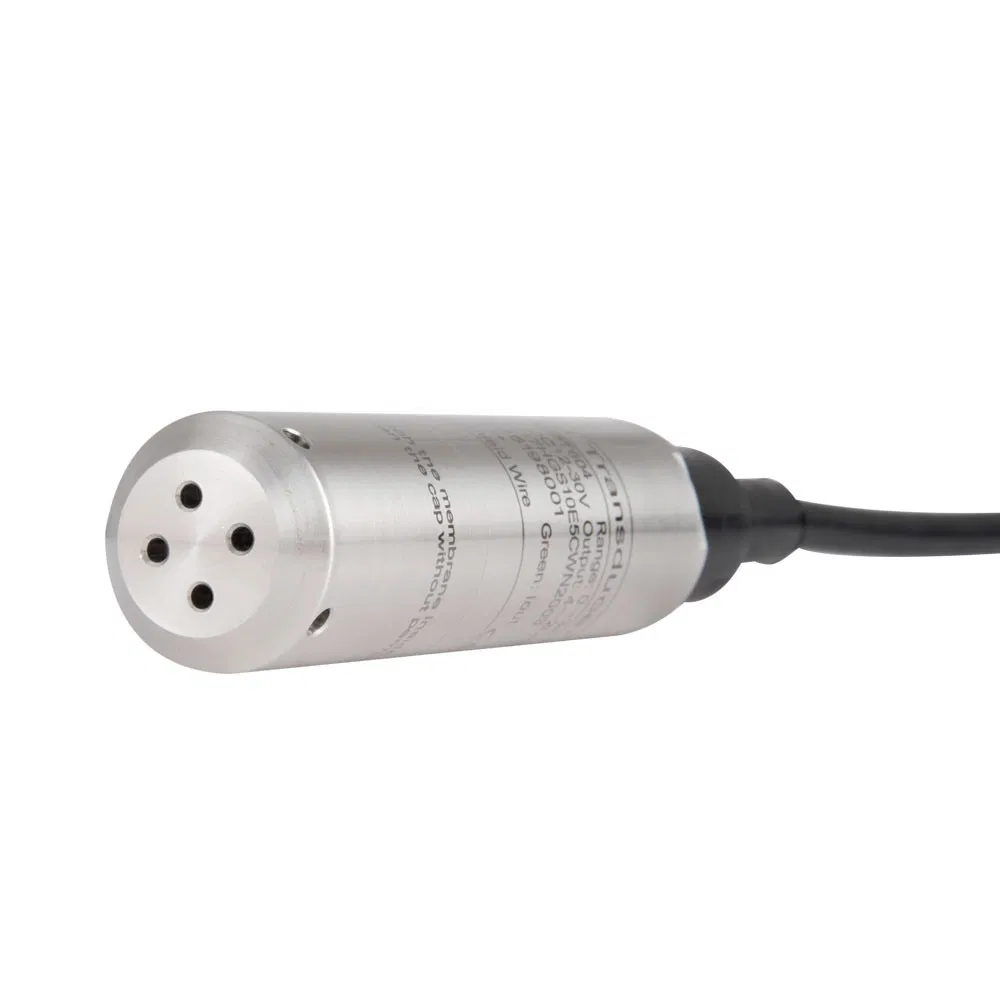

3. The unique design of 8 hole and The unique filter design, it Can effectively filter out impurities,prevent blockage, prevent shock; Prevent plugging rate increases more than 80%.
Specificate of Seawater level sensor
Name | HPT604 seawater wastewater level sensor | |||||
Measurement Range | 0...1…500mH2O price for 5m 420ma | |||||
Overload pressure | 1.5 times rated pressure | |||||
Failure pressure | 3 times rated pressure | |||||
Accuracy | ±0.15%F.S, ±0.25%F.S, ±0.5%F.S | |||||
Stability | Typical value: 0.1%F.S, Maximum value: 0.2%F.S | |||||
Operation temperature | -40~85 or -40~100(Customized) | |||||
Compensation temperature | -10~70 or 20~80(Customized) | |||||
Medium compatibility | All corrosive medium compatible with 1Cr18Ni9Ti and 316L | |||||
Electrics feature | Two-wire type | Three-wire type | Four-wire type | |||
Signal output | 4~20mA | 0/1~5V | 0~10V | 0.5~4.5V | 0~100mV/V | RS485/EIA485 |
Power supply | 12~36Vdc | 10~36Vdc/ac | 15~36Vdc/ac | 5Vdc | 10Vdc | 10~30Vdc |
Load resistance | (U-10)/0.02(Ω) | >100kΩ | ||||
Insulate | >100MΩ@100V | |||||
Electrics connector | Waterproof fixed cover + bipolar cycle matrix + sealing ring | |||||
+ sealgum + glue feed, etc,five rank sealed. | ||||||
protection rank: IP68 | ||||||
Pressure junction | Various embedded structures suit to different applications 1/8, 1/4 or 1/2 | |||||
Response time | ≤10 ms (standard); ≤1 ms (Customized) | |||||
Pressure form | Gauge pressure: G, Absolute pressure: A | |||||
Certification | Explosion proof certification, CE certification. Rosh certification | |||||
Order information : Range :0-5m , Output :4-20mA , Power supply:12-30VDC ,Process connection: Filter cover ,Electronic Connector:Directly cable
Applications : Lift station monitoring,Tank liquid level,Landfill leachate monitoring
Construction by-pass pumping,Dewatering,Pump control,Slurry tank liquid level
Wastewater,Fuel tank. Fuel tanker
How to place an order
1:How long will you give me the reply?
we will contact you in 30mins as soon as we can.
2:Could I get samples?
Price is for 5m range 420ma 5 m PE cable with vents , If you want to order other specification ,you can contacts us directly ,we will reply you 24 hours online .
3:If I have paid,when will you help me to produce?
When we have received the money in our account,we will give you the receipt and arrange to produce immediately
4:How to pay for that ?
Of We could accept T/T,Paypal,WU ,Credit Assurance.
You will get full protection for your orders ,More details Kindly click Trade Assurance
