Tactical Grade Integrated Mems Accelerometer and Gyroscope Heading Sensing Inertial Measurement Unit

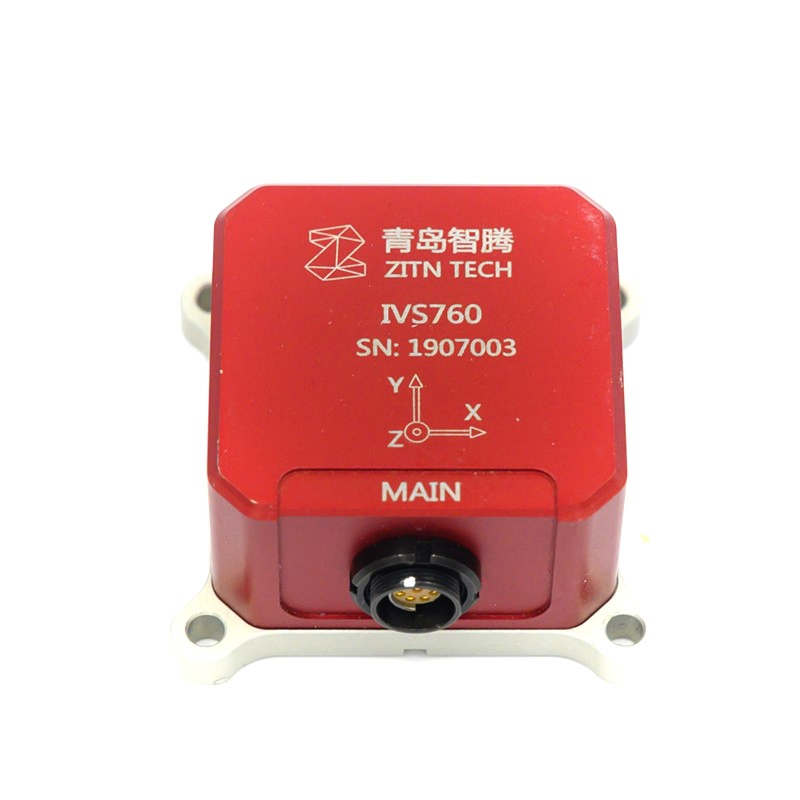

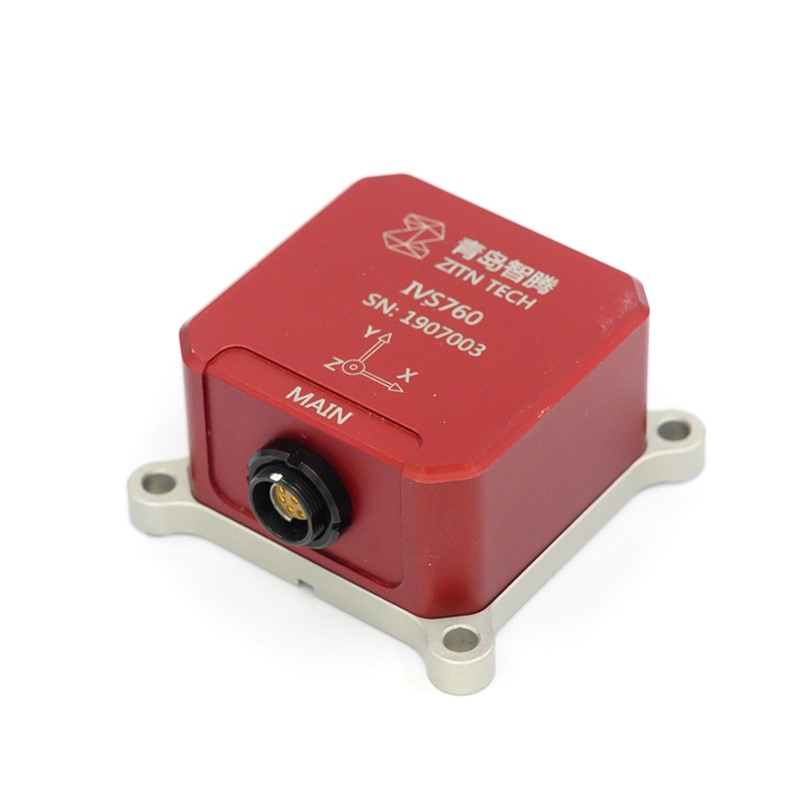

Product DescriptionInertial Measurement Unit (IMU) Our IMU is a cost-effective high performance Attitude and Heading Reference System (AHRS).It contains the best in class magnetic calibration procedure for optimal heading, and It is suitable for low to medium dynamic applications.Factory calibrated ......
Send Inquiry

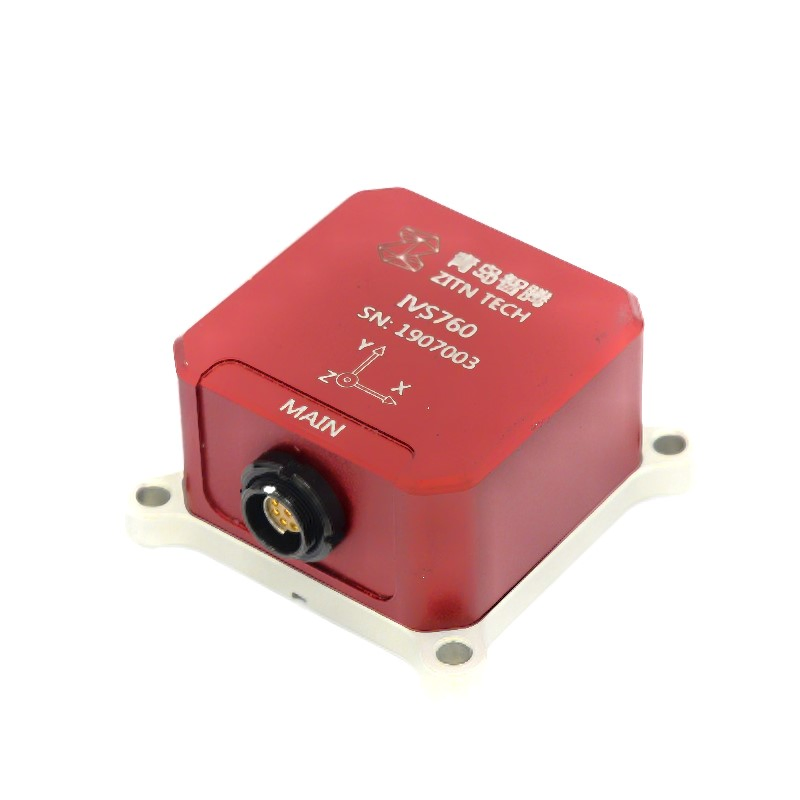

Product Description
Our IMU is a cost-effective high performance Attitude and Heading Reference System (AHRS).
It contains the best in class magnetic calibration procedure for optimal heading, and It is suitable for low to medium dynamic applications.
Factory calibrated from -40 to 85°C, this robust inertial motion sensor provides Roll, Pitch, Heading, and Heave data.
- 0.1° Roll and Pitch over 360°
- 0.5° Heading (Internal Magnetometers
- Support OEM
- New Generation Technology based on more than 15 years experience in the inertial sensor area.
- High temperature non-magnetic turntable equipment

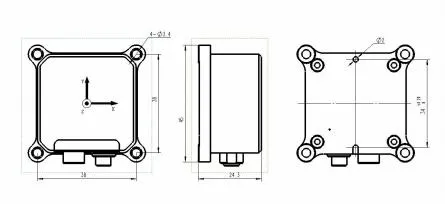

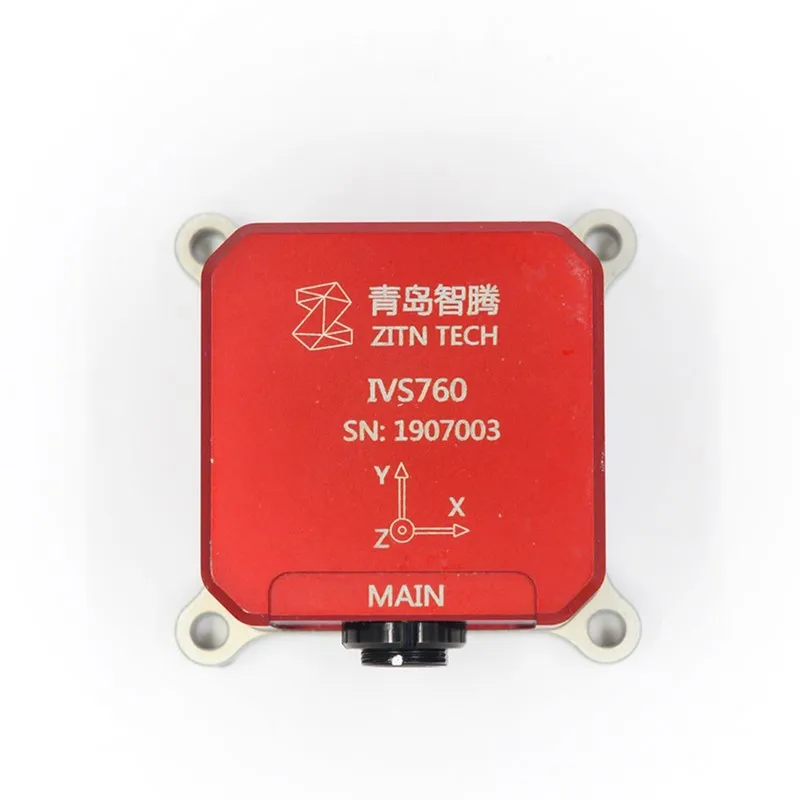

Mechanical drawing and definition for pins:
Items | standard | note |
| Heading | ||
| Input range(°) | ±180 | |
| Accuracy(°) | <1.5° | 1σ |
| Resolution rate (°) | 0.01 | |
| Horizontal attitude | ||
| Input range: Roll,pitch(°) | ±180 | |
| Accuracy (°) | <0.2° | 1σ |
| Resolution rate (°) | 0.01 | |
| Position accuracy | ||
| Horizontal accuracy(m) | 2.5 | 1σ |
| vertical accuracy(m) | 2.5 | 1σ |
| Speed accuracy | ||
| Horizontal accuracy(m/s) | 0.1m/s | 1σ |
| Vertical accuracy(m/s) | 0.1m/s | 1σ |
| Angular velocity | ||
| Input range: X,Y,Z (°/sec) | ±300 | Standard |
| Zero Absolute error(°/sec) | <0.02 deg/s | |
| Zero instability((°/hr) | 10 | Allen variance, H precision optional |
| Resolution rate (°/sec) | 0.001 | |
| ARW (°/√hr) | <0.1 | |
| Accelerated Speed | ||
| Input Range: X,Y,Z(g) | ±20g | |
| Bias Instability(mg) | <2mg | Working temperature area |
| Resolution rate (mg) | <0.1mg | |
| Bandwidth | ||
| Sensor bandwith | 60Hz | Internal filter,can adjustable |
| Working environment | ||
| Electric shock | 200g@5ms | |
| Non electric shock | [email protected] | |
| Shock resistance | 20g rms | Random 20Hz-2kHz |
| Working temperature | -40°C ~85°C | |
| Electrical interface | ||
| Input voltage (DCV) | 5~36 | |
| Size(mm) | 38*38*24 | |
| Quantity(g) | <55 | |
| Interface type | 9Pin | |
| Model No. | Structure | with GNSS accuracy | Accuracy |
| ANS 900 | 3 axis Mag+Acc+Gy+GNSS+Tem | 0.1°/0.1°/0.5° pitch/roll/heading | / |
| AVS900 | 3 axis Mag+Acc+Gy+Tem | / | 0.1/0.1/0.1 |
| IVS900 | 3 Acc+Gy+Tem | / | 10°/hr |
