Air O3 Monitor Gas Module Ozone Sensor
This module USES a simple circuit to convert the change of electrical conductivity into the voltage signal corresponding to the gas concentration for output. The electrical conductivity of the sensor decreases with the increase of ozone gas concentration in the air.Good sensitivity to ozone in a wid......
Send Inquiry
Product Description
This module USES a simple circuit to convert the change of electrical conductivity into the voltage signal corresponding to the gas concentration for output. The electrical conductivity of the sensor decreases with the increase of ozone gas concentration in the air.Good sensitivity to ozone in a wide range of concentrations, long life, low cost.
| Product name | O3 gas sensor |
| Working voltage | DC24V |
| Working current | <150mA |
| Working temperature | - 10 ~ 50 ºC |
| Working humidity | < 95% RH |
| Detection substance | O3 gas |
| Detection range | 10-1000ppb |
| Output signal | Default 0-10v (customizable 0-5v) |
| Recovery time | ≤60S |
| Response time | >3s |
| Preheat time | >2 hours |
| Zero voltage (Vo) | 1.5v ~3V (Aout output voltage in clean air) |

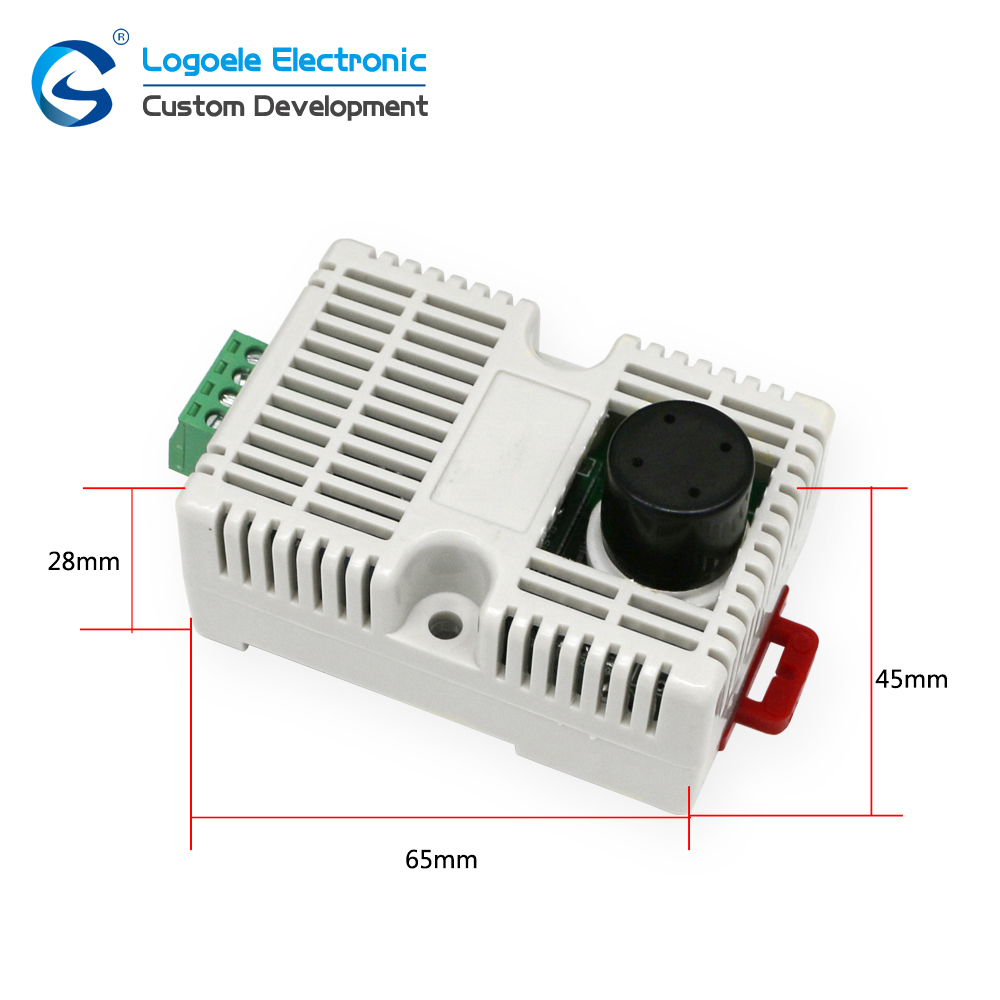

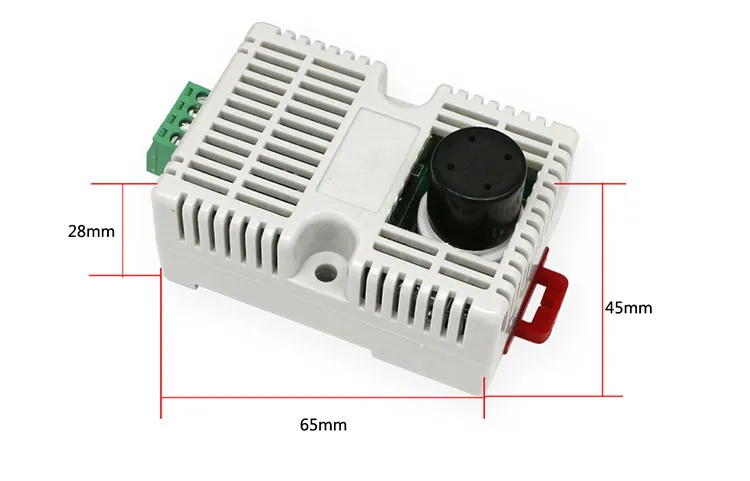

| Product size | 65mm*45mm*40mm |
| Application | household ozone overconcentration alarm, industrial ozone overconcentration alarm and portable ozone detection. |
